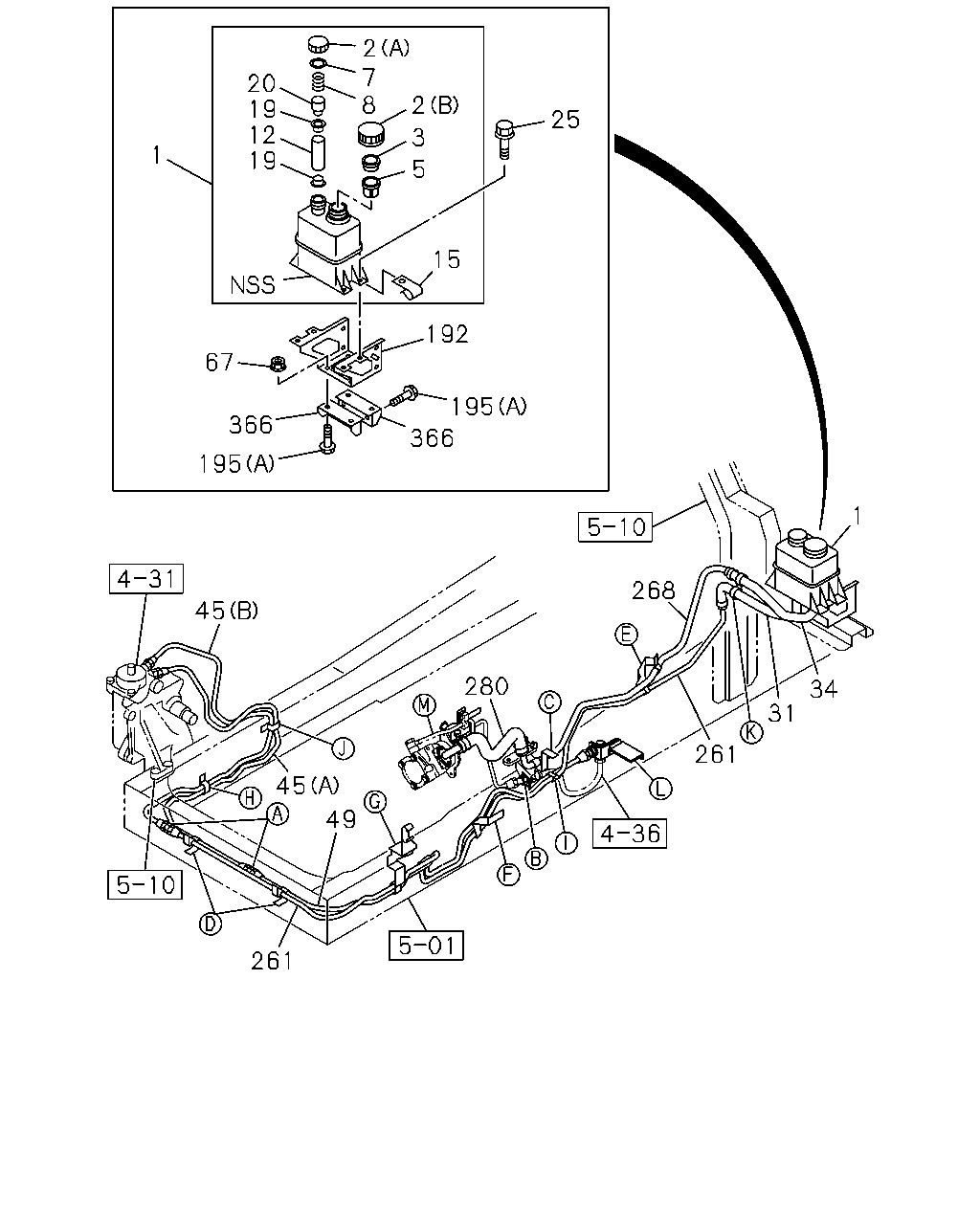

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#123116) — 95 parça

1 20 19 19 12 2 7 8 2 3 5 25 15 192 195 366 366 195 67 45 261 45 49 280 268 261 31 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1306-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1306-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1306-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1306-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1306-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1306-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1306-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1306-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1306-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1306-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1306-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1306-
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1306-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1306-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98240-513-0	01	1	1306-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98240-515-0	01	1	1306-
49	PIPE; OIL,FLEX HOSE TO UNION	8-98226-732-0	01	1	1306-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1306-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1306-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1306-
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1306-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1306-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1306-
261	PIPE; OIL,UNION TO HOSE	8-98226-735-0	01	1	1306-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1306-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1306-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1306-

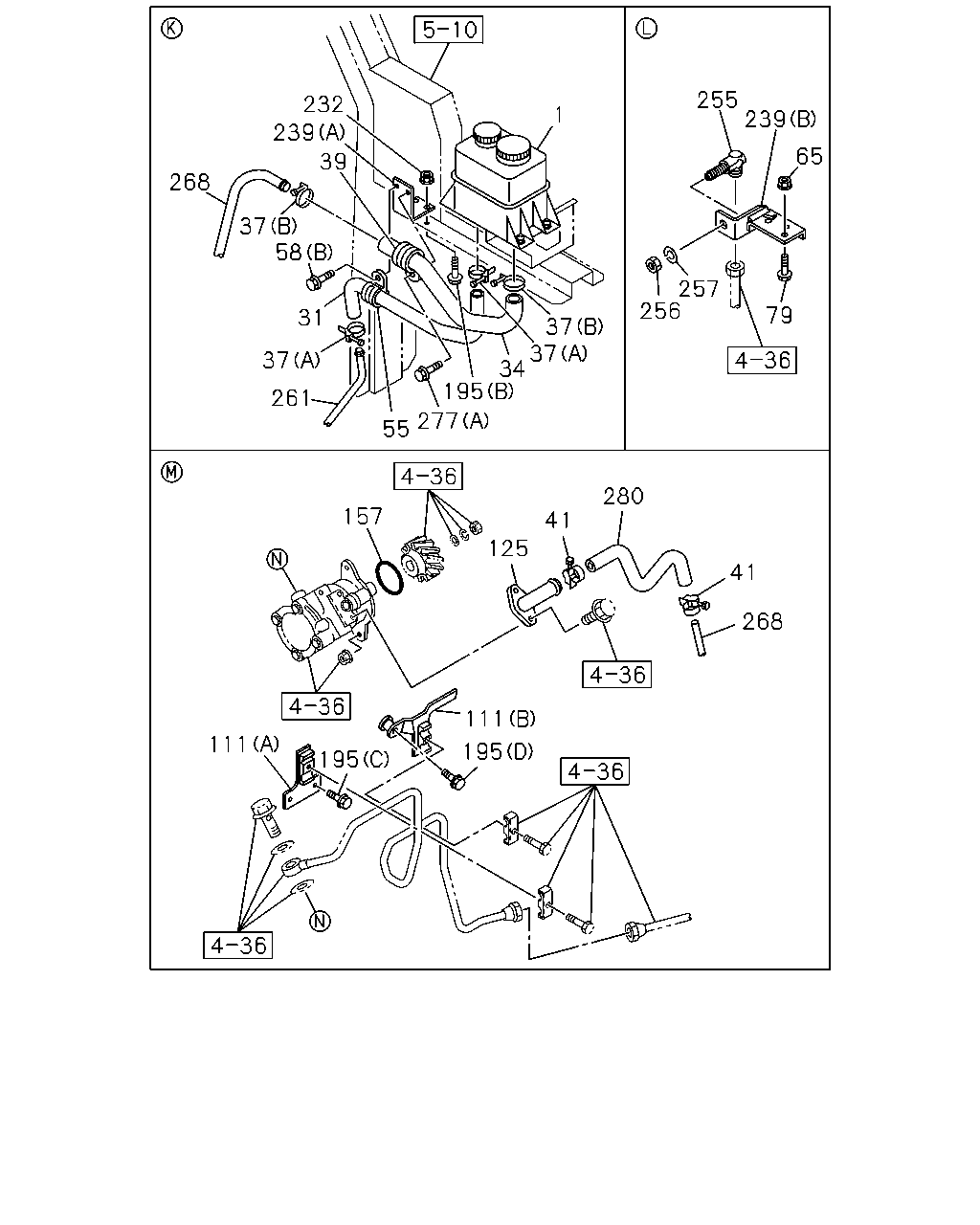

268 37 31 58 39 239 232 1 37 261 55 277 195 34 37 37 256 257 65 79 239 255 157 125 280 41 268 195 111 195 111 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1306-
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1306-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1306-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1306-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1306-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1306-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1306-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1306-
58	BOLT; CLIP (A) M10X25 FLANGE	0-28651-025-0	02	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1306-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1306-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1306-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1306-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1306-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1306-
195	BOLT; BRKT (D) M10X35 FLANGE	0-28151-035-0	01	1	1306-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1306-
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1306-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1306-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	1306-
239	BRACKET; FLEX HOSE (B)	8-98144-458-1	01	1	1306-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	1306-
256	NUT; UNION M22	0-91111-522-0	01	1	1306-
256	NUT; UNION M22	0-91111-522-0	01	1	1306-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-
261	PIPE; OIL,UNION TO HOSE	8-98226-735-0	01	1	1306-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98226-736-0	01	1	1306-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1306-
280	HOSE; P/S OIL PUMP,INL	1-21117-831-0	01	1	1306-

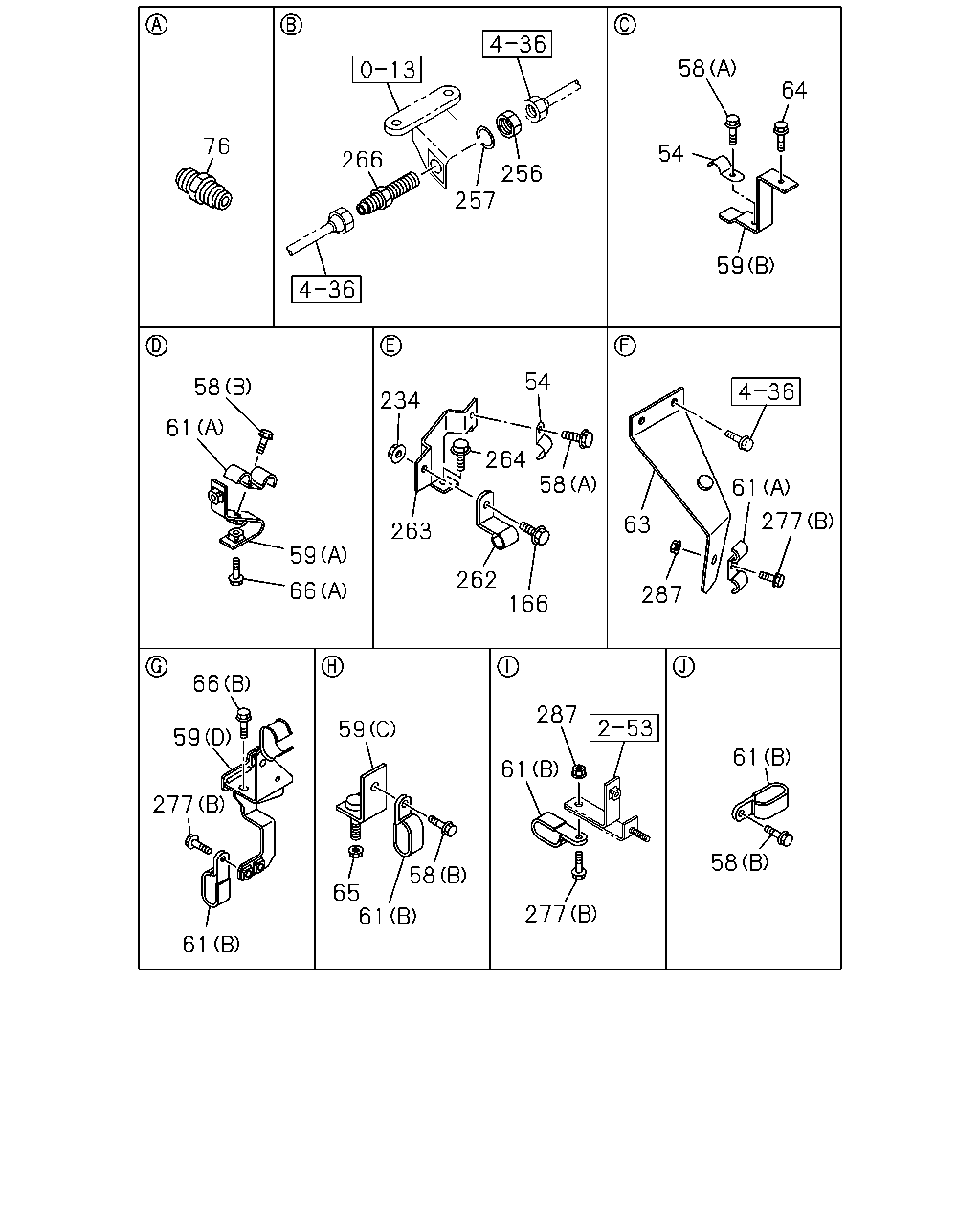

266 257 256 76 58 61 59 66 263 234 54 264 262 166 58 54 58 64 59 61 63 287 277 61 58 277 61 287 58 61 65 59 61 277 59 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE ID=23.6 L=35	1-09700-634-0	02	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1306-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	04	1	1306-
58	BOLT; CLIP (A) M10X25 FLANGE	0-28651-025-0	02	1	1306-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	1306-
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1306-
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1306-
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1306-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1306-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1306-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1306-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1306-
63	BRACKET; CLIP,P/S	1-47471-146-0	01	1	1306-
64	BOLT; CLIP BRKT M8X30 FLANGE	0-28050-830-0	01	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1306-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1306-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1306-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1306-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1306-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1306-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1306-
256	NUT; UNION M22	0-91111-522-0	01	1	1306-
256	NUT; UNION M22	0-91111-522-0	01	1	1306-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1306-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1306-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	1306-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1306-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1306-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1306-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1306-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1306-
