◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11502 - EXR RHD EURO2 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25B - REAR FINAL DRIVE ▶
4-25B — REAR FINAL DRIVE (#123112) — 167 parça

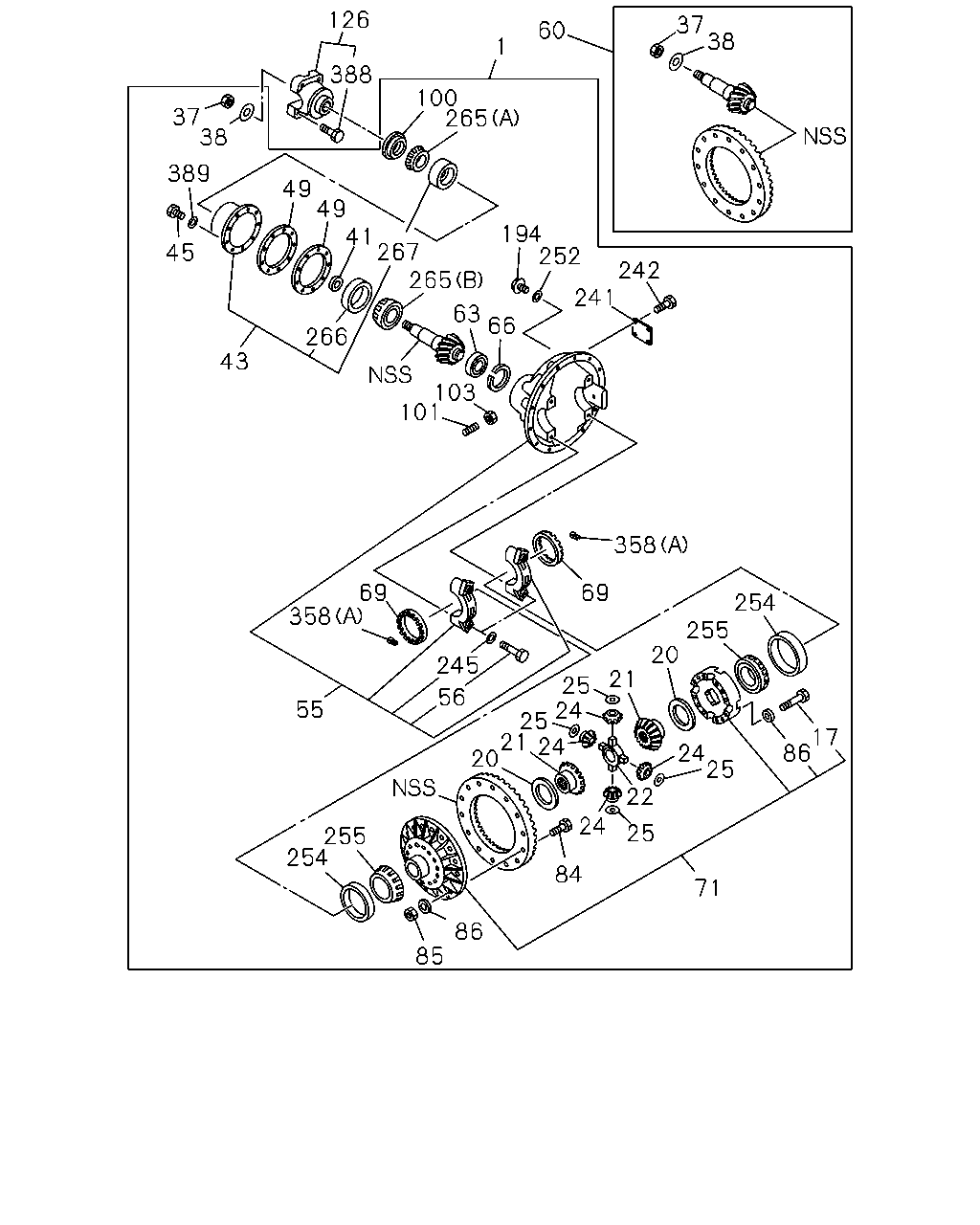

çizim 365569
242 241 252 194 265 267 41 49 49 1 100 265 63 66 103 101 266 43 45 38 37 389 126 388 60 37 38 358 69 25 24 25 21 20 56 245 69 55 358 20 21 24 25 22 25 24 84 24 255 86 17 254 86 85 255 254 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-929-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
44/9 		1-41002-928-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-927-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-930-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
41/10 		1-41002-931-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/11 		1-41002-932-0 01 1 1306- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1306- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1306- ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 1306- ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1306- ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1306- ● ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1306- ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1306- ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41210-689-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-372-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-373-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-374-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-375-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-376-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-377-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-378-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-379-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-380-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-381-0 01 1 1306- ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-103-0 01 1 1306- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 1306- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-115-0 AR 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-116-0 AR 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-117-0 AR 1 1306- ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-127-0 01 1 1306- ● ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1306- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-685-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-686-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-687-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-684-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
41/10 		1-41210-683-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		1-41210-682-0 01 1 1306- ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 1306- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 1306- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 1306-1411 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 1412- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 1306-1411 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 1412- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-312-0 01 1 1306- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-313-0 01 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 1306- ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 16 1 1306- ● ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 28 1 1306- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1306- ● ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 1306- ● ● ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 1306- ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-373-0 01 1 1306- ● ● ● ● ● ●
194 PLUG 1-41119-072-0 01 1 1306- ● ● ● ● ● ●
241 COVER; SHIFT HSG 1-48269-220-0 01 1 1306- ● ● ● ● ● ●
242 BOLT; COVER 1-48269-260-0 04 1 1306- ● ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1306- ● ● ● ● ● ●
252 GASKET; CARRIER
DIFF LOCK(C3N) 		1-48269-219-0 02 1 1306- ● ● ● ● ● ●
252 GASKET; CARRIER
EXC. DIFF LOCK(C3N) 		1-48269-219-0 01 1 1306- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 1306-1411 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 1412- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 1306-1411 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 1412- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 1306-1411 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 1412- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 1306-1411 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 1412- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1306- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-135-0 01 1 1306- ● ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-137-0 01 1 1306- ● ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-136-0 01 1 1306- ● ● ● ● ● ●
358 PIN; SPR
(A) 		1-41129-020-0 02 1 1306- ● ● ● ● ● ●
358 PIN; SPR
DIFF LOCK(C3N) (B) 		1-48269-218-0 01 1 1306- ● ● ● ● ● ●
388 BOLT; COUPLING
M14X48.5 		1-09046-013-0 04 1 1306- ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 1306- ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 1306- ● ● ● ● ● ●

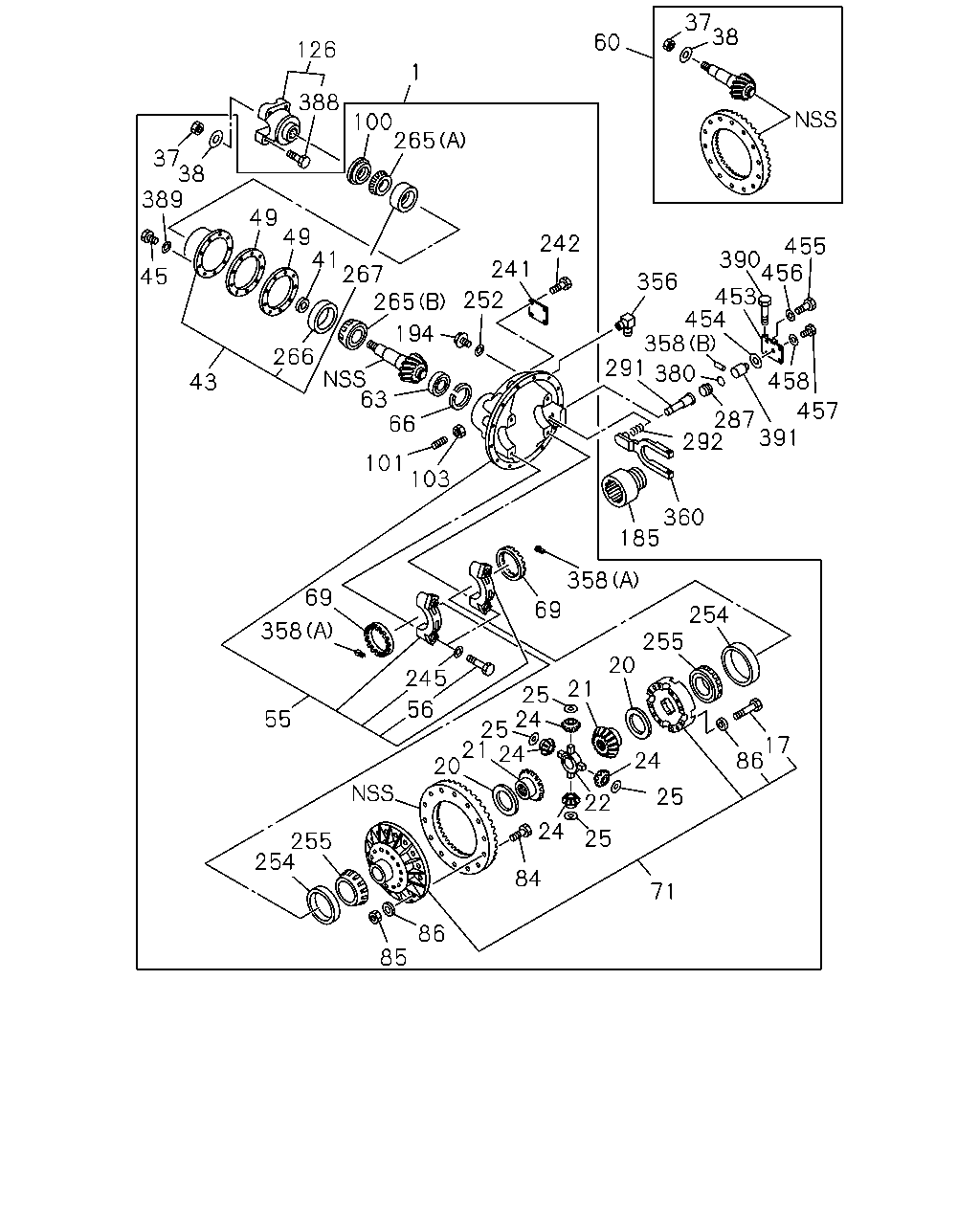

çizim 367366
358 291 292 287 360 185 391 457 458 456 453 454 390 455 356 380 254 255 20 21 25 24 25 21 20 24 24 25 25 24 22 86 17 71 84 86 255 254 55 358 43 69 103 101 66 63 266 41 49 49 38 37 389 45 126 1 388 265 100 267 194 265 252 241 242 60 37 38 358 69 245 56 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DRIVE ASM; FINAL,RR
41/9 		1-41002-929-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
44/9 		1-41002-928-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/8 		1-41002-927-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/10 		1-41002-930-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
41/10 		1-41002-931-0 01 1 1306- ●
1 DRIVE ASM; FINAL,RR
43/11 		1-41002-932-0 01 1 1306- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 1306- ● ● ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 1306- ● ● ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 1306- ● ● ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 1306- ● ● ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 1306- ● ● ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 1306- ● ● ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 1306- ● ● ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41210-689-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-372-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-373-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-374-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-375-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-376-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-377-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-378-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-379-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-380-0 01 1 1306- ● ● ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-381-0 01 1 1306- ● ● ● ● ● ●
43 CAGE; FINAL PINION 1-41151-103-0 01 1 1306- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 1306- ● ● ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-115-0 AR 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-116-0 AR 1 1306- ● ● ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-117-0 AR 1 1306- ● ● ● ● ● ●
55 CARRIER; DIFF 1-41110-127-0 01 1 1306- ● ● ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 1306- ● ● ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-685-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
44/9 		1-41210-686-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/8 		1-41210-687-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/10 		1-41210-684-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
41/10 		1-41210-683-0 01 1 1306- ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		1-41210-682-0 01 1 1306- ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 1306- ● ● ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 1306- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 1306-1411 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 1412- ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 1306-1411 ● ● ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 1412- ● ● ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-312-0 01 1 1306- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-313-0 01 1 1306- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 1306- ● ● ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 16 1 1306- ● ● ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 28 1 1306- ● ● ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 1306- ● ● ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 1306- ● ● ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 1306- ● ● ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-373-0 01 1 1306- ● ● ● ● ● ●
185 COLLAR; SHIFT FORK
DIFF LOCK(C3N) 		1-48269-210-0 01 1 1306- ● ● ● ● ● ●
194 PLUG 1-41119-072-0 01 1 1306- ● ● ● ● ● ●
241 COVER; SHIFT HSG 1-48269-220-0 01 1 1306- ● ● ● ● ● ●
242 BOLT; COVER 1-48269-260-0 04 1 1306- ● ● ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 1306- ● ● ● ● ● ●
252 GASKET; CARRIER
DIFF LOCK(C3N) 		1-48269-219-0 02 1 1306- ● ● ● ● ● ●
252 GASKET; CARRIER
EXC. DIFF LOCK(C3N) 		1-48269-219-0 01 1 1306- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 1306-1411 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 1412- ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 1306-1411 ● ● ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 1412- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 1306-1411 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 1412- ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 1306-1411 ● ● ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 1412- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 1306- ● ● ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-135-0 01 1 1306- ● ● ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-137-0 01 1 1306- ● ● ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-136-0 01 1 1306- ● ● ● ● ● ●
287 PISTON; SHIFT UNIT
DIFF LOCK(C3N) 		1-48262-029-0 01 1 1306- ● ● ● ● ● ●
291 ROD; PUSH
DIFF LOCK(C3N) 		1-48269-211-0 01 1 1306- ● ● ● ● ● ●
292 SPRING; PISTON
DIFF LOCK(C3N) 		1-48265-012-0 01 1 1306- ● ● ● ● ● ●
356 NIPPLE; SHIFT UNIT
DIFF LOCK(C3N) 		1-09650-490-0 01 1 1306- ● ● ● ● ● ●
358 PIN; SPR
(A) 		1-41129-020-0 02 1 1306- ● ● ● ● ● ●
358 PIN; SPR
DIFF LOCK(C3N) (B) 		1-48269-218-0 01 1 1306- ● ● ● ● ● ●
360 FORK; SHIFT
DIFF LOCK(C3N) 		1-48269-207-0 01 1 1306- ● ● ● ● ● ●
380 GASKET; PISTON
DIFF LOCK(C3N) 		1-48269-215-0 01 1 1306- ● ● ● ● ● ●
388 BOLT; COUPLING
M14X48.5 		1-09046-013-0 04 1 1306- ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 1306- ● ● ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 1306- ● ● ● ● ● ●
390 BOLT; CAGING
DIFF LOCK(C3N) 		1-48269-213-0 01 1 1306- ● ● ● ● ● ●
391 CYLINDER; SHIFT
DIFF LOCK(C3N) 		1-48269-206-0 01 1 1306- ● ● ● ● ● ●
453 COVER; CYLINDER
DIFF LOCK(C3N) 		1-48269-212-0 01 1 1306- ● ● ● ● ● ●
454 GASKET; CYLINDER
DIFF LOCK(C3N) 		1-48269-208-0 01 1 1306- ● ● ● ● ● ●
455 BOLT; CYLINDER COVER
DIFF LOCK(C3N) 		1-48269-216-0 04 1 1306- ● ● ● ● ● ●
456 WASHER; CYLINDER COVER
DIFF LOCK(C3N) 		1-48269-217-0 04 1 1306- ● ● ● ● ● ●
457 CAP; SCREW,DIFF LOCK
DIFF LOCK(C3N) 		1-48269-214-0 01 1 1306- ● ● ● ● ● ●
458 GASKET; CYLINDER CAP
DIFF LOCK(C3N) 		1-48269-209-0 01 1 1306- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
