3-78 — FIXING PARTS; AIR PIPING (#123104) — 138 parça

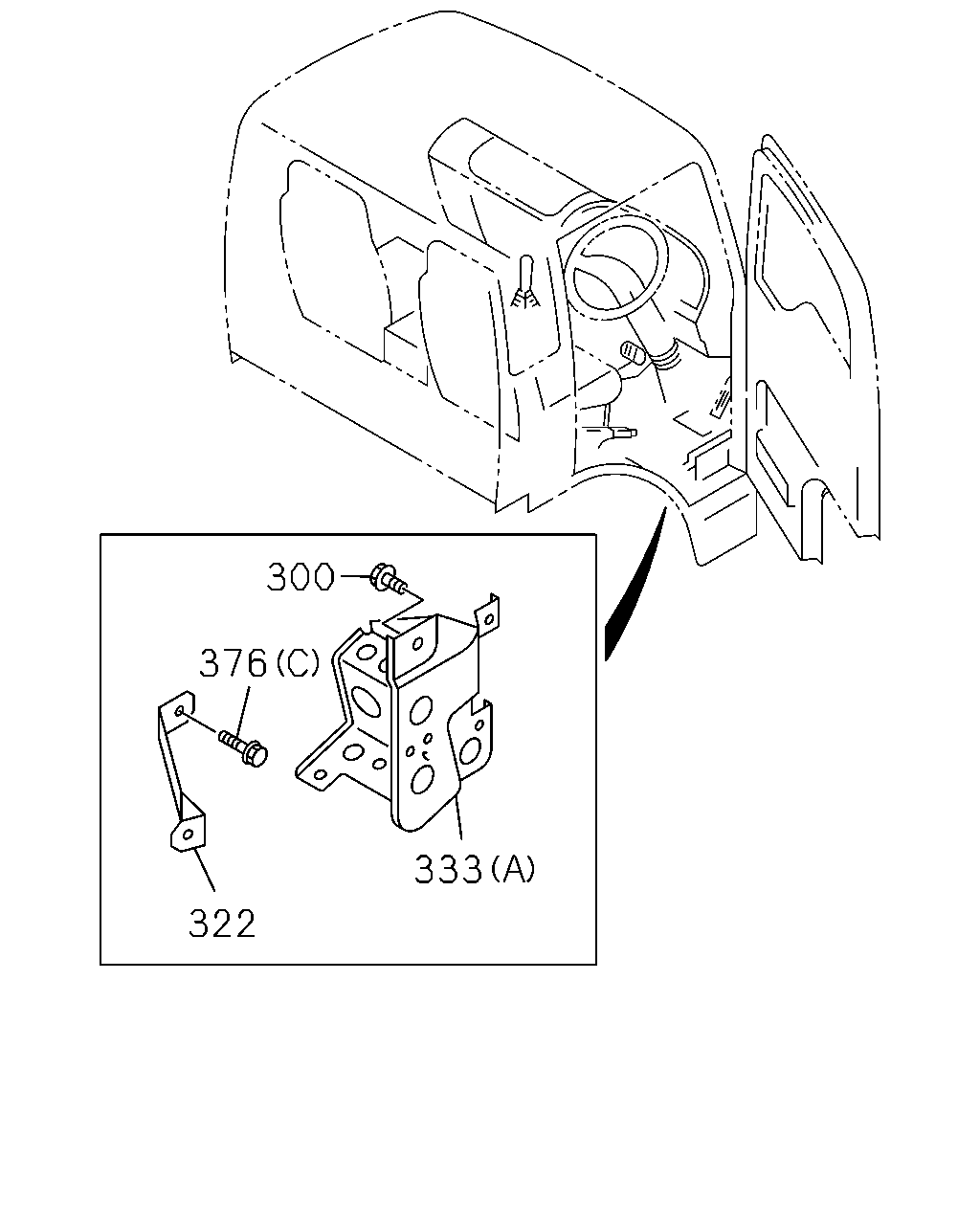

çizim 363576
300 376 322 333
BalonParca AdiParca NoAdetTipApplied Date
300 BOLT; TUBE CLIP
CAB SUSPENSION-FULL FLOATING(SMK) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1306-
322 BRACKET; CLIP 8-98227-231-0 01 1 1306-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 1306-
333 BRACKET; BRK AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (A) 		1-79907-150-0 01 1 1306-
376 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
çizim 363613
47 108 108 286 357 60
BalonParca AdiParca NoAdetTipApplied Date
47 BRACKET; PIPE CLIP 8-98226-739-0 01 1 1306-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1306-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1306-
286 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) ID=15 L=28 		1-09701-216-0 01 1 1306-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 01 1 1306-

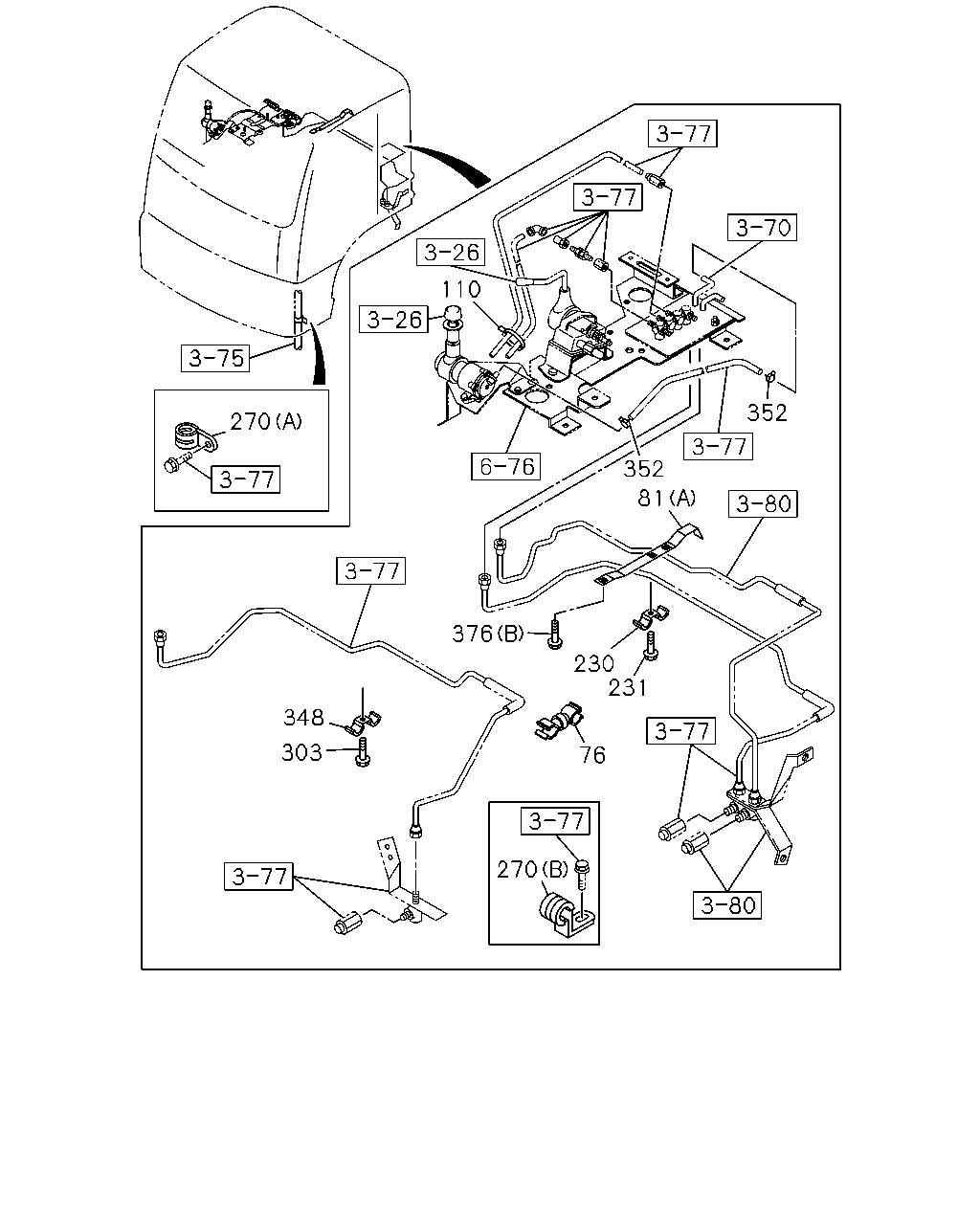

çizim 364388
270 348 303 270 76 231 230 376 81 352 352 110
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
ID=6 & 8.3 		8-94167-742-0 02 1 1306-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1306-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 1306-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1306-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1306-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1306-
81 BRACKET; CLIP
(C) 		8-98052-414-0 01 1 1306-
81 BRACKET; CLIP
(G) 		8-98052-415-0 01 1 1306-
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1306-
110 CLIP; BAND,NYLON TUBE
L=140 		5-09707-031-1 02 1 1306-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 1306-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1306-
270 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 1306-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 1306-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1306-
376 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-

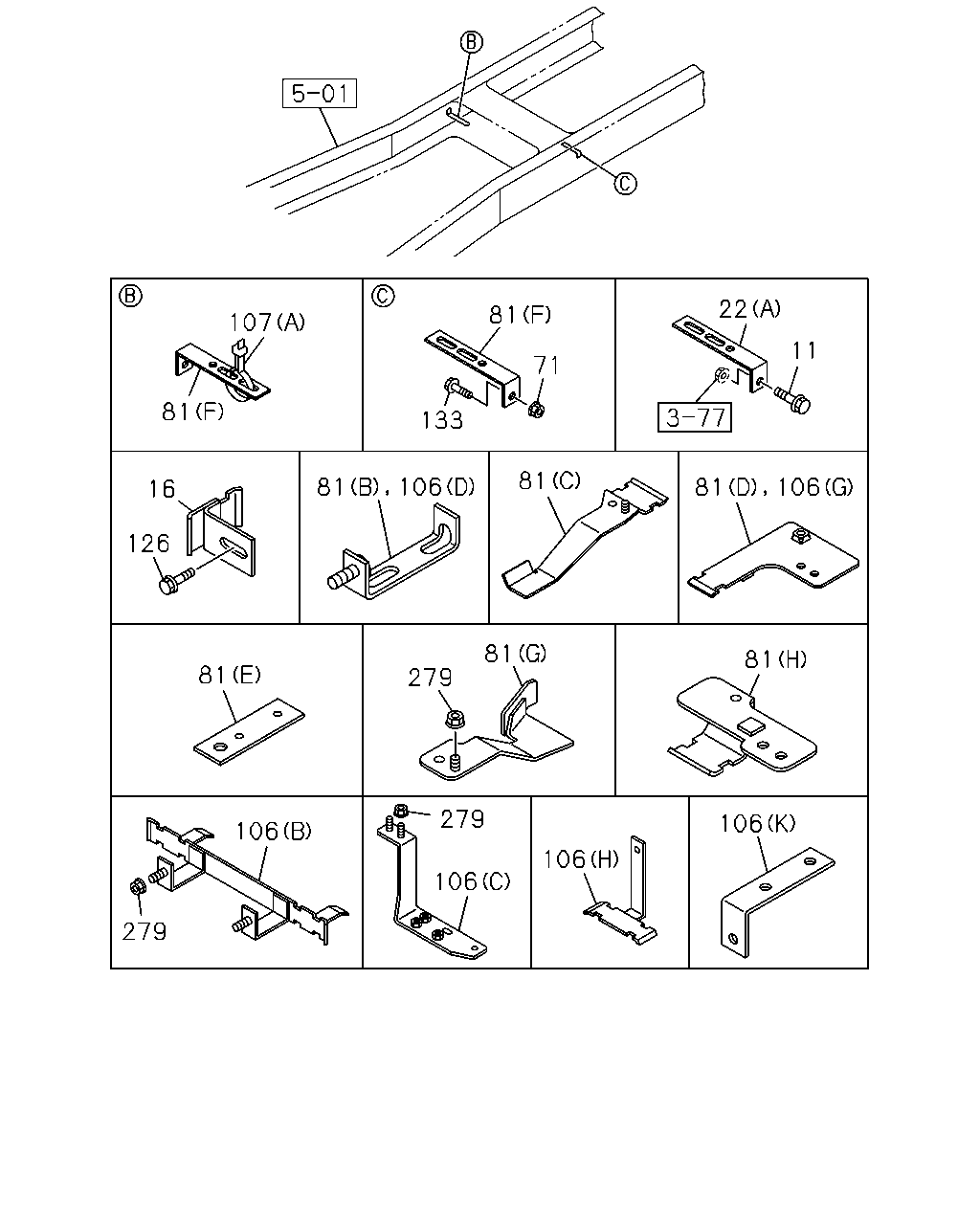

çizim 364430
107 81 16 126 81 81 106 81 133 71 22 11 81 81 106 279 81 81 279 106 279 106 106 106
BalonParca AdiParca NoAdetTipApplied Date
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 1306-
16 BRACKET; PIPE CLIP 1-47479-693-0 01 1 1306-
22 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 1306-
22 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 1306-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 1306-
81 BRACKET; CLIP
(E) L=150 		1-47471-217-0 02 1 1306-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 1306-
81 BRACKET; CLIP
(F) L=100 H=30 		1-47477-645-2 02 1 1306-
81 BRACKET; CLIP
(D) 		8-98052-412-0 01 1 1306-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 1306-
81 BRACKET; CLIP
(C) 		8-98052-414-0 01 1 1306-
81 BRACKET; CLIP
(G) 		8-98052-415-0 01 1 1306-
81 BRACKET; CLIP
(B) 		8-98061-758-0 02 1 1306-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1306-
106 BRACKET; TUBE CLIP
(K) L=82 B=20 		1-47478-420-0 01 1 1306-1404
106 BRACKET; TUBE CLIP
(K) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1306-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1306-
106 BRACKET; TUBE CLIP
(A) 		1-47479-870-0 01 1 1306-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1306-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1306-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1306-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1306-
106 BRACKET; TUBE CLIP
(D) 		8-98061-758-0 01 1 1306-
106 BRACKET; TUBE CLIP
(E) 		8-98226-741-1 01 1 1306-1312
106 BRACKET; TUBE CLIP
(E) 		8-98251-771-0 01 1 1401-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=39 H=28 L=32 		1-09701-263-0 02 1 1306-
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 1306-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1306-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 1306-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1306-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1306-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 1306-1312
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 09 1 1401-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 1306-

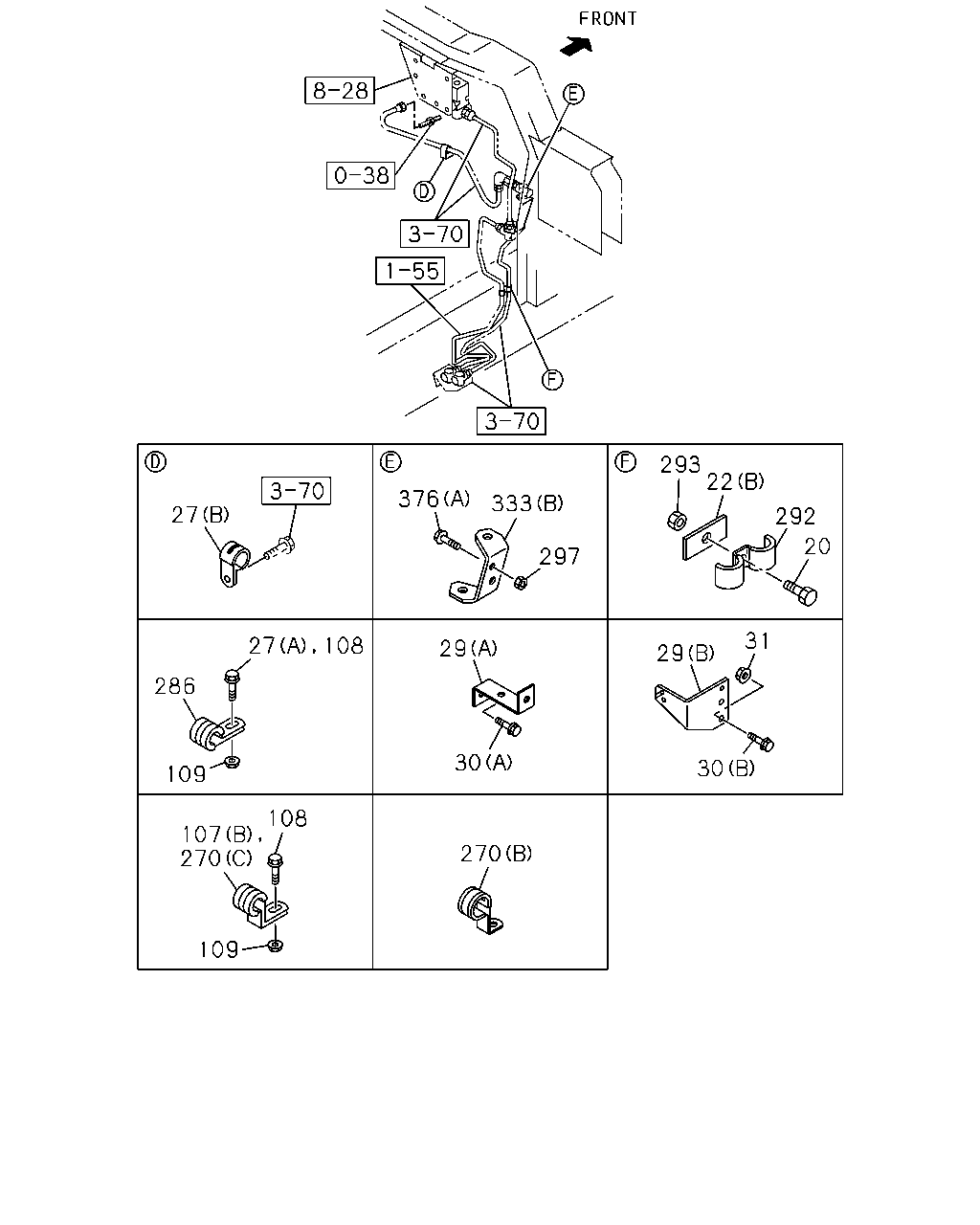

çizim 364451
27 376 333 297 293 292 20 29 31 30 30 29 27 108 286 109 107 108 270 270 109 22
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
22 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 1306-
22 BRACKET; CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 1306-
27 CLIP; FLEX HOSE
MJT7S M/T(Y3E) (A) ID=15 L=28 		1-09701-216-0 01 1 1306-
27 CLIP; FLEX HOSE
MJX16P M/T(Y3Z) (B) ID=11 L=50 		0-95235-085-0 01 1 1306-
29 BRACKET; CLIP,AIR PIPE
(A) 		1-47479-698-0 01 1 1306-
29 BRACKET; CLIP,AIR PIPE
(B) 		8-98169-621-1 01 1 1306-
30 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1306-
30 BOLT; CLIP BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 1306-
31 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
107 CLIP; NYLON TUBE
(B) ID=39 H=28 L=32 		1-09701-263-0 02 1 1306-
107 CLIP; NYLON TUBE
(B) ID=45 H=31 L=35 		1-09701-308-0 01 1 1306-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 14 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1306-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1306-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1306-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
109 NUT; TUBE CLIP
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 01 1 1306-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1306-
270 CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1306-
270 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 1306-
286 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) ID=15 L=28 		1-09701-216-0 01 1 1306-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1306-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1306-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 1306-
333 BRACKET; BRK AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (A) 		1-79907-150-0 01 1 1306-
376 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1306-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-

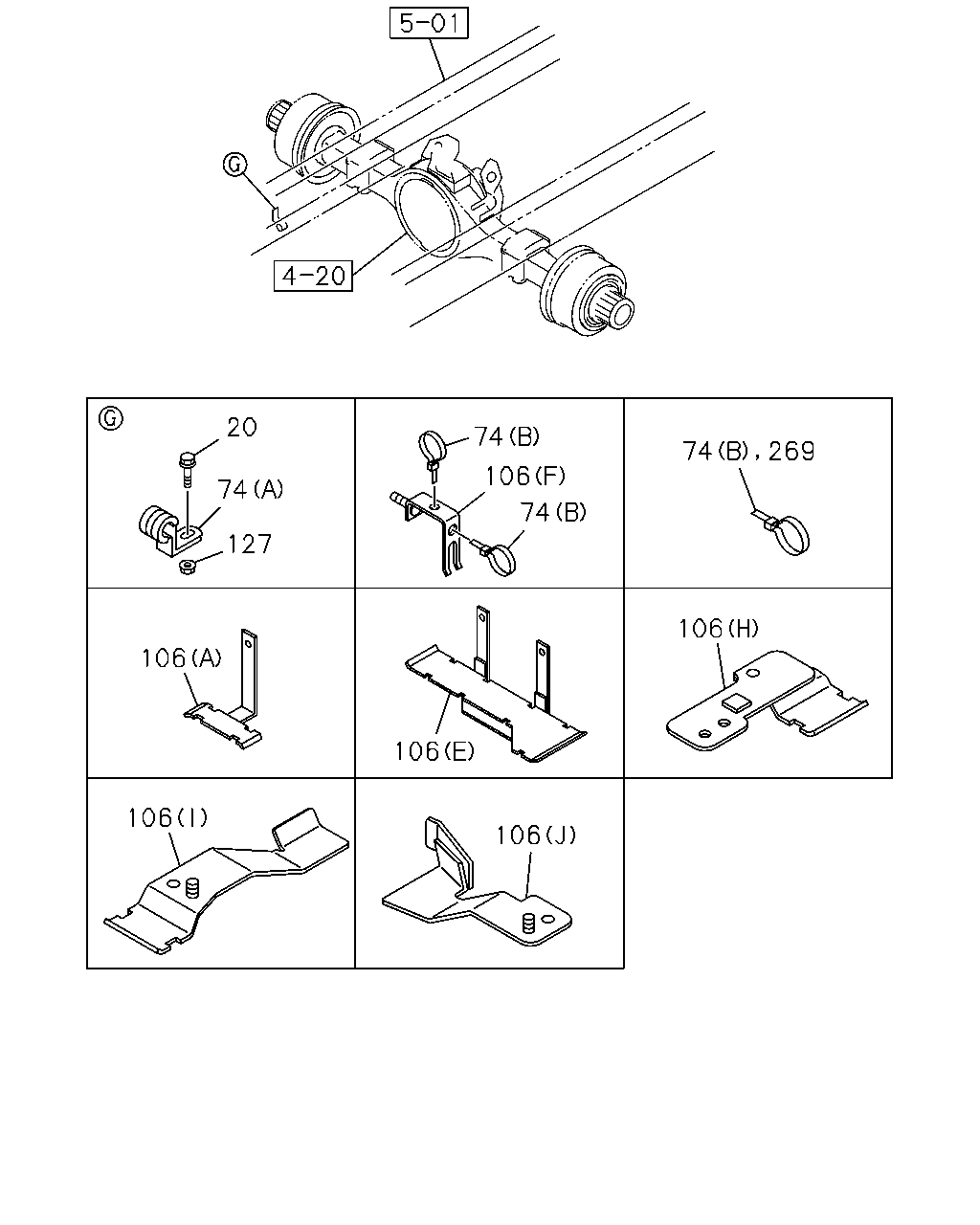

çizim 364476
20 74 127 74 74 106 74 269 106 106 106 106 106
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1306-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1306-
74 CLIP; NYLON TUBE
(A) ID=25 H=30 L=35 		1-09700-875-0 01 1 1306-
74 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
74 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 11 1 1306-
106 BRACKET; TUBE CLIP
(C) 		1-47471-108-0 01 1 1306-
106 BRACKET; TUBE CLIP
(K) L=82 B=20 		1-47478-420-0 01 1 1306-1404
106 BRACKET; TUBE CLIP
(K) L=82 B=20 		8-98259-390-0 01 1 1405-
106 BRACKET; TUBE CLIP
(F) 		1-47479-381-2 02 1 1306-
106 BRACKET; TUBE CLIP
(B) 		1-47479-553-0 01 1 1306-
106 BRACKET; TUBE CLIP
(A) 		1-47479-870-0 01 1 1306-
106 BRACKET; TUBE CLIP
(G) 		8-98052-408-0 01 1 1306-1412
106 BRACKET; TUBE CLIP
(G) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(H) 		8-98052-409-0 01 1 1306-
106 BRACKET; TUBE CLIP
(I) 		8-98052-410-0 01 1 1306-
106 BRACKET; TUBE CLIP
(J) 		8-98052-411-0 01 1 1306-
106 BRACKET; TUBE CLIP
(D) 		8-98061-758-0 01 1 1306-
106 BRACKET; TUBE CLIP
(E) 		8-98226-741-1 01 1 1306-1312
106 BRACKET; TUBE CLIP
(E) 		8-98251-771-0 01 1 1401-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1306-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 1306-
