3-70 — BRAKE PIPING; AIR,AIR MASTER (#123101) — 135 parça

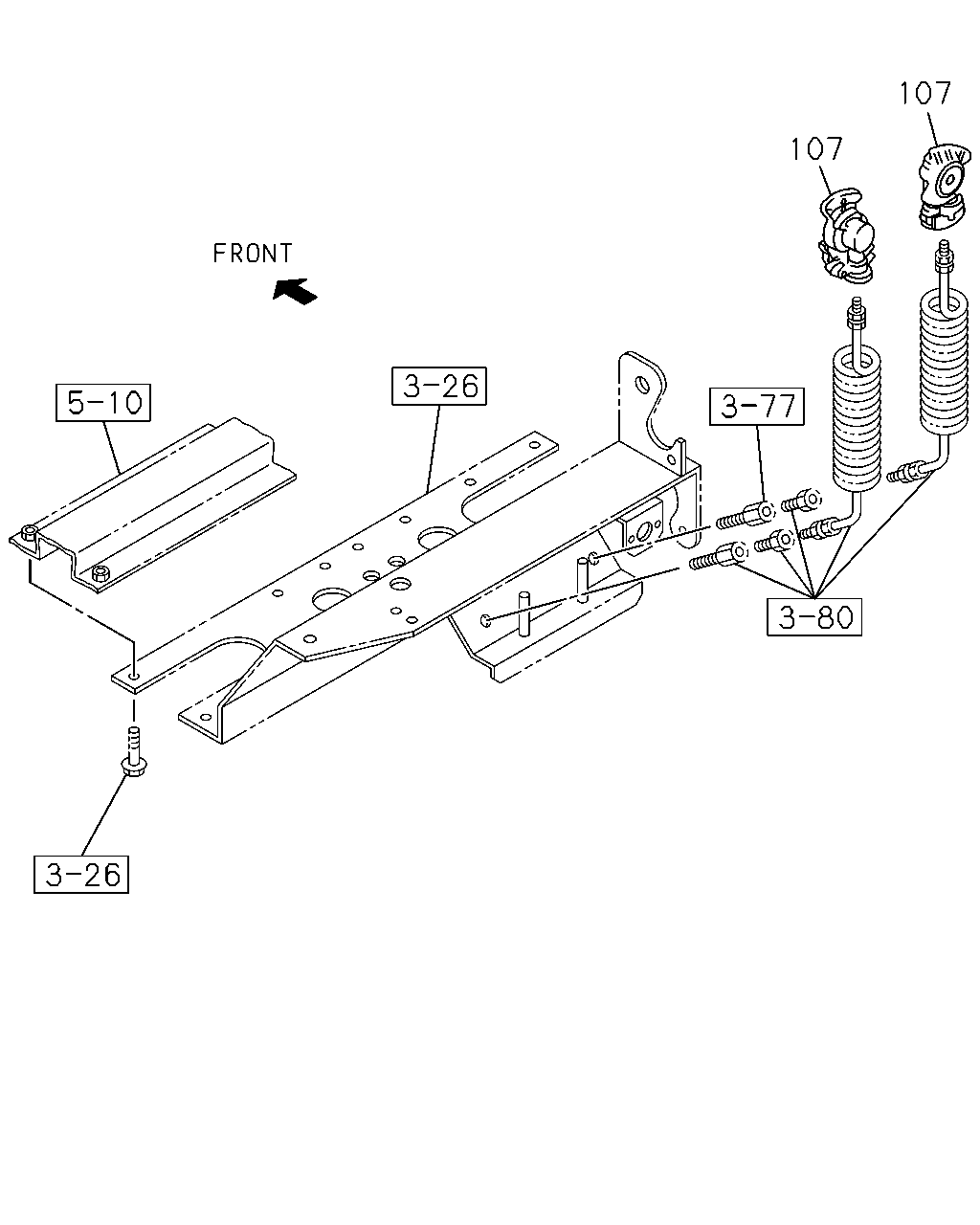

çizim 363572
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 1306-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 1306-

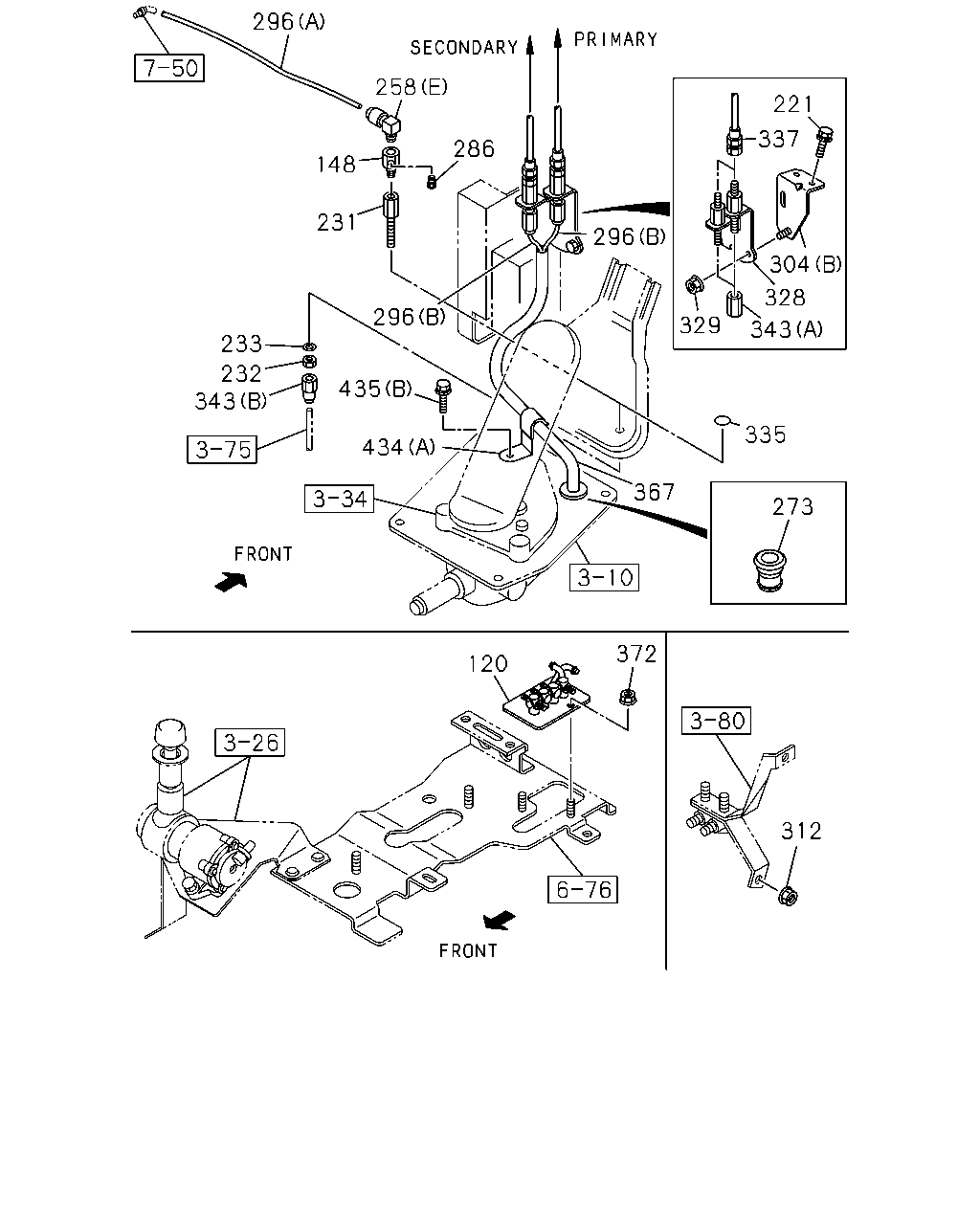

çizim 364481
312 372 120 367 273 335 434 435 343 232 233 296 231 148 286 258 296 296 329 343 328 304 337 221
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-604-0 01 1 1306-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) 		8-94338-417-0 01 1 1306-
221 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1306-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1306-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 1306-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) M10 H=8 		1-09400-029-0 01 1 1306-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1306-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) ID=10.2 		0-91510-510-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) DIFF LOCK(C3N) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
273 GROMMET 1-09332-135-0 01 1 1306-
286 PLUG; AIR PIPE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) 		9-09204-510-0 01 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(D) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 1306-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1306-
312 NUT; UNION
M8 		0-91110-508-0 01 1 1306-
328 UNION; AIR PIPE 1-47470-442-0 01 1 1306-
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91180-106-0 01 1 1306-
335 SEAL; UNION
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) RIGID SEAT W/ARM REST(SGC) OD=30 BLACK 		1-76798-035-0 01 1 1306-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-57210-520-0 02 1 1306-
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 1306-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1306-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) RIGID SEAT W/ARM REST(SGC) (B) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1306-
434 CLIP
(C) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 1306-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1306-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1306-

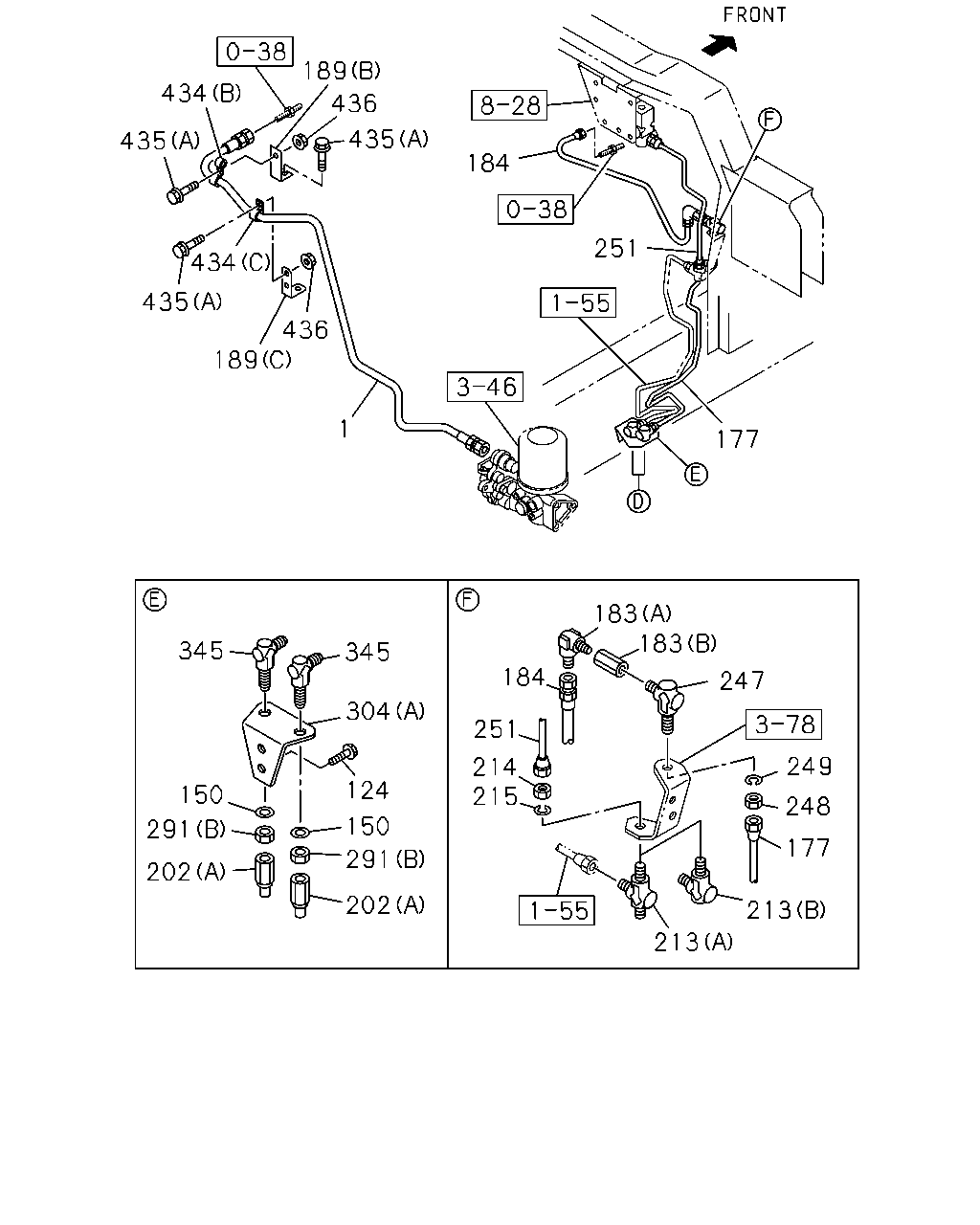

çizim 366385
189 436 435 434 435 434 435 189 436 1 184 251 177 183 183 247 249 248 177 213 213 215 214 251 184 345 304 124 150 291 202 202 291 150 345
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1480 		8-98169-578-0 01 1 1306-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1306-
177 PIPE; AIR,UNION TO UNION
L=582 SERVICED BY L=600 		1-47428-809-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1306-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1306-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1306-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		1-47477-337-1 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (A) 		8-97645-648-0 01 1 1306-1308
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (A) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
202 ADAPTER
MJX16P M/T(Y3Z) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (B) M12 ELBOW 		0-92125-206-0 01 1 1306-
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (A) M12 3WAY 		0-92138-906-0 01 1 1306-1411
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1306-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1306-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1306-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1306-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1306-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1306-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306-
304 BRACKET; UNION
(B) 		1-71117-211-0 01 1 1306-
304 BRACKET; UNION
(A) 		8-98082-870-0 01 1 1306-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1306-
434 CLIP
(C) ID=24 L=27 		1-09700-809-0 03 1 1306-
434 CLIP
(B) ID=12 & 24 		1-09701-248-0 01 1 1306-
434 CLIP
(A) ID=17 		8-94449-734-1 01 1 1306-
435 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1306-
435 BOLT; CLIP
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1306-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1306-

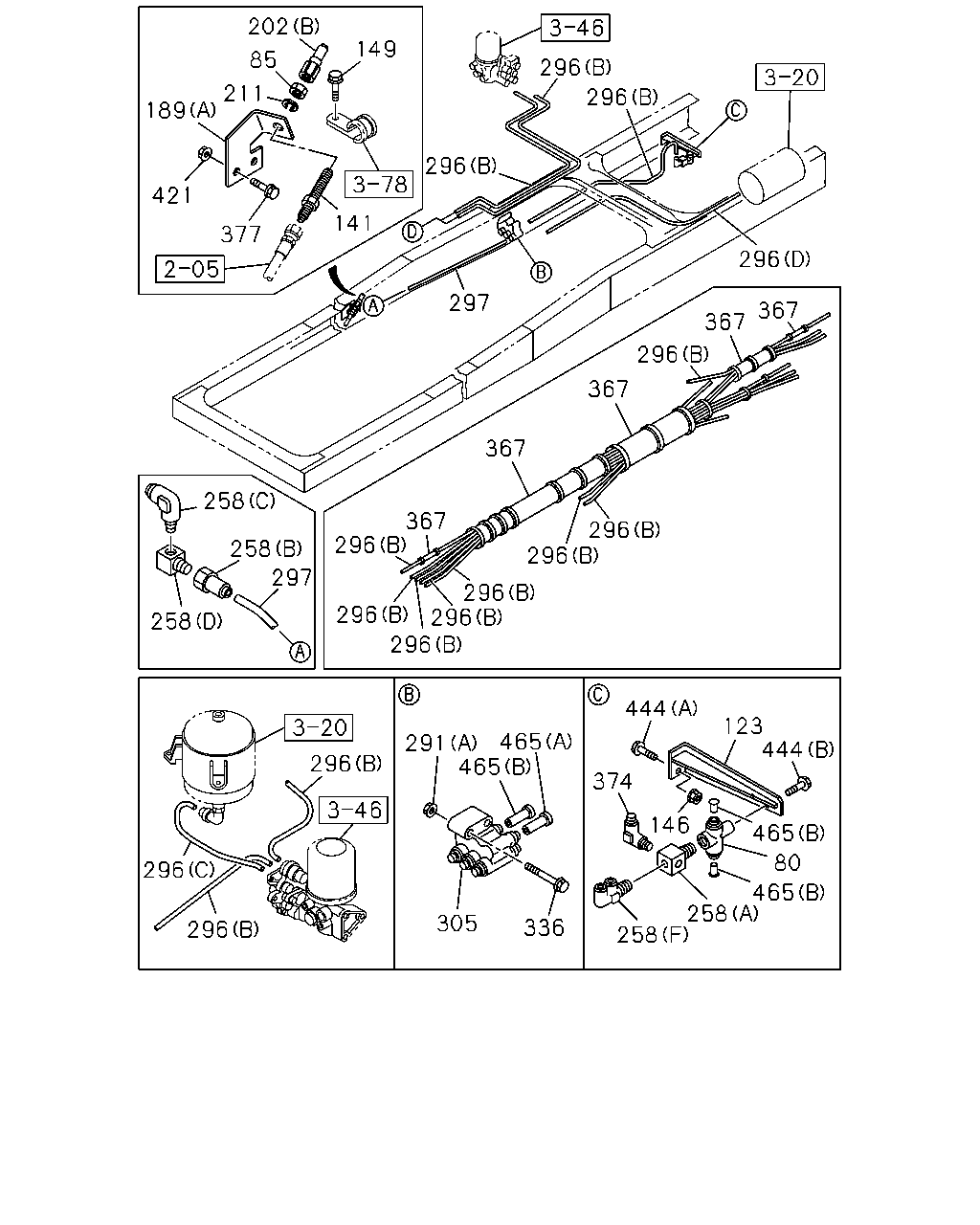

çizim 366539
465 258 258 146 374 465 80 444 123 444 291 465 465 305 336 296 296 296 296 296 296 296 296 296 296 367 367 367 296 367 367 296 297 258 258 258 297 296 296 141 296 377 421 189 211 202 85 149
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1306-
85 NUT; UNION
MJX16P M/T(Y3Z) M12 		0-91111-512-0 01 1 1306-1308
85 NUT; UNION
MJX16P M/T(Y3Z) M12 		9-09840-280-0 01 1 1309-
123 BRACKET; UNION 1-47479-401-0 01 1 1306-
141 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M12 L=66.5 		0-92113-306-0 01 1 1306-
146 NUT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 02 1 1306-
149 BOLT; TUBE CLIP
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
189 BRACKET; FLEX HOSE
(B) L=75 		1-47478-328-0 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (C) 		1-47477-337-1 01 1 1306-
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (A) 		8-97645-648-0 01 1 1306-1308
189 BRACKET; FLEX HOSE
MJX16P M/T(Y3Z) (A) 		8-97646-842-0 01 1 1309-
202 ADAPTER
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1306-
202 ADAPTER
MJX16P M/T(Y3Z) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-812-0 01 1 1306-1308
211 WASHER; LK,UNION
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1309-
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) DIFF LOCK(C3N) (F) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) (D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1306-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 1306-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1306-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1306-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1306-
296 TUBE; NYLON
(D) 		8-98242-435-0 01 1 1306-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1306-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1306-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1306-
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1306-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1306-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1306-
377 BOLT; BRKT FIX
MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 02 1 1306-
421 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 02 1 1306-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1306-
444 BOLT; UNION
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1306-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1306-1409
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1306-1409
465 PLUG
MJT7S M/T(Y3E) CAB SUSPENSION-FULL FLOATING(SMK) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1306-1409
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1410-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1410-
465 PLUG
MJT7S M/T(Y3E) CAB SUSPENSION-FULL FLOATING(SMK) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1410-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
MJT7S M/T(Y3E) DIFF LOCK(C3N) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
MJX16P M/T(Y3Z) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1306-
465 PLUG
MJT7S M/T(Y3E) EXC. DIFF LOCK(C3N) (B) OD=8 PLASTIC 		1-09661-616-0 02 1 1306-
