3-45 — LOAD SENSING PROPORTIONING VALVE (#123097) — 30 parça

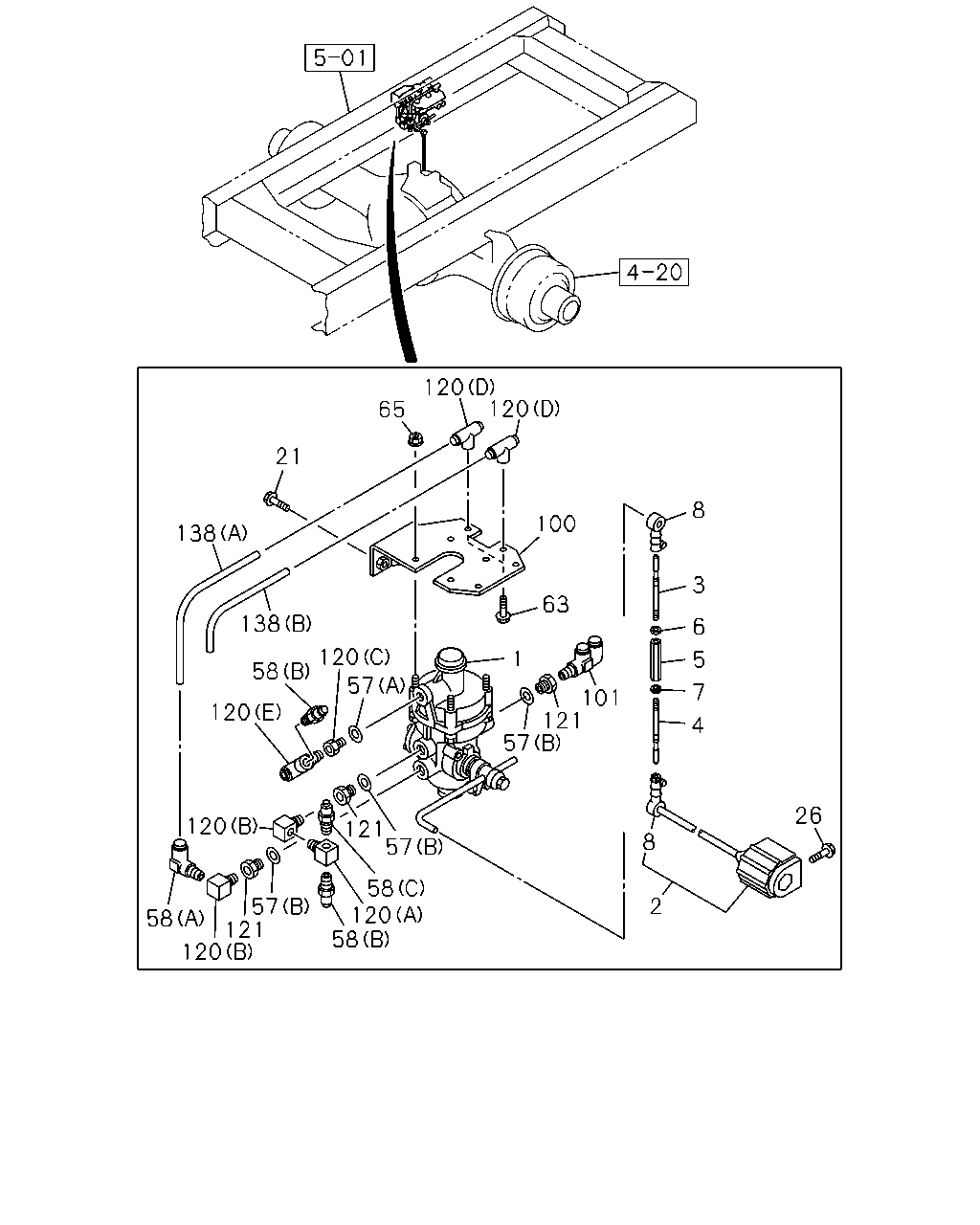

çizim 366408
120 65 21 138 138 58 120 120 57 120 121 57 58 120 58 57 121 120 58 2 26 8 4 7 5 6 3 8 100 63 1 101 121 57 120
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-153-0 01 1 1306-
2 DAMPER 1-47725-012-0 01 1 1306-
3 ROD; UPR 1-09765-290-0 01 1 1306-
4 ROD; LWR 1-09765-283-0 01 1 1306-
5 JOINT 1-09768-091-0 01 1 1306-
6 NUT; LK,UPR
M8 		0-91111-508-0 01 1 1306-
7 NUT; LK,LWR
LH THREAD 		1-09409-002-0 01 1 1306-
8 ROD END 1-47723-001-0 02 1 1306-
21 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1306-
26 BOLT; DAMPER
M8X12 FLANGE 		0-28050-812-0 02 1 1306-
57 GASKET; CONNECTOR
(A) ID=16.2 OD=24 		9-09571-416-0 01 1 1306-
57 GASKET; CONNECTOR
(B) ID=22.5 		9-09571-422-0 03 1 1306-
58 CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1306-
58 CONNECTOR; LSPV
(C) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1306-
58 CONNECTOR; LSPV
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1306-
63 BOLT; LSPV
M8X16 FLANGE 		0-28050-816-0 02 1 1306-
65 NUT; LSPV
M8 FLANGE 		0-91180-108-0 04 1 1306-
100 BRACKET; LSPV 8-98145-852-0 01 1 1306-
101 CONNECTOR; LSPV
DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306-
120 CONNECTOR
(A) PT3/8X2 & PT1/4 3WAY 		1-09656-708-0 01 1 1306-
120 CONNECTOR
(B) PT3/8 ELBOW 		1-09660-696-0 02 1 1306-
120 CONNECTOR
(C) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 1306-
120 CONNECTOR
(D) DIN7.5X2 & M8 2WAY 		1-09661-128-0 02 1 1306-
120 CONNECTOR
(E) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 1306-
121 ADAPTER
INNER PT3/8,OUTER M22 		1-09650-494-1 03 1 1306-
138 TUBE; NYLON,UNION TO UNION
(A) 		1-49221-595-1 01 1 1306-
138 TUBE; NYLON,UNION TO UNION
(B) 		1-49221-596-1 01 1 1306-

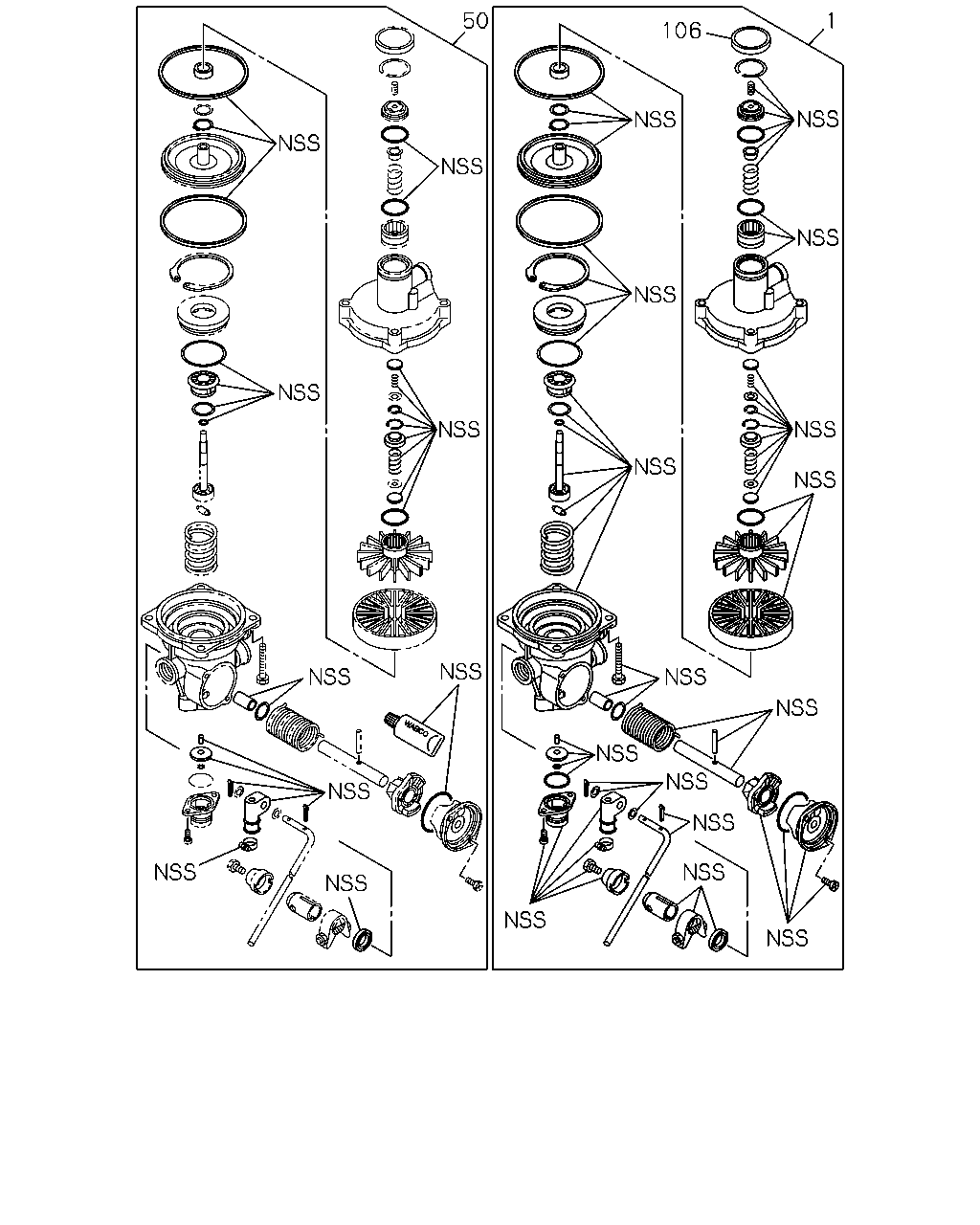

çizim 366425
50 106 1
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE ASM; LOAD SENSING PROPORTIONING 1-47720-153-0 01 1 1306-
50 REPAIR KIT; LSPV 1-85576-393-0 01 1 1306-
106 COVER; PISTON 1-47729-001-0 01 1 1306-
