Isuzu WW
▶
TRUCKS
▶
EXR
▶
11502 - EXR RHD EURO2
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#123096) — 19 parça
◀

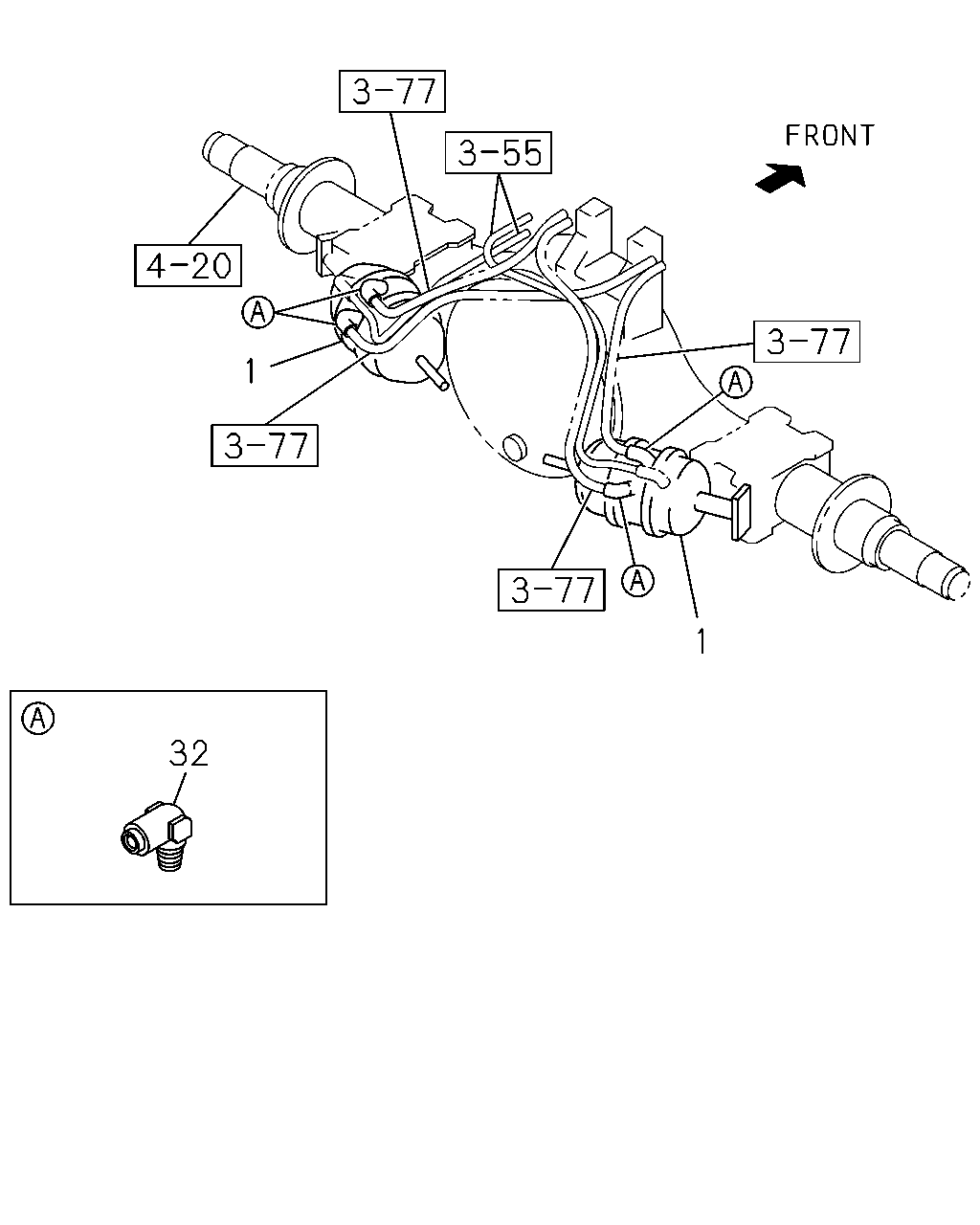

[341A] CONNECTOR;NYLON TUBE (3 parça)

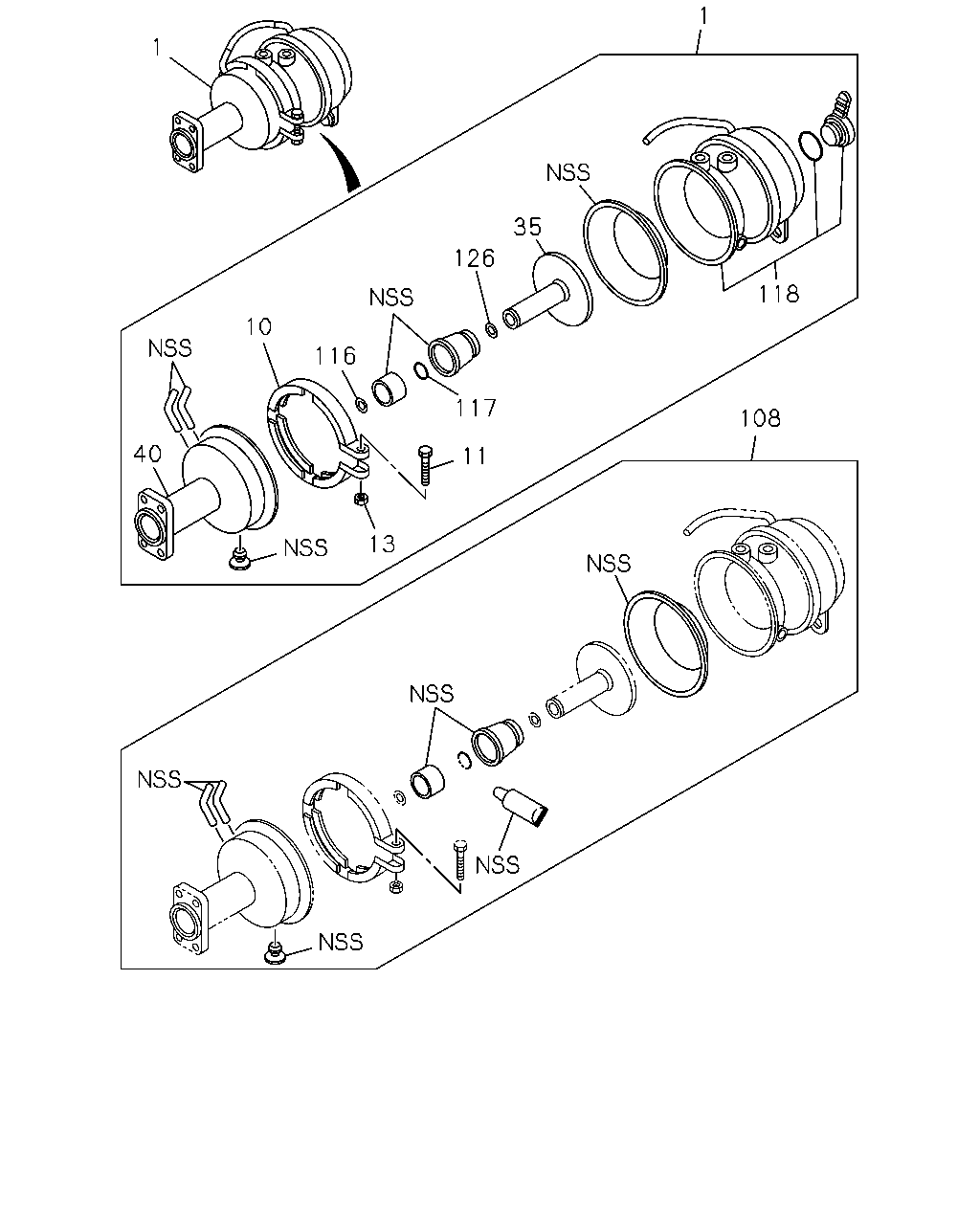

[341A] COMPONENT,REPAIR KIT (16 parça)
▶
1
32
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-098-0
01
1
1306-
1
CHAMBER ASM; SPRING
1-87412-097-0
01
1
1306-
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1306-
1
1
40
10
116
126
35
118
108
117
11
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-87412-098-0
01
1
1306-
1
CHAMBER ASM; SPRING
1-87412-097-0
01
1
1306-
10
RING; CLAMP,SPR CHAMBER
1-48269-256-0
02
1
1306-
11
BOLT; CLAMP RING
1-48269-257-0
02
1
1306-
13
NUT; CLAMP RING
1-48269-147-0
02
1
1306-
35
PLATE; ROD END,SPR CHAMBER
8-98146-974-0
02
1
1306-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-141-1
01
1
1306-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-140-1
01
1
1306-
108
REPAIR KIT; SPR CHAMBER
8-98146-982-0
02
1
1306-
116
GUIDE; SPR CHAMBER
8-98146-963-0
02
1
1306-
117
RING; SPR CHAMBER
8-98146-966-0
02
1
1306-
118
CHAMBER; PIGGY BACK
1-87412-114-0
01
1
1306-1411
118
CHAMBER; PIGGY BACK
1-87412-114-0
01
1
1412-
118
CHAMBER; PIGGY BACK
1-87412-113-0
01
1
1306-1411
118
CHAMBER; PIGGY BACK
1-87412-113-0
01
1
1412-
126
SHIM
8-98146-965-0
AR
1
1306-
