Isuzu WW
▶
TRUCKS
▶
EXR
▶
11502 - EXR RHD EURO2
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#123093) — 101 parça
◀
[326A] FIXING;CAB SIDE (21 parça)
[326A] FRAME SIDE (16 parça)
[326A] HAND CONT VALVE (28 parça)
[326A] JUMPER CABLE (8 parça)
[326A] REPAIR KIT;TRAILER CONT (1 parça)
[326A] HAND BRK VALVE (27 parça)
▶
32
151
138
137
129
105
137
137
214
112
138
138
29
1
206
105
31
31
31
31
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

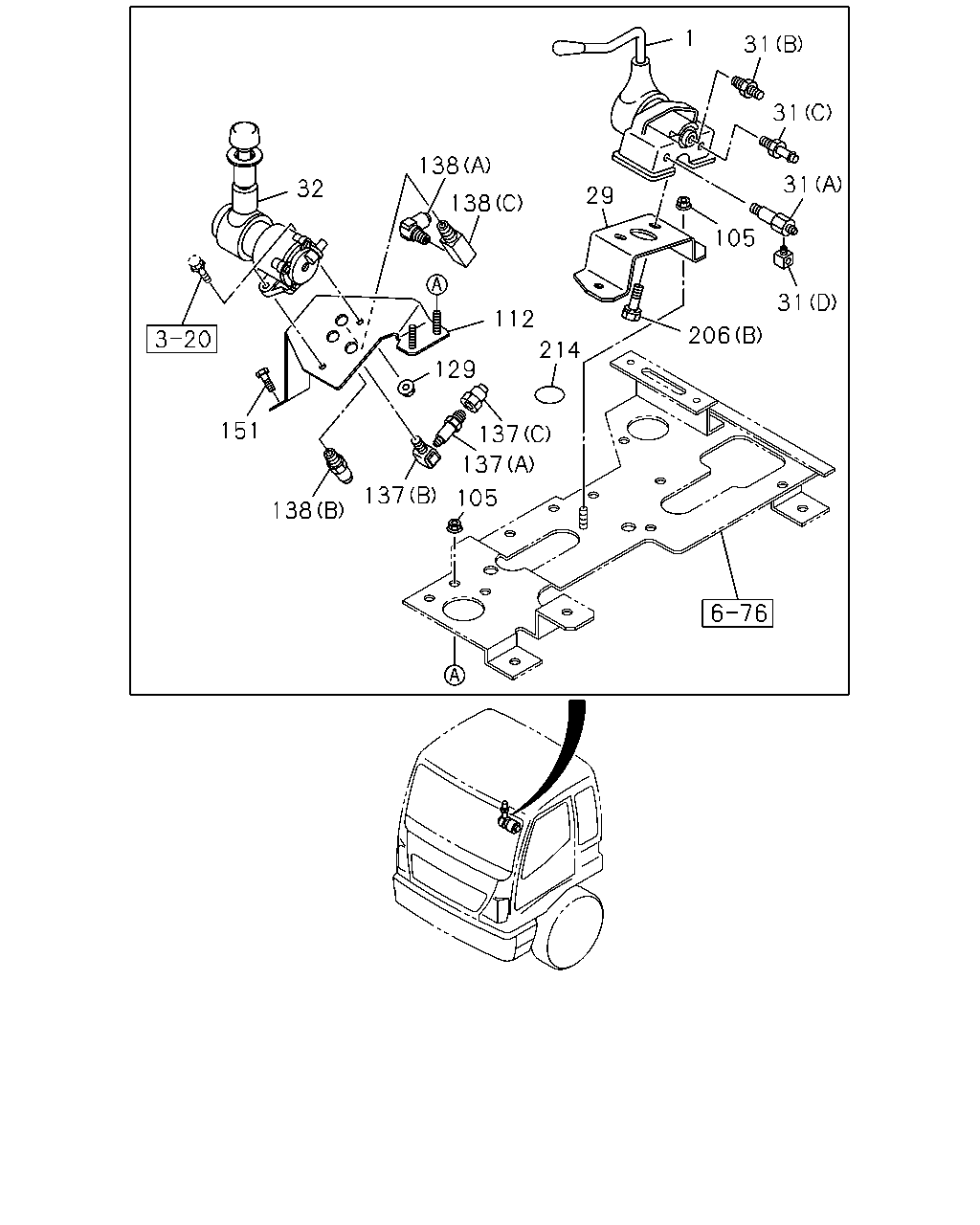

1
VALVE ASM; HAND BRK
1-48100-848-0
01
1
1306-
29
BRACKET; HAND BRK
1-79997-357-1
01
1
1306-
31
CONNECTOR; HAND BRK VLV
(B) M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
1306-
31
CONNECTOR; HAND BRK VLV
(A) M14
1-09656-391-2
01
1
1306-
31
CONNECTOR; HAND BRK VLV
(D) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1306-
31
CONNECTOR; HAND BRK VLV
(C) L=45
8-94338-874-0
01
1
1306-
32
VALVE; BRK,HAND CONT
1-48460-339-1
01
1
1306-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1306-
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1306-
112
BRACKET; CONT VLV
1-79996-387-0
01
1
1306-
129
NUT; VLV
M8 FLANGE
0-91180-108-0
01
1
1306-
137
CONNECTOR; SUPPLY
(A) PT1/4 & M16 STRAIGHT
1-09650-352-1
01
1
1306-
137
CONNECTOR; SUPPLY
(B) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1306-
137
CONNECTOR; SUPPLY
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
1306-
138
CONNECTOR; DELIVERY
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1306-
138
CONNECTOR; DELIVERY
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1306-
138
CONNECTOR; DELIVERY
(C) DIN14 & R1/4 & RC1/4
1-09661-729-0
01
1
1306-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
1306-
206
BOLT; HAND BRK VALVE
(B) M10X20 W/LK WASHER
0-50541-020-0
02
1
1306-
206
BOLT; HAND BRK VALVE
(A)
1-48469-160-0
01
1
1306-
214
SEAL; COVER,HAND BRK
OD=25 BLACK
1-76798-019-0
01
1
1306-
115
115
233
215
115
233
115
115
115
115
66
64
65
68
205
94
68
87
122
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

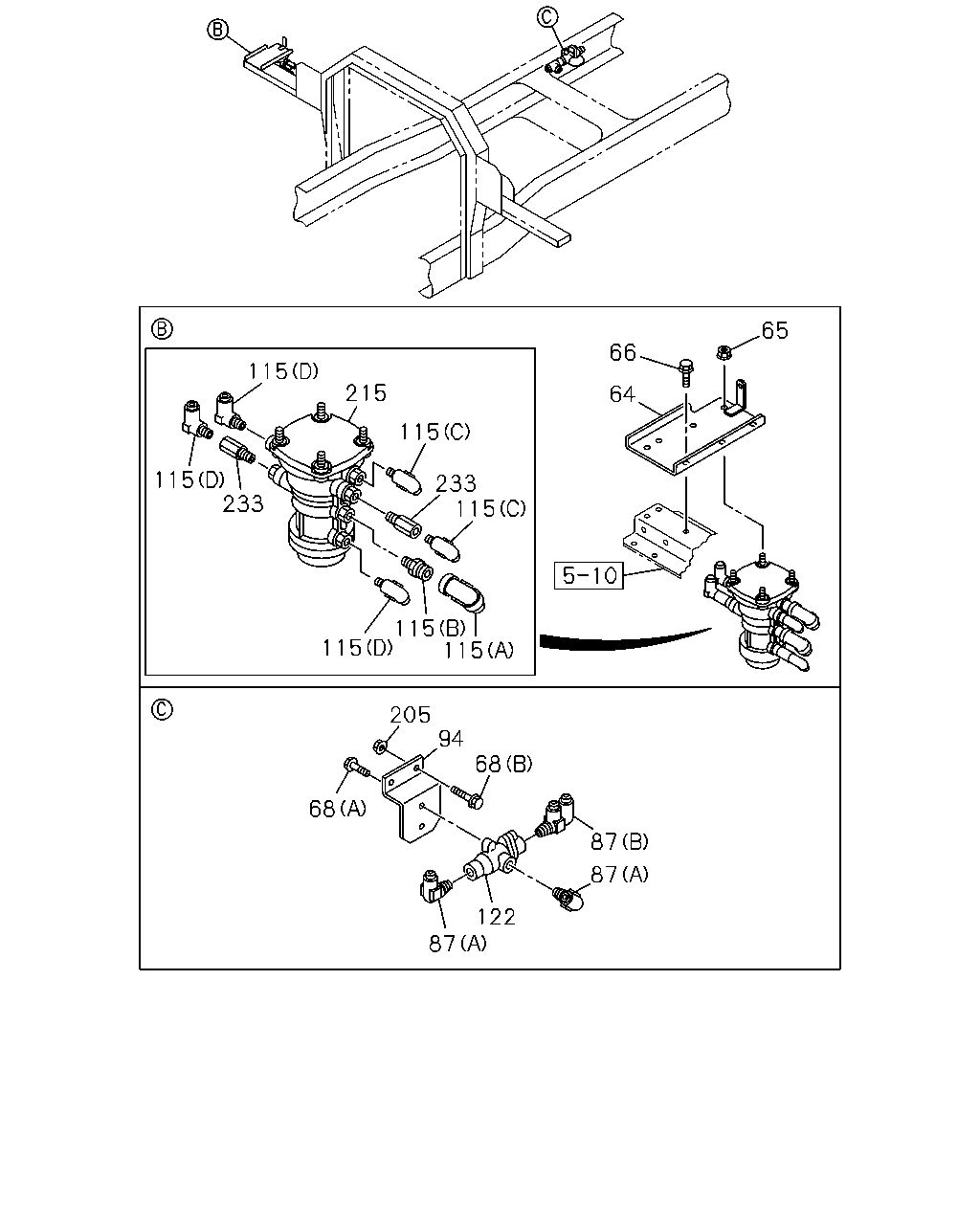

64
BRACKET; RELAY VLV
8-98242-054-1
01
1
1306-
65
NUT; RELAY VLV
M8 FLANGE
0-91180-108-0
04
1
1306-
66
BOLT; VLV BRKT
M8X25 FLANGE
0-28650-825-0
03
1
1306-
68
BOLT; DOUBLE CHECK VLV
(A) M8X14 FLANGE
0-28080-814-0
02
1
1306-
68
BOLT; DOUBLE CHECK VLV
(B) M8X30 FLANGE
0-28650-830-0
02
1
1306-
87
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1306-
87
CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
1306-
94
BRACKET; CHECK VLV
8-97614-381-0
01
1
1306-
115
CONNECTOR; DUAL RELAY VLV
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1306-
115
CONNECTOR; DUAL RELAY VLV
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1306-
115
CONNECTOR; DUAL RELAY VLV
(A)
8-97633-756-0
01
1
1306-
115
CONNECTOR; DUAL RELAY VLV
(B)
8-97633-771-0
01
1
1306-
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
1306-
205
NUT; DOUBLE CHECK VLV
M8 FLANGE
0-91180-108-0
02
1
1306-
215
VALVE; TRAILER CONT
8-98091-694-0
01
1
1306-
233
ADAPTER; VLV
PT3/8
1-48319-058-0
02
1
1306-
50
242
167
8
240
52
53
7
172
34
32
32
35
38
39
46
50
49
183
167
57
206
55
3
47
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

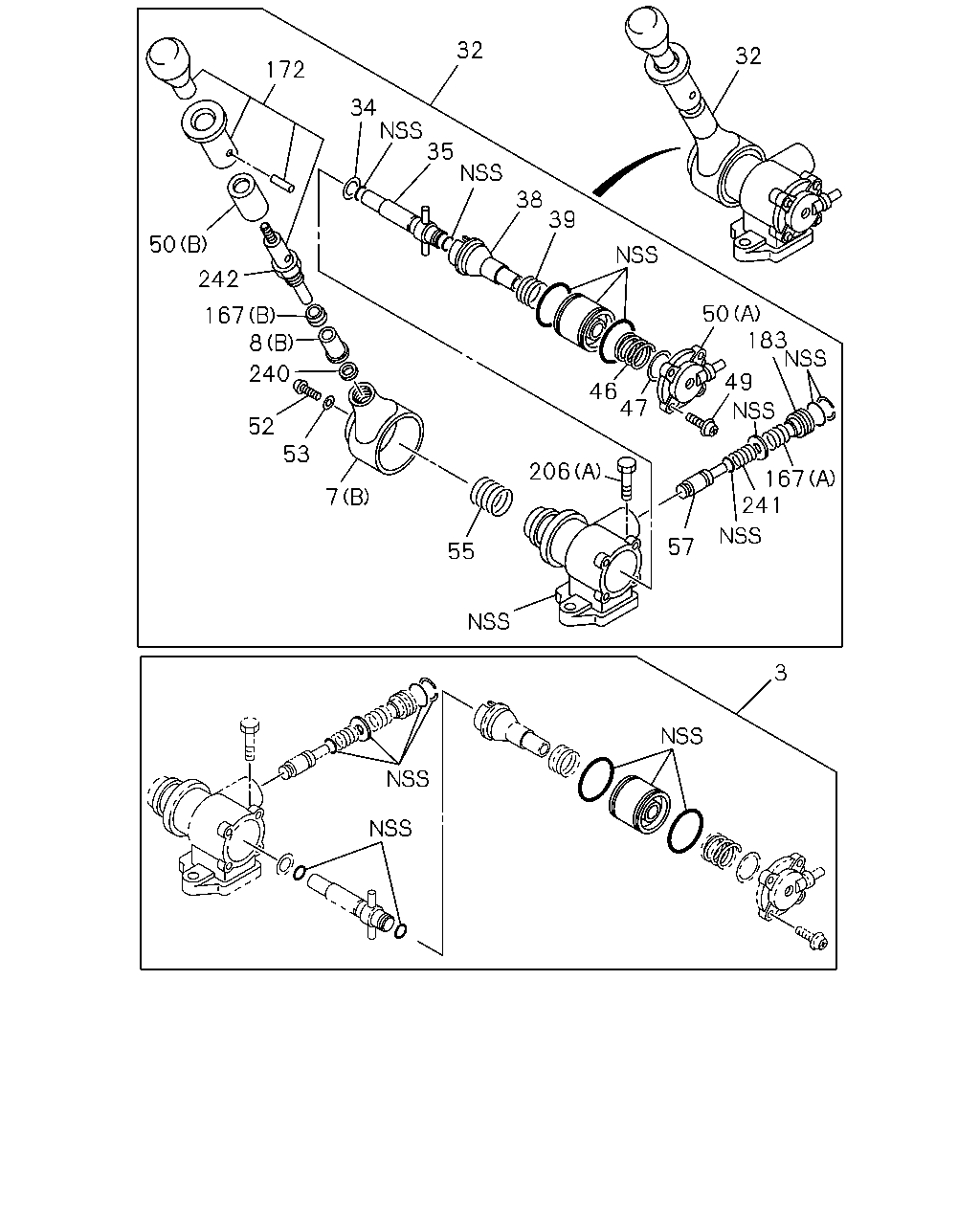

3
REPAIR KIT; HAND BRK VLV
1-85576-376-0
01
1
1306-
7
HEAD; BRK VLV
(A)
1-48119-131-1
01
1
1306-
7
HEAD; BRK VLV
(B)
1-48469-201-0
01
1
1306-
8
STOPPER; BRK VLV
(A)
1-48119-239-0
01
1
1306-
8
STOPPER; BRK VLV
(B)
1-48469-200-0
01
1
1306-
32
VALVE; BRK,HAND CONT
1-48460-339-1
01
1
1306-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1306-
35
HOLDER; CAM
1-48469-171-0
01
1
1306-
38
SEAT; EXH VLV
1-48469-172-0
01
1
1306-
39
SPRING; RETURN,CAM RING
1-48469-150-0
01
1
1306-
46
SPRING; MAIN,PISTON
1-48469-173-0
01
1
1306-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1306-
49
SCREW; COVER
1-48469-169-0
04
1
1306-
50
COVER; HAND BRK VLV
(A)
1-48469-153-0
01
1
1306-
50
COVER; HAND BRK VLV
(B)
1-48469-196-0
01
1
1306-
52
SCREW; HANDLE
1-48469-062-0
01
1
1306-
53
WASHER; HANDLE
1-48469-061-0
01
1
1306-
55
SPRING; RETURN,HANDLE
1-48469-155-0
01
1
1306-
57
PLUNGER; HAND BRK VLV
1-48469-180-0
01
1
1306-
167
SPRING; VALVE
(A)
1-48469-177-0
01
1
1306-
167
SPRING; VALVE
(B)
1-48469-184-0
01
1
1306-
172
KNOB; VALVE
1-48469-203-0
01
1
1306-
183
RETAINER; VALVE
1-48469-185-0
01
1
1306-
206
BOLT; HAND BRK VALVE
(B) M10X20 W/LK WASHER
0-50541-020-0
02
1
1306-
206
BOLT; HAND BRK VALVE
(A)
1-48469-160-0
01
1
1306-
240
RING; STOPPER
1-48469-199-0
01
1
1306-
241
SPRING; RETURN
1-48469-182-0
01
1
1306-
242
NUT; LK
1-48469-179-0
01
1
1306-
61
220
221
203
225
220
107
109
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

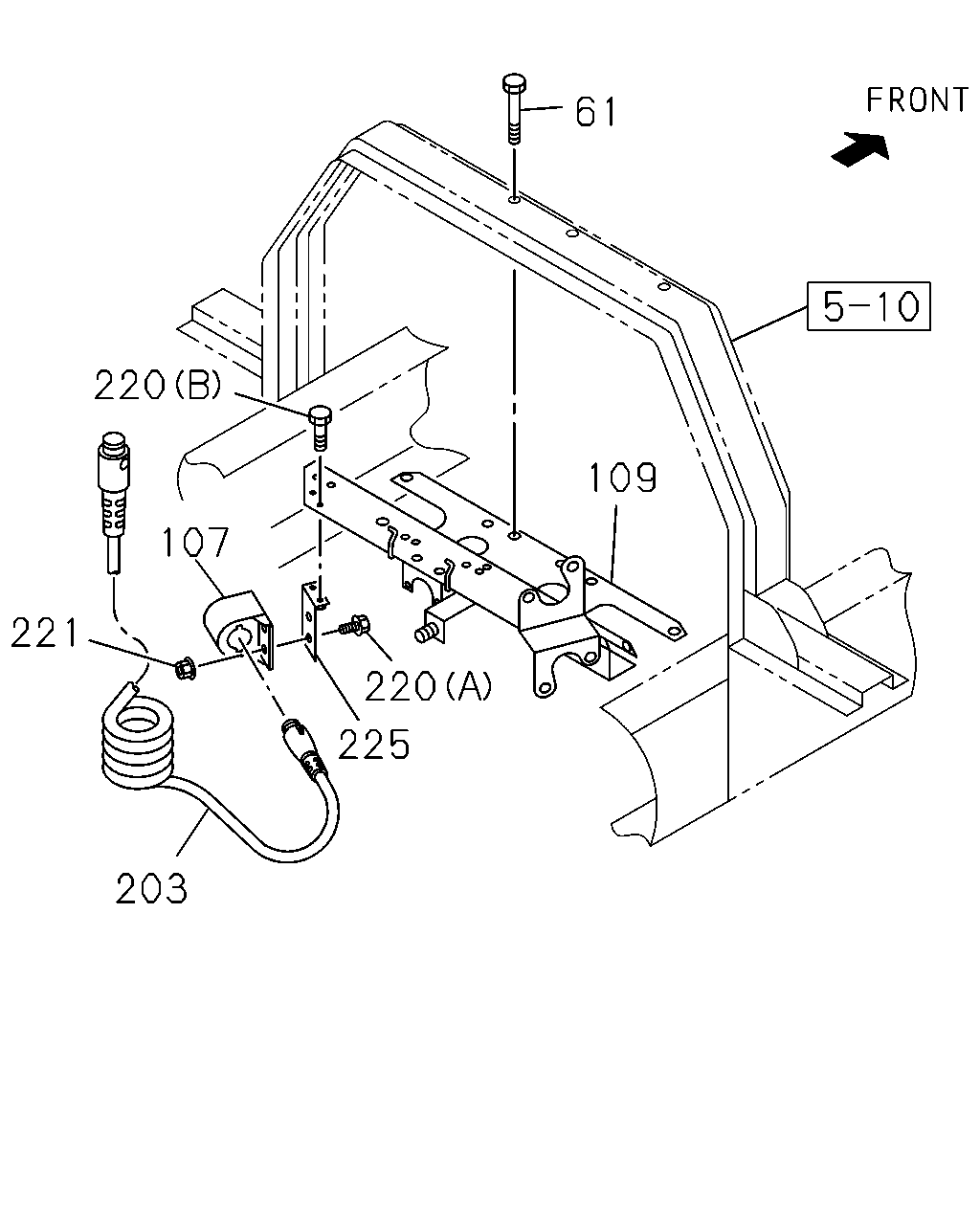

61
BOLT; STEP BOARD
M10X30 FLANGE
0-28651-030-0
06
1
1306-
107
HANGER; JUMPER HOSE
1-57550-022-2
01
1
1306-
109
BRACKET; HOSE HANGER
8-98146-281-1
01
1
1306-
203
CABLE; JUMPER
L=4000
8-98107-177-0
01
1
1306-
220
BOLT; HANGER
(A) M6X16 FLANGE
0-28650-616-0
02
1
1306-
220
BOLT; HANGER
(B) M8X25 FLANGE
0-28650-825-0
02
1
1306-
221
NUT; HANGER
M6 FLANGE
0-91180-106-0
02
1
1306-
225
BRACKET; HANGER
1-82698-002-0
01
1
1306-
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

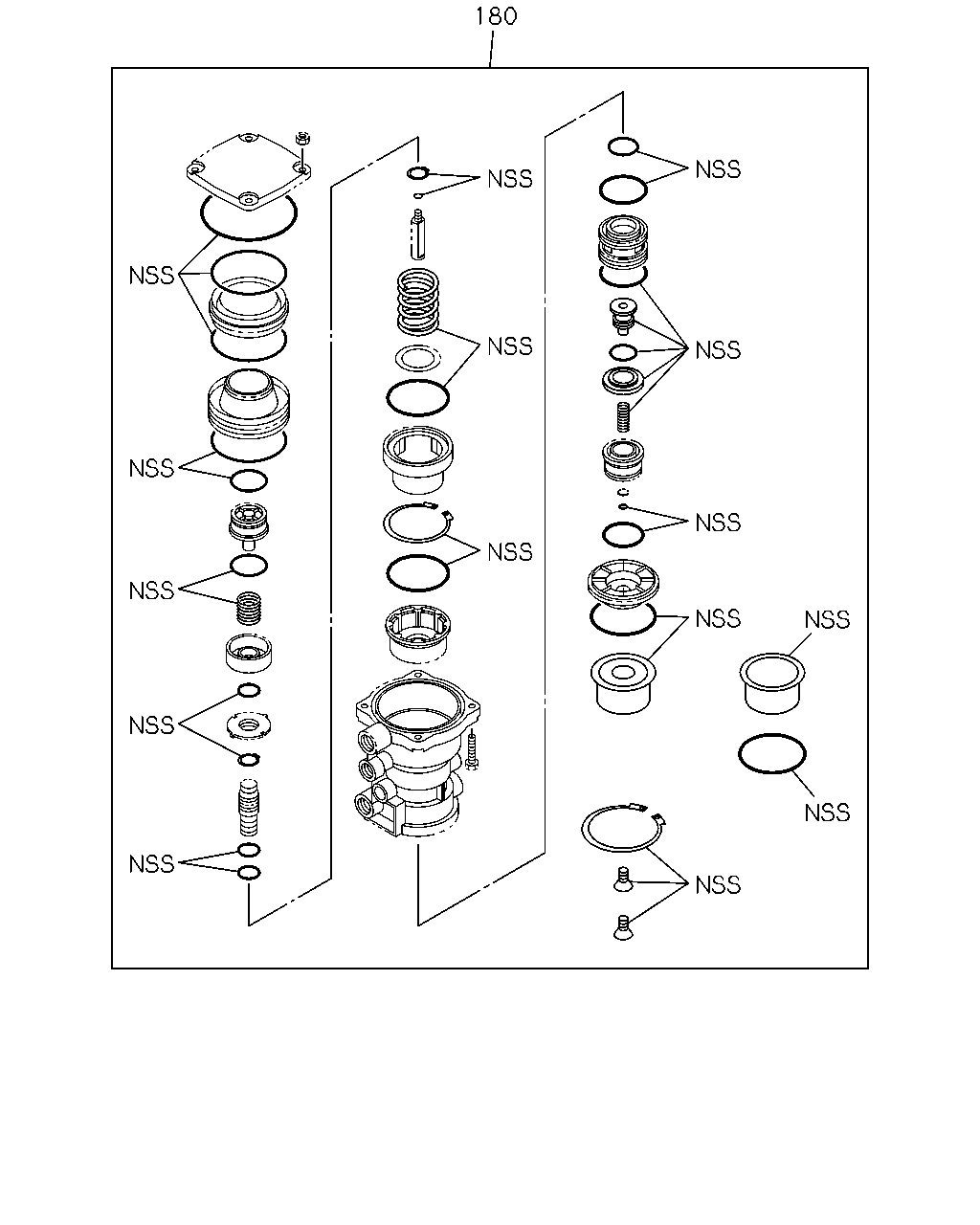

180
REPAIR KIT; RELAY VLV
1-85576-449-0
01
1
1306-
14
15
16
17
18
19
4
6
5
7
8
11
10
9
1
1
25
13
12
20
21
22
25
24
23
24
28
5
2
14
15
18
21
11
13
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

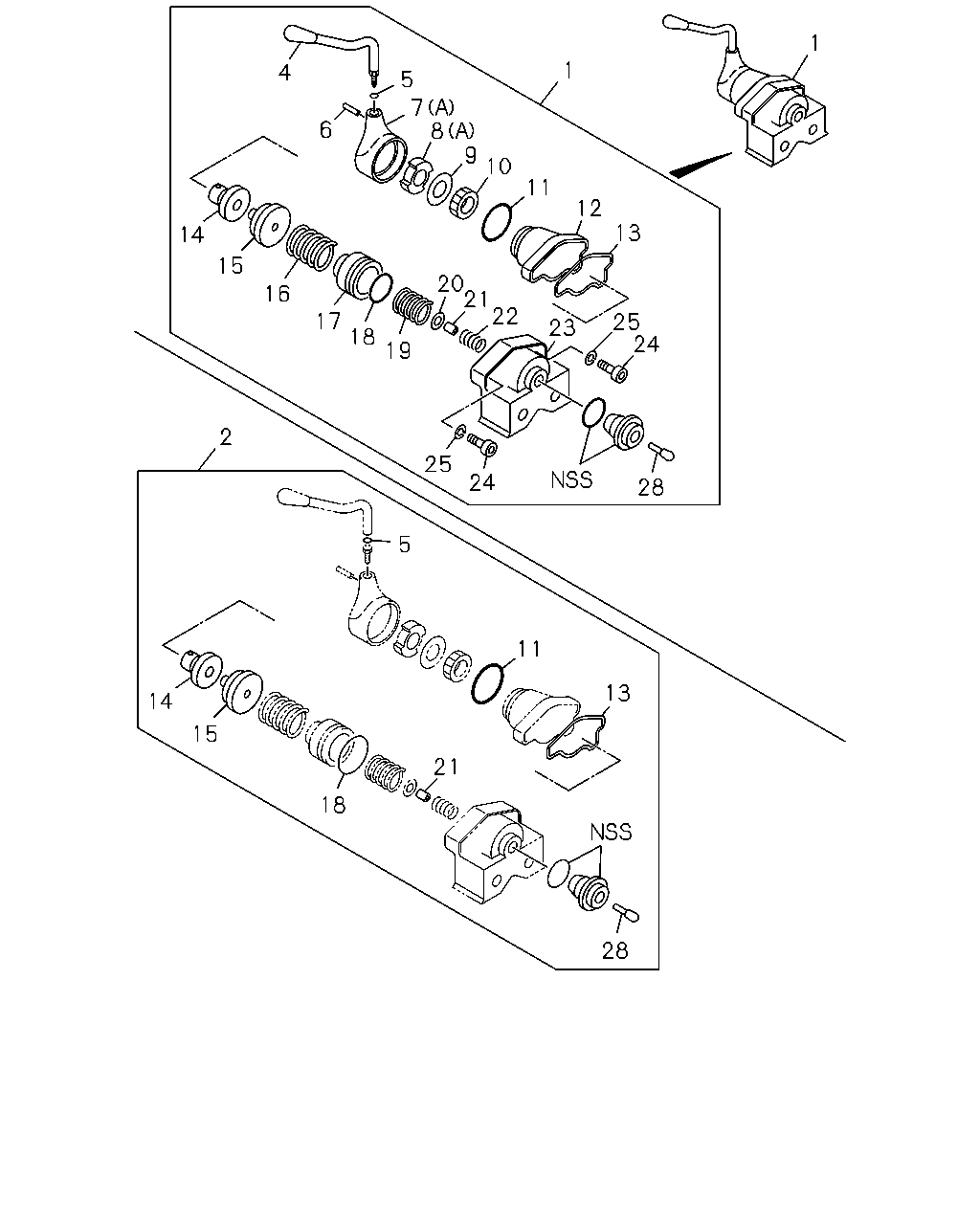

1
VALVE ASM; HAND BRK
1-48100-848-0
01
1
1306-
2
REPAIR KIT; HAND BRK VLV
1-85576-181-0
01
1
1306-
4
HANDLE ASM; BRK VLV
1-48119-517-0
01
1
1306-
5
GASKET; HANDLE
1-48119-128-0
01
1
1306-
6
PIN; SPR
1-48119-143-0
01
1
1306-
7
HEAD; BRK VLV
(A)
1-48119-131-1
01
1
1306-
7
HEAD; BRK VLV
(B)
1-48469-201-0
01
1
1306-
8
STOPPER; BRK VLV
(A)
1-48119-239-0
01
1
1306-
8
STOPPER; BRK VLV
(B)
1-48469-200-0
01
1
1306-
9
WASHER; LK,ADJ
1-48119-123-0
01
1
1306-
10
RING; ADJ
1-48119-122-0
01
1
1306-
11
GASKET; HD TO COVER
1-48119-130-0
01
1
1306-
12
COVER; BRK VLV
1-48129-097-1
01
1
1306-
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
1306-
14
FOLLOWER; CAM
1-48129-135-0
01
1
1306-
15
CAM; FOLLOWER
1-48129-134-0
01
1
1306-
16
SPRING; GRUDUATING
1-48129-101-0
01
1
1306-
17
PISTON; SPR
1-48129-095-0
01
1
1306-
18
GASKET; BODY
1-48129-096-0
01
1
1306-
19
SPRING; PISTON
1-48129-094-0
01
1
1306-
20
GUIDE; VLV
1-48129-090-0
01
1
1306-
21
VALVE; IN & EXH
1-48121-017-0
01
1
1306-
22
SPRING; VLV
1-48123-024-0
01
1
1306-
23
BODY; BRK VLV
1-48111-060-1
01
1
1306-
24
BOLT; EXH VLV
1-48129-092-0
02
1
1306-
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
1306-
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
1306-
