◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11502 - EXR RHD EURO2 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#123091) — 254 parça
çizim 364038
203 28 180 180 203 10 126 176 174 344 383 383 176 11 126 369 429 124 124 175
BalonParca AdiParca NoAdetTipApplied Date
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1306-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1306-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1306-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1306-
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (D) PT1/4 		9-99204-513-0 01 1 1306-1411
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1412-
10 PLUG; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT3/4 		9-09204-526-0 01 1 1306-
11 VALVE; SAFETY,AIR TANK
EXC. FULL FLOATING CAB(W16) 		1-48320-012-2 01 1 1306-1411
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1412-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1306-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1306-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1306-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1306-
28 BRACKET; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) 		8-98200-121-2 01 1 1306-1411
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1412-
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48317-473-2 01 1 1306-
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-48317-985-1 01 1 1306-
124 SWITCH; AIR PRESSURE
EXC. FULL FLOATING CAB(W16) STAMP 5.5 		8-97609-249-0 02 1 1306-1411
124 SWITCH; AIR PRESSURE
STAMP 5.5 		8-97609-249-0 02 1 1412-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1306-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1306-
126 CONNECTOR; ELBOW
EXC. FULL FLOATING CAB(W16) (C) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1306-1411
126 CONNECTOR; ELBOW
(C) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1412-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1306-1411
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1412-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) 		1-09680-099-0 01 1 1306-1411
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1412-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) 		9-48319-102-0 01 1 1306-1411
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1412-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1306-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1306-
176 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 1306-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1306-1411
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1412-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4>,FULL FLOATING CAB(W16) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1306-1411
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1412-
180 WASHER; LK
EXC. FULL FLOATING CAB(W16) ID=18.2 		0-91510-518-0 02 1 1306-1411
180 WASHER; LK
ID=18.2 		0-91510-518-0 02 1 1412-
203 NUT
EXC. FULL FLOATING CAB(W16) M18 		0-91110-518-0 02 1 1306-1411
203 NUT
M18 		0-91110-518-0 02 1 1412-
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) PT1/4 4WAY 		1-09660-358-0 01 1 1306-1411
344 CONNECTOR; 4WAY
TIRE INFLATOR DEVICE<SG4> PT1/4 4WAY 		1-09660-358-0 01 1 1412-
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4>,FULL FLOATING CAB(W16) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1306-1411
369 CONNECTOR; 3WAY
EXC. TIRE INFLATOR DEVICE<SG4> DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1412-
383 UNION; 3 WAY
(A) PT1/4 MALE & PT1/4 FEMALE X2 3WAY 		1-09660-363-0 01 1 1306-
383 UNION; 3 WAY
EXC. FULL FLOATING CAB(W16) (B) 		1-09661-092-0 02 1 1306-1411
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1412-
429 SENSOR
EXC. FULL FLOATING CAB(W16) THREAD R1/4 		1-80220-023-1 01 1 1306-1411
429 SENSOR
THREAD R1/4 		1-80220-023-1 01 1 1412-

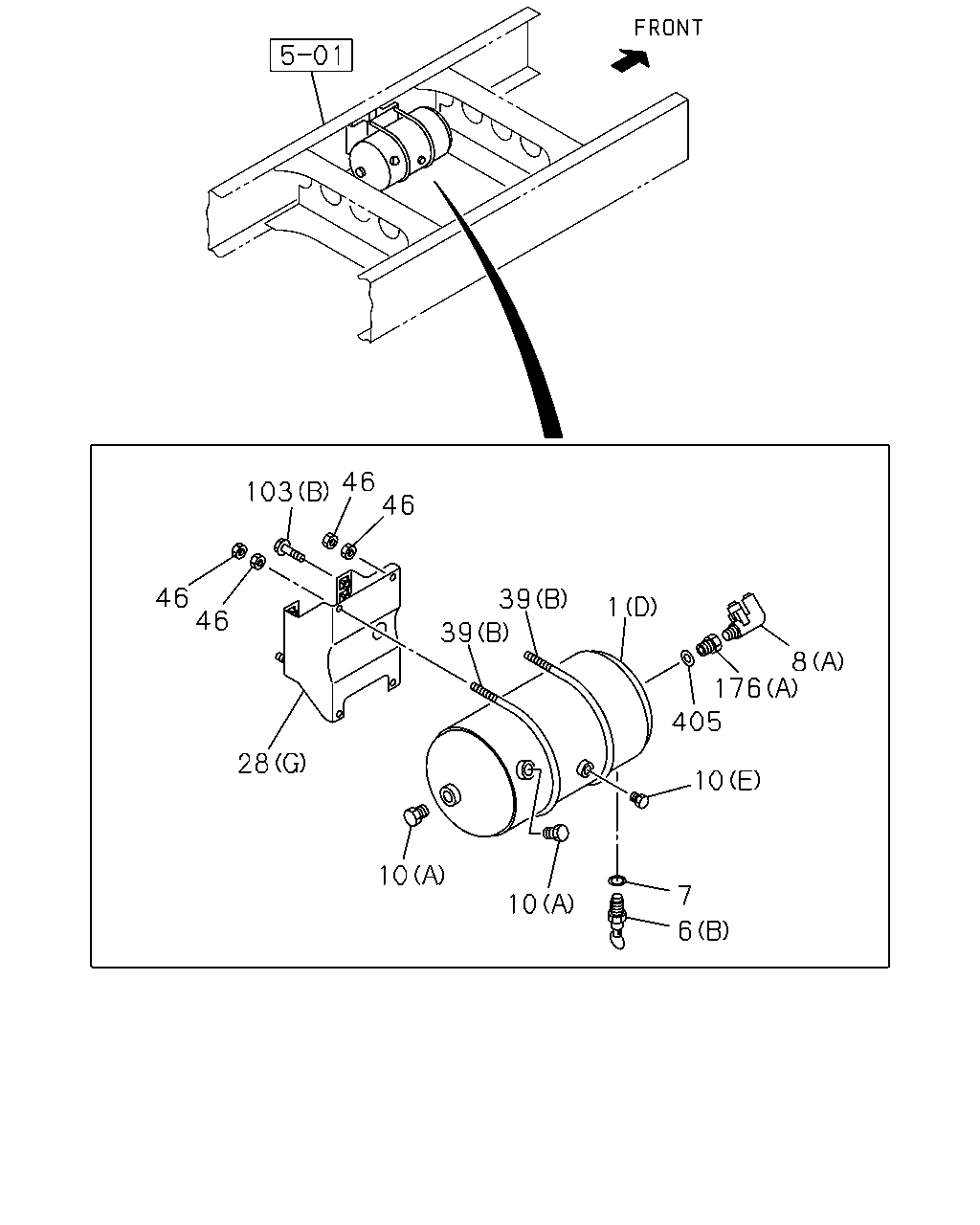

çizim 364077
46 46 46 46 103 28 10 10 7 6 10 405 8 176 1 39 39
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1306-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1306-
1 TANK ASM; AIR
(D) 		8-97626-720-0 01 1 1306-
1 TANK ASM; AIR
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-48371-165-3 01 1 1306-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1306-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1306-
6 COCK; DRAIN,AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48312-017-0 01 1 1306-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 07 1 1306-
7 GASKET; DRAIN COCK
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 		1-09630-145-0 01 1 1306-
8 CONNECTOR; AIR TANK
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306-
8 CONNECTOR; AIR TANK
(B) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1306-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1306-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1306-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1306-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1306-
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (D) PT1/4 		9-99204-513-0 01 1 1306-1411
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1412-
10 PLUG; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT3/4 		9-09204-526-0 01 1 1306-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1306-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1306-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1306-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1306-
28 BRACKET; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) 		8-98200-121-2 01 1 1306-1411
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1412-
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48317-473-2 01 1 1306-
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-48317-985-1 01 1 1306-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1306-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1306-
39 U-BOLT; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=210 		1-48317-458-1 02 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1306-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1306-
103 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1306-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1306-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1306-
176 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 1306-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1306-1411
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1412-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4>,FULL FLOATING CAB(W16) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1306-1411
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1412-
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1306-
405 GASKET
ID=22.5 		9-09571-422-0 08 1 1306-

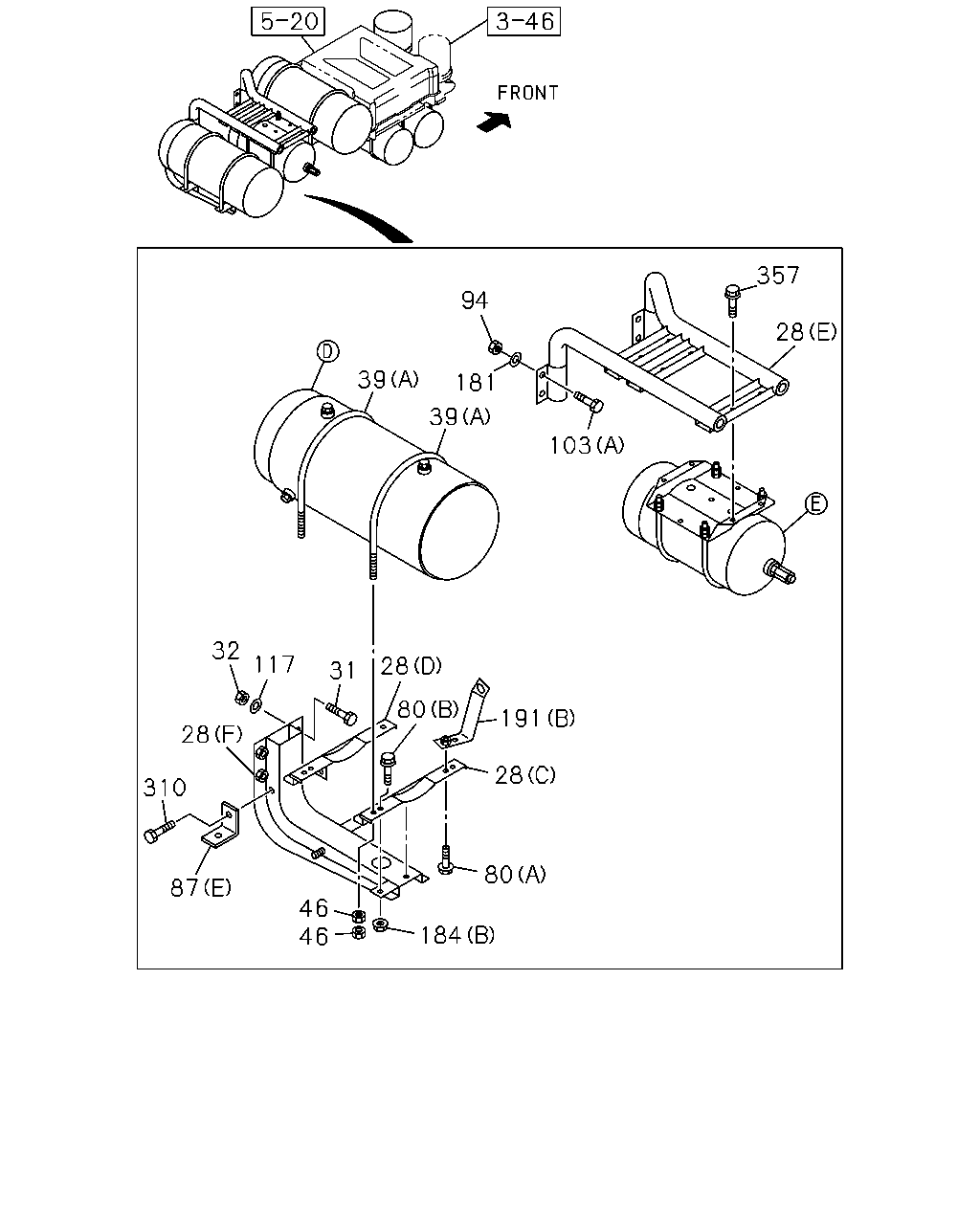

çizim 364089
39 39 32 117 28 310 87 31 46 46 184 80 28 191 80 28 103 181 94 357 28
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1306-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1306-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1306-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1306-
28 BRACKET; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) 		8-98200-121-2 01 1 1306-1411
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1412-
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48317-473-2 01 1 1306-
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-48317-985-1 01 1 1306-
31 BOLT; BRKT TO FRAME
M14X50 		0-20851-450-0 04 1 1306-
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 1306-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1306-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1306-
39 U-BOLT; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=210 		1-48317-458-1 02 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1306-
80 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1306-
80 BOLT; BRKT
(B) M12X25 FLANGE 		0-28651-225-0 04 1 1306-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1306-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(F) 		8-98055-494-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1306-
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 1306-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1306-
103 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1306-
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 1306-
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 1306-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1306-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1306-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1306-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1306-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 1306-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
357 BOLT; BRKT
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X30 FLANGE 		0-28651-030-0 04 1 1306-

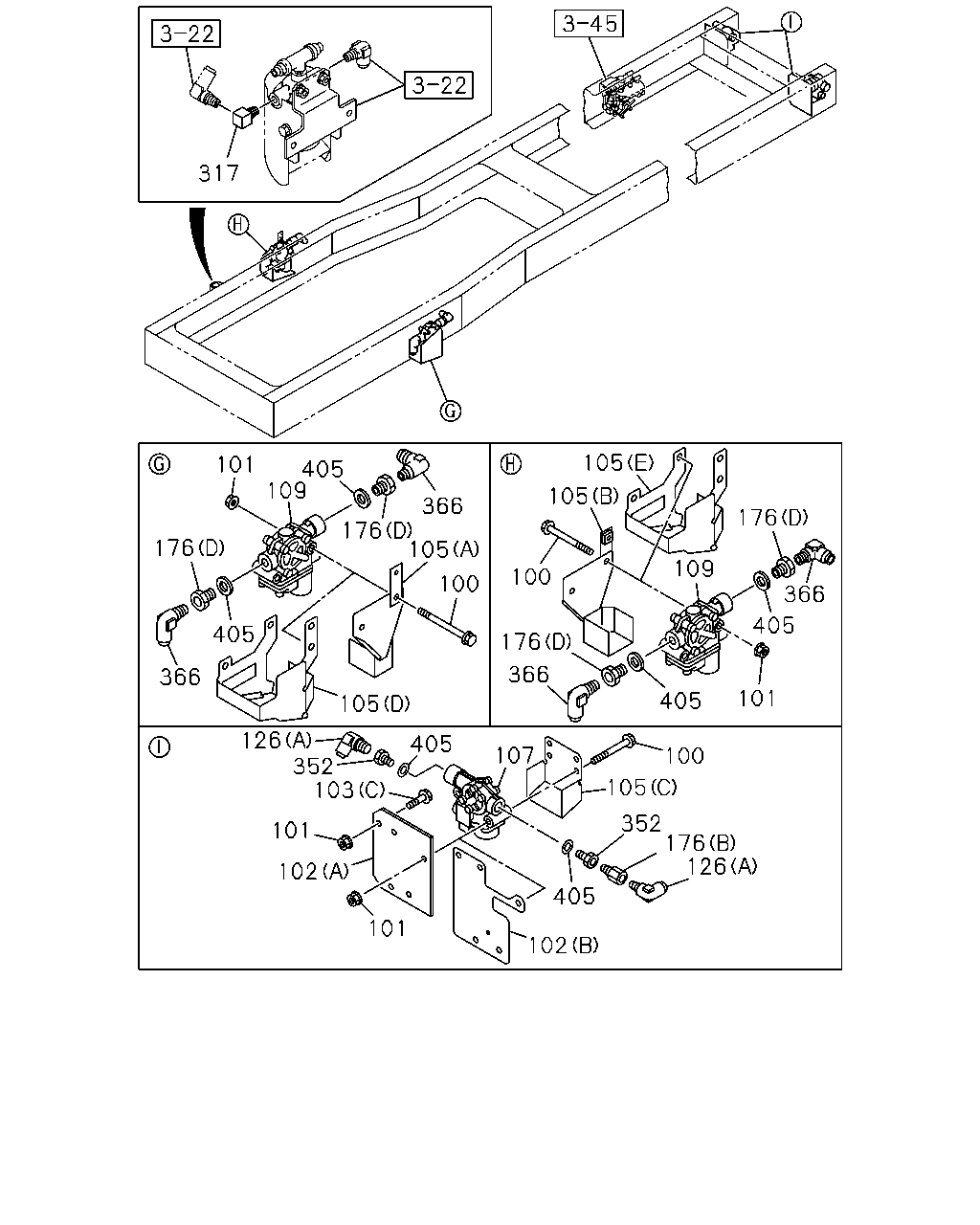

çizim 365594
317 405 366 176 105 100 105 405 109 101 176 366 126 352 405 107 100 105 352 176 126 405 102 101 102 103 101 405 101 405 176 366 109 105 105 100 176 366
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
M8X85 		1-09044-074-0 04 1 1505-
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28050-880-0 08 1 1306-1504
100 BOLT; MODULATOR
M8X80 FLANGE 		0-28050-880-0 04 1 1505-
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 08 1 1306-
102 BRACKET; MODULATOR
(A) 		1-47471-369-0 02 1 1306-1504
102 BRACKET; MODULATOR
(B) 		8-98300-007-0 02 1 1505-
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 1306-
103 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 1306-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1306-
105 COVER; MODULATOR
(C) 		8-98302-925-0 01 1 1505-
105 COVER; MODULATOR
(C) 		1-47471-354-0 02 1 1306-1504
105 COVER; MODULATOR
(C) 		8-98302-924-0 01 1 1505-
105 COVER; MODULATOR
(B) 		8-98147-206-0 01 1 1306-1504
105 COVER; MODULATOR
(E) 		8-98300-154-0 01 1 1505-
105 COVER; MODULATOR
(A) 		8-98226-757-0 01 1 1306-1504
105 COVER; MODULATOR
(D) 		8-98300-152-0 01 1 1505-
107 MODULATOR; RR 1-48240-115-0 02 1 1306-1504
107 MODULATOR; RR 8-98215-454-0 02 1 1505-
109 MODULATOR; FRT 1-48240-115-0 02 1 1306-1504
109 MODULATOR; FRT 8-98215-454-0 02 1 1505-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1306-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1306-
126 CONNECTOR; ELBOW
EXC. FULL FLOATING CAB(W16) (C) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1306-1411
126 CONNECTOR; ELBOW
(C) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1412-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1306-1411
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1412-
176 ADAPTER
(D) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1306-
176 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 1306-
176 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 1306-
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1306-1411
176 ADAPTER
TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 02 1 1412-
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4>,FULL FLOATING CAB(W16) (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1306-1411
176 ADAPTER
EXC. TIRE INFLATOR DEVICE<SG4> (C) PS1/4 & PT1/4 STRAIGHT 		1-09660-090-0 01 1 1412-
317 CONNECTOR; MODULATOR
PT3/8 ELBOW 		1-09660-696-0 01 1 1306-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1306-
366 CONNECTOR; NYLON TUBE
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1306-
405 GASKET
ID=22.5 		9-09571-422-0 01 1 1306-
405 GASKET
ID=22.5 		9-09571-422-0 08 1 1306-

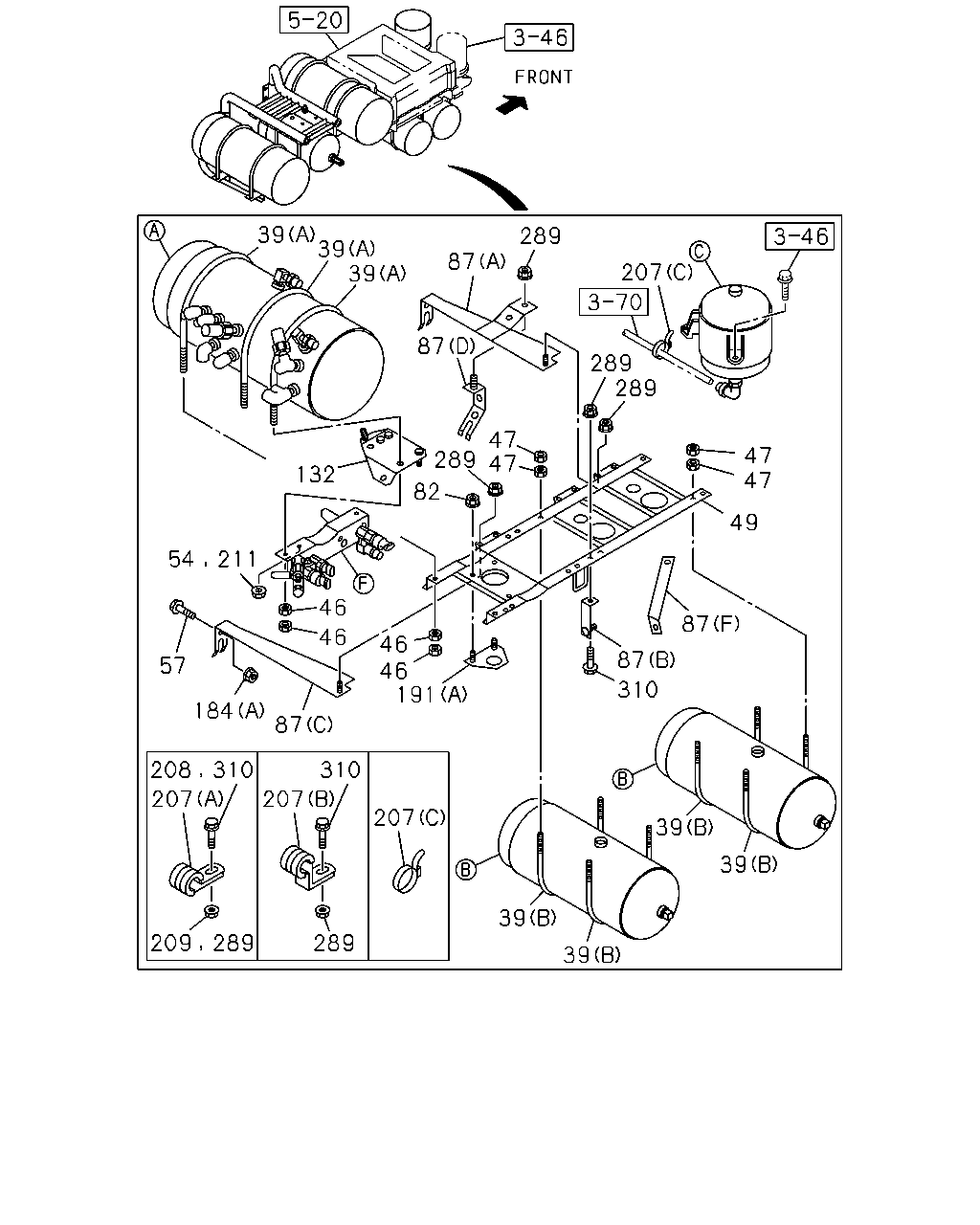

çizim 366388
39 39 39 87 87 289 207 289 289 47 47 49 87 87 310 39 39 39 39 191 46 46 82 289 47 47 132 54 211 46 46 57 184 87 208 310 207 207 310 207 289 289 209
BalonParca AdiParca NoAdetTipApplied Date
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1306-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1306-
39 U-BOLT; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=210 		1-48317-458-1 02 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1306-
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 1306-
49 BRACKET; AIR TANK 8-98241-376-0 01 1 1306-
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 01 1 1306-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 1306-
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE 		0-91180-108-0 02 1 1306-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47471-189-0 02 1 1306-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(E) 		8-98053-747-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(F) 		8-98055-494-0 01 1 1306-
87 BRACKET; AIR PIPE JOINT
(D) 		8-98060-053-0 01 1 1306-
132 BRACKET; STRING GUIDE 8-98200-122-0 01 1 1306-
184 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 1306-
184 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 01 1 1306-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 1306-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-015-1 01 1 1306-
207 CLIP; AIR PIPE
(A) ID=7 L=20 		0-95234-635-0 01 1 1306-
207 CLIP; AIR PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 1306-
207 CLIP; AIR PIPE
(A) ID=35 L=35 		1-09700-895-0 01 1 1306-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 01 1 1306-
207 CLIP; AIR PIPE
(B) ID=31 H=30 L=35 		1-09700-994-0 01 1 1306-
207 CLIP; AIR PIPE
(C) L=350 		1-09707-183-0 14 1 1306-
207 CLIP; AIR PIPE
(C) L=256 		1-09707-189-0 02 1 1306-
208 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1306-
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1306-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1306-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 06 1 1306-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 1306-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1306-
çizim 366414
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X30 W/LK&PL WASHER 		0-50640-830-0 01 1 1306-

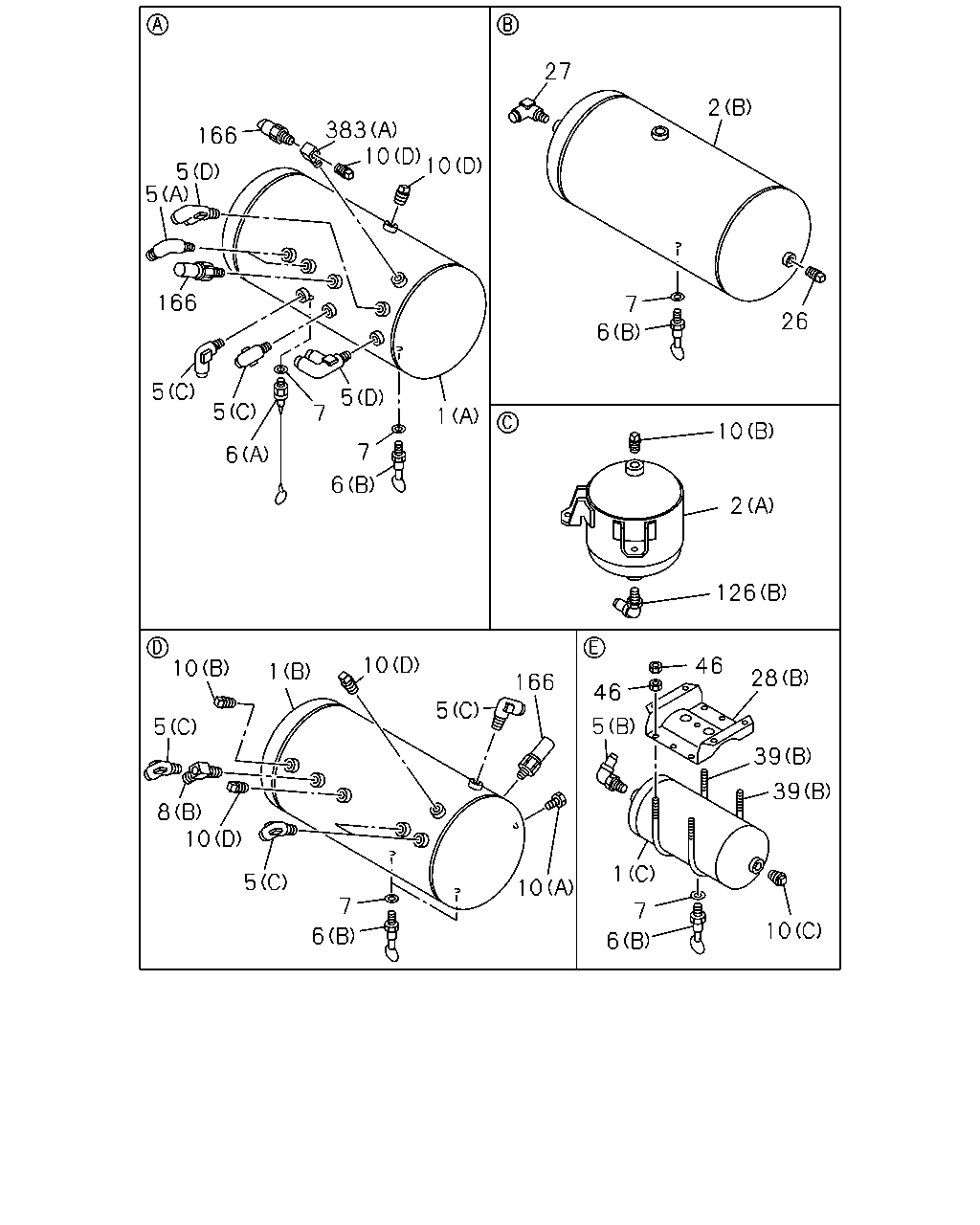

çizim 366620
166 5 5 166 5 5 6 6 7 7 5 1 10 10 383 10 1 10 5 166 10 6 7 5 10 8 5 6 7 1 5 46 46 28 39 39 10 126 2 10 6 7 26 2 27
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 1306-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 1306-
1 TANK ASM; AIR
(D) 		8-97626-720-0 01 1 1306-
1 TANK ASM; AIR
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		1-48371-165-3 01 1 1306-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 1306-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 1306-
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 1306-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 1306-
5 UNION; AIR TANK
(A) M22 & M22 ELBOW 		1-09661-550-0 02 1 1306-
5 UNION; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 1306-
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-006-1 01 1 1306-
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 06 1 1306-
6 COCK; DRAIN,AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48312-017-0 01 1 1306-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 07 1 1306-
7 GASKET; DRAIN COCK
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=14 		1-09630-145-0 01 1 1306-
8 CONNECTOR; AIR TANK
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1306-
8 CONNECTOR; AIR TANK
(B) DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 1306-
10 PLUG; AIR TANK
(A) M22 		1-09661-502-0 03 1 1306-
10 PLUG; AIR TANK
(E) M14 		1-09661-569-0 01 1 1306-
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 1306-
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 04 1 1306-
10 PLUG; AIR TANK
EXC. FULL FLOATING CAB(W16) (D) PT1/4 		9-99204-513-0 01 1 1306-1411
10 PLUG; AIR TANK
(D) PT1/4 		9-99204-513-0 01 1 1412-
10 PLUG; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) PT3/4 		9-09204-526-0 01 1 1306-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 02 1 1306-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1306-
28 BRACKET; AIR TANK
(F) 		1-48316-024-3 01 1 1306-
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 1306-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 1306-
28 BRACKET; AIR TANK
(G) 		8-97627-750-3 01 1 1306-
28 BRACKET; AIR TANK
EXC. FULL FLOATING CAB(W16) (A) 		8-98200-121-2 01 1 1306-1411
28 BRACKET; AIR TANK
(A) 		8-98200-121-2 01 1 1412-
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-48317-473-2 01 1 1306-
28 BRACKET; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (E) 		1-48317-985-1 01 1 1306-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 05 1 1306-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 1306-
39 U-BOLT; AIR TANK
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) L=210 		1-48317-458-1 02 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 1306-
46 NUT; U-BOLT
M8 		0-91110-508-0 20 1 1306-
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1306-
126 CONNECTOR; ELBOW
(B) DIN8 & M22 ELBOW 		1-09661-495-0 01 1 1306-
126 CONNECTOR; ELBOW
EXC. FULL FLOATING CAB(W16) (C) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1306-1411
126 CONNECTOR; ELBOW
(C) R1/4 & RC3/8 ELBOW 		8-98227-936-0 01 1 1412-
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> EXC. FULL FLOATING CAB(W16) (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1306-1411
126 CONNECTOR; ELBOW
TIRE INFLATOR DEVICE<SG4> (D) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1412-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 03 1 1306-
383 UNION; 3 WAY
(A) PT1/4 MALE & PT1/4 FEMALE X2 3WAY 		1-09660-363-0 01 1 1306-
383 UNION; 3 WAY
EXC. FULL FLOATING CAB(W16) (B) 		1-09661-092-0 02 1 1306-1411
383 UNION; 3 WAY
(B) 		1-09661-092-0 02 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
