2-30 — GEAR SHIFTER AND QUADRANT BOX (#123078) — 362 parça

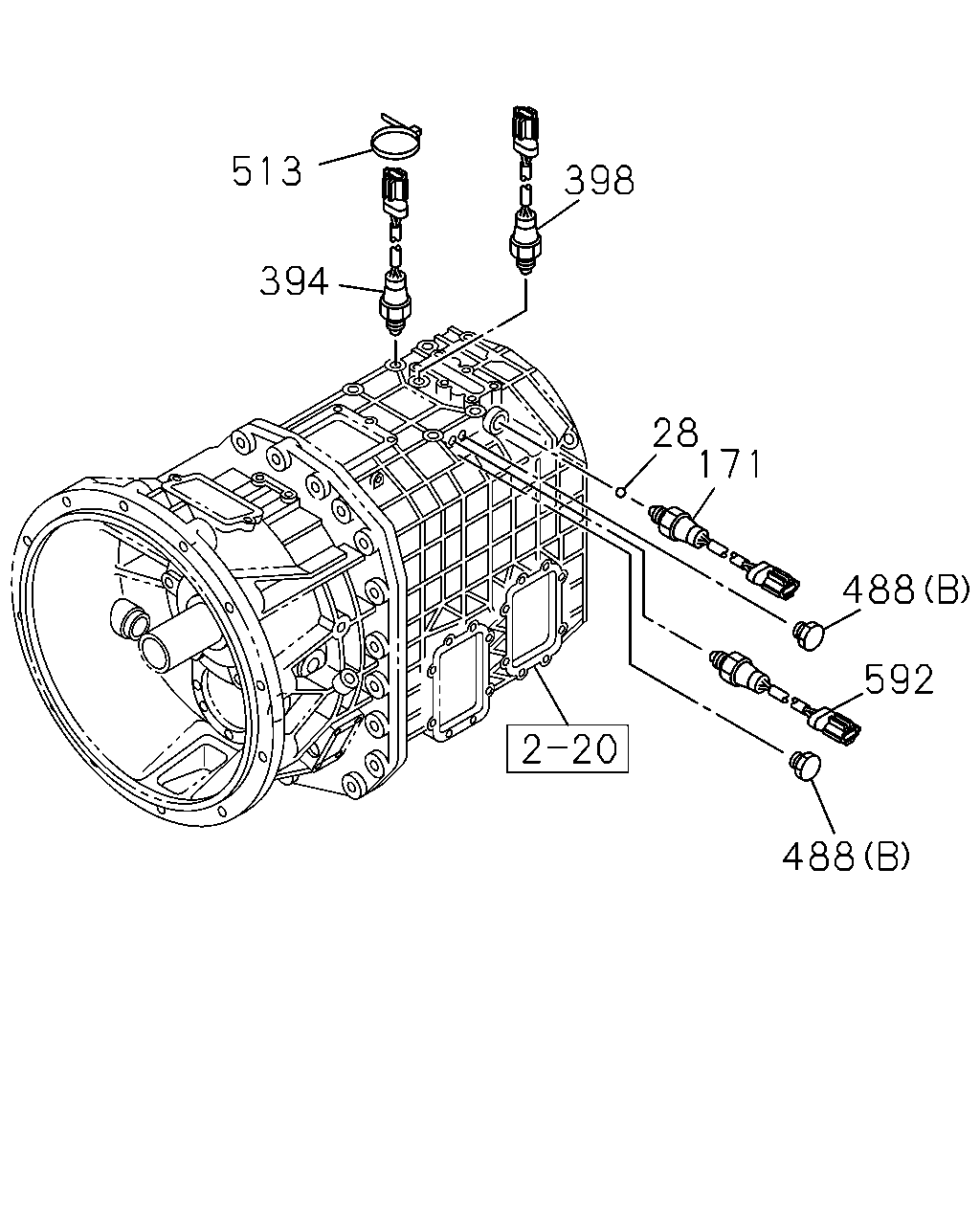

çizim 363028
513 394 398 28 171 488 592 488
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1306- ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1306- ● ●
394 SWITCH; RANGE CHANGE 8-98228-482-0 02 1 1306- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1306- ● ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306- ●
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1306- ● ●
592 SWITCH; POSITION 8-98228-482-0 01 1 1306- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●

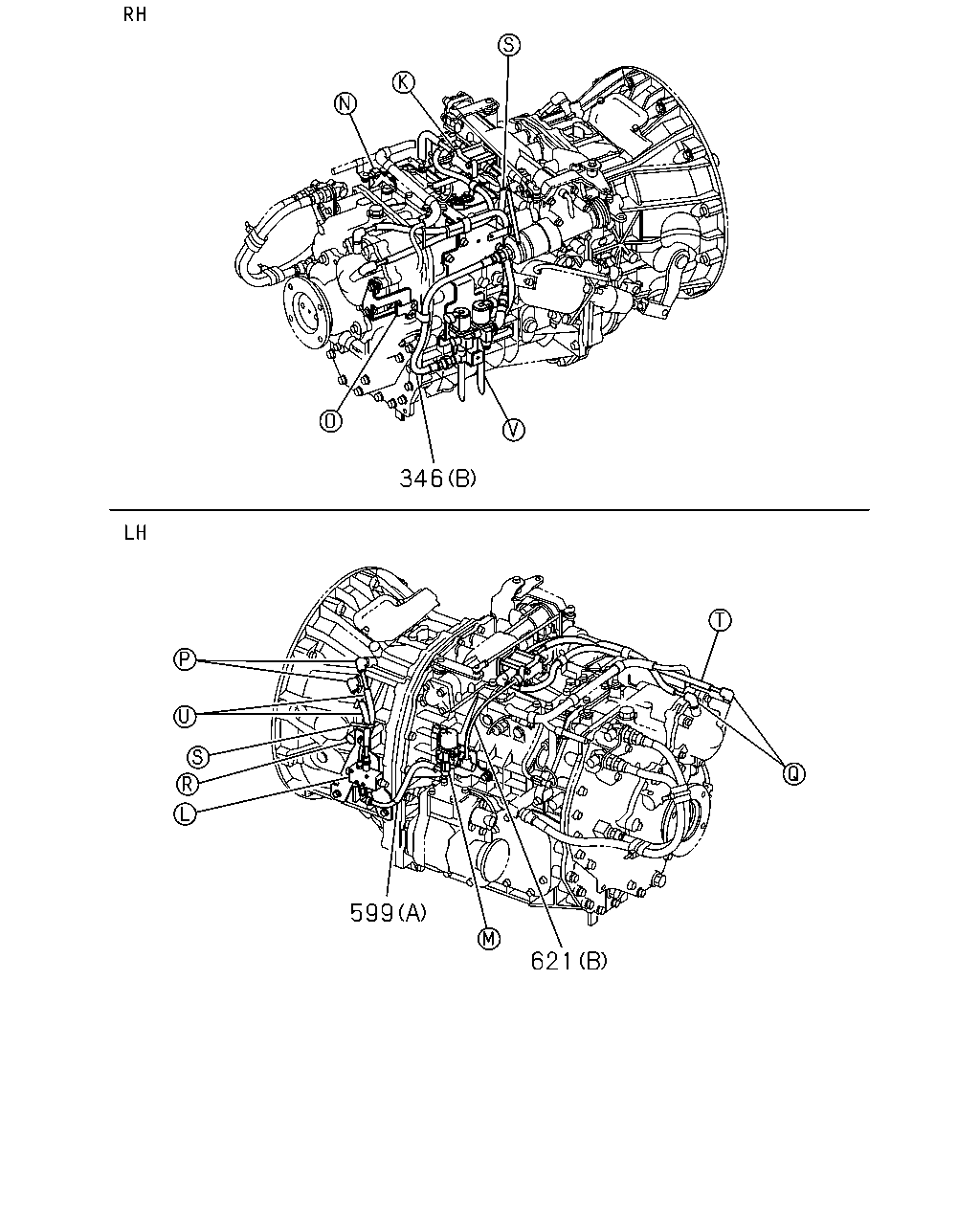

çizim 363046
346 599 621
BalonParca AdiParca NoAdetTipApplied Date A B
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401 ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1306- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1306- ●
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1306- ●
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1306- ●

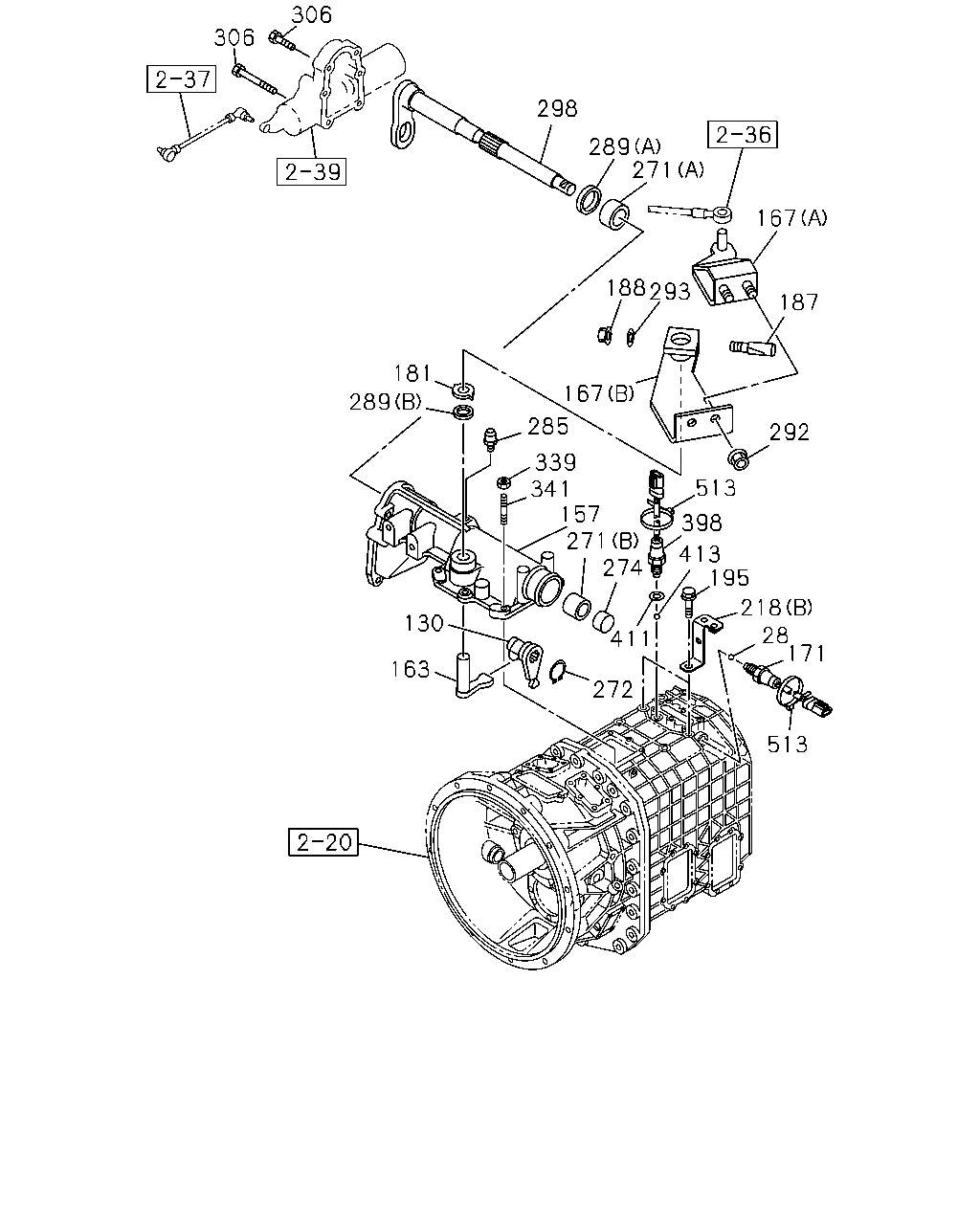

çizim 363133
306 306 298 289 271 167 187 188 293 167 292 513 398 413 195 218 28 171 513 272 411 274 271 157 341 339 285 181 289 130 163
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1306- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1306- ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1306- ●
157 BOX; QUAD,TRANS 1-33541-507-3 01 1 1306-1311 ●
157 BOX; QUAD,TRANS 8-98231-390-0 01 1 1312- ●
157 BOX; QUAD,TRANS 8-98220-885-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL 1-33522-201-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL 1-33522-202-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-192-1 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-193-1 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-194-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98052-192-0 01 1 1306- ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1306- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1306- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1306- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1306- ● ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1306- ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		8-98133-847-0 02 1 1306- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1306- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1306- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1306- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1306- ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX 8-98220-886-0 01 1 1306- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1306- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1306- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1306- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1306- ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1306-1408 ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1409- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1306- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1306- ●
298 SHAFT; SHIFT LEVER 8-98222-566-0 01 1 1306- ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1306- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1306- ● ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1306- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1306- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1306- ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1306- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1306- ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 1306- ●
413 BALL; BACK SW 9-00097-013-0 01 1 1306- ●
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1306- ● ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●

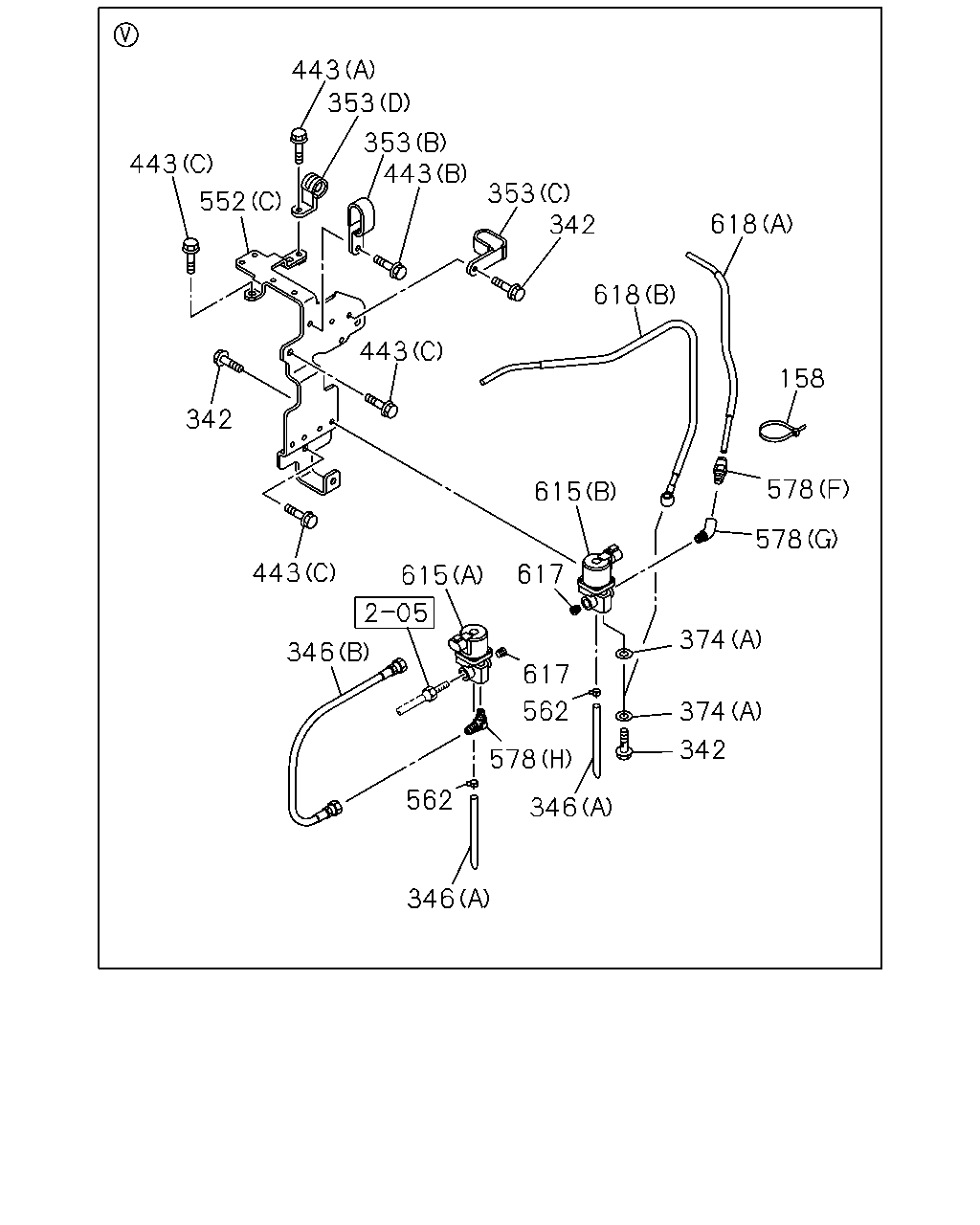

çizim 363140
443 353 353 443 353 618 618 158 578 578 374 374 342 346 578 562 617 617 615 346 562 346 615 443 342 552 443 443 342
BalonParca AdiParca NoAdetTipApplied Date A B
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1306- ●
342 BOLT
M8X16 FLANGE 		0-28050-816-0 05 1 1306- ●
342 BOLT
M12X27 EYE-BOLT W/FLANGE 		8-98037-826-0 01 1 1306- ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401 ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306- ●
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1306- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1306- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1306- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 02 1 1306-1312 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 02 1 1401- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09661-390-0 01 1 1306- ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1306- ●
443 BOLT; CLIP
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●
443 BOLT; CLIP
(C) M10X25 FLANGE 		0-28751-025-0 05 1 1306- ●
552 BRACKET
(A) 		1-33719-082-0 01 1 1306- ●
552 BRACKET
(B) 		1-33719-083-0 01 1 1306- ●
552 BRACKET
(C) 		8-98222-117-0 01 1 1306- ●
562 CLAMP; LOCKING
ID=7.8 		8-94246-958-0 02 1 1306- ●
578 CONNECTOR
(I) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1306- ●
578 CONNECTOR
(H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306- ●
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306- ●
578 CONNECTOR
(F) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1306- ●
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1306- ●
578 CONNECTOR
(G) R1/4 & RC1/4 		1-09664-211-0 02 1 1306- ●
578 CONNECTOR
(C) 		1-33712-023-0 02 1 1306- ●
578 CONNECTOR
(A) 		1-33712-024-0 01 1 1306- ●
578 CONNECTOR
(B) 		1-33712-026-0 01 1 1306- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●
615 VALVE; MAGNETIC
(A) 		8-98222-558-0 01 1 1306- ●
615 VALVE; MAGNETIC
(B) 		8-98222-559-0 01 1 1306- ●
617 PLUG 8-97320-204-0 02 1 1306- ●
618 TUBE; NYLON
(B) L=730 		8-98222-118-0 01 1 1306- ●
618 TUBE; NYLON
(A) L=400 		8-98222-734-0 01 1 1306- ●

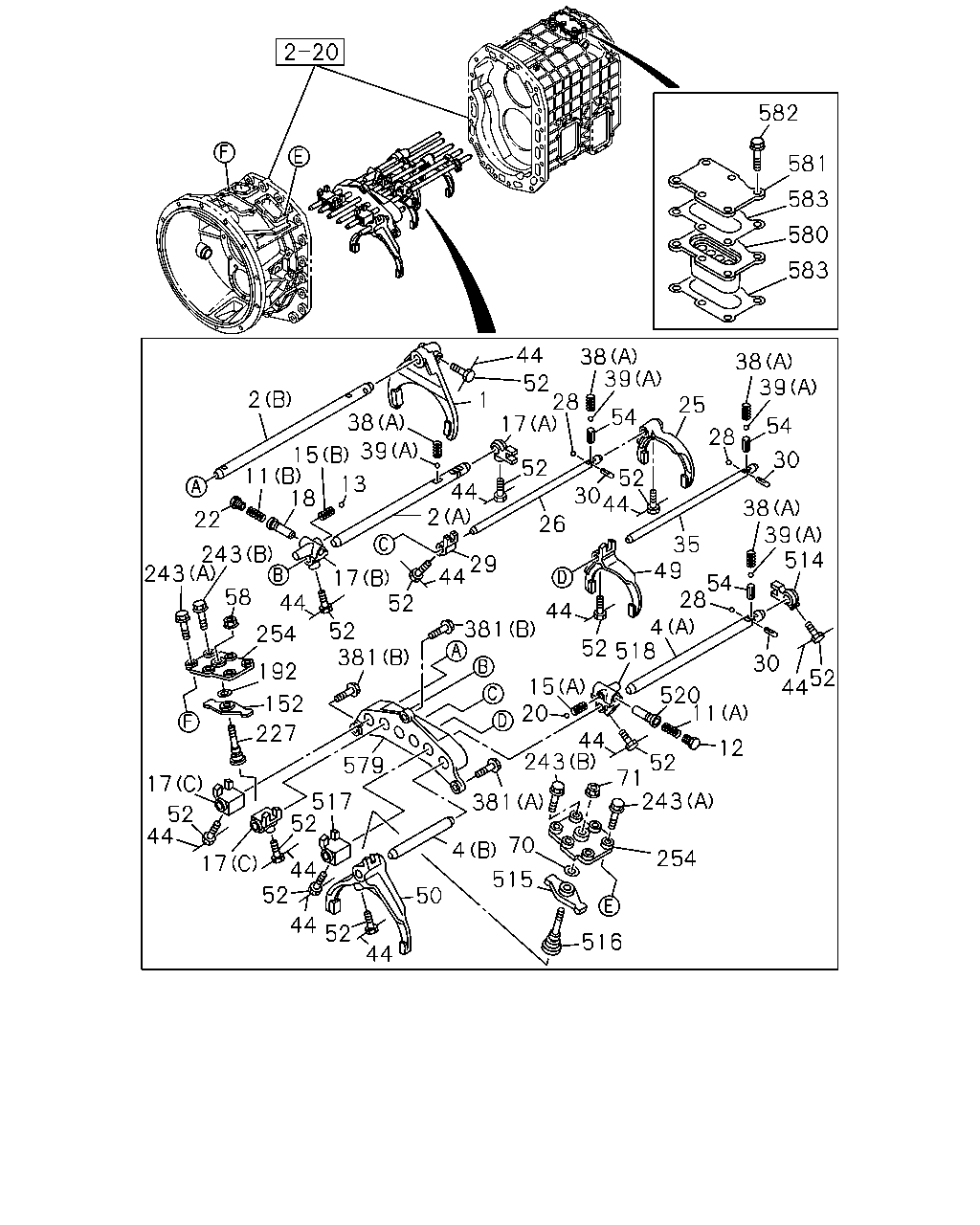

çizim 365534
582 581 583 580 583 22 2 11 15 38 39 13 18 1 44 52 38 39 28 17 52 44 2 17 243 243 58 44 254 192 152 227 17 52 44 17 52 517 44 52 44 52 44 50 579 381 52 52 44 29 26 30 44 52 54 25 28 38 39 30 38 39 514 54 35 49 28 4 518 52 44 381 15 20 381 4 70 515 516 254 243 44 243 71 52 12 11 520 30 44 52 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 1-33511-579-0 01 1 1306- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1306- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1306- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1306- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1306- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1306- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1306-1510 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1511- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1306- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1306- ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1306- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1306- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1306- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1306- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1306- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1306- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1306- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1306- ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1306- ●
30 PIN; INTER LK 9-33534-003-0 03 1 1306- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-442-1 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1306- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1306- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1306- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1306- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1306- ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1306- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1306- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1306- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1306- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1306- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1306- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1306- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1306- ● ●
58 NUT
M12 FLANGE 		0-91180-212-0 01 1 1306- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 1306- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 1306- ●
152 LEVER; RELAY,SELECT 1-33511-560-1 01 1 1306- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1306- ●
192 WASHER; PL 1-09503-310-0 04 1 1306- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1306- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1306- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1306- ●
243 BOLT; COVER
(C) M8X20 FLANGE 		0-28050-820-0 06 1 1306- ●
243 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ●
254 COVER; LEVER 1-33141-054-0 02 1 1306- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1306- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1306- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1306- ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 1306- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-560-1 01 1 1306- ●
516 SPINDLE; 6TH & 7TH 1-33519-104-0 01 1 1306- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-557-0 01 1 1306- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-558-1 01 1 1306- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 1306- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1306- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1306- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1306- ● ●
581 COVER; BLOCK 1-33141-056-0 01 1 1306- ● ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1306- ● ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1306- ● ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●

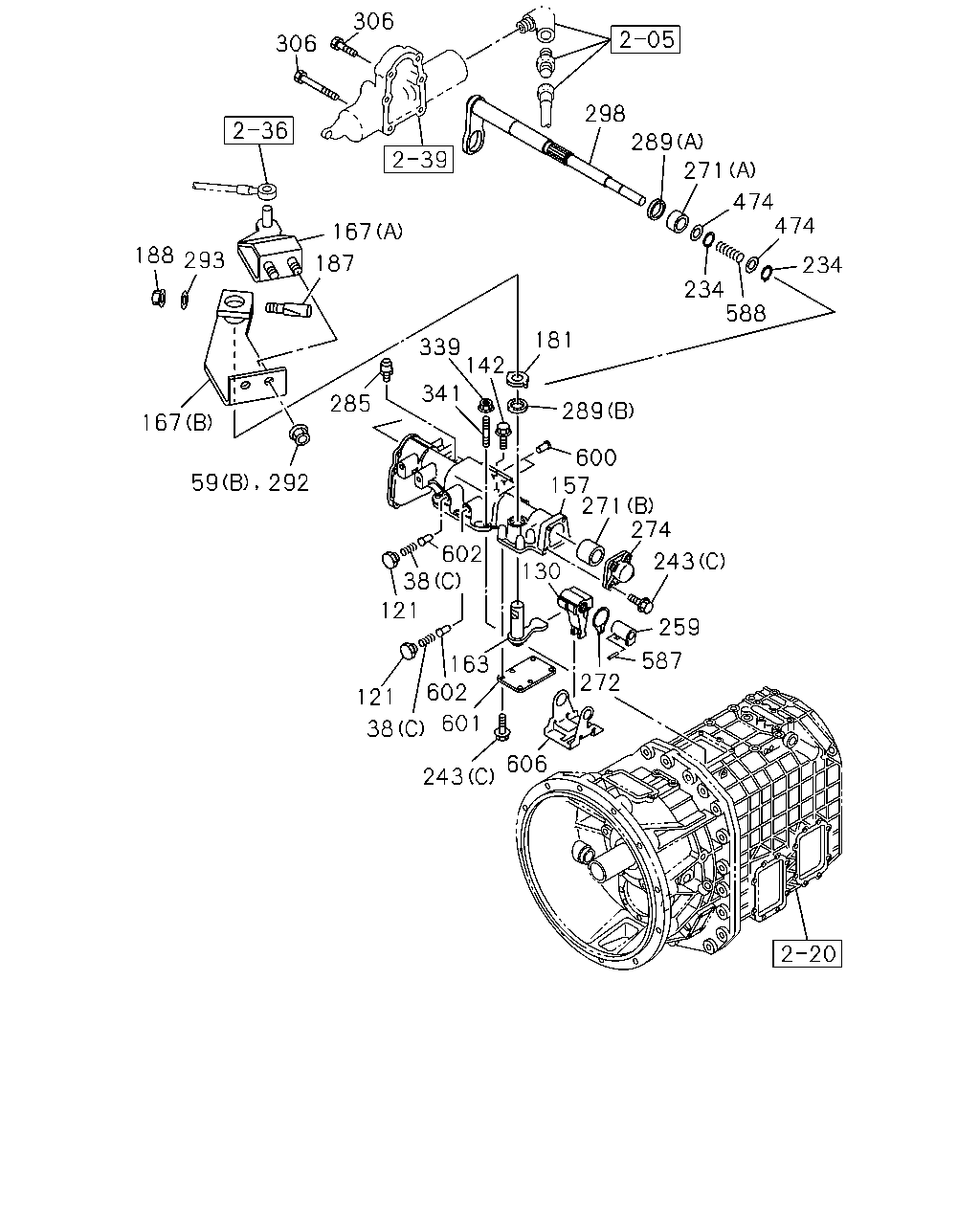

çizim 365608
306 306 167 187 293 188 339 341 285 167 59 292 602 38 121 163 602 121 601 38 243 606 272 587 259 243 274 271 157 600 289 181 142 130 588 234 234 474 474 271 289 298
BalonParca AdiParca NoAdetTipApplied Date A B
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1306- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1306- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1306- ●
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1409- ●
59 NUT
(A) 		1-09440-068-0 04 1 1306- ●
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1306- ●
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1306- ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1306- ●
130 LEVER; SHIFT,INTERNAL 1-33521-189-0 01 1 1306- ●
142 BOLT; QUAD BOX
M10X30 FLANGE 		0-28751-030-0 01 1 1306- ●
157 BOX; QUAD,TRANS 1-33541-507-3 01 1 1306-1311 ●
157 BOX; QUAD,TRANS 8-98231-390-0 01 1 1312- ●
157 BOX; QUAD,TRANS 8-98220-885-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL 1-33522-201-0 01 1 1306- ●
163 LEVER; SELECT,INTERNAL 1-33522-202-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-192-1 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(A) 		1-33521-193-1 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(B) 		1-33521-194-0 01 1 1306- ●
167 LEVER; SELECT,EXTERNAL
(A) 		8-98052-192-0 01 1 1306- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1306- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1306- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1306- ● ●
234 RING; SNAP
ID=14.7 		0-91800-616-0 02 1 1306- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1306- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1306- ●
243 BOLT; COVER
(C) M8X20 FLANGE 		0-28050-820-0 06 1 1306- ●
243 BOLT; COVER
(C) M8X35 FLANGE 		0-28650-835-0 04 1 1306- ●
259 GUIDE; SELECT,CONT BOX 8-98222-568-0 01 1 1306- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1306- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1306- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1306- ●
272 RING; SNAP,QUAD BOX 1-09588-213-0 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1306- ●
274 COVER; SHAFT,QUAD BOX 8-98220-886-0 01 1 1306- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1306- ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 1306- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1306- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1306- ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1306-1408 ● ●
292 NUT; LINK ROD
M8 FLANGE 		0-91180-108-0 02 1 1409- ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1306- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1306- ●
298 SHAFT; SHIFT LEVER 8-98222-566-0 01 1 1306- ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1306- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1306- ● ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1306- ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 05 1 1306- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1306- ●
341 STUD; QUAD BOX
M10X35 L=50 		0-44011-035-0 05 1 1306- ●
474 WASHER; SPRING STOPPER 8-98222-569-0 02 1 1306- ●
587 PIN; SHIFT GUIDE 9-08160-420-0 01 1 1306- ●
588 SPRING; RETURN,QUADRANT BOX 1-09580-576-0 01 1 1306- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●
600 PLUNGER; VLV 1-33263-037-0 02 1 1306- ●
601 COVER; SHAFT,SELECT 1-33545-011-0 01 1 1306- ●
602 PLUNGER; DETENT 1-33263-037-0 02 1 1306- ●
606 INHIBITOR 1-33529-116-0 01 1 1306- ●

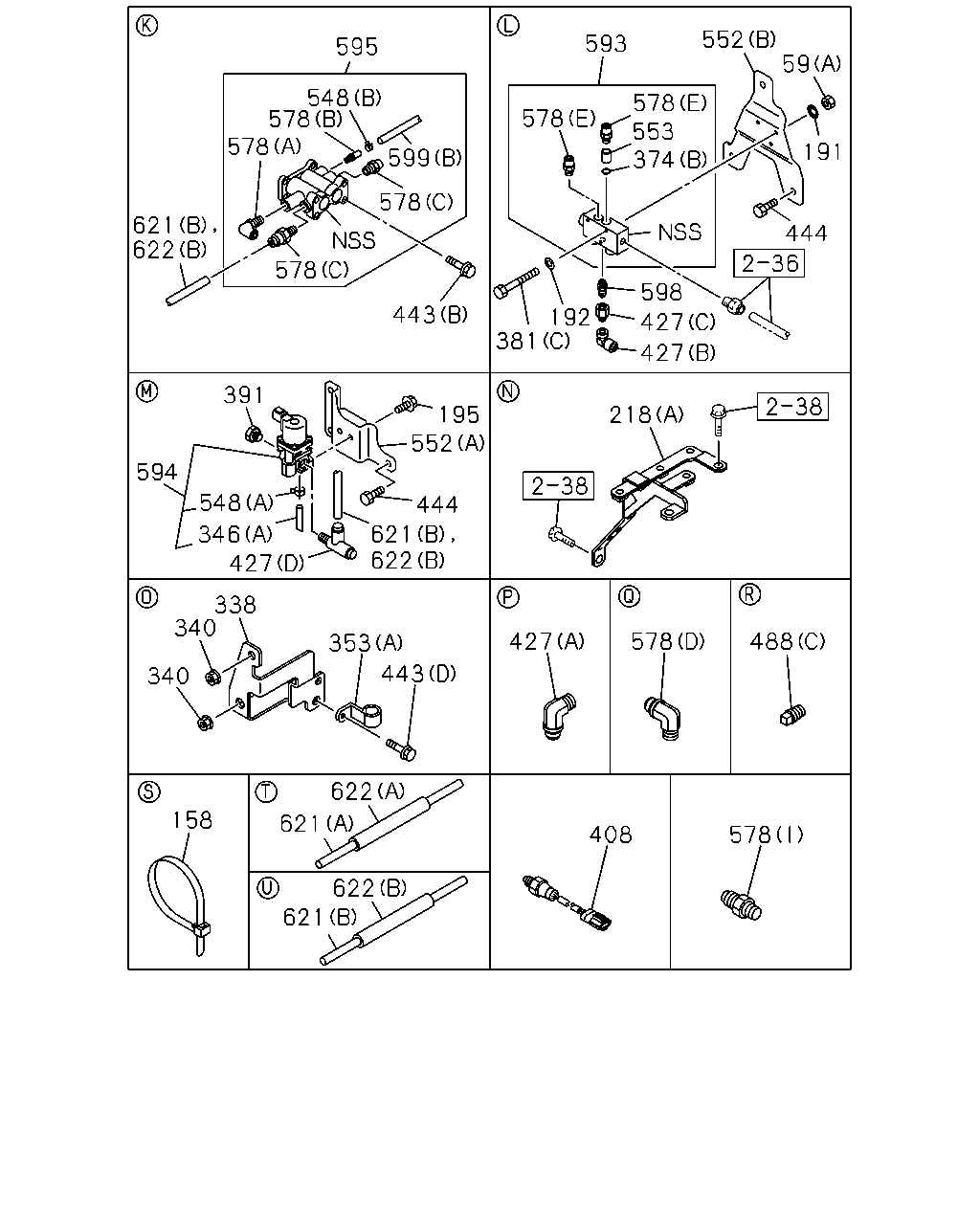

çizim 365804
595 548 578 578 599 578 578 622 621 443 381 192 427 427 598 444 374 578 598 552 59 191 578 553 218 391 195 552 444 621 622 427 346 548 594 338 340 340 353 443 427 578 488 408 578 622 621 622 158 621
BalonParca AdiParca NoAdetTipApplied Date A B
59 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 1409- ●
59 NUT
(A) 		1-09440-068-0 04 1 1306- ●
158 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1306- ●
191 WASHER; LK 1-09503-311-0 04 1 1306- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1306- ●
192 WASHER; PL 1-09503-310-0 04 1 1306- ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1306- ●
195 BOLT
M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		8-98133-847-0 02 1 1306- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82698-350-0 01 1 1306- ●
338 BRACKET; FLEX TUBE 8-98222-750-1 01 1 1306- ●
340 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306- ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 02 1 1306-1401 ●
346 HOSE; AIR
(A) ID=6 OD=9 L=150 		1-33739-872-0 03 1 1402- ●
346 HOSE; AIR
(B) L=450 		1-09363-965-0 01 1 1306- ●
353 CLIP; AIR HOSE
(D) ID=12 H=24 L=20 		1-09700-605-0 01 1 1306- ●
353 CLIP; AIR HOSE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1306- ●
353 CLIP; AIR HOSE
(C) ID=33X16.5 L=50 		5-09700-341-0 01 1 1306- ●
353 CLIP; AIR HOSE
(B) ID=16X2 L=40 		9-09535-576-0 01 1 1306- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		1-09630-084-0 02 1 1306-1312 ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2 		8-98251-344-0 02 1 1401- ●
374 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09661-390-0 01 1 1306- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1306- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1306- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1306- ●
391 PLUG; SW HOLE
M12X9 		0-92002-412-0 01 1 1306- ●
408 SWITCH; SELECT,4TH 5TH 8-98228-507-0 01 1 1306- ●
427 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306- ●
427 CONNECTOR; NYLON TUBE
(C) DIN8 ELBOW 		1-09660-924-1 01 1 1306- ●
427 CONNECTOR; NYLON TUBE
(D) M12 		1-09660-931-1 01 1 1306- ●
427 CONNECTOR; NYLON TUBE
(A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1306- ●
443 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1306- ●
443 BOLT; CLIP
(B) M8X90 FLANGE 		0-28050-890-0 04 1 1306- ●
443 BOLT; CLIP
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●
443 BOLT; CLIP
(C) M10X25 FLANGE 		0-28751-025-0 05 1 1306- ●
444 BOLT; CLIP
M10X25 FLANGE 		0-28751-025-0 06 1 1306- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306- ●
548 CLIP; HOSE
(A) ID=7.8 		8-94246-958-0 01 1 1306- ●
548 CLIP; HOSE
(B) 		1-33712-028-0 01 1 1306- ●
552 BRACKET
(A) 		1-33719-082-0 01 1 1306- ●
552 BRACKET
(B) 		1-33719-083-0 01 1 1306- ●
552 BRACKET
(C) 		8-98222-117-0 01 1 1306- ●
553 ADAPTER; AIR 1-09661-389-0 01 1 1306- ●
578 CONNECTOR
(I) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1306- ●
578 CONNECTOR
(H) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306- ●
578 CONNECTOR
(D) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 1306- ●
578 CONNECTOR
(F) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1306- ●
578 CONNECTOR
(E) 		1-09661-292-0 02 1 1306- ●
578 CONNECTOR
(G) R1/4 & RC1/4 		1-09664-211-0 02 1 1306- ●
578 CONNECTOR
(C) 		1-33712-023-0 02 1 1306- ●
578 CONNECTOR
(A) 		1-33712-024-0 01 1 1306- ●
578 CONNECTOR
(B) 		1-33712-026-0 01 1 1306- ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●
594 VALVE; MAGNETIC,AIR 1-82564-069-0 01 1 1306- ●
595 VALVE; RANGE 1-33712-029-1 01 1 1306- ●
598 UNION
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 1306- ●
599 TUBE; NYLON
(A) 		1-09377-036-1 01 1 1306- ●
599 TUBE; NYLON
(B) 		1-33712-027-0 01 1 1306- ●
621 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 1306- ●
621 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1306- ●
622 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 1306- ●
622 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1306- ●

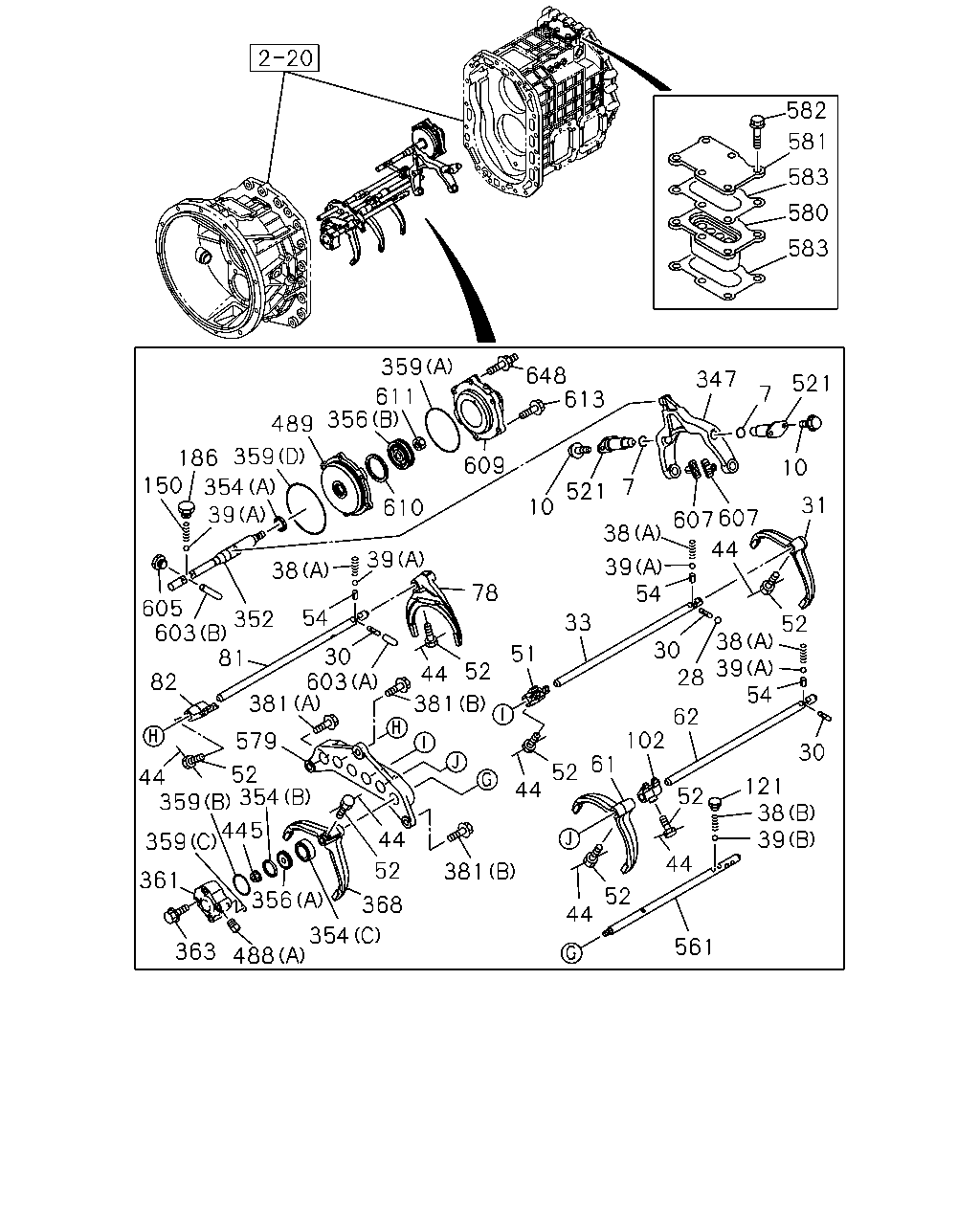

çizim 367135
582 581 583 580 583 150 186 354 39 359 489 356 611 359 648 613 347 7 521 10 31 607 44 607 7 521 10 609 610 39 38 352 605 603 81 82 54 30 603 381 579 52 354 359 44 359 445 361 363 488 356 354 368 52 44 381 381 44 78 52 51 33 54 39 38 30 28 62 102 61 52 44 44 52 44 52 561 121 38 39 38 39 54 30 52
BalonParca AdiParca NoAdetTipApplied Date A B
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 02 1 1306- ●
10 BOLT; SPINDLE
M10X30 FLANGE 		0-28751-030-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1306- ●
28 BALL; INTER LK 9-00097-501-0 02 1 1306- ●
30 PIN; INTER LK 9-33534-003-0 03 1 1306- ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-587-0 01 1 1306- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-458-0 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 04 1 1306- ●
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 1306- ●
38 SPRING; DETENT
(A) 		1-09580-379-0 03 1 1306- ●
38 SPRING; DETENT
(C) 		1-09580-580-0 02 1 1306- ●
39 BALL; DETENT
(A) 		1-09843-012-0 04 1 1306- ● ●
39 BALL; DETENT
(B) 		9-00097-013-0 01 1 1306- ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1306- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1306- ●
44 WIRE; LK
L=200 		9-08351-020-0 07 1 1306- ●
51 BLOCK; SHIFT,1ST & 2ND 1-33511-617-0 01 1 1306- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1306- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 07 1 1306- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1306- ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-586-0 01 1 1306- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-459-0 01 1 1306- ●
78 ARM; SHIFT,REV 1-33511-589-0 01 1 1306- ●
81 ROD; SHIFT,REV BLOCK 1-33531-457-0 01 1 1306- ●
82 BLOCK; SHIFT,REV 1-33511-600-0 01 1 1306- ●
102 BLOCK; SHIFT,3RD & 4TH 1-33511-615-0 01 1 1306- ●
121 PLUG; DETENT SPR
M16X12 		0-92002-416-0 01 1 1306- ●
121 PLUG; DETENT SPR
M14X9 		8-98042-944-0 02 1 1306- ●
150 SPRING; DETENT BALL 1-09580-379-0 01 1 1306- ●
186 PLUG; SHIFTER ROD
M16X12 		0-92002-416-0 01 1 1306- ●
347 ARM; SHIFT,RANGE CHANGE 1-33511-585-0 01 1 1306- ●
352 ROD; SHIFT,RANGE CHANGE 1-33531-482-0 01 1 1306- ●
354 SEAL; AIR CYL
(A) 		1-19387-056-0 01 1 1306- ●
354 SEAL; AIR CYL
(B) 		1-33739-978-0 01 1 1306- ●
354 SEAL; AIR CYL
(C) 		1-33739-981-0 01 1 1306- ●
356 PISTON; AIR CYL
(A) 		1-33551-017-0 01 1 1306- ●
356 PISTON; AIR CYL
(B) 		1-33551-025-0 01 1 1306- ●
359 GASKET; AIR CYL
(A) ID=124.6 		1-09623-468-0 01 1 1306- ●
359 GASKET; AIR CYL
(B) ID=55.6 		8-98075-598-0 01 1 1306- ●
359 GASKET; AIR CYL
(C) ID=6.8 		9-09565-107-0 01 1 1306- ●
359 GASKET; AIR CYL
(D) ID=144.4 		9-09920-735-0 01 1 1306- ●
361 CYLINDER; AIR,SHIFT 1-33561-019-0 01 1 1306- ●
363 BOLT; AIR CYL
M10X60 FLANGE 		8-98169-763-0 04 1 1306- ●
368 ARM; SHIFT,SPLITTER GEAR 1-33511-588-0 01 1 1306-1510 ●
368 ARM; SHIFT,SPLITTER GEAR 8-98318-482-0 01 1 1511- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1306- ● ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1306- ● ●
381 BOLT
(C) 		1-09044-111-0 04 1 1306- ●
445 NUT; SHIFT CYL
M12 LOCK NUT FLANGE 		0-91380-012-0 01 1 1306- ●
488 PLUG; AIR CYL
(B) M14X9 		8-98042-944-0 02 1 1306- ●
488 PLUG; AIR CYL
(A) 		9-09204-510-0 01 1 1306- ●
488 PLUG; AIR CYL
(C) PT1/4 		9-99204-513-0 01 1 1306- ●
489 COVER; AIR CYL 1-33569-052-0 01 1 1306- ●
521 SPINDLE; 6TH 1-33519-131-0 02 1 1306- ●
561 ROD; SHIFT 1-33531-466-0 01 1 1306- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1306- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-066-2 01 1 1306- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1306- ● ●
581 COVER; BLOCK 1-33141-056-0 01 1 1306- ● ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1306- ● ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1306- ● ●
593 VALVE; SPLITTER 1-33712-009-0 01 1 1306- ●
603 ROD; INTER LK
(A) L=49 		1-33534-005-0 01 1 1306- ●
603 ROD; INTER LK
(B) L=77 		1-33534-010-0 01 1 1306- ●
605 PLUG; INTER LK
M18X12 		0-92002-418-0 01 1 1306- ●
607 PIECE; SHIFT 1-33518-010-0 02 1 1306- ●
609 BODY; AIR,CYL 1-33561-018-0 01 1 1306- ●
610 SEAL; PISTON 1-33738-054-0 01 1 1306- ●
611 NUT; SHAFT 8-97324-304-0 01 1 1306- ●
613 BOLT; AIR CYL
M10X45 FLANGE 		0-28151-045-0 03 1 1306- ●
648 STUD; AIR CYL
M10X20,M10X45 L=75 		8-98010-335-0 03 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
