2-07 — CLUTCH BOOSTER; MINIPACK (#123072) — 145 parça

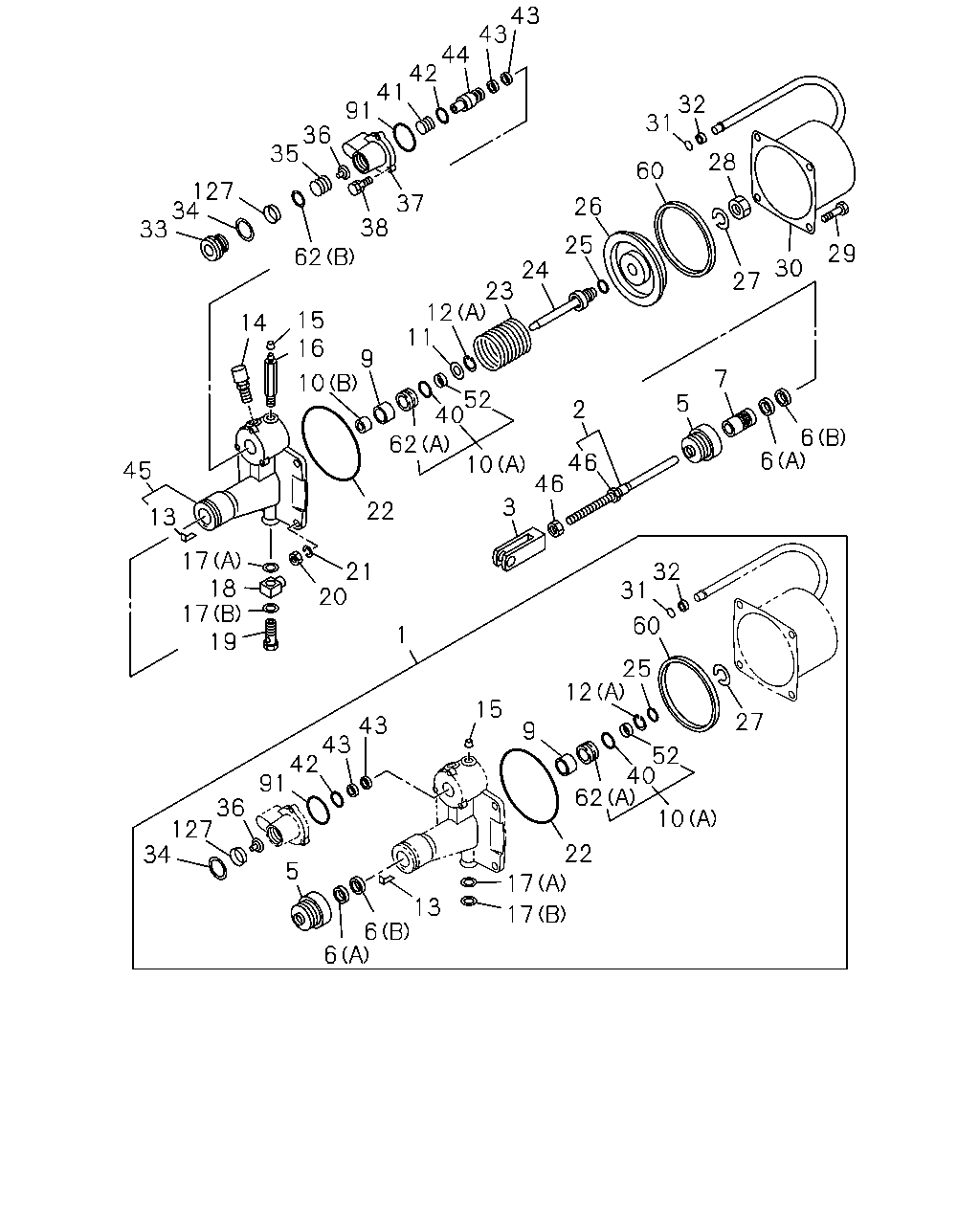

çizim 366358
33 34 127 35 36 91 41 42 44 43 43 62 38 37 45 13 17 17 19 18 20 22 21 14 15 16 10 9 11 12 23 24 25 26 60 31 32 28 27 30 29 5 7 6 6 2 46 46 3 10 52 40 62 1 34 127 36 91 42 43 43 5 6 13 6 15 17 17 9 62 22 12 40 10 52 25 31 60 32 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-570-0 01 1 1306- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-253-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1306- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1306- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1306- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 1306- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-055-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-056-0 01 1 1306- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1306- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1306- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1306- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1306- ●
13 PIN; SPR 1-31829-109-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1306- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1306- ● ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 1306- ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1306- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1306- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1306- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1306- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1306- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1306- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1306- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1306- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 1306- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1306- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1306- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1306- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1306- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1306- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1306- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1306- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 1306- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1306- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1306- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1306- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1306- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1306- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1306- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1306- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1306- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1306- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1306- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1306- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1306- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1306- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1306- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1306- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 1306- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1306- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1306- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1306- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1306- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1306- ●
62 RETAINER; POPPET
(A) 		1-31829-357-0 01 1 1306- ●
62 RETAINER; POPPET
(B) 		1-31829-489-0 01 1 1306- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1306- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 1306- ●

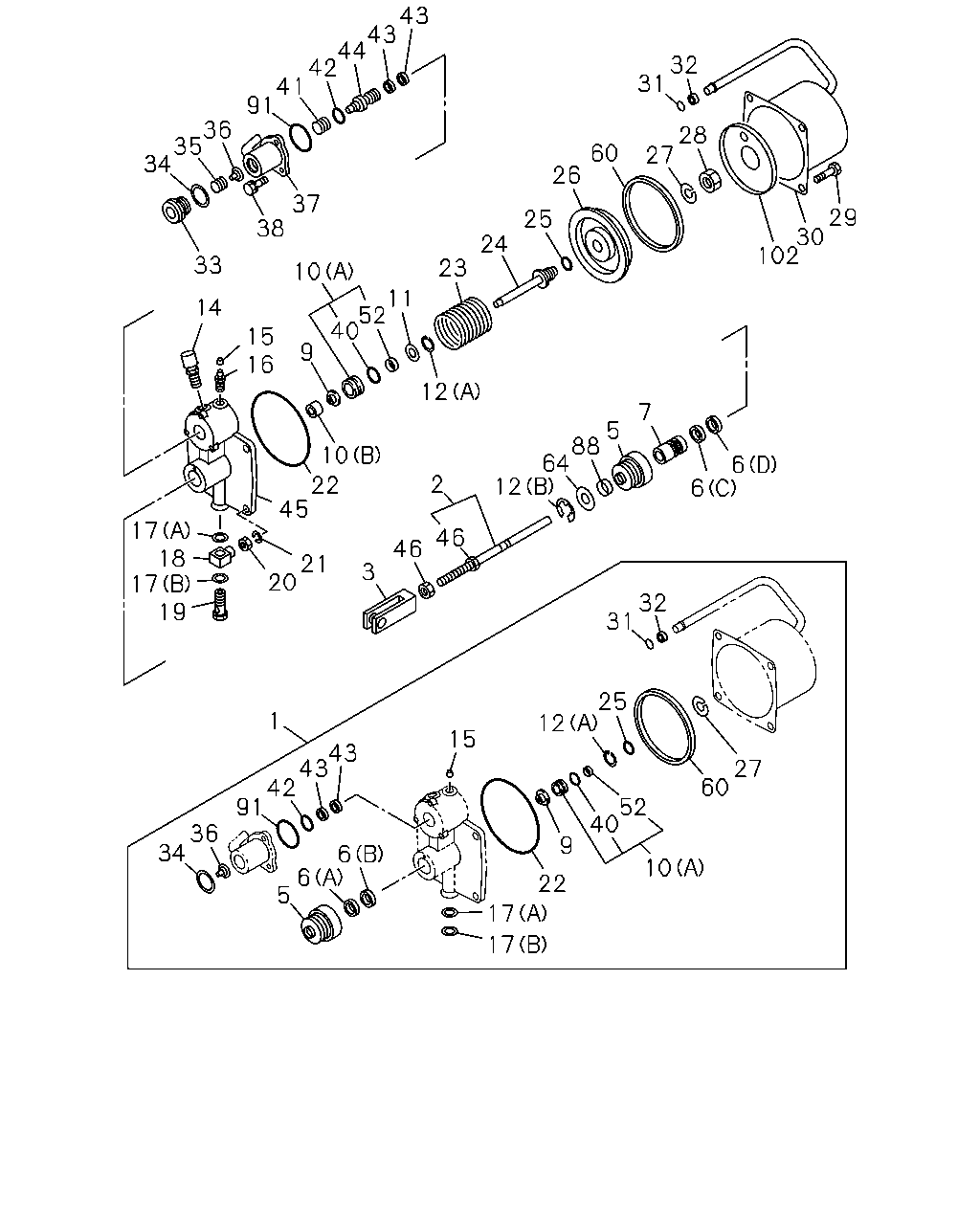

çizim 366421
27 60 10 52 32 31 25 12 40 9 22 17 17 6 15 6 5 43 43 42 91 36 34 1 3 46 46 2 12 64 88 5 7 6 6 20 21 19 17 17 16 45 10 22 12 9 40 52 11 23 24 25 26 60 27 28 31 32 102 30 29 18 10 15 14 33 38 37 34 35 36 91 41 42 44 43 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-570-0 01 1 1306- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-253-0 01 1 1306- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1306- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-619-0 01 1 1306- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1306- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 1306- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(C) 		1-31829-055-0 01 1 1306- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(D) 		1-31829-056-0 01 1 1306- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1306- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1306- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1306- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1306- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1306- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1306- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1306- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1306- ● ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 1306- ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1306- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1306- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1306- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1306- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1306- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 1-31829-624-0 04 1 1306- ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1306- ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1306- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1306- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 1306- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 1306- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1306- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1306- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1306- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1306- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1306- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1306- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1306- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 1306- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1306- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1306- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1306- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1306- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1306- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1306- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1306- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1306- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1306- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1306- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1306- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1306- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1306- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1306- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1306- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1306- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 1306- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1306- ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31829-625-0 01 1 1306- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1306- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1306- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1306- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1306- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 1306- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 1306- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1306- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 1306- ●
