1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#12307) — 64 parça
çizim 20168
7 14 13 162 163 10 24 23 105 104 21 20 17 15 16 163 161
BalonParca AdiParca NoAdetTipApplied Date
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0105-0109
7 CYLINDER ASM; CONT 1-22190-666-0 01 1 0110-0508
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0105-0508
13 SPRING; CONT CYL 1-22199-234-0 01 1 0105-0109
13 SPRING; CONT CYL 1-22199-173-0 01 1 0110-0508
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0105-0109
14 SHAFT; CONT CYL 1-22199-208-0 01 1 0110-0508
15 PLATE; CONT CYL 1-22199-233-0 01 1 0105-0109
15 PLATE; CONT CYL 1-22199-168-0 01 1 0110-0508
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0105-0109
16 RING; WEAR,CONT CYL 1-22189-345-0 01 1 0110-0508
17 GASKET; CONT CYL 8-97600-318-0 01 1 0105-0109
17 GASKET; CONT CYL 1-22199-170-0 01 1 0110-0508
20 NUT; CONT CYL 1-09440-078-0 01 1 0105-0508
21 GASKET; COVER 1-22199-072-0 01 1 0105-0109
21 GASKET; COVER 1-22199-171-0 01 1 0110-0508
23 COVER; CONT CYL 8-97600-319-0 01 1 0105-0109
23 COVER; CONT CYL 1-22199-172-0 01 1 0110-0508
24 BOLT; COVER 1-22199-174-0 02 1 0105-0508
104 RING; RET 9-88510-331-0 01 1 0105-0508
105 FILTER; CONT CYL 9-88510-330-0 01 1 0105-0508
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0105-0508
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0105-0508
163 WASHER; CONT CYL
(A) 		1-22199-148-0 01 1 0105-0508
163 WASHER; CONT CYL
(B) 		1-22199-209-0 01 1 0110-0508
çizim 78029
77 46 47 42 139 74 139 6 76
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0105-0109
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0110-0508
6 VALVE; EXH BRAKE
(A) 		8-98024-270-0 01 1 0509-
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0105-0109
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0110-0508
42 HOSE; FLEX,EXH BRK
L=430 		1-09363-677-0 01 1 0105-
46 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0105-
47 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512
47 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105-
76 PIPE ASM; AIR UNION TO UNION
L=708 SERVICED BY L=800 		1-47428-812-0 01 1 0105-0111
76 PIPE ASM; AIR UNION TO UNION 1-49123-404-0 01 1 0112-
77 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0105-
139 GASKET; EXH BRK VLV
ID=100 		1-14145-175-0 02 1 0105-

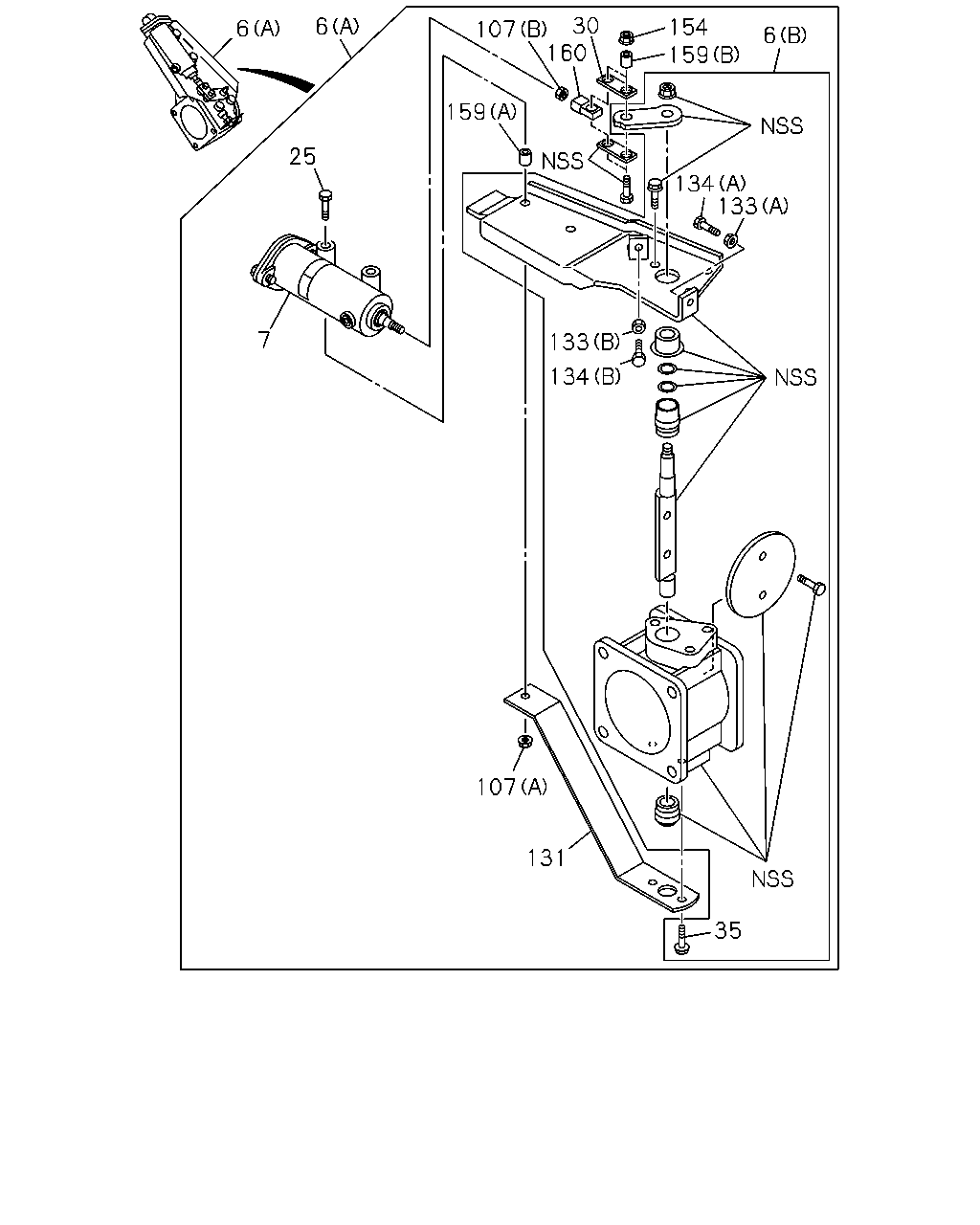

çizim 78556
107 30 160 6 154 159 6 6 159 25 134 133 7 133 134 107 131 35
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0105-0109
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0110-0508
6 VALVE; EXH BRAKE
(A) 		8-98024-270-0 01 1 0509-
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0105-0109
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0110-0508
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0105-0109
7 CYLINDER ASM; CONT 1-22190-666-0 01 1 0110-0508
25 BOLT; CONT CYL 1-09000-743-0 02 1 0105-0105
25 BOLT; CONT CYL 1-09000-744-0 02 1 0106-0109
25 BOLT; CONT CYL 1-09000-743-0 02 1 0110-0508
30 ROD; LINK,CONT CYL 1-22199-162-0 01 1 0105-0508
35 BOLT; PLATE FIX 1-22199-174-0 02 1 0105-0508
107 NUT; CONT CYL
(A) 		1-09440-079-0 02 1 0105-0508
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 0105-0109
107 NUT; CONT CYL
(B) M10 		9-09111-410-0 01 1 0110-0508
131 PLATE; BODY 1-22189-359-0 01 1 0105-0508
133 NUT; LK
(A) 		1-09440-078-0 01 1 0105-0508
133 NUT; LK
(B) 		1-09440-079-0 01 1 0105-0508
134 BOLT; STOPPER
(A) M8X30 		1-09000-112-1 01 1 0105-0508
134 BOLT; STOPPER
(B) 		1-09000-742-0 01 1 0105-0508
154 NUT; CLEVIS,CONT CYL 1-09440-078-0 02 1 0105-0508
159 COLLAR; CONT CYL
(A) 		1-22189-360-0 02 1 0105-0109
159 COLLAR; CONT CYL
(B) 		1-22197-151-0 02 1 0105-0508
160 JOINT; CONT CYL 1-22199-164-0 01 1 0105-0109
160 JOINT; CONT CYL 1-22189-363-0 01 1 0110-0508
