Isuzu WW
▶
TRUCKS
▶
EXR
▶
11502 - EXR RHD EURO2
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#123069) — 113 parça
Tümü
A - MJT7S M/T
B - MJX16P M/T
◀

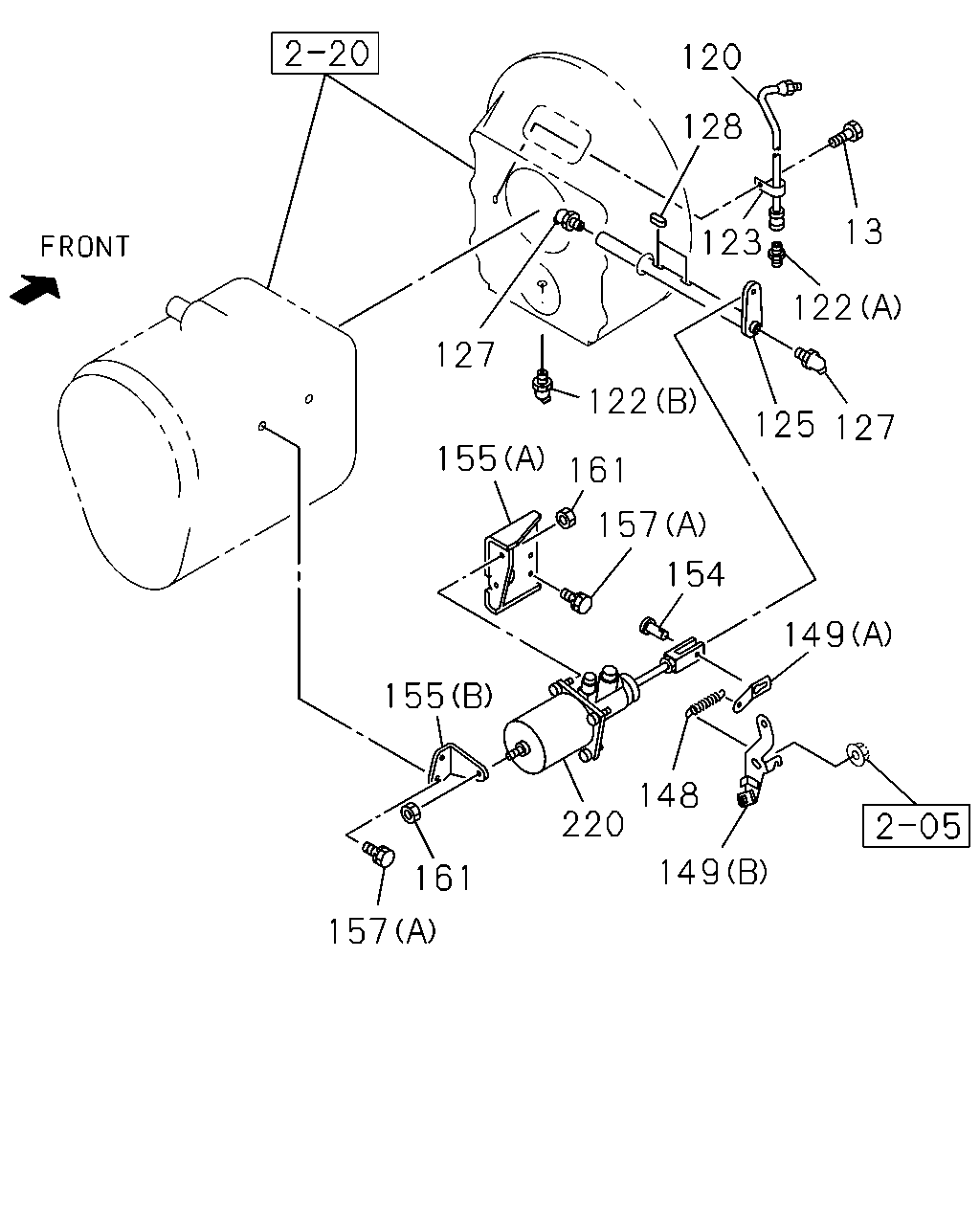

[201A] MJT;BOOSTER AND BRACKET (24 parça)

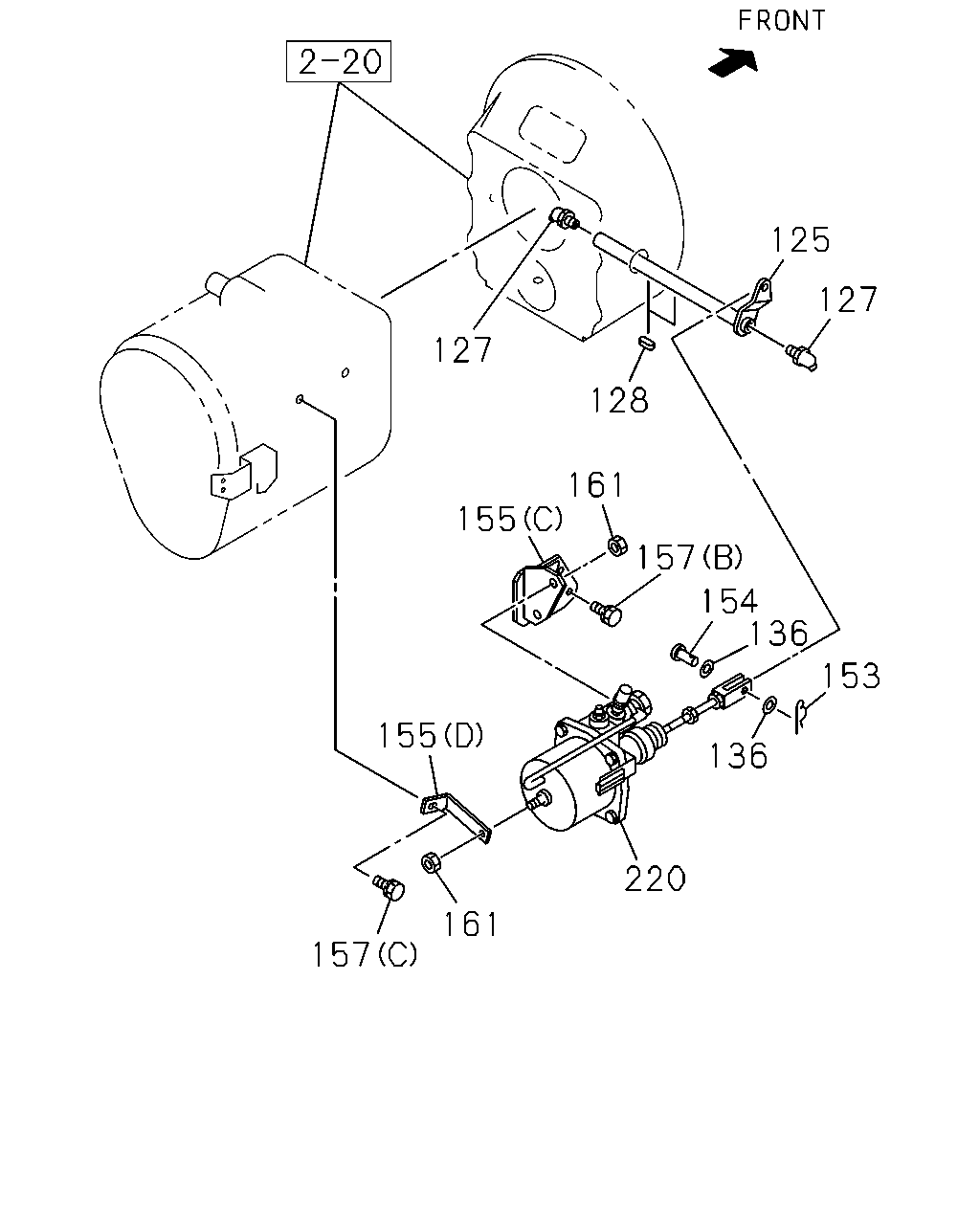

[201A] MJX;BOOSTER AND BRACKET (18 parça)

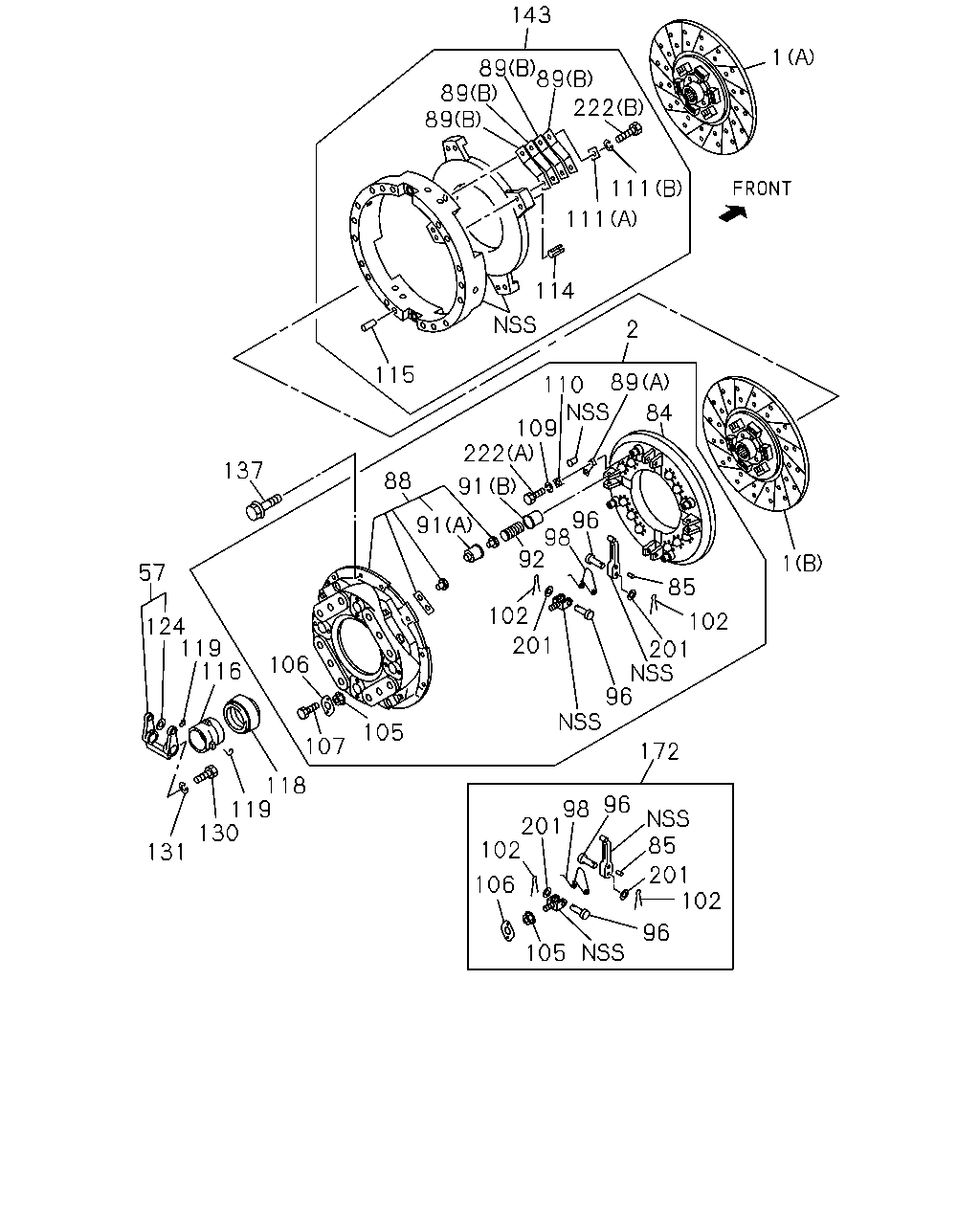

[201A] MJT;DISC AND PLATE (49 parça)

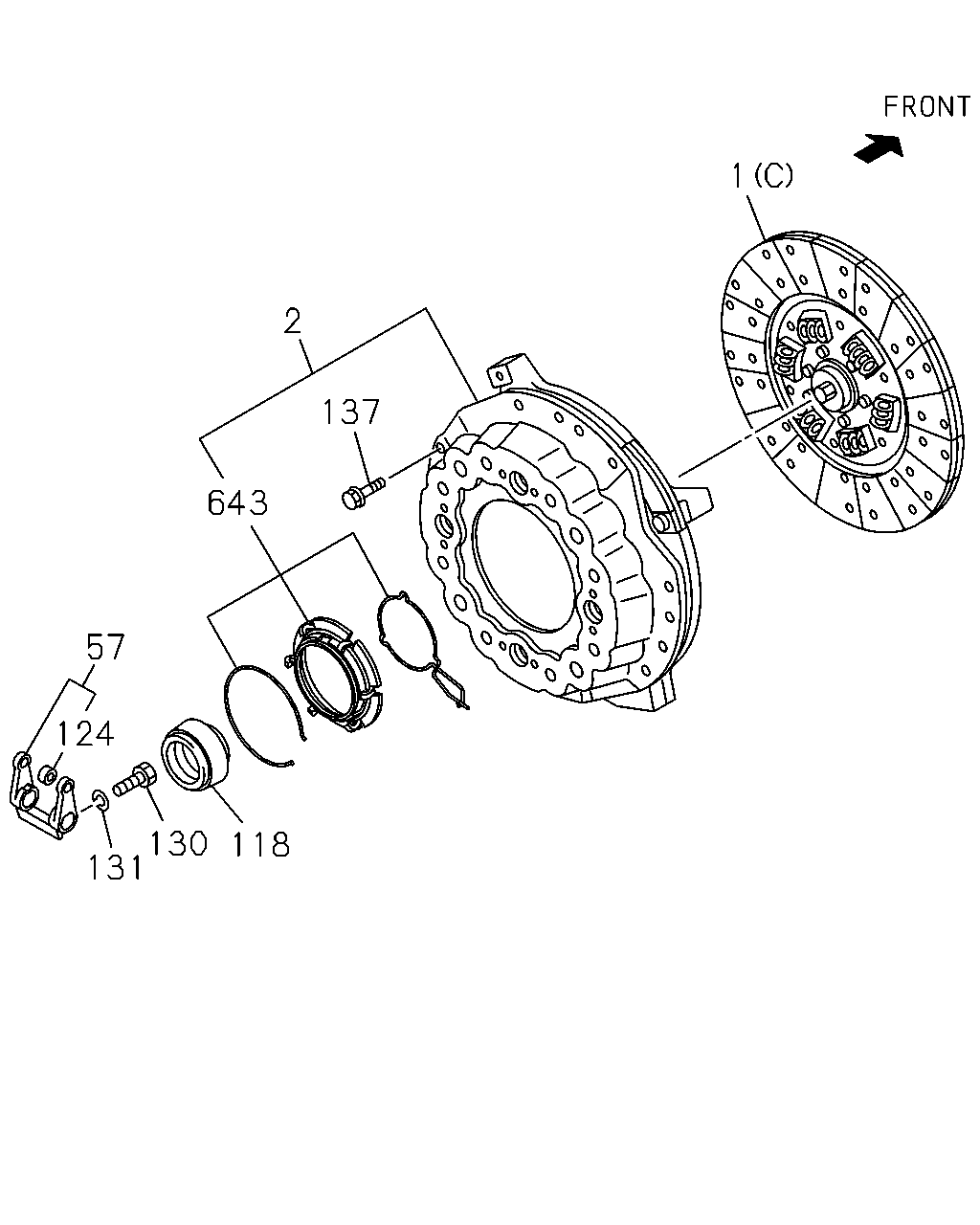

[201A] MJX;DISC AND PLATE (22 parça)
▶
127
125
122
13
120
128
123
122
157
161
155
127
154
149
149
148
220
161
157
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1306-
●
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
1306-
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
01
1
1306-
●
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 & M10
1-09660-710-0
01
1
1306-
●
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
1306-
●
125
SHAFT; CLU
1-31342-262-0
01
1
1306-
●
125
SHAFT; CLU
1-31342-324-0
01
1
1306-
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1306-
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1306-
●
●
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
1306-
●
149
EYE; SPRING,RETURN SPRING
(A)
1-31426-048-0
01
1
1306-
●
149
EYE; SPRING,RETURN SPRING
(B)
1-31426-056-0
01
1
1306-
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
1306-
●
154
PIN; JAW JOINT
L=35
1-31424-003-0
01
1
1306-
●
155
BRACKET; MINIPACK
(A)
1-31429-323-1
01
1
1306-
●
155
BRACKET; MINIPACK
(B)
1-31429-350-0
01
1
1306-
●
155
BRACKET; MINIPACK
(C)
1-31429-456-0
01
1
1306-
●
155
BRACKET; MINIPACK
(D)
1-31429-457-0
01
1
1306-
●
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
03
1
1306-
●
157
BOLT; BRKT
(C) M10X25 FLANGE
0-28751-025-0
01
1
1306-
●
157
BOLT; BRKT
(B) M10X30 FLANGE
0-28751-030-0
02
1
1306-
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1306-
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-556-0
01
1
1306-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-500-0
01
1
1306-
●
127
128
125
155
155
161
157
154
136
153
136
220
161
157
127
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
125
SHAFT; CLU
1-31342-262-0
01
1
1306-
●
125
SHAFT; CLU
1-31342-324-0
01
1
1306-
●
127
NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW
0-90301-610-0
02
1
1306-
●
●
128
KEY; FEATHER,CLU SHAFT
1-09735-045-0
02
1
1306-
●
●
136
WASHER; PL
ID=15
0-91610-514-0
02
1
1306-
●
153
PIN; SPLIT,CLU SHAFT
1-09747-009-0
01
1
1306-
●
154
PIN; JAW JOINT
1-31424-009-0
01
1
1306-
●
154
PIN; JAW JOINT
L=35
1-31424-003-0
01
1
1306-
●
155
BRACKET; MINIPACK
(A)
1-31429-323-1
01
1
1306-
●
155
BRACKET; MINIPACK
(B)
1-31429-350-0
01
1
1306-
●
155
BRACKET; MINIPACK
(C)
1-31429-456-0
01
1
1306-
●
155
BRACKET; MINIPACK
(D)
1-31429-457-0
01
1
1306-
●
157
BOLT; BRKT
(A) M10X25 FLANGE
0-28151-025-0
03
1
1306-
●
157
BOLT; BRKT
(C) M10X25 FLANGE
0-28751-025-0
01
1
1306-
●
157
BOLT; BRKT
(B) M10X30 FLANGE
0-28751-030-0
02
1
1306-
●
161
NUT; BRKT
M10 FLANGE
0-91180-210-0
03
1
1306-
●
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-556-0
01
1
1306-
●
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-500-0
01
1
1306-
●
143
1
111
222
89
89
89
89
111
114
115
137
57
124
119
131
116
110
1
102
201
96
85
172
85
201
102
96
96
98
201
102
106
105
118
119
130
107
105
106
201
102
92
98
96
84
89
109
222
91
91
88
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
(A) 15.5"
1-31240-981-0
01
1
1306-1306
●
1
DISC; CLUTCH
(A) 15.5"
1-31260-038-0
01
1
1307-
●
1
DISC; CLUTCH
(B) 15.5"
1-31240-982-0
01
1
1306-1306
●
1
DISC; CLUTCH
(B) 15.5"
1-31260-039-1
01
1
1307-
●
1
DISC; CLUTCH
(C) 15.5"
1-31240-976-0
01
1
1306-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-329-2
01
1
1306-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-415-0
01
1
1306-
●
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
1306-
●
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
1306-
●
84
PLATE; PRESSURE
1-31221-087-0
01
1
1306-
●
85
BUSHING; RELEASE LEVER
1-31239-053-0
08
1
1306-
●
88
COVER SUB ASM; CLU
1-31210-020-1
01
1
1306-
●
89
PLATE; STRAP
(A)
1-31229-010-0
12
1
1306-
●
89
PLATE; STRAP
(B)
1-31229-048-0
20
1
1306-
●
91
SEAT; SPR
(A)
1-31219-045-0
12
1
1306-
●
91
SEAT; SPR
(B)
1-31219-046-0
12
1
1306-
●
92
SPRING; CLU
1-31214-062-0
12
1
1306-
●
96
PIN; RELEASE LEVER
1-31232-017-0
08
1
1306-
●
98
SPRING; RETURN
1-31233-007-0
04
1
1306-
●
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08113-022-0
08
1
1306-
●
105
NUT; SUPPORT
1-31235-014-0
04
1
1306-
●
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
1306-
●
107
BOLT; LK PLATE
1-31239-061-0
08
1
1306-
●
109
WASHER; LK,STRAP
ID=12.2
0-91510-512-0
04
1
1306-
●
110
WASHER; SPECIAL,STRAP
ID=12
1-31229-006-0
04
1
1306-
●
111
WASHER; PL,STRAP
(B) ID=12.2
0-91510-512-0
08
1
1306-
●
111
WASHER; PL,STRAP
(A) ID=12
1-31229-006-0
08
1
1306-
●
114
PIN; STRAIGHT,INTERMEDIATE PLATE
1-09748-037-0
04
1
1306-
●
115
PIN; STRAIGHT,FLYWHEEL,SPACER
D=10 L=25
1-09740-039-1
02
1
1306-
●
116
BLOCK; SHIFT,CLU
1-31321-093-1
01
1
1306-
●
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
1306-
●
118
BEARING; CLU RELEASE
1-31310-021-0
01
1
1306-1306
●
118
BEARING; CLU RELEASE
1-31310-028-0
01
1
1307-
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-149-0
01
1
1306-
●
119
SPRING; SHIFT FORK
1-31329-019-0
01
1
1306-
●
119
SPRING; SHIFT FORK
1-31329-018-0
01
1
1306-
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1306-
●
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
1306-
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1306-
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1306-
●
●
137
BOLT; CLU COVER
M12X80
0-28151-280-0
02
1
1306-
●
137
BOLT; CLU COVER
M12X90 FLANGE
0-28151-290-0
10
1
1306-
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
04
1
1306-
●
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
1306-
●
143
PLATE; INTERMEDIATE
1-31221-133-0
01
1
1306-
●
172
LEVER KIT; RELEASE,CLU
1-87831-164-1
01
1
1306-
●
201
WASHER; PIN LEVER SUPPORT
ID=14
9-09651-098-0
08
1
1306-
●
222
BOLT; STRAP
(A) M12X30
1-09040-016-0
04
1
1306-
●
222
BOLT; STRAP
(B) M12X26.7
1-09040-086-0
08
1
1306-
●
1
2
137
643
57
124
131
118
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DISC; CLUTCH
(A) 15.5"
1-31240-981-0
01
1
1306-1306
●
1
DISC; CLUTCH
(A) 15.5"
1-31260-038-0
01
1
1307-
●
1
DISC; CLUTCH
(B) 15.5"
1-31240-982-0
01
1
1306-1306
●
1
DISC; CLUTCH
(B) 15.5"
1-31260-039-1
01
1
1307-
●
1
DISC; CLUTCH
(C) 15.5"
1-31240-976-0
01
1
1306-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-329-2
01
1
1306-
●
2
PLATE ASM; PRESSURE,CLU
1-31220-415-0
01
1
1306-
●
57
FORK; SHIFT,CLU
1-31340-059-1
01
1
1306-
●
57
FORK; SHIFT,CLU
1-31340-066-1
01
1
1306-
●
118
BEARING; CLU RELEASE
1-09820-118-0
01
1
1306-
●
118
BEARING; CLU RELEASE
1-31310-021-0
01
1
1306-1306
●
118
BEARING; CLU RELEASE
1-31310-028-0
01
1
1307-
●
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-149-0
01
1
1306-
●
124
BEARING; CAM,SHIFT FORK
1-31349-011-1
02
1
1306-
●
124
BEARING; CAM,SHIFT FORK
1-31349-060-1
02
1
1306-
●
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
1306-
●
●
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
1306-
●
●
137
BOLT; CLU COVER
M12X80
0-28151-280-0
02
1
1306-
●
137
BOLT; CLU COVER
M12X90 FLANGE
0-28151-290-0
10
1
1306-
●
137
BOLT; CLU COVER
M12X30 FLANGE
0-28751-230-0
04
1
1306-
●
137
BOLT; CLU COVER
M10X110 FLANGE
0-28156-011-0
12
1
1306-
●
643
REPAIR KIT; CLUTCH
8-98207-785-0
01
1
1306-
●
