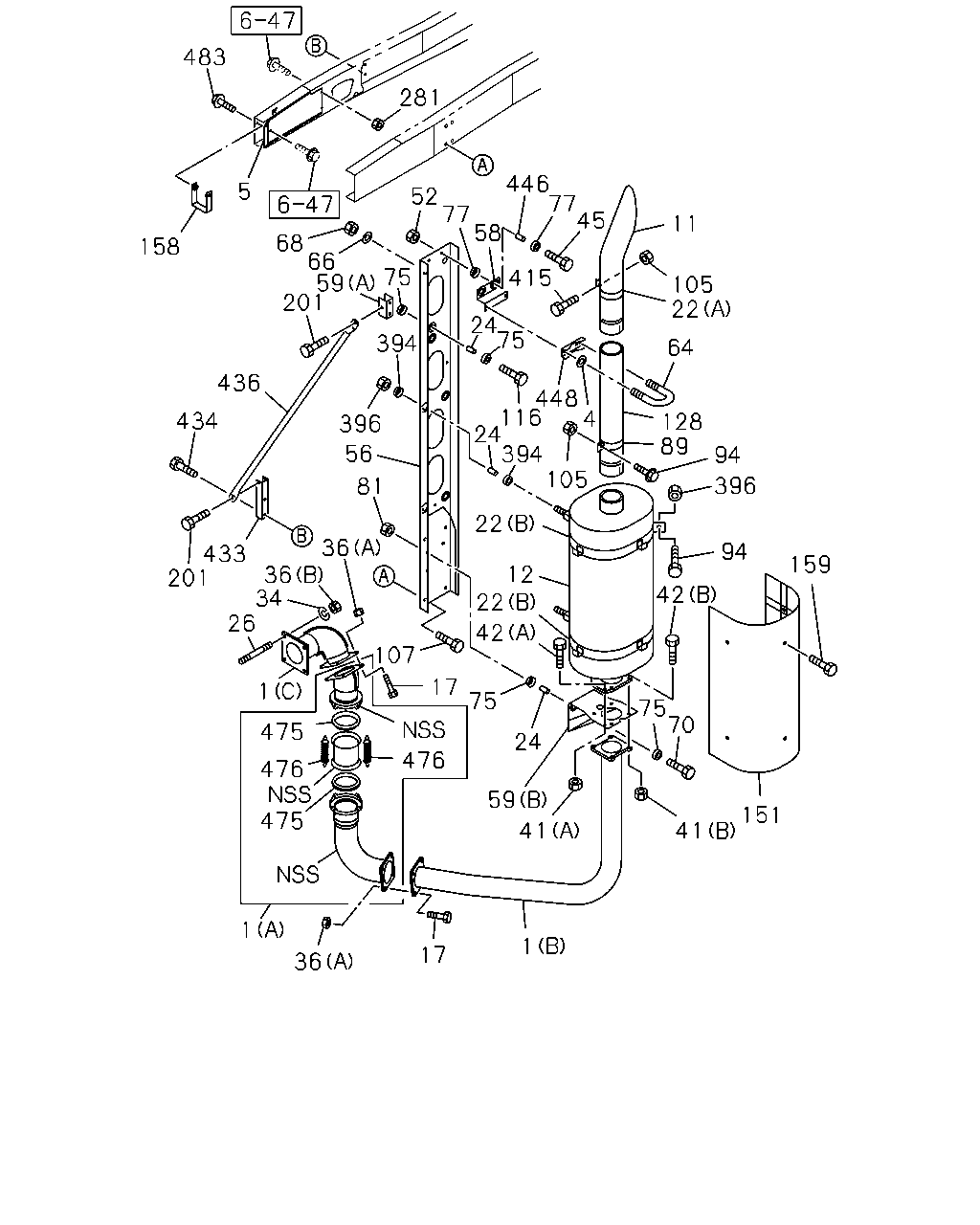

1 |
PIPE; EXH
(C)
|
1-22122-976-0 |
01 |
1 |
0105- |
| |
1 |
PIPE; EXH
(B)
|
1-22123-191-1 |
01 |
1 |
0105- |
| |
1 |
PIPE; EXH
(A)
|
1-22123-487-0 |
01 |
1 |
0105- |
| |
4 |
WASHER; PL,U BOLT
ID=8.4 OD=22
|
9-09160-708-0 |
02 |
1 |
0105- |
| |
5 |
PROTECTOR; HEAT
|
1-22119-405-0 |
01 |
1 |
0105- |
| |
11 |
PIPE; EXH,RR
|
1-22123-086-1 |
01 |
1 |
0105- |
| |
12 |
SILENCER ASM; EXH
|
1-22140-925-2 |
01 |
1 |
0105- |
| |
17 |
BOLT; EXH PIPE
M12X25 FLANGE
|
1-09000-604-0 |
07 |
1 |
0105- |
| |
22 |
CLAMP; EXH PIPE
(A)
|
1-22133-266-1 |
01 |
1 |
0105- |
| |
22 |
CLAMP; EXH PIPE
(B)
|
1-22133-270-0 |
02 |
1 |
0105- |
| |
24 |
COLLAR; DIST,CLAMP
L=25
|
1-14234-083-0 |
10 |
1 |
0105- |
| |
26 |
STUD; EXH MANIF
M12X140 L=160
|
1-09302-163-0 |
03 |
1 |
0105-0209 |
| |
26 |
STUD; EXH MANIF
M12X140 L=160
|
1-09302-163-0 |
04 |
1 |
0210- |
| |
34 |
WASHER; EXH PIPE
ID=13 OD=26
|
1-09556-020-0 |
03 |
1 |
0105-0209 |
| |
34 |
WASHER; EXH PIPE
ID=13 OD=26
|
1-09556-020-0 |
04 |
1 |
0210- |
| |
36 |
NUT; EXH PIPE
(B)
M12
|
1-09400-131-0 |
03 |
1 |
0105-0209 |
| |
36 |
NUT; EXH PIPE
(B)
M12
|
1-09400-131-0 |
04 |
1 |
0210- |
| |
36 |
NUT; EXH PIPE
(A)
M12
|
9-99110-512-0 |
08 |
1 |
0105-0512 |
| |
36 |
NUT; EXH PIPE
(A)
M12
|
0-91110-512-0 |
08 |
1 |
0601- |
| |
41 |
NUT; EXH PIPE TO EXH SILENCER
(A)
M10
|
9-09110-510-0 |
01 |
1 |
0105-0512 |
| |
41 |
NUT; EXH PIPE TO EXH SILENCER
(A)
M10
|
0-91110-510-0 |
01 |
1 |
0601- |
| |
41 |
NUT; EXH PIPE TO EXH SILENCER
(B)
M12
|
9-99110-512-0 |
04 |
1 |
0105-0512 |
| |
41 |
NUT; EXH PIPE TO EXH SILENCER
(B)
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
| |
42 |
BOLT; EXH PIPE TO EXH SILENCER
(A)
M10X35 FLANGE
|
0-28681-035-0 |
01 |
1 |
0105-0212 |
| |
42 |
BOLT; EXH PIPE TO EXH SILENCER
(B)
M12X35 FLANGE
|
1-09000-653-0 |
04 |
1 |
0105-0212 |
| |
42 |
BOLT; EXH PIPE TO EXH SILENCER
(B)
M12X35 FLANGE
|
1-09000-653-0 |
03 |
1 |
0301- |
| |
45 |
BOLT; BRKT
M10X50 FLANGE
|
0-28081-050-0 |
02 |
1 |
0105-0512 |
| |
45 |
BOLT; BRKT
M10X50 FLANGE
|
0-28051-050-0 |
02 |
1 |
0601- |
| |
52 |
NUT; BRKT
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0105- |
| |
56 |
BRACKET; CLAMP,EXH PIPE
|
1-22151-795-0 |
01 |
1 |
0105-0109 |
| |
56 |
BRACKET; CLAMP,EXH PIPE
|
1-22151-939-0 |
01 |
1 |
0110- |
| |
58 |
BRACKET; EXH PIPE,RR
|
1-22131-799-0 |
01 |
1 |
0105- |
| |
59 |
BRACKET; EXH SILENCER,FRT
(A)
|
1-22119-252-1 |
01 |
1 |
0105- |
| |
59 |
BRACKET; EXH SILENCER,FRT
(B)
|
1-22151-768-1 |
01 |
1 |
0105- |
| |
64 |
U-BOLT; EXH PIPE,RR
|
1-22113-097-0 |
01 |
1 |
0105- |
| |
66 |
WASHER; LK,U BOLT
ID=8.2
|
9-09150-508-0 |
02 |
1 |
0105- |
| |
68 |
NUT; U BOLT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105- |
| |
70 |
BOLT; BRKT
M10X60 FLANGE
|
0-28081-060-0 |
04 |
1 |
0105-0512 |
| |
70 |
BOLT; BRKT
M10X60 FLANGE
|
0-28051-060-0 |
04 |
1 |
0601- |
| |
75 |
RUBBER; SUPPORT,BRKT
OD=40
|
1-22159-094-0 |
04 |
1 |
0105- |
| |
75 |
RUBBER; SUPPORT,BRKT
OD=40
|
1-22159-094-0 |
08 |
1 |
0105- |
| |
77 |
RUBBER; CUSHION,BRKT
OD=40
|
1-22159-094-0 |
04 |
1 |
0105- |
| |
81 |
NUT; BRKT
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
0105- |
| |
89 |
CLAMP; EXH SILENCER,RR
|
1-22133-266-1 |
01 |
1 |
0105- |
| |
94 |
BOLT; CLAMP
M10X40 FLANGE
|
0-28681-040-0 |
01 |
1 |
0105-0512 |
| |
94 |
BOLT; CLAMP
M10X40 FLANGE
|
0-28651-040-0 |
01 |
1 |
0601- |
| |
94 |
BOLT; CLAMP
M10X40 FLANGE
|
0-28681-040-0 |
02 |
1 |
0105-0512 |
| |
94 |
BOLT; CLAMP
M10X40 FLANGE
|
0-28651-040-0 |
02 |
1 |
0601- |
| |
105 |
NUT; CLAMP
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
0105- |
| |
105 |
NUT; CLAMP
M10 FLANGE
|
0-91150-210-0 |
01 |
1 |
0105- |
| |
107 |
BOLT; BRKT
M12X45 FLANGE
|
0-28081-245-0 |
04 |
1 |
0105-0111 |
| |
107 |
BOLT; BRKT
M12X35 FLANGE
|
0-28081-235-0 |
04 |
1 |
0112-0309 |
| |
107 |
BOLT; BRKT
M12X35 FLANGE
|
0-28681-235-0 |
04 |
1 |
0310-0310 |
| |
107 |
BOLT; BRKT
M12X35 FLANGE
|
0-28081-235-0 |
04 |
1 |
0311-0512 |
| |
107 |
BOLT; BRKT
M12X35 FLANGE
|
0-28051-235-0 |
04 |
1 |
0601- |
| |
116 |
BOLT; BRKT
M10X50 FLANGE
|
0-28081-050-0 |
02 |
1 |
0105-0512 |
| |
116 |
BOLT; BRKT
M10X50 FLANGE
|
0-28051-050-0 |
02 |
1 |
0601- |
| |
128 |
PIPE; EXH,RR
|
1-22123-087-1 |
01 |
1 |
0105- |
| |
151 |
PROTECTOR; HEAT,EXH PIPE
|
1-22159-334-0 |
01 |
1 |
0105- |
| |
158 |
BRACKET; HEAT PROTECTOR
|
1-22119-368-0 |
01 |
1 |
0105- |
| |
159 |
BOLT; HEAT PROTECTOR
M8X25 W/LK&PL WASHER
|
1-09030-027-0 |
06 |
1 |
0105- |
| |
201 |
BOLT; STAY
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0105-0512 |
| |
201 |
BOLT; STAY
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
0601- |
| |
281 |
NUT; HEAT PROTECTOR
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0105- |
| |
394 |
RUBBER; SUPPORT,CLAMP
OD=40
|
1-22159-094-0 |
08 |
1 |
0105- |
| |
396 |
NUT; CLAMP
M10 FLANGE
|
0-91150-210-0 |
06 |
1 |
0105- |
| |
415 |
BOLT; CLAMP
M10X40 FLANGE
|
0-28681-040-0 |
01 |
1 |
0105-0512 |
| |
415 |
BOLT; CLAMP
M10X40 FLANGE
|
0-28651-040-0 |
01 |
1 |
0601- |
| |
433 |
BRACKET; STAY,EXH PIPE
|
1-22151-811-0 |
01 |
1 |
0105- |
| |
434 |
BOLT; BRKT
M10X30 FLANGE
|
0-28681-030-0 |
02 |
1 |
0105-0512 |
| |
434 |
BOLT; BRKT
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0601- |
| |
436 |
STAY; SUPPORT,EXH
|
1-22131-798-2 |
02 |
1 |
0105- |
| |
446 |
PIECE; DIST,EXH PIPE,RR
L=25
|
1-14234-083-0 |
02 |
1 |
0105- |
| |
448 |
PIECE; DIST,U-BOLT
|
1-22113-095-0 |
01 |
1 |
0105- |
| |
475 |
BEARING; SEAL,VIBNON,EXH PIPE
OD=122
|
1-22119-297-0 |
02 |
1 |
0105- |
| |
476 |
SPRING; VIBNON,EXH PIPE
|
1-09583-298-0 |
04 |
1 |
0105- |
| |
483 |
BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0105-0512 |
| |
483 |
BOLT; BRKT,HEAT PROTECTOR
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
