Isuzu WW
▶
TRUCKS
▶
FVM
▶
11304 - FVM AUST/NZ EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85A - POWER TAKE OFF CONTROL
▶
2-85A — POWER TAKE OFF CONTROL
(#123016) — 15 parça
◀

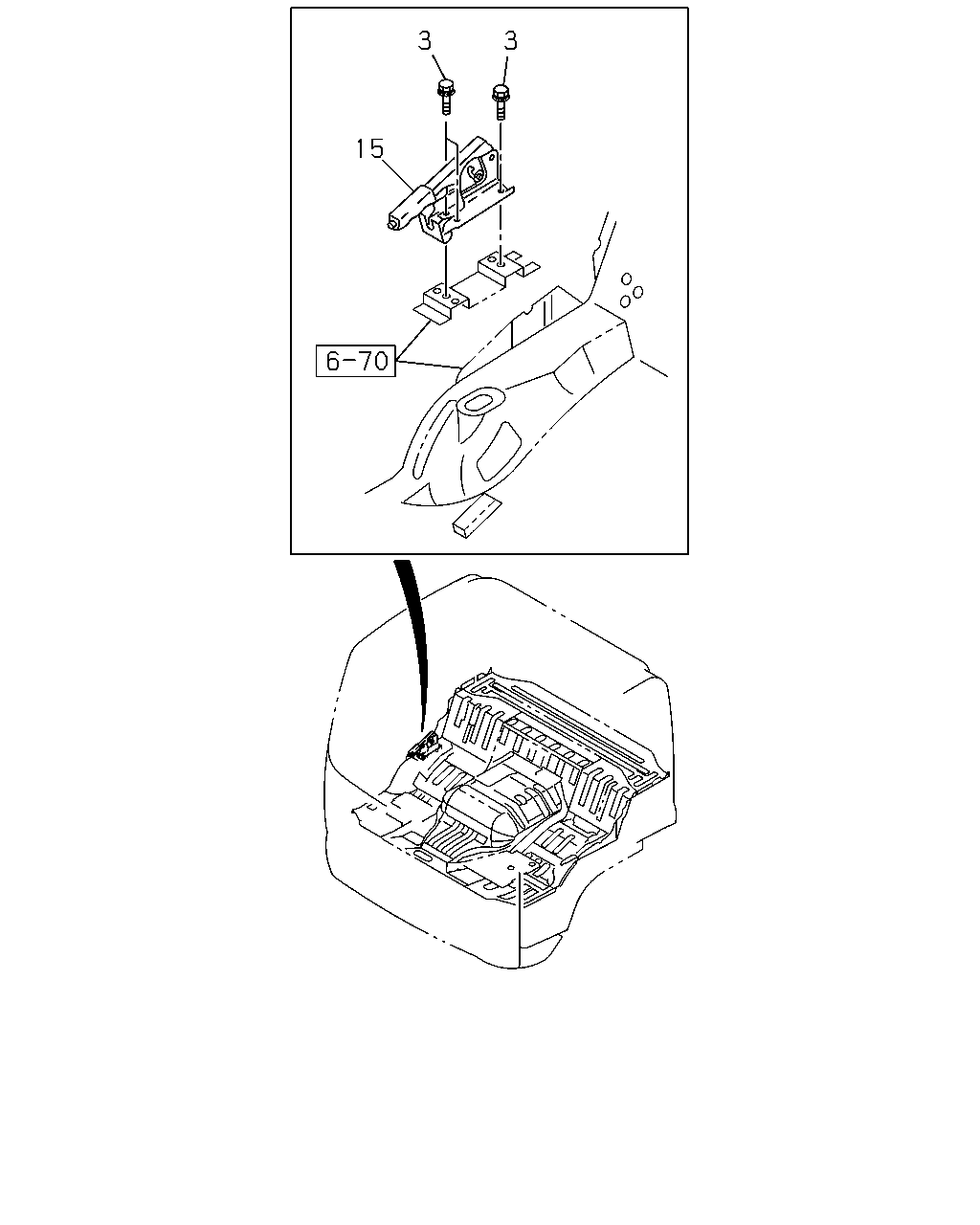

[285A] DUMP CONTROL LEVER (2 parça)

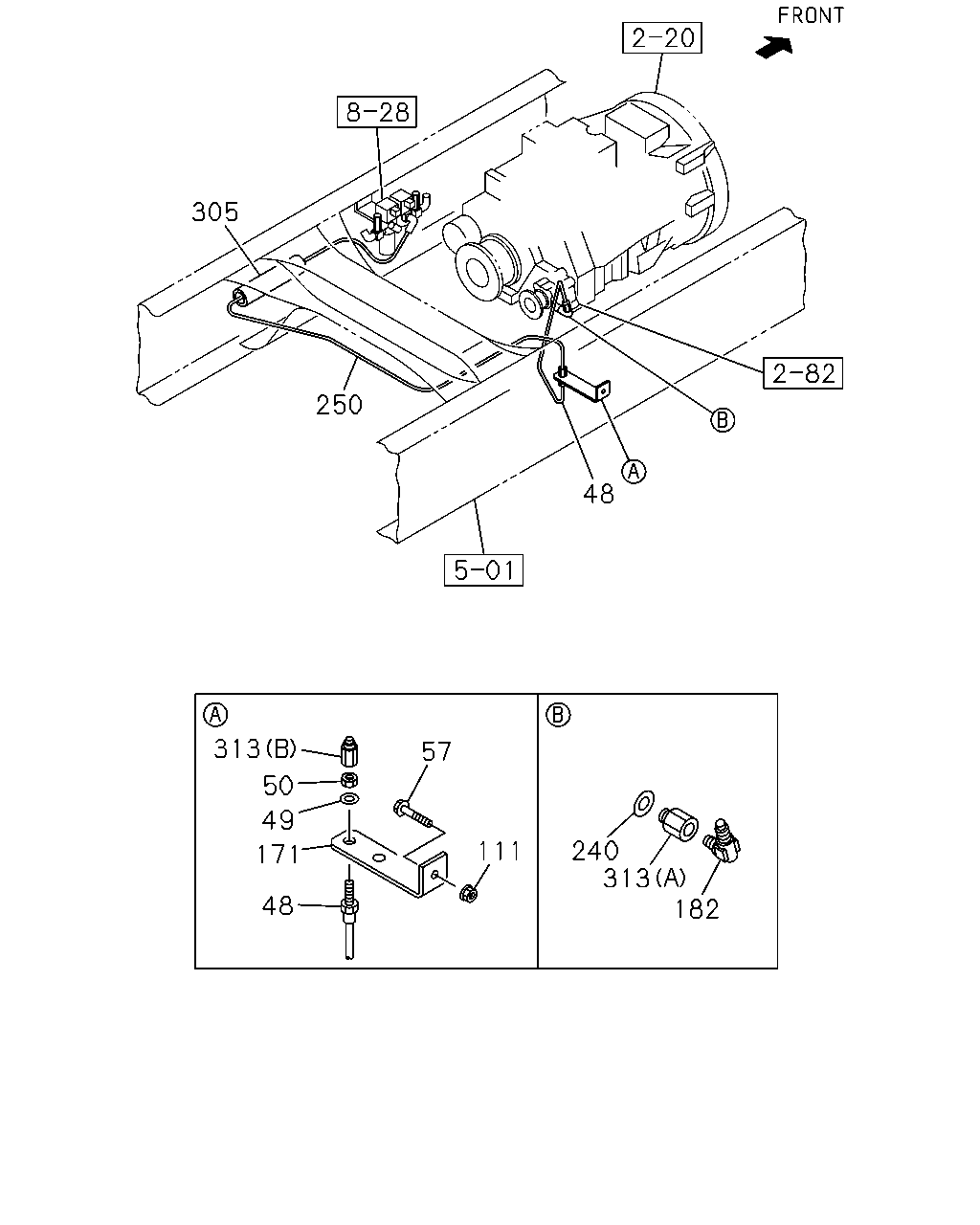

[285A] FLEX HOSE AND NYLON TUBE (13 parça)
▶
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1010-
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1010-
305
250
48
313
50
49
171
48
57
111
240
313
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230
1-09363-666-0
01
1
1010-
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2
0-91510-812-0
01
1
1010-1011
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
9-09840-280-0
01
1
1010-
57
BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE
0-28650-830-0
01
1
1010-
111
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
01
1
1010-
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM)
8-98100-228-0
01
1
1010-
182
CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1010-
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
1010-1312
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2
8-98251-344-0
01
1
1401-
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1010-
305
TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10
1-87411-019-0
02
1
1010-
313
ADAPTER
PTO ZF TRANS RR(BDM) (A) PT1/4
1-09654-396-0
01
1
1010-
313
ADAPTER
PTO ZF TRANS RR(BDM) (B) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1010-
