2-53 — TRANSMISSION OIL COOLER SYSTEM (#123013) — 45 parça

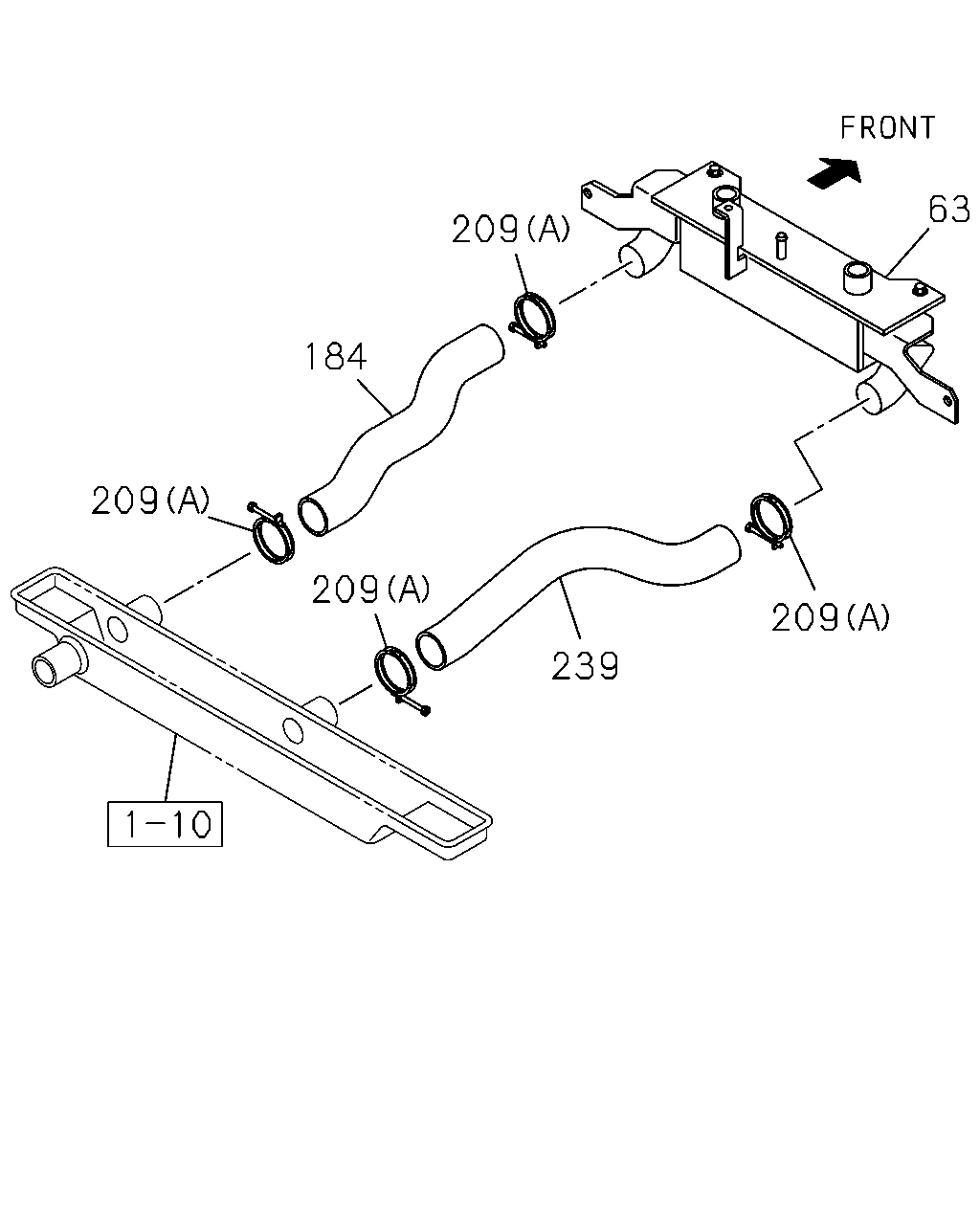

209 184 209 209 239 209 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-334-0	01	1	1307-
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98025-666-2	01	1	1307-
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D>	8-98025-696-1	01	1	1307-
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1307-
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (A) ID=26 L=26	1-09701-236-0	02	1	1307-
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D>	8-98025-697-1	01	1	1307-

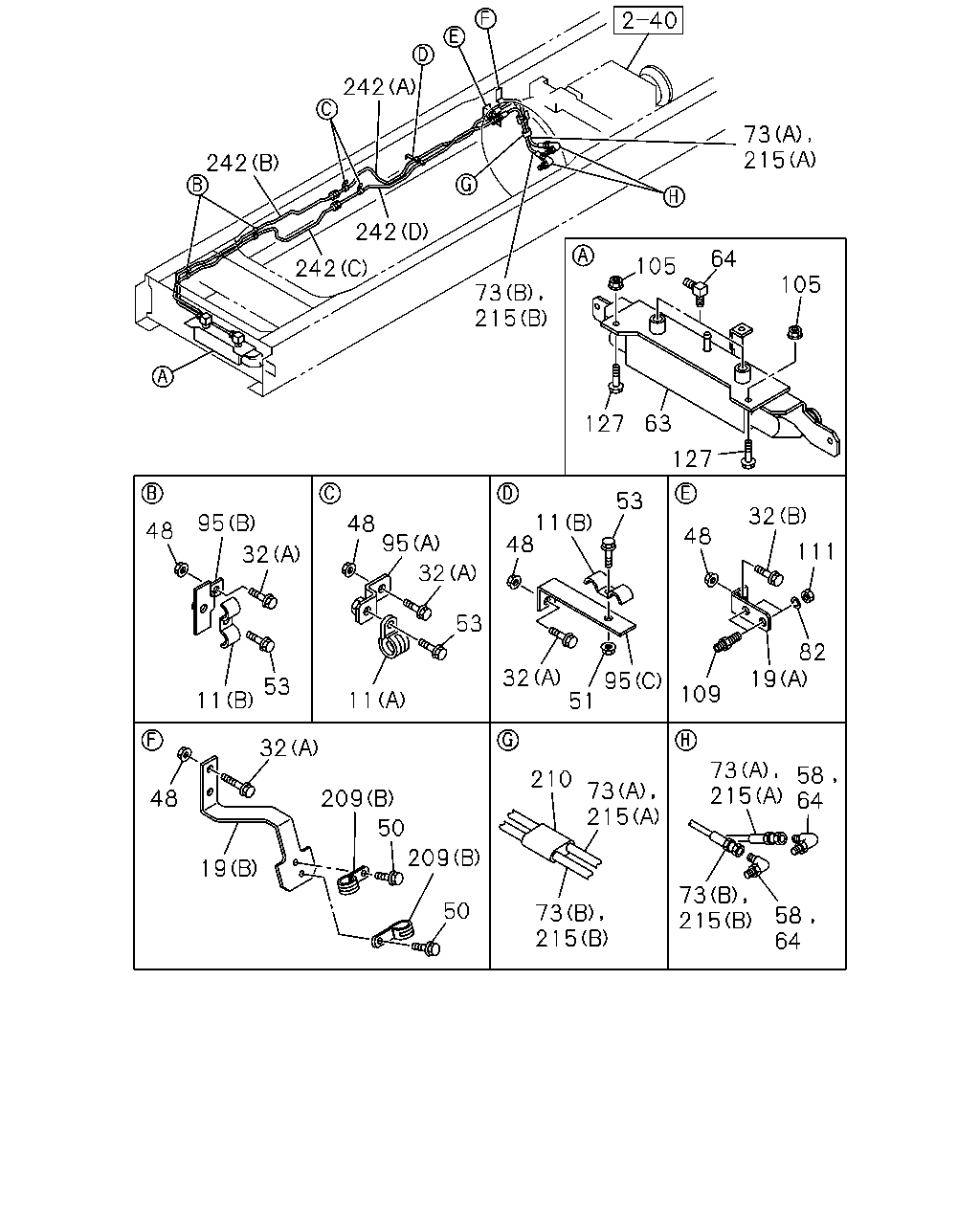

242 242 242 242 73 215 127 63 105 64 127 105 215 73 48 95 11 32 53 11 48 53 32 95 209 32 48 19 50 209 50 73 215 215 210 73 51 32 48 11 53 95 109 48 32 111 82 19 58 64 73 215 58 64 215 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (A) ID=19 L=20	0-95235-836-0	02	1	1307-
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	03	1	1307-
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98097-570-0	01	1	1307-
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (B)	8-98144-397-0	01	1	1307-
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	07	1	1307-
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (B) M8X35 FLANGE	0-28650-835-0	02	1	1307-
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	09	1	1307-
50	BOLT; CLIP ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	02	1	1307-
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	01	1	1307-
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	05	1	1307-
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B)	8-98144-617-0	02	1	1307-1501
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF>	8-98144-617-0	02	1	1502-
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98171-334-0	01	1	1307-
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98025-666-2	01	1	1307-
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF>	8-98144-617-0	02	1	1504-
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B)	9-09903-722-0	02	1	1307-
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) (A)	8-98144-618-0	01	1	1307-1501
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-98144-618-0	01	1	1502-
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) (B)	8-98144-619-0	01	1	1307-1501
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-98144-619-0	01	1	1502-
82	WASHER; LK,UNION ALLISON MD3560P A/T(Y3B) ID=30.5	9-09150-530-0	02	1	1307-
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	1-47478-140-0	01	1	1307-1407
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	8-98269-434-0	01	1	1408-
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (A)	1-47479-255-0	02	1	1307-
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (B)	8-98089-351-0	02	1	1307-
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	1307-
109	UNION ALLISON MD3560P A/T(Y3B) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1307-
111	NUT; UNION ALLISON MD3560P A/T(Y3B) M30	9-09840-252-1	02	1	1307-
127	BOLT; COOLER FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D> M8X30 FLANGE	0-28650-830-0	04	1	1307-
127	BOLT; COOLER A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X30 FLANGE	0-28650-830-0	02	1	1307-
209	CLIP; HOSE A/T<X9D> (B) ID=63	1-09704-067-0	04	1	1307-
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (A) ID=26 L=26	1-09701-236-0	02	1	1307-
210	BAND; FLEX HOSE ALLISON MD3560P A/T(Y3B) L=175	1-09707-178-0	01	1	1307-
215	HOSE; OIL COOLER ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (A)	8-98144-618-0	01	1	1504-
215	HOSE; OIL COOLER ALLISON MD3560P A/T(Y3B) VIN MODEL YEAR 2015<VZF> (B)	8-98144-619-0	01	1	1504-
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (B)	8-98097-574-0	01	1	1307-
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (C)	8-98113-105-0	01	1	1307-
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98190-140-0	01	1	1307-
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98190-142-0	01	1	1307-
