1-31 — AIR DUCT (#12301) — 108 parça

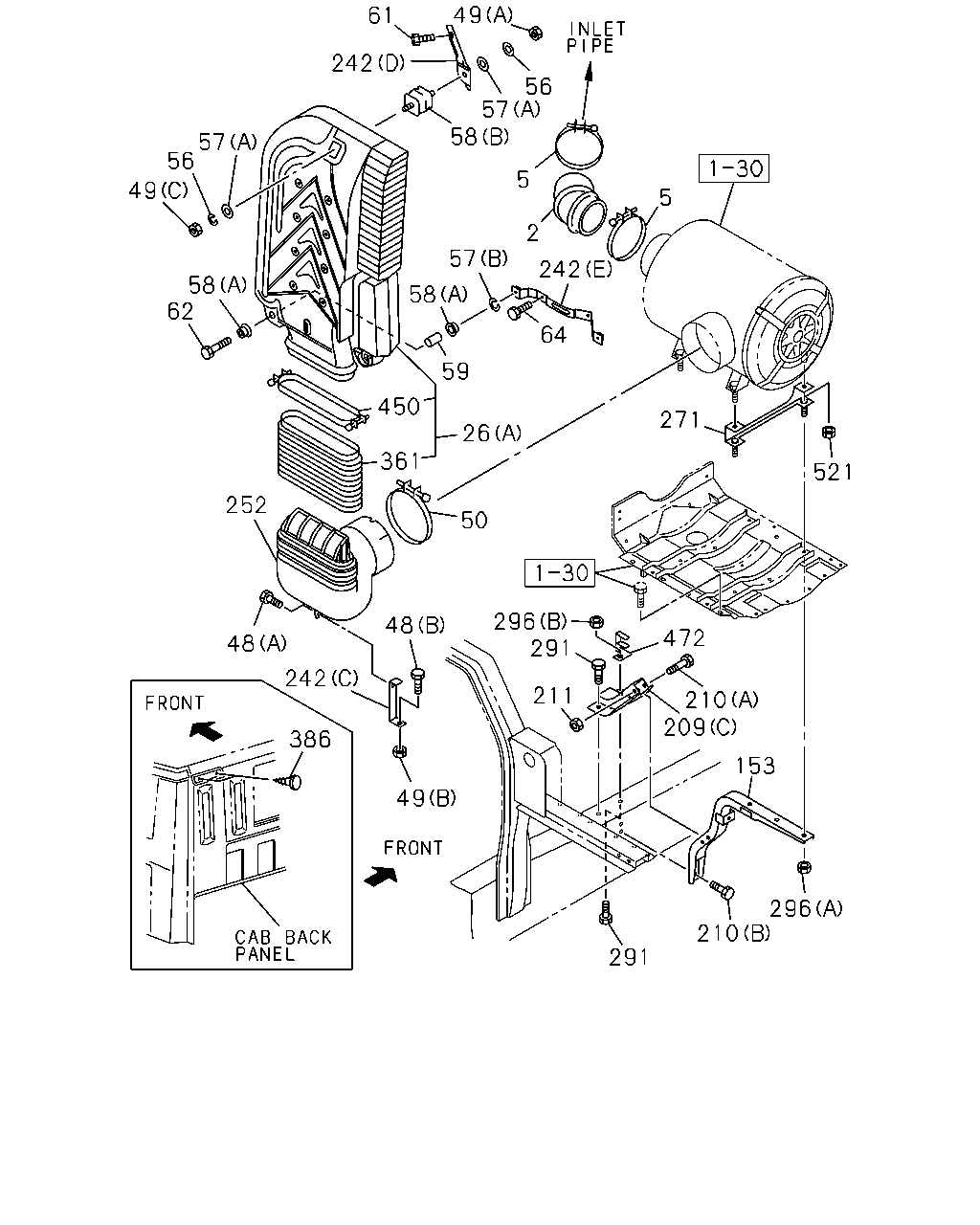

49 61 242 56 57 58 57 56 5 49 5 2 57 242 58 62 58 64 59 450 271 26 361 521 252 50 296 291 48 472 48 242 211 210 209 386 153 49 296 210 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-0	01	1	0105-0311
2	HOSE; ACL	1-14231-871-0	01	1	0312-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-1	01	1	0105-
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-202-2	01	1	0105-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	9-09110-408-0	01	1	0105-0512
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	0-91110-508-0	01	1	0601-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0105-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0105-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0105-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0105-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0110
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0105-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	0105-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-
209	BRACKET; ACL (C)	1-53419-276-0	01	1	0105-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0303
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0304-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
242	BRACKET; AIR DUCT (C)	1-23957-006-0	01	1	0105-
242	BRACKET; AIR DUCT PRE CLEANER<W17> (A)	1-79990-041-0	01	1	0105-
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-045-1	01	1	0105-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0105-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0105-0110
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-324-0	01	1	0111-
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0105-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-2	01	1	0105-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0105-

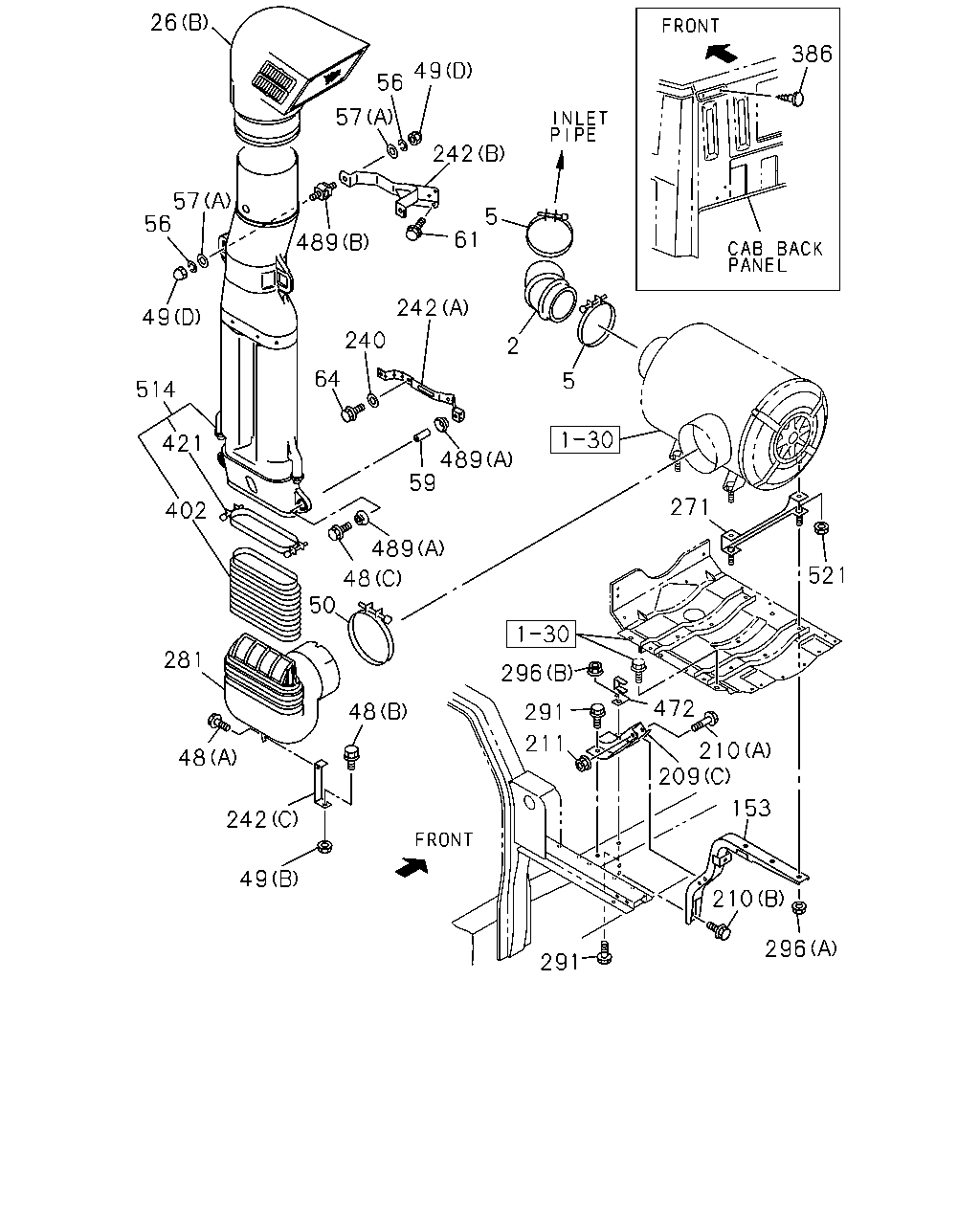

26 386 49 56 57 242 57 56 5 61 489 242 49 240 2 64 5 514 421 489 59 271 402 489 521 48 50 281 296 472 48 291 211 210 209 48 153 242 49 210 296 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL	1-14231-955-0	01	1	0105-0311
2	HOSE; ACL	1-14231-871-0	01	1	0312-
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-1	01	1	0105-
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-202-2	01	1	0105-
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	9-09110-408-0	01	1	0105-0512
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	0-91110-508-0	01	1	0601-
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0105-
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0105-
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0105-
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0110
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0105-
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0105-
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0308
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-
209	BRACKET; ACL (C)	1-53419-276-0	01	1	0105-
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0303
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	0304-0512
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0105-
242	BRACKET; AIR DUCT (C)	1-23957-006-0	01	1	0105-
242	BRACKET; AIR DUCT PRE CLEANER<W17> (A)	1-79990-041-0	01	1	0105-
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-045-1	01	1	0105-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0105-
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0105-0110
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-324-0	01	1	0111-
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0105-
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0105-
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-2	01	1	0105-
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0105-
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0105-
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-1	01	1	0105-
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0105-
