2-20A — MANUAL TRANSMISSION ASM AND CASE (#123003) — 174 parça

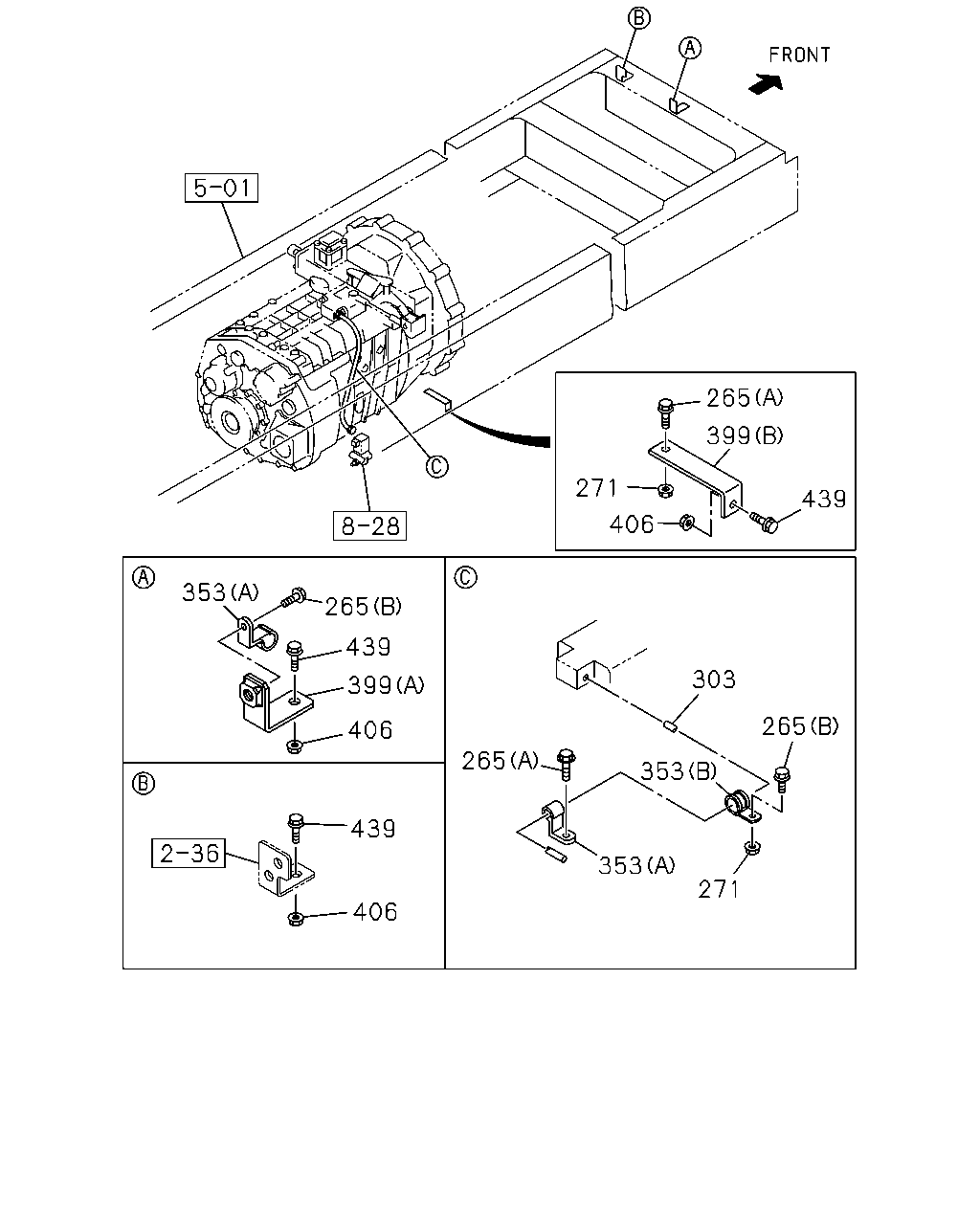

303 265 353 265 353 271 406 439 406 439 399 265 353 271 406 399 265 439

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1010-1306
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1010-1306
265	BOLT; CLIP AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-
265	BOLT; CLIP LEAF SUS(FGM***) (B) M8X20 FLANGE	0-28650-820-0	01	1	1307-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1010-1306
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1307-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	1010-1306
265	BOLT; CLIP AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE	0-28650-820-0	03	1	1307-
265	BOLT; CLIP LEAF SUS(FGM***) (B) M8X20 FLANGE	0-28650-820-0	03	1	1307-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1010-1306
271	NUT; CLIP AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	1307-
271	NUT; CLIP LEAF SUS(FGM***) M8 FLANGE	0-91180-108-0	01	1	1307-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1010-1306
303	TUBE; NYLON AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1307-
303	TUBE; NYLON LEAF SUS(FGM***) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1307-
353	CLIP; NYLON TUBE AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> (C) L=350	1-09707-183-0	01	1	1307-
353	CLIP; NYLON TUBE LEAF SUS(FGM***) (C) L=350	1-09707-183-0	01	1	1307-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	01	1	1010-1306
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	01	1	1307-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	03	1	1010-1306
353	CLIP; NYLON TUBE AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 L=20	0-95235-035-0	03	1	1307-
353	CLIP; NYLON TUBE LEAF SUS(FGM***) (A) ID=11 L=20	0-95235-035-0	03	1	1307-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	1010-1306
353	CLIP; NYLON TUBE AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1307-
353	CLIP; NYLON TUBE LEAF SUS(FGM***) (B) ID=18 L=28	1-09701-067-0	01	1	1307-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	1010-1306
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	1307-
399	BRACKET; CLIP AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> (B)	1-47479-598-0	02	1	1307-
399	BRACKET; CLIP LEAF SUS(FGM***) (B)	1-47479-598-0	02	1	1307-
399	BRACKET; CLIP (A)	8-98085-674-0	01	1	1010-1306
399	BRACKET; CLIP AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98085-674-0	01	1	1307-
399	BRACKET; CLIP LEAF SUS(FGM***) (A)	8-98085-674-0	01	1	1307-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1010-1306
406	NUT; BRKT AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1307-
406	NUT; BRKT LEAF SUS(FGM***) M8 FLANGE	0-91180-108-0	02	1	1307-
406	NUT; BRKT AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	1307-
406	NUT; BRKT LEAF SUS(FGM***) M8 FLANGE	0-91180-108-0	02	1	1307-
439	BOLT; BRKT AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	02	1	1307-
439	BOLT; BRKT LEAF SUS(FGM***) M8X30 FLANGE	0-28650-830-0	02	1	1307-
439	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1010-1306
439	BOLT; BRKT AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE	0-28650-820-0	02	1	1307-
439	BOLT; BRKT LEAF SUS(FGM***) M8X20 FLANGE	0-28650-820-0	02	1	1307-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. COUNTRY NEW ZEALAND(CX6)	8-98235-393-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL AUSTRALIA EQUIPMENT(B13) EXC. PTO ZF TRANS RR(BDM),COUNTRY NEW ZEALAND(CX6)	8-98235-392-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM)	1-33044-084-0	01	1	1010-1305
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) COUNTRY NEW ZEALAND(CX6)	1-33044-084-1	01	1	1306-
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM)	1-33043-933-0	01	1	1010-1305
1	TRANSMISSION ASM; MANUAL COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM)	1-33043-933-1	01	1	1306-

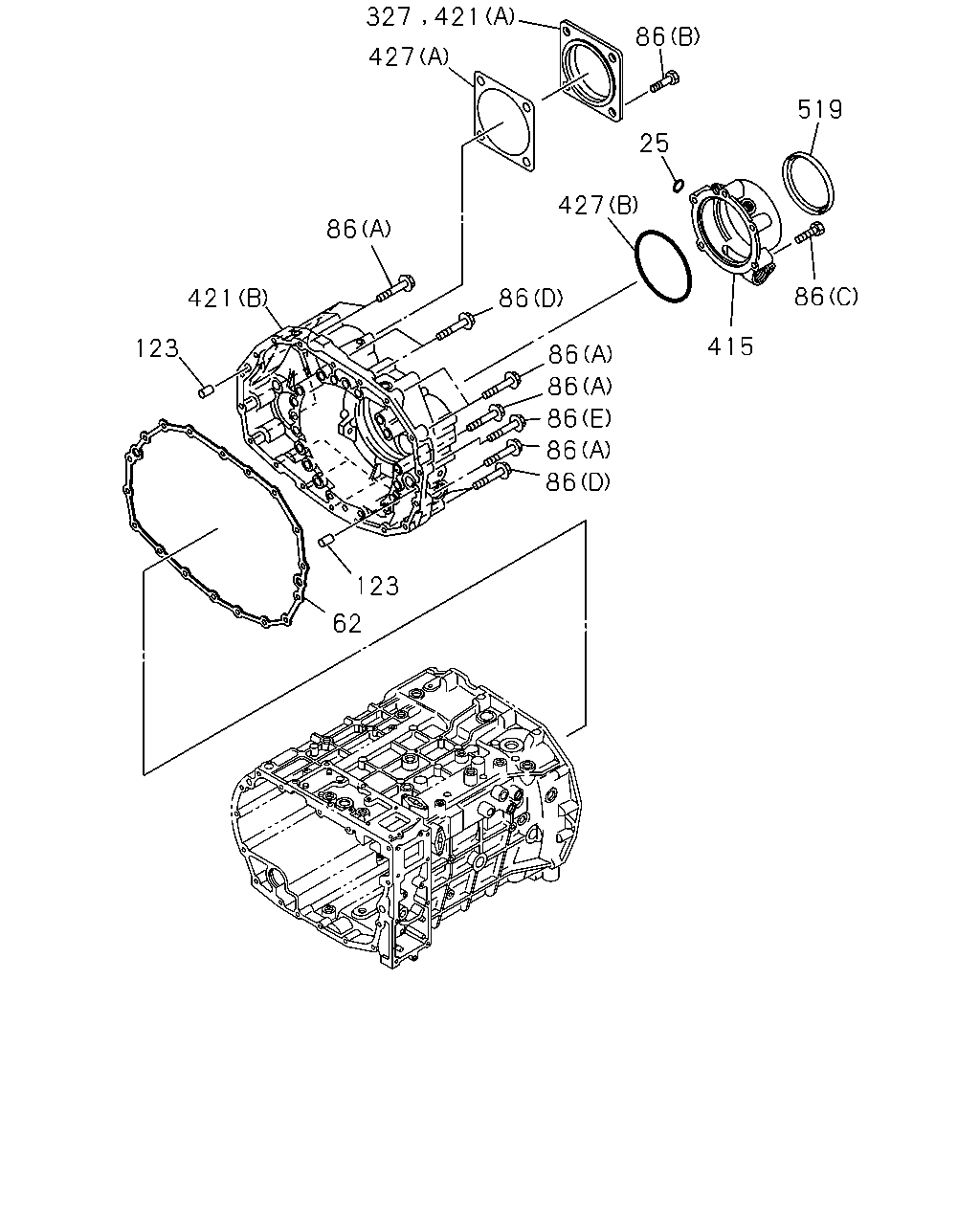

327 421 86 25 519 86 415 427 86 86 421 123 86 86 86 86 86 123 62 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER	1-33139-060-0	01	1	1010-
62	GASKET; RR COVER	1-33132-087-0	01	1	1010-
86	BOLT; RR COVER (C) M10X60 M10X60	1-33139-118-0	05	1	1010-1305
86	BOLT; RR COVER (C) M10X60 M10X60	1-33139-237-0	05	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) (A) M10X70 M10X70	1-33119-522-0	07	1	1010-1305
86	BOLT; RR COVER (A) M10X70 M10X70	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) (D) M10X110 M10X110	1-33139-057-0	05	1	1010-1305
86	BOLT; RR COVER (D) M10X110 M10X110	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) (E) M10X50 M10X50	1-33139-058-0	01	1	1010-1305
86	BOLT; RR COVER (E) M10X50 M10X50	1-33139-236-0	01	1	1306-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (A) M10X70 M10X70	1-33119-518-0	12	1	1010-1305
86	BOLT; RR COVER COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM) (A) M12X25	1-33119-594-0	04	1	1306-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (B) M12X28 M12X28	1-33139-051-0	04	1	1010-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (D) M10X110 M10X110	1-33139-210-0	05	1	1010-1305
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (E) M10X50 M10X50	1-33139-211-0	01	1	1010-1305
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1010-
327	COVER; RR,COUNTER COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM)	1-33131-273-0	01	1	1306-
415	COVER; BRG PTO ZF TRANS RR(BDM)	1-33131-262-0	01	1	1010-1305
415	COVER; BRG	1-33131-269-0	01	1	1306-
415	COVER; BRG EXC. PTO ZF TRANS RR(BDM)	1-33131-260-0	01	1	1010-1305
421	COVER; RR,TRANS PTO ZF TRANS RR(BDM) (B)	1-33131-261-0	01	1	1010-1305
421	COVER; RR,TRANS (B)	1-33131-275-0	01	1	1306-
421	COVER; RR,TRANS EXC. PTO ZF TRANS RR(BDM) (A)	1-33131-165-0	01	1	1010-1305
421	COVER; RR,TRANS EXC. PTO ZF TRANS RR(BDM) (B)	1-33131-214-0	01	1	1010-1305
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1010-1305
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	1010-1305
427	GASKET; RR COVER COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	1306-
519	GASKET; SHAFT	1-33139-059-0	01	1	1010-

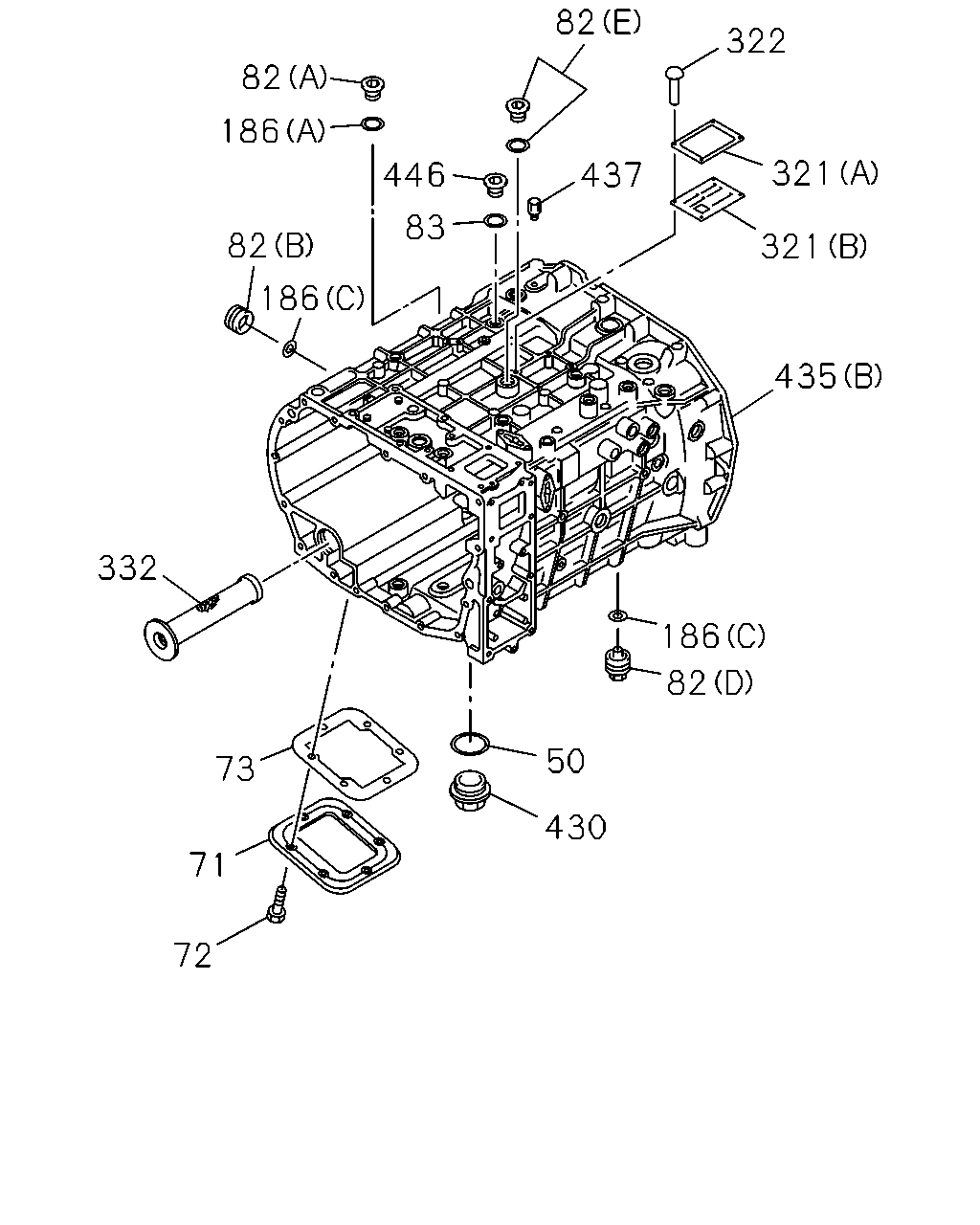

322 321 321 435 186 82 50 430 73 71 72 332 186 82 82 186 446 82 83 437

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	1010-
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	1010-1305
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1306-
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	1010-1305
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1306-
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	1010-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1010-1305
82	PLUG; SCREW,CASE (E)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (B)	1-33119-268-0	01	1	1010-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1010-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE (D)	1-33119-376-0	01	1	1010-1305
83	GASKET; PLUG EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	1010-1305
186	RING; SEAL (A)	1-33119-249-0	01	1	1010-
186	RING; SEAL (B)	1-33119-286-0	02	1	1010-
186	RING; SEAL (C)	1-33119-435-0	02	1	1010-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1010-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1010-
322	RIVET; NAME PLATE	1-33119-398-0	04	1	1010-1305
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-
332	FILTER; OIL	1-33119-437-0	01	1	1010-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1010-1305
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-
435	CASE; TRANS (A)	1-33111-368-0	01	1	1010-1305
435	CASE; TRANS (B)	1-33111-371-0	01	1	1306-
435	CASE; TRANS PTO ZF TRANS RR(BDM) (B)	1-33111-371-0	01	1	1010-1305
435	CASE; TRANS EXC. PTO ZF TRANS RR(BDM) (B)	1-33111-369-0	01	1	1010-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
437	BREATHER; TRANS	1-36122-004-0	01	1	1010-1305
437	BREATHER; TRANS	1-36122-006-0	01	1	1306-
446	PLUG; CASE,TRANS EXC. PTO ZF TRANS RR(BDM)	1-33119-171-0	01	1	1010-1305

468 329 82 245 478 477 27 24 561 561 29 113 315 435 314 186 28 33 463 413 561 36 36 37 343 561 412 2 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	1010-
24	COVER; CHECK HOLE,DUST	1-31119-024-0	01	1	1010-1305
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1306-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	04	1	1010-1305
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1306-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1010-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1010-1305
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	1010-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1010-
37	SEAL; DUST,CLU HSG	1-09625-002-0	02	1	1010-
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1010-1305
82	PLUG; SCREW,CASE (E)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE (B)	1-33119-268-0	01	1	1010-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1010-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE (D)	1-33119-376-0	01	1	1010-1305
113	GASKET; FRT COVER TO TRANS CASE	1-33122-023-0	01	1	1010-1305
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-024-0	01	1	1306-
186	RING; SEAL (A)	1-33119-249-0	01	1	1010-
186	RING; SEAL (B)	1-33119-286-0	02	1	1010-
186	RING; SEAL (C)	1-33119-435-0	02	1	1010-
245	PIPE; OIL	1-33119-517-0	01	1	1010-
314	GASKET; CASE	1-33112-052-0	01	1	1010-
315	BOLT; CASE PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	17	1	1010-1305
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1306-
315	BOLT; CASE EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	17	1	1010-1305
329	PUMP ASM; OIL PTO ZF TRANS RR(BDM)	1-34150-121-0	01	1	1010-1305
329	PUMP ASM; OIL	1-34150-123-0	01	1	1306-
329	PUMP ASM; OIL EXC. PTO ZF TRANS RR(BDM)	1-34150-120-0	01	1	1010-1305
330	RING; RET	1-33129-005-0	01	1	1010-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1010-
412	CAP; CLU HSG	1-31119-026-0	01	1	1010-
413	BALL; CLU HSG	1-31119-014-0	04	1	1010-
435	CASE; TRANS (A)	1-33111-368-0	01	1	1010-1305
435	CASE; TRANS (B)	1-33111-371-0	01	1	1306-
435	CASE; TRANS PTO ZF TRANS RR(BDM) (B)	1-33111-371-0	01	1	1010-1305
435	CASE; TRANS EXC. PTO ZF TRANS RR(BDM) (B)	1-33111-369-0	01	1	1010-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	1010-1305
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1306-
468	GASKET; OIL PUMP	1-34159-063-0	01	1	1010-1305
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1306-
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	1010-1305
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1306-
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	1010-1305
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1306-
561	PLUG (A)	1-31119-044-0	02	1	1010-1305
561	PLUG (B)	1-31119-045-0	03	1	1010-1305
561	PLUG (C)	1-31119-046-0	02	1	1010-1305
561	PLUG (D)	1-31119-047-0	01	1	1010-1305

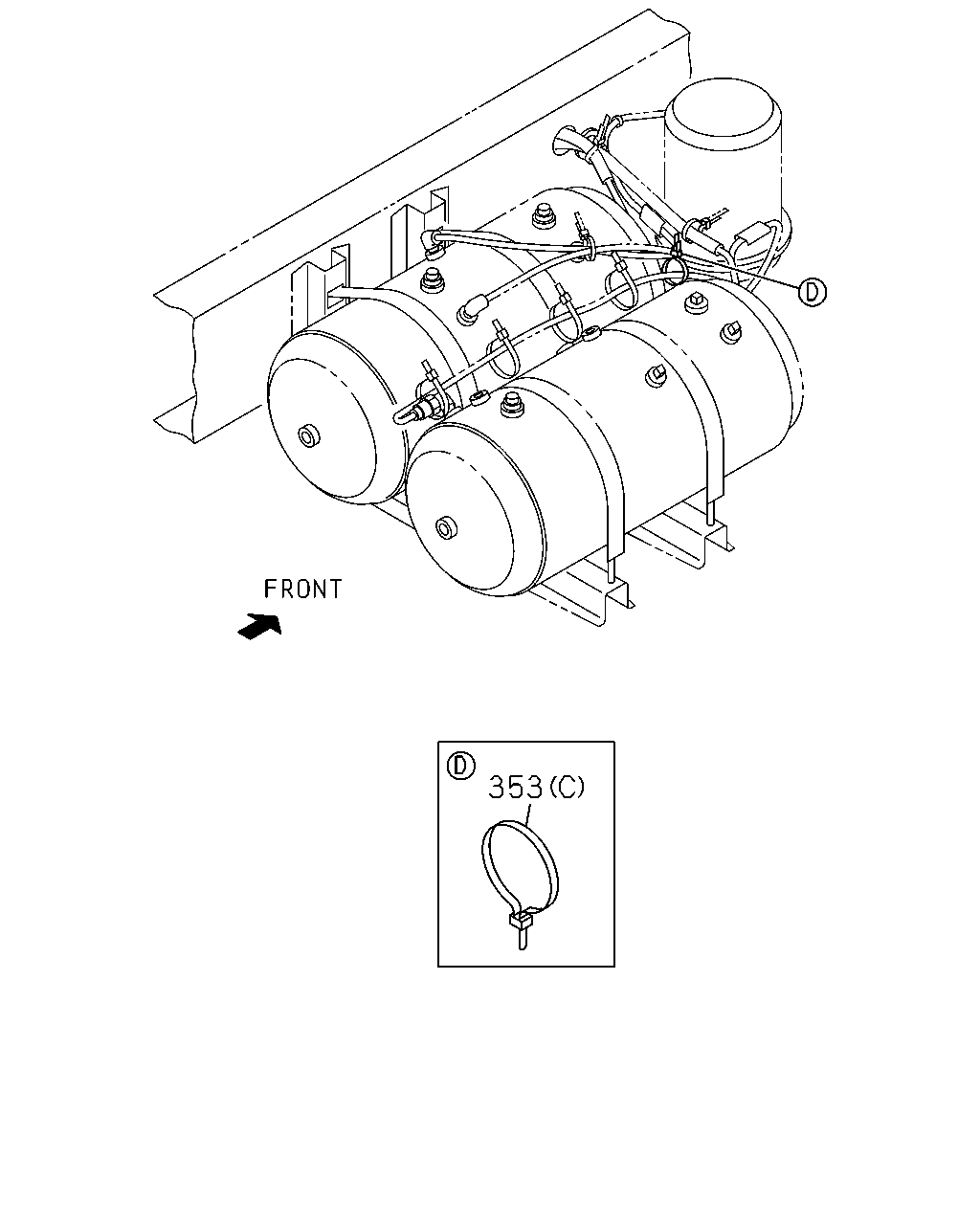

353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
353	CLIP; NYLON TUBE AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> (C) L=350	1-09707-183-0	01	1	1307-
353	CLIP; NYLON TUBE LEAF SUS(FGM***) (C) L=350	1-09707-183-0	01	1	1307-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	01	1	1010-1306
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	01	1	1307-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	03	1	1010-1306
353	CLIP; NYLON TUBE AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11 L=20	0-95235-035-0	03	1	1307-
353	CLIP; NYLON TUBE LEAF SUS(FGM***) (A) ID=11 L=20	0-95235-035-0	03	1	1307-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	1010-1306
353	CLIP; NYLON TUBE AIR SUS(FGL***) ASSISTOR SHIFT CONTROL<WX8> (B) ID=18 L=28	1-09701-067-0	01	1	1307-
353	CLIP; NYLON TUBE LEAF SUS(FGM***) (B) ID=18 L=28	1-09701-067-0	01	1	1307-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	1010-1306
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	1307-
