Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-01 - PROPELLER SHAFT
▶

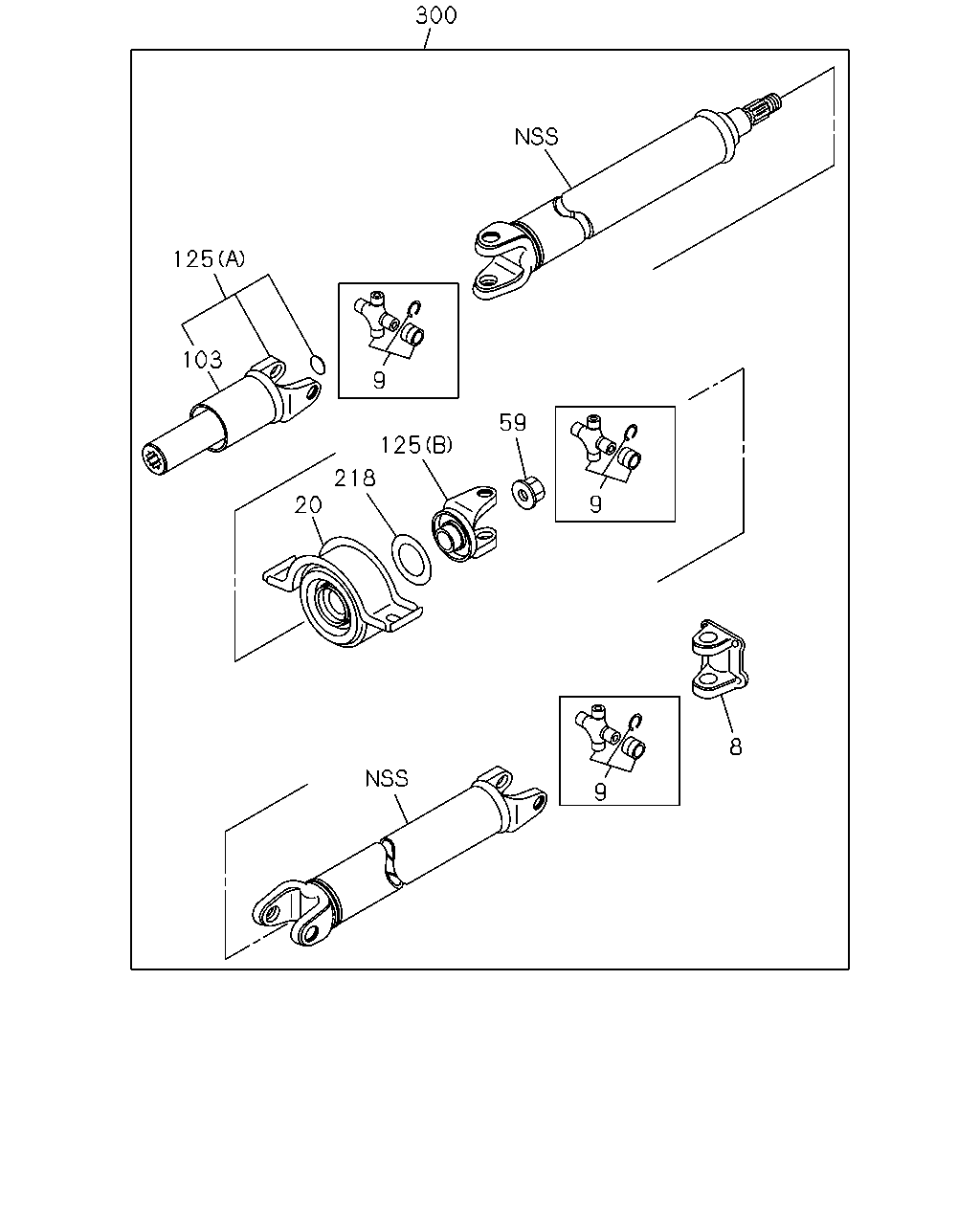

4-01 — PROPELLER SHAFT
(#122992) — 18 parça
◀
[401A] PROPELLER SHAFT ASM AND FIXING (6 parça)
[401A] COMPONENT (12 parça)
▶
147
89
90
120
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
NUT; YOKE TO RR AXLE
M10 FLANGE IMA
8-97246-900-0
04
1
1307-
90
WASHER; LK,YOKE TO RR AXLE
ID=10.1 IMA
8-97246-901-0
04
1
1307-
120
BOLT; YOKE TO RR AXLE
M10X29 IMA
8-97246-859-0
04
1
1307-
147
BOLT; CENTER BRG MTG
M12X25 FLANGE THA
0-28661-225-0
02
1
1307-
300
SHAFT ASM; PROP,RR
L=1591.5 THA
8-97947-752-0
01
1
1307-1407
300
SHAFT ASM; PROP,RR
L=1591.5 THA
8-97948-746-0
01
1
1408-
8
9
9
59
125
218
20
103
125
300
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
YOKE; FLANGE,PROP SHAFT
THA
8-97942-849-0
01
1
1307-1407
8
YOKE; FLANGE,PROP SHAFT
THA
8-97948-770-0
01
1
1408-
9
JOURNAL ASM; PROP SHAFT
THA
8-97947-642-0
03
1
1307-
20
BEARING ASM; CTR,PROP SHAFT
NSK THA
8-97947-655-0
01
1
1307-
20
BEARING ASM; CTR,PROP SHAFT
NTN THA
8-97947-656-0
01
1
1307-
59
NUT; RET TO SUPPORT
THA
8-97947-557-0
01
1
1307-
103
BOOT; PROP SHAFT
THA
8-97940-114-0
01
1
1307-
125
YOKE ASM; SPLINED,PROP SHAFT
(A) THA
8-97947-629-0
01
1
1307-
125
YOKE ASM; SPLINED,PROP SHAFT
(B) THA
8-97947-663-0
01
1
1307-
218
WASHER; PL,PROP SHAFT
ID=30 H=40 L=35 THA
8-97192-641-0
01
1
1307-
300
SHAFT ASM; PROP,RR
L=1591.5 THA
8-97947-752-0
01
1
1307-1407
300
SHAFT ASM; PROP,RR
L=1591.5 THA
8-97948-746-0
01
1
1408-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
