51485 - TFR SHORT(THAI)
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#122990) — 19 parça
◀

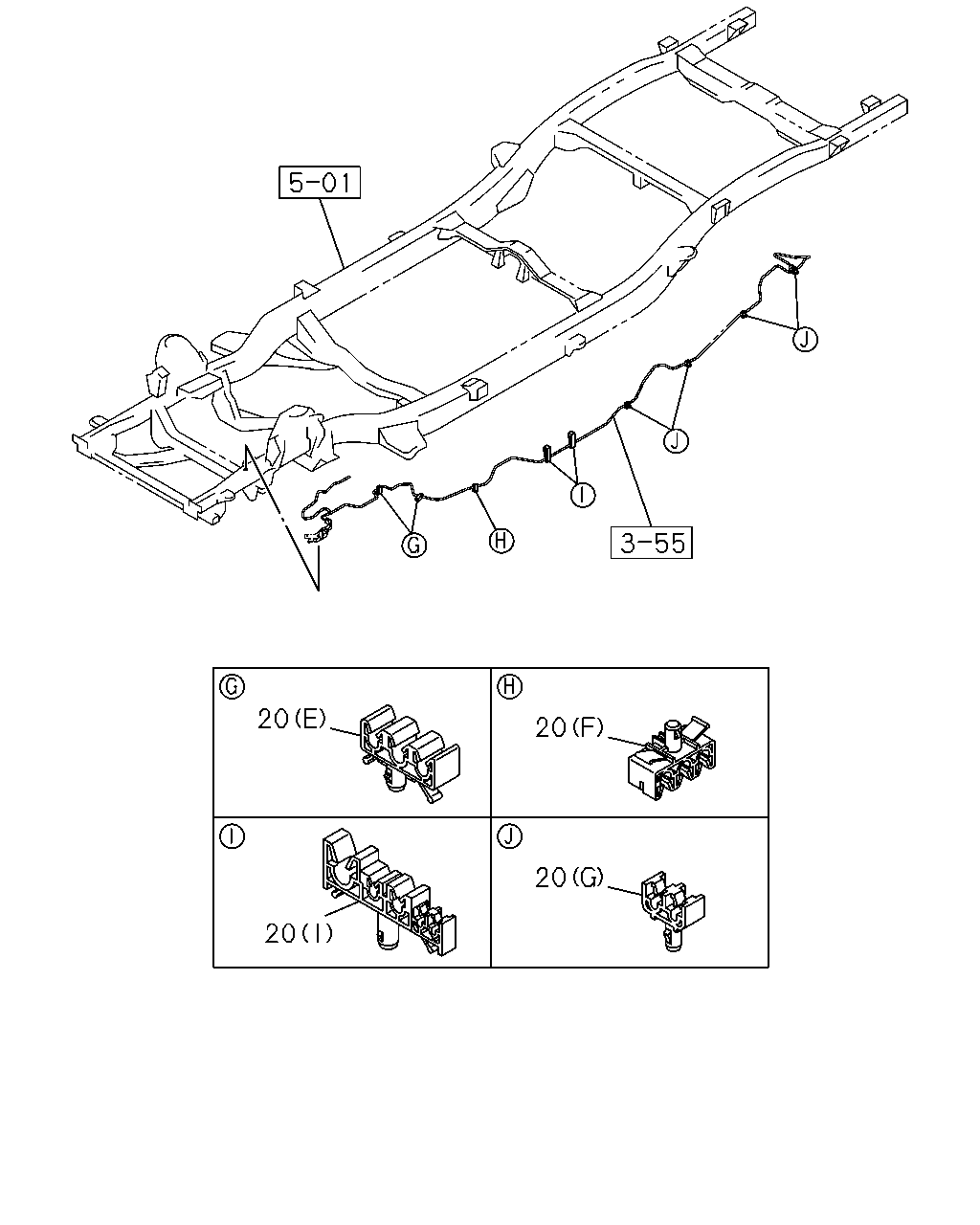

[358A] REAR (9 parça)

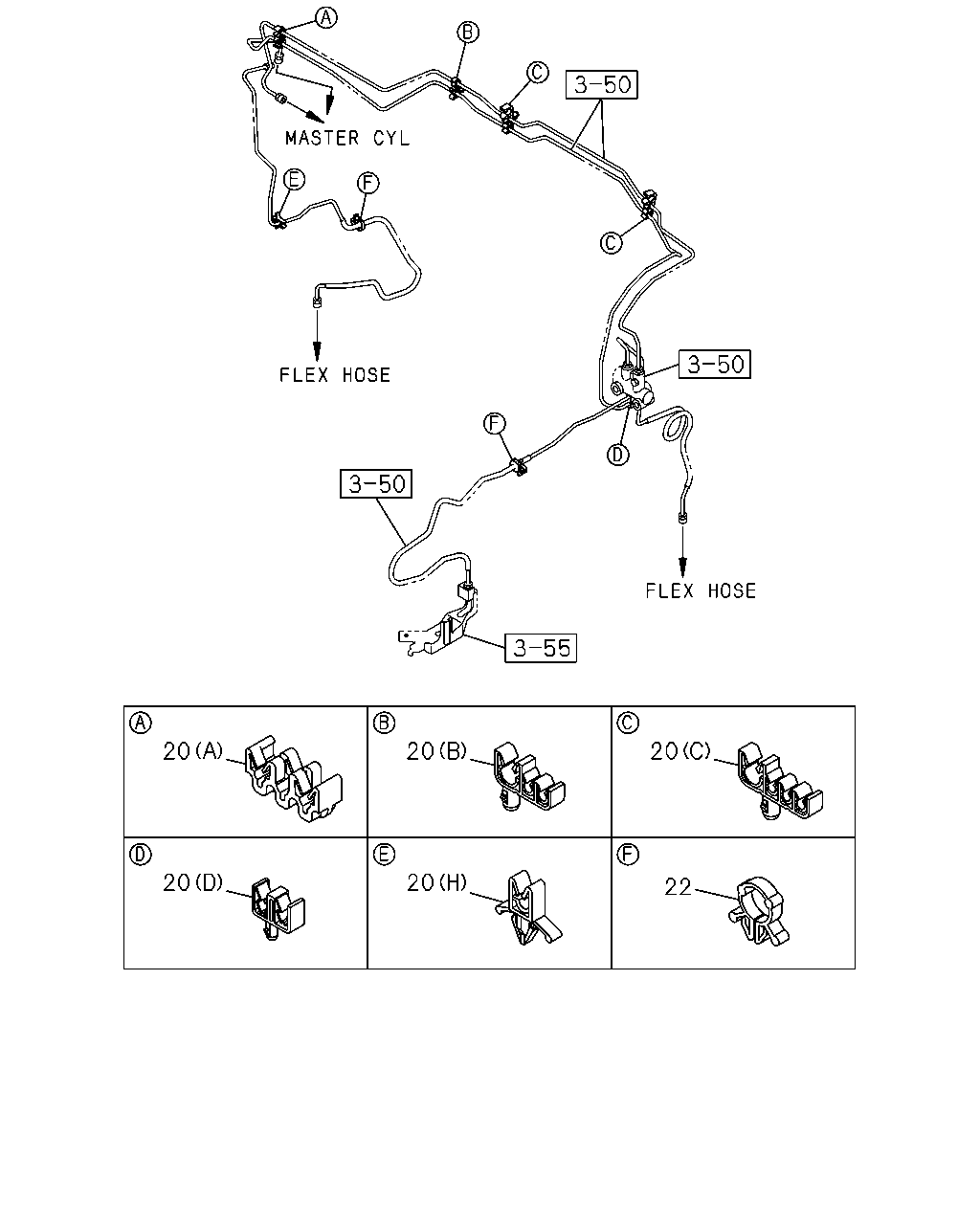

[358A] FRONT (10 parça)
▶
20
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
CLIP; BRK PIPE
(A) ID=4.8X3 THA
8-94487-369-0
01
1
1307-
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
02
1
1307-
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
01
1
1307-
20
CLIP; BRK PIPE
(G) ID=6.8X2 THA
8-97251-124-0
05
1
1307-
20
CLIP; BRK PIPE
(H) ID=4.76 THA
8-97300-443-0
01
1
1307-
20
CLIP; BRK PIPE
(B) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1307-
20
CLIP; BRK PIPE
(C) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1307-
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA
8-98113-394-0
01
1
1307-
20
CLIP; BRK PIPE
(D) ID=4.76X2 THA
8-98113-395-0
01
1
1307-
20
20
20
20
20
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
CLIP; BRK PIPE
(A) ID=4.8X3 THA
8-94487-369-0
01
1
1307-
20
CLIP; BRK PIPE
(E) ID=4.76X3 THA
8-97216-721-1
02
1
1307-
20
CLIP; BRK PIPE
(F) ID=10 & 6.8X2 OR 8.4X3 THA
8-97249-906-1
01
1
1307-
20
CLIP; BRK PIPE
(G) ID=6.8X2 THA
8-97251-124-0
05
1
1307-
20
CLIP; BRK PIPE
(H) ID=4.76 THA
8-97300-443-0
01
1
1307-
20
CLIP; BRK PIPE
(B) ID=4.76X2 & 6.35X1 THA
8-98113-390-0
01
1
1307-
20
CLIP; BRK PIPE
(C) ID=4.76X3 & 6.35 OR 10X1 THA
8-98113-391-0
02
1
1307-
20
CLIP; BRK PIPE
(I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1 THA
8-98113-394-0
01
1
1307-
20
CLIP; BRK PIPE
(D) ID=4.76X2 THA
8-98113-395-0
01
1
1307-
22
CLIP; PIPE TO FRAME
ID=9 THA
5-09707-027-0
02
1
1307-
