Isuzu WW
▶
TRUCKS
▶
CXY
▶
10869 - CXY(51) RHD AUSTRALIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#12299) — 121 parça
◀

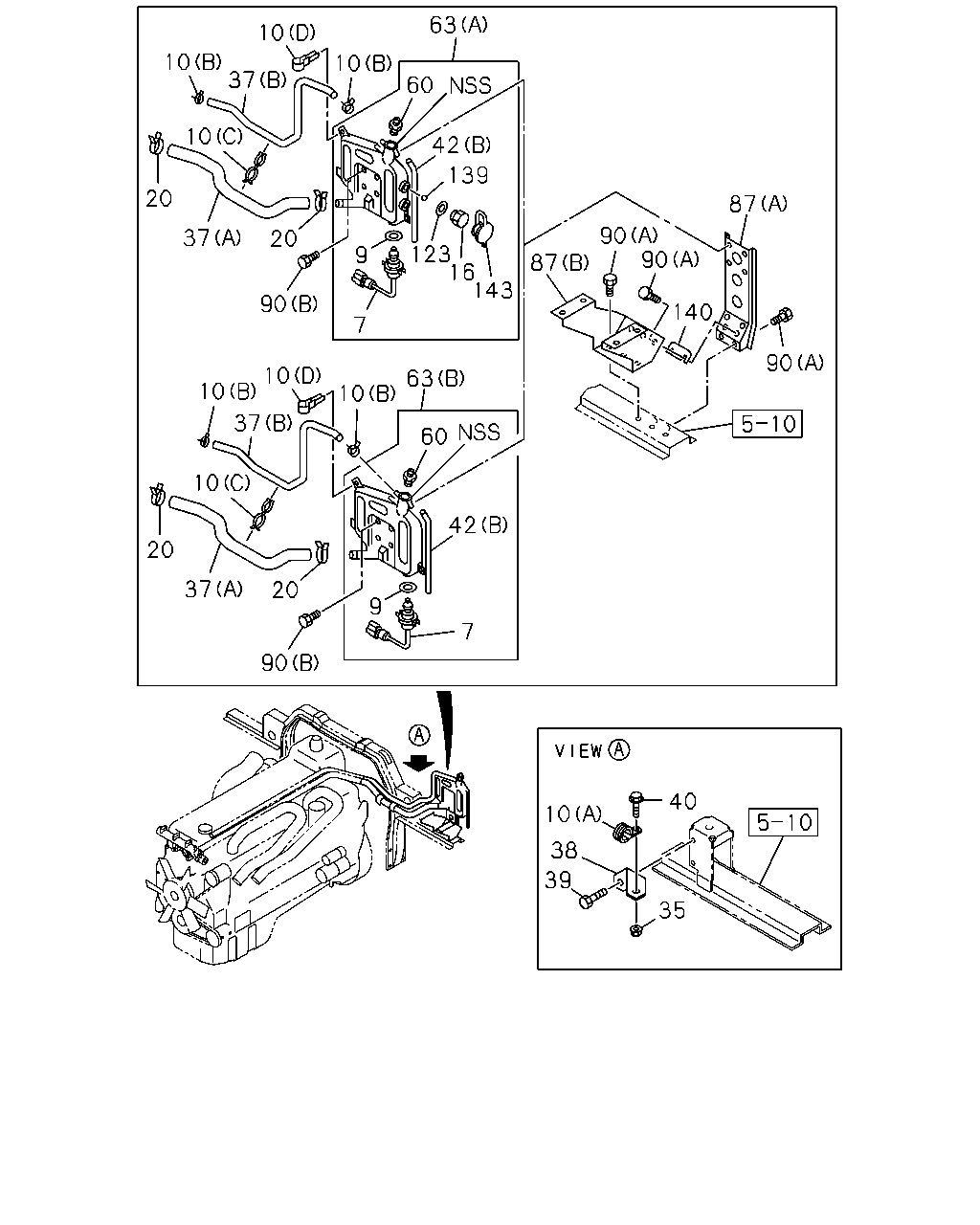

[111A] -'03/1;SUB TANK SIDE (40 parça)

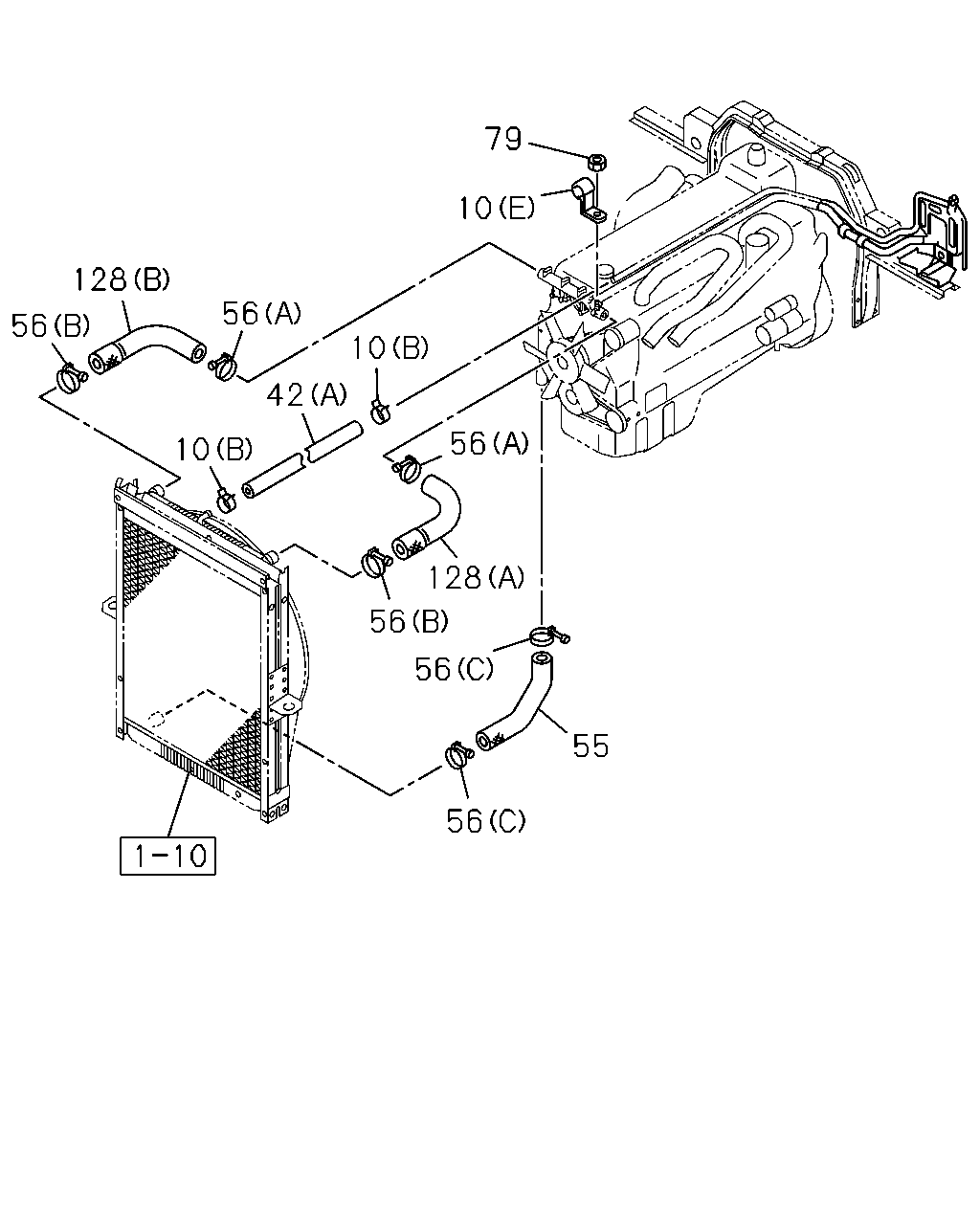

[111A] -'03/1;RADIATOR SIDE (23 parça)

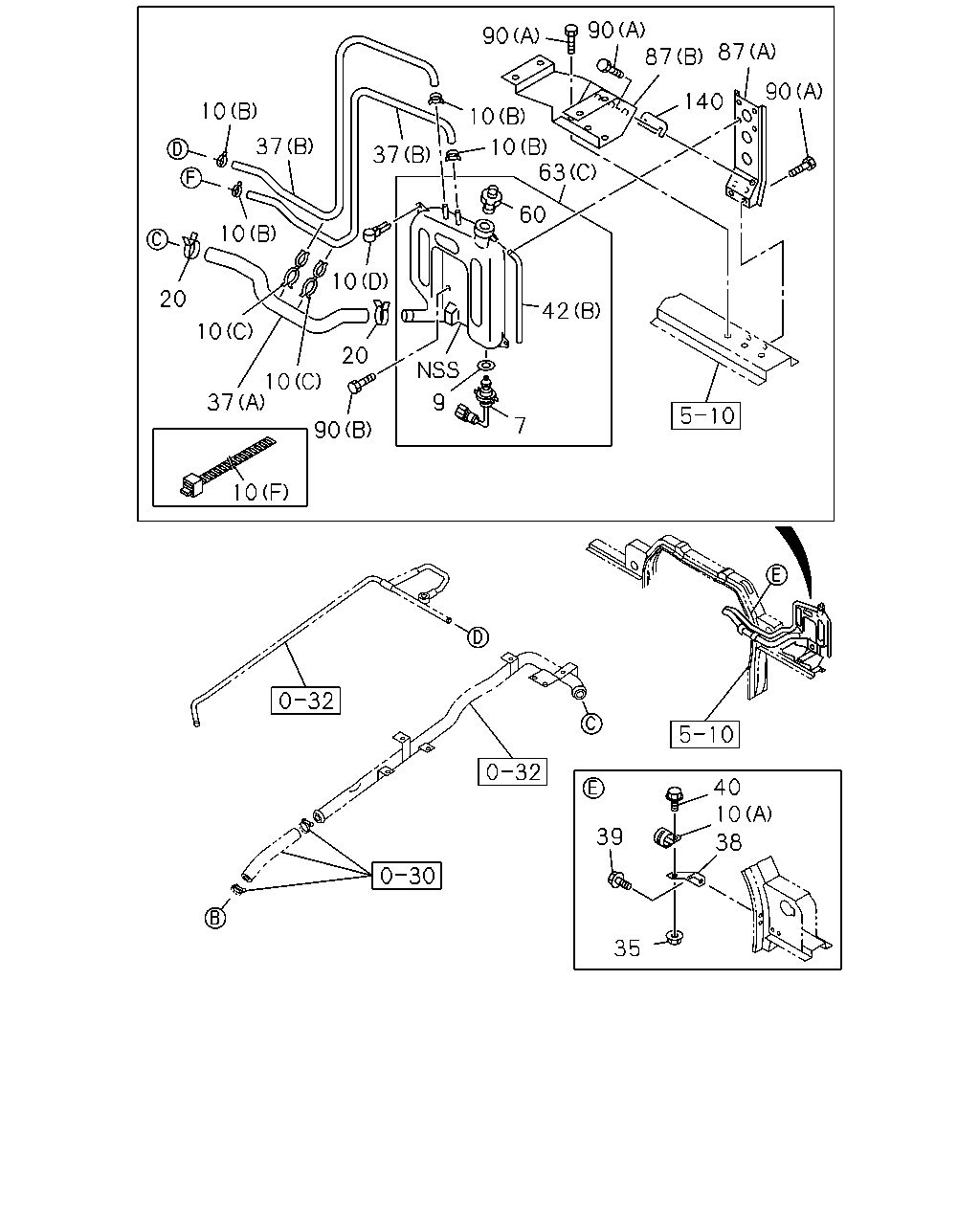

[111A] '03/2-;SUB TANK SIDE (36 parça)

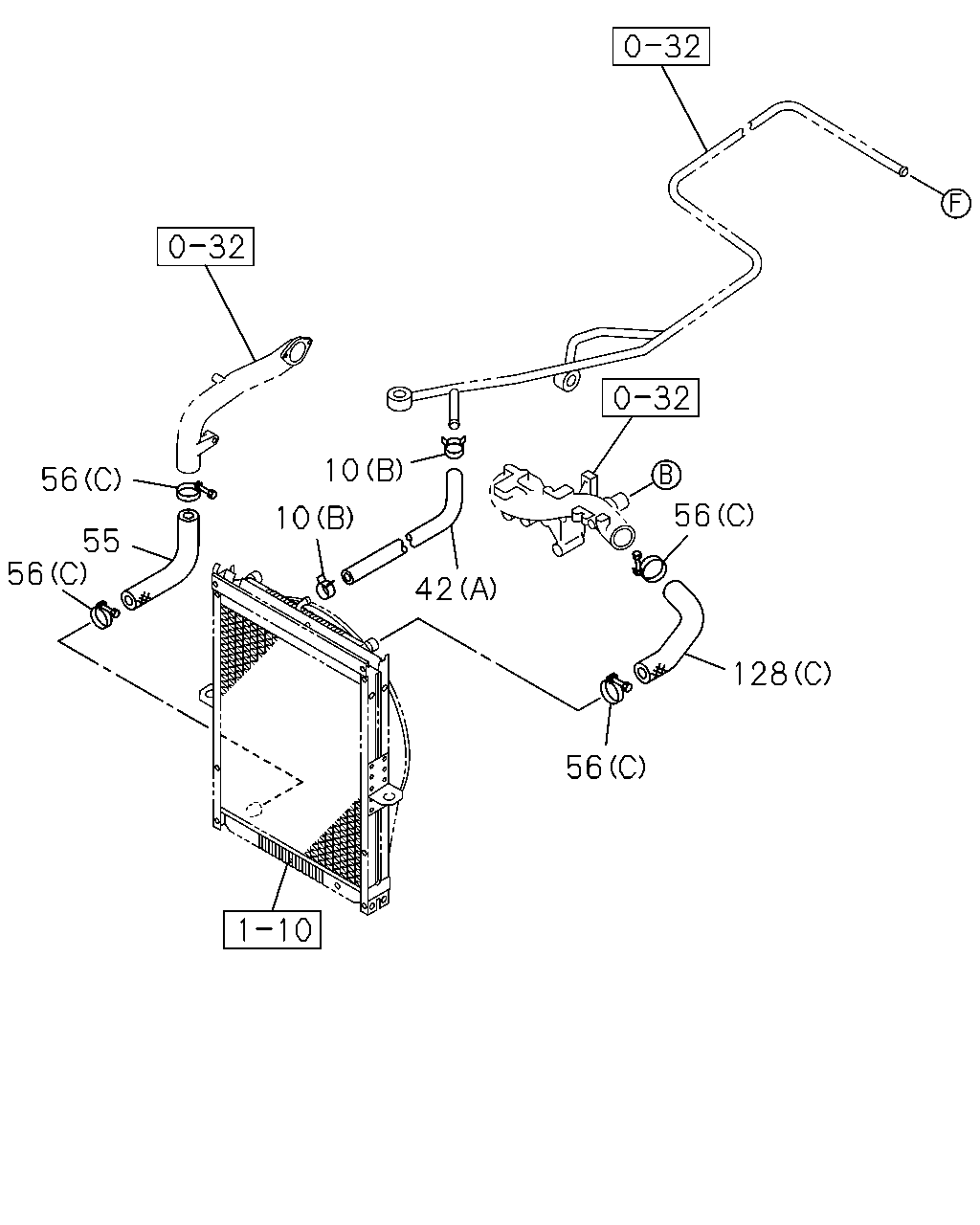

[111A] '03/2-;RADIATOR SIDE (22 parça)
▶
63
10
10
37
10
60
42
10
139
20
87
90
90
37
20
140
123
16
143
9
87
90
7
90
10
10
63
10
37
60
10
42
20
37
20
9
7
90
40
10
38
35
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0105-
9
GASKET; SWITCH
ID=28 T=2.5
1-09630-126-0
01
1
0105-0301
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
0302-
10
CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20
1-09700-606-0
01
1
0105-0301
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
0302-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0105-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
04
1
0105-0301
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0302-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
04
1
0105-0301
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
0302-
10
CLIP; RUBBER HOSE
(D) ID=14 L=44
9-09917-427-0
02
1
0105-0301
10
CLIP; RUBBER HOSE
(F) L=350
1-09707-183-0
01
1
0302-
16
PLUG; TANK
1-21464-514-0
02
1
0105-0205
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0105-
35
NUT
M10 FLANGE
0-91150-210-0
01
1
0105-
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000
0-03559-300-0
01
1
0105-0301
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000
0-03559-300-0
02
1
0302-
37
HOSE; RUBBER
(A)
1-21437-755-1
01
1
0105-
38
BRACKET; RUBBER HOSE
1-21489-180-0
01
1
0105-
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28680-820-0
01
1
0105-0512
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
0601-
40
BOLT; CLIP
M10X25 FLANGE
0-28681-025-0
01
1
0105-0512
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
0601-
42
HOSE; RUBBER
(A) L=560 SERVICED BY L=3000
0-03559-300-0
01
1
0105-0108
42
HOSE; RUBBER
(A) L=500 SERVICED BY L=3000
0-03559-300-0
01
1
0109-0301
42
HOSE; RUBBER
(A) L=400 SERVICED BY L=3000
0-03559-300-0
01
1
0302-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0105-
60
CAP; SUB TANK
1-21450-137-0
01
1
0105-
63
TANK ASM; SUB
(A)
1-21481-144-0
01
1
0105-0205
63
TANK ASM; SUB
(B)
1-21481-146-0
01
1
0206-0301
63
TANK ASM; SUB
(C)
1-21481-143-1
01
1
0302-
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0105-
87
BRACKET; SUB TANK
(A)
1-21489-162-0
01
1
0105-
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28680-820-0
06
1
0105-0512
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28650-820-0
06
1
0601-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0105-
123
GASKET
ID=26.2
8-94399-716-1
02
1
0105-0205
139
FLOAT
1-21489-161-0
02
1
0105-0205
140
SHIM
T=0.8
1-53458-716-0
AR
1
0105-
143
COVER; PLUG
1-82389-017-0
02
1
0105-0205
79
10
128
56
56
10
42
56
10
128
56
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20
1-09700-606-0
01
1
0105-0301
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
0302-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0105-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
04
1
0105-0301
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0302-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
04
1
0105-0301
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
0302-
10
CLIP; RUBBER HOSE
(D) ID=14 L=44
9-09917-427-0
02
1
0105-0301
10
CLIP; RUBBER HOSE
(F) L=350
1-09707-183-0
01
1
0302-
42
HOSE; RUBBER
(A) L=560 SERVICED BY L=3000
0-03559-300-0
01
1
0105-0108
42
HOSE; RUBBER
(A) L=500 SERVICED BY L=3000
0-03559-300-0
01
1
0109-0301
42
HOSE; RUBBER
(A) L=400 SERVICED BY L=3000
0-03559-300-0
01
1
0302-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0105-
55
HOSE; WATER,RAD OUTLET
1-21437-615-1
01
1
0105-0406
55
HOSE; WATER,RAD OUTLET
1-21437-918-0
01
1
0407-
56
CLIP; WATER HOSE,RAD
(A) ID=57
1-09704-066-0
02
1
0105-0301
56
CLIP; WATER HOSE,RAD
(B) ID=63
1-09704-067-0
02
1
0105-0301
56
CLIP; WATER HOSE,RAD
(C) ID=72
1-09704-068-0
02
1
0105-0301
56
CLIP; WATER HOSE,RAD
(C) ID=72
1-09704-068-0
04
1
0302-
79
NUT; CLIP,HOSE
M8 FLANGE
0-91150-108-0
01
1
0105-0301
128
HOSE; WATER,RAD INL
(A)
1-21437-617-0
01
1
0105-0301
128
HOSE; WATER,RAD INL
(C)
1-21437-866-1
01
1
0302-
128
HOSE; WATER,RAD INL
(B)
1-21437-618-1
01
1
0105-0301
90
87
90
87
90
140
10
10
37
10
63
37
60
10
10
20
42
10
20
10
37
9
7
90
10
40
10
38
39
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0105-
9
GASKET; SWITCH
ID=28 T=2.5
1-09630-126-0
01
1
0105-0301
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
0302-
10
CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20
1-09700-606-0
01
1
0105-0301
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
0302-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0105-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
04
1
0105-0301
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0302-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
04
1
0105-0301
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
0302-
10
CLIP; RUBBER HOSE
(D) ID=14 L=44
9-09917-427-0
02
1
0105-0301
10
CLIP; RUBBER HOSE
(F) L=350
1-09707-183-0
01
1
0302-
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0105-
35
NUT
M10 FLANGE
0-91150-210-0
01
1
0105-
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000
0-03559-300-0
01
1
0105-0301
37
HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000
0-03559-300-0
02
1
0302-
37
HOSE; RUBBER
(A)
1-21437-755-1
01
1
0105-
38
BRACKET; RUBBER HOSE
1-21489-180-0
01
1
0105-
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28680-820-0
01
1
0105-0512
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
0601-
40
BOLT; CLIP
M10X25 FLANGE
0-28681-025-0
01
1
0105-0512
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
0601-
42
HOSE; RUBBER
(A) L=560 SERVICED BY L=3000
0-03559-300-0
01
1
0105-0108
42
HOSE; RUBBER
(A) L=500 SERVICED BY L=3000
0-03559-300-0
01
1
0109-0301
42
HOSE; RUBBER
(A) L=400 SERVICED BY L=3000
0-03559-300-0
01
1
0302-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0105-
60
CAP; SUB TANK
1-21450-137-0
01
1
0105-
63
TANK ASM; SUB
(A)
1-21481-144-0
01
1
0105-0205
63
TANK ASM; SUB
(B)
1-21481-146-0
01
1
0206-0301
63
TANK ASM; SUB
(C)
1-21481-143-1
01
1
0302-
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0105-
87
BRACKET; SUB TANK
(A)
1-21489-162-0
01
1
0105-
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28680-820-0
06
1
0105-0512
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28650-820-0
06
1
0601-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0105-
140
SHIM
T=0.8
1-53458-716-0
AR
1
0105-
10
56
56
10
55
56
42
128
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20
1-09700-606-0
01
1
0105-0301
10
CLIP; RUBBER HOSE
(D) ID=28 L=58
1-09700-400-0
02
1
0302-
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0105-
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
04
1
0105-0301
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0302-
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
04
1
0105-0301
10
CLIP; RUBBER HOSE
(C) ID=44 & 16
1-09709-125-0
08
1
0302-
10
CLIP; RUBBER HOSE
(D) ID=14 L=44
9-09917-427-0
02
1
0105-0301
10
CLIP; RUBBER HOSE
(F) L=350
1-09707-183-0
01
1
0302-
42
HOSE; RUBBER
(A) L=560 SERVICED BY L=3000
0-03559-300-0
01
1
0105-0108
42
HOSE; RUBBER
(A) L=500 SERVICED BY L=3000
0-03559-300-0
01
1
0109-0301
42
HOSE; RUBBER
(A) L=400 SERVICED BY L=3000
0-03559-300-0
01
1
0302-
42
HOSE; RUBBER
(B) L=850
1-21489-154-0
01
1
0105-
55
HOSE; WATER,RAD OUTLET
1-21437-615-1
01
1
0105-0406
55
HOSE; WATER,RAD OUTLET
1-21437-918-0
01
1
0407-
56
CLIP; WATER HOSE,RAD
(A) ID=57
1-09704-066-0
02
1
0105-0301
56
CLIP; WATER HOSE,RAD
(B) ID=63
1-09704-067-0
02
1
0105-0301
56
CLIP; WATER HOSE,RAD
(C) ID=72
1-09704-068-0
02
1
0105-0301
56
CLIP; WATER HOSE,RAD
(C) ID=72
1-09704-068-0
04
1
0302-
128
HOSE; WATER,RAD INL
(A)
1-21437-617-0
01
1
0105-0301
128
HOSE; WATER,RAD INL
(C)
1-21437-866-1
01
1
0302-
128
HOSE; WATER,RAD INL
(B)
1-21437-618-1
01
1
0105-0301
