Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

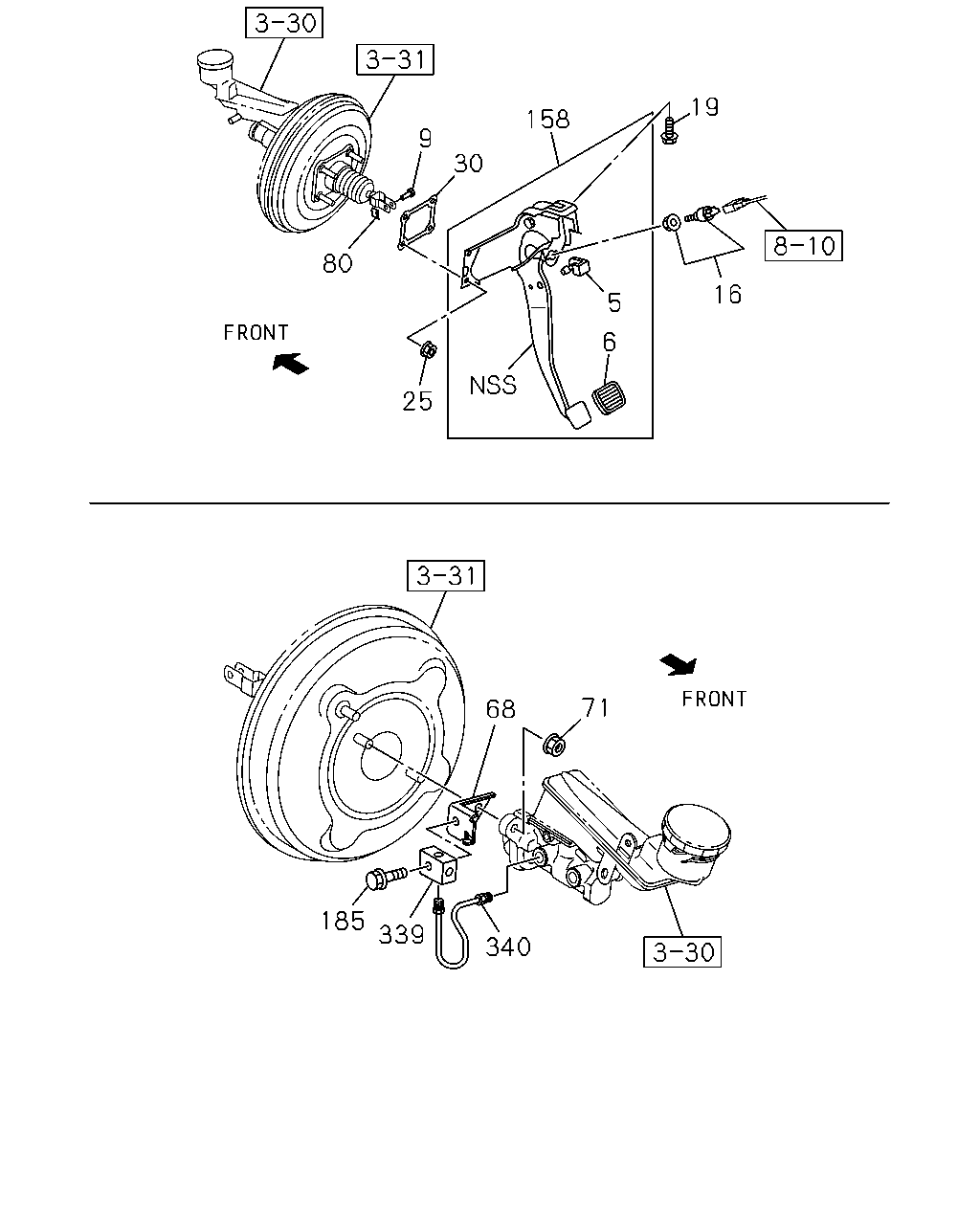

3-10 — BRAKE PEDAL AND CONTROL
(#122983) — 14 parça
71
68
340
339
185
25
80
9
30
158
19
16
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
STOPPER; BRK PEDAL
THA
1-73996-231-1
01
1
1307-
6
COVER; BRK PEDAL
THA
8-97318-799-0
01
1
1307-
9
PIN; JAW JOINT
IMA
8-97311-602-0
01
1
1307-
16
SWITCH; STOP LAMP
THA
8-98140-486-0
01
1
1307-
19
BOLT; BRKT
M8X22.5 W/PL WASHER THA
8-97947-104-1
01
1
1307-
25
NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE THA
8-97581-233-0
04
1
1307-
30
GASKET; M/VAC TO BODY
THA
8-97943-457-0
01
1
1307-
68
BRACKET; SERVO TO DASH PANEL
THA
8-98163-234-0
01
1
1307-
71
NUT; BRK M/CYL
THA
8-98031-675-0
02
1
1307-
80
PIN; SNAP,BRK PEDAL
IMA
8-98007-161-0
01
1
1307-
158
PEDAL ASM; BRK
THA
8-98061-817-1
01
1
1307-
185
BOLT; BRKT
M8X35 FLANGE THA
8-97947-755-0
01
1
1307-
339
CONNECTOR; OIL PIPE
THA
8-98163-269-0
01
1
1307-
340
PIPE; BRK M/CYL
THA
8-97947-756-0
01
1
1307-
