Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

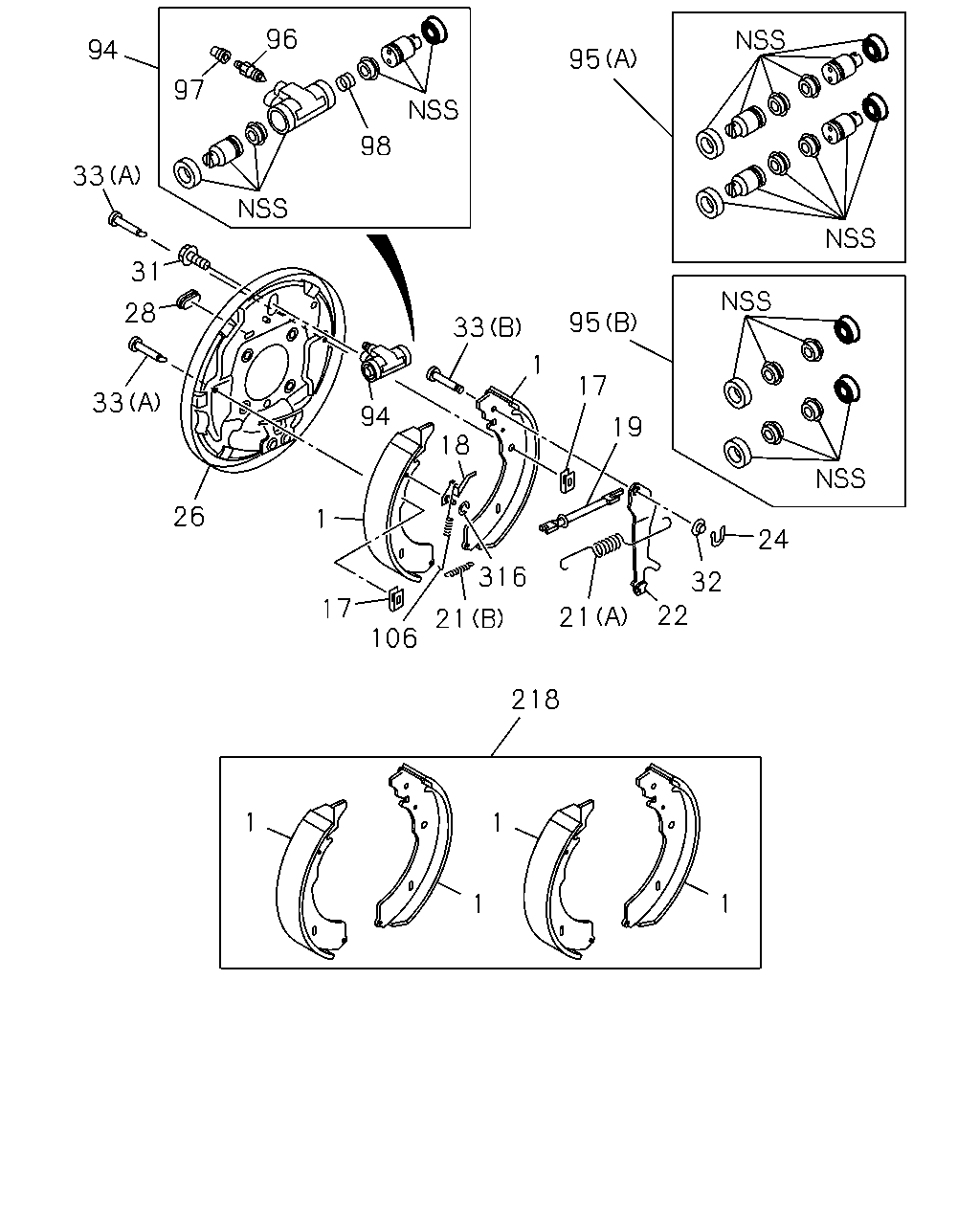

3-05 — REAR WHEEL BRAKE
(#122982) — 30 parça
96
98
97
94
33
31
28
33
26
94
33
17
1
18
1
17
106
316
19
24
32
22
21
218
1
1
1
1
95
95
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
TRAILING THA
8-98167-405-0
02
1
1307-
1
SHOE; BRK,RR
LEADING THA
8-98167-406-0
01
1
1307-
1
SHOE; BRK,RR
LEADING THA
8-98167-407-0
01
1
1307-
17
SPRING; SHOE HOLD DOWN
THA
8-98164-787-0
04
1
1307-
18
LEVER; AUTO ADJ
THA
8-98007-996-0
01
1
1307-
18
LEVER; AUTO ADJ
THA
8-98007-997-0
01
1
1307-
19
ADJUSTER; RR BRK
THA
8-97947-400-0
01
1
1307-
19
ADJUSTER; RR BRK
THA
8-97947-401-0
01
1
1307-
21
SPRING; SHOE,RET
(A) THA
8-97947-412-0
02
1
1307-
21
SPRING; SHOE,RET
(B) THA
8-98008-002-0
02
1
1307-
22
LEVER; PARKING BRK,WHEEL BRK
THA
8-97947-390-0
01
1
1307-
22
LEVER; PARKING BRK,WHEEL BRK
THA
8-97947-391-0
01
1
1307-
24
RETAINER; PARKING BRK
THA
8-97301-493-0
02
1
1307-
26
PLATE; BACK,RR BRK
THA
8-97947-404-2
01
1
1307-
26
PLATE; BACK,RR BRK
THA
8-97947-405-2
01
1
1307-
28
COVER; ADJ HOLE
THA
8-97301-477-0
04
1
1307-
31
BOLT; RR WHEEL CYL
M6X14 THA
8-97947-469-0
04
1
1307-
32
WASHER; LK
THA
8-97947-470-0
02
1
1307-
33
PIN; SHOE HOLD DOWN
(A) THA
8-97301-509-0
04
1
1307-
33
PIN; SHOE HOLD DOWN
(B) THA
8-98008-034-0
02
1
1307-
94
CYLINDER; WHEEL,RR BRK
THA
8-97301-478-0
02
1
1307-
95
CUP SET; RR WHEEL CYL
(A) W/PISTON THA
5-87832-026-0
01
1
1307-
95
CUP SET; RR WHEEL CYL
(B) WO/PISTON THA
5-87832-246-0
01
1
1307-
96
SCREW; BLEEDER,RR BRK
THA
8-97301-484-0
02
1
1307-
97
CAP; BLEEDER,RR WHEEL CYL
THA
8-97301-485-0
02
1
1307-
98
SPRING; RR WHEEL CYL
THA
8-97301-483-0
02
1
1307-
106
SPRING; ADJ LEVER
THA
8-98008-003-0
01
1
1307-
106
SPRING; ADJ LEVER
THA
8-98008-004-0
01
1
1307-
218
SHOE KIT; BRK,RR
THA
5-87832-255-0
01
1
1307-
316
RING; SNAP
THA
8-97330-511-0
02
1
1307-
