Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#122979) — 34 parça
◀

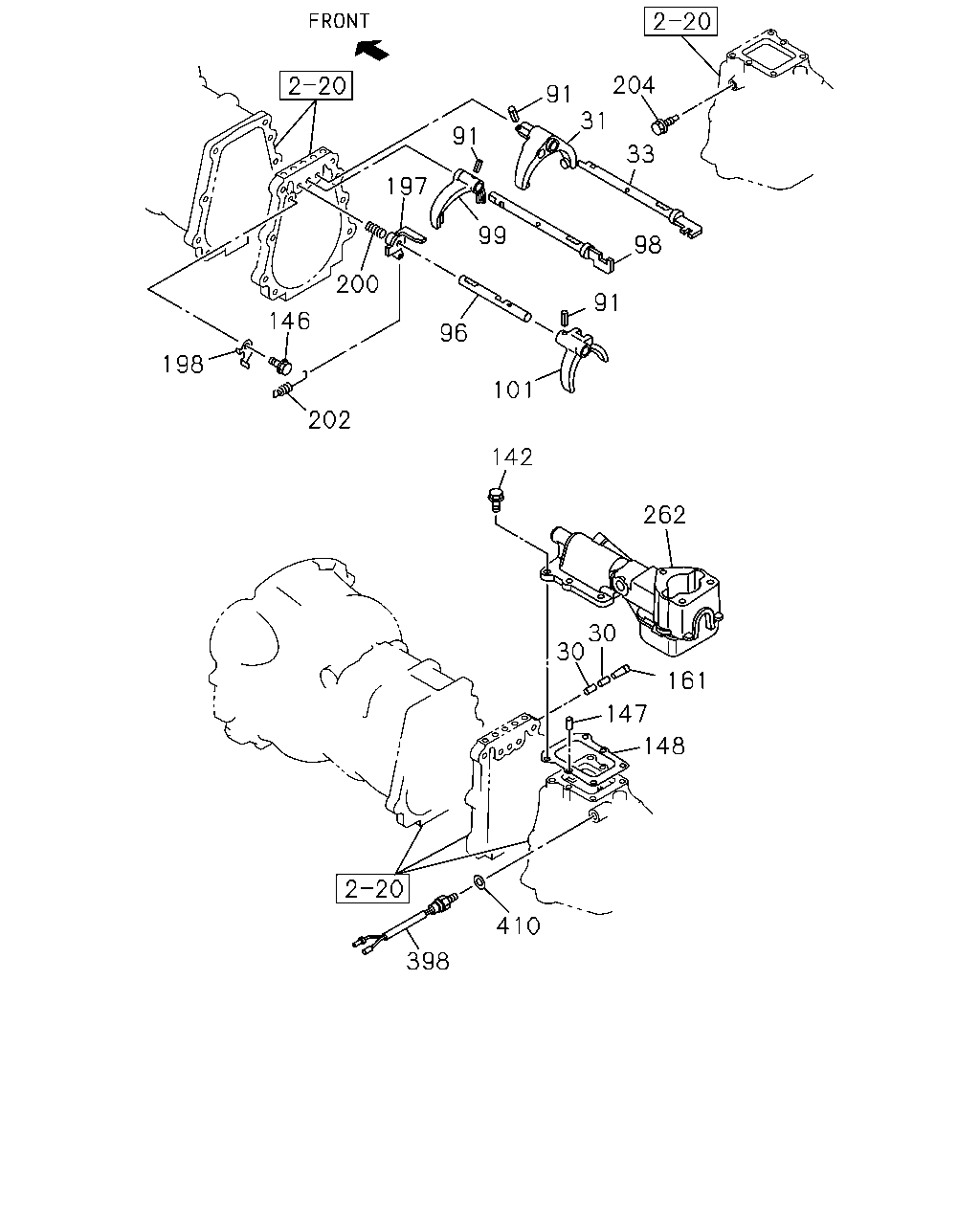

[230A] GEAR SHIFTER (21 parça)

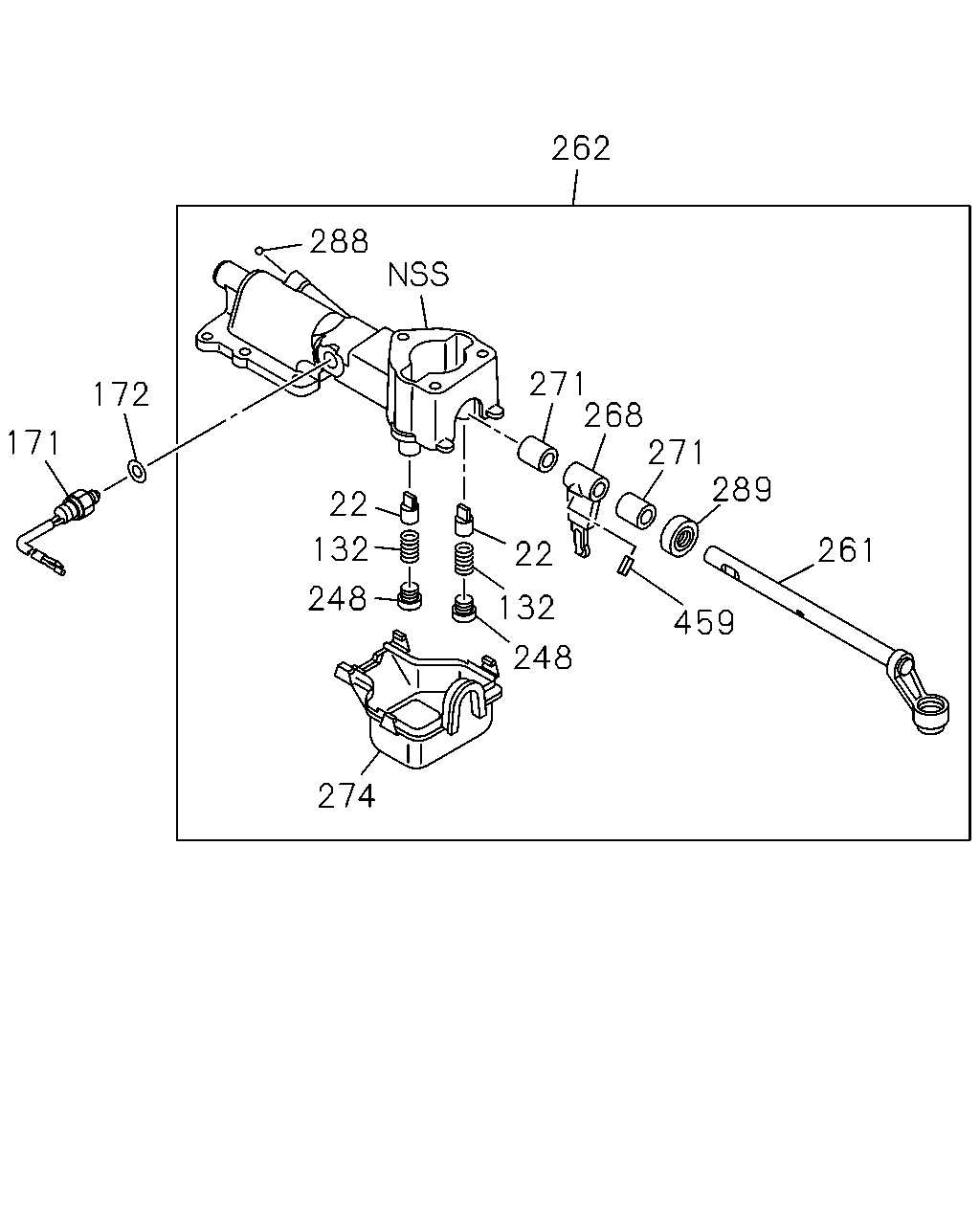

[230A] SHIFT CONTROL BOX (13 parça)
▶
204
31
91
33
98
91
99
91
197
200
146
198
202
101
96
142
262
161
148
147
30
30
410
398
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
PIN; INTER LK
OD=5.5 L=10 IMA
5-33534-002-1
02
1
1307-
31
ARM; SHIFT,LOW & 2ND
IMA
8-94421-912-2
01
1
1307-
33
ROD; SHIFT,LOW & 2ND
IMA
8-97019-061-2
01
1
1307-
91
PIN; SPR,SHIFT ARM
D=4.2 L=25 IMA
8-94171-541-0
03
1
1307-
96
ROD; SHIFT,5TH
THA
8-97232-886-0
01
1
1307-
98
ROD; SHIFT,TOP & 3RD
IMA
8-97019-060-3
01
1
1307-
99
ARM; SHIFT,4TH & 3RD
IMA
8-94421-911-2
01
1
1307-
101
ARM; SHIFT,REV & 5TH
THA
8-97232-894-0
01
1
1307-
142
BOLT; QUAD BOX
M8X22 FLANGE IMA
8-97365-376-0
04
1
1307-
146
BOLT; REV INHIBITOR
M8X20 FLANGE THA
0-28650-820-0
01
1
1307-
147
PIN; KNOCK
OD=6 L=12 IMA
9-08150-612-0
02
1
1307-
148
GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). IMA
8-97083-599-0
01
1
1307-
161
PLUG; INTER LK HOLE
IMA
8-94239-543-1
01
1
1307-
197
INHIBITOR; REV SHIFT
IMA
8-94448-753-0
01
1
1307-
198
BRACKET; REV INHIBITOR
IMA
8-94448-199-0
01
1
1307-
200
SPRING; REV INHIBITOR,COMP
IMA
8-94448-807-0
01
1
1307-
202
SPRING; REV INHIBITOR,EXT
IMA
8-97017-500-0
01
1
1307-
204
STOPPER; REV INHIBITOR
IMA
8-98035-673-0
01
1
1307-
262
BOX ASM; SHIFT CONT
IMA
8-98219-761-0
01
1
1307-
398
SWITCH; REV LAMP
IMA
8-98103-750-0
01
1
1307-
410
GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0 THA
9-09571-414-0
01
1
1307-
261
289
271
268
271
262
288
172
171
22
22
459
132
248
132
248
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CAP; RETURN SPR,SHIFT BLOCK
IMA
8-97181-326-0
02
1
1307-
132
SPRING; SELECT STOP
IMA
8-97181-395-0
02
1
1307-
171
SWITCH; NEUTRAL
IMA
8-98103-743-0
01
1
1307-
172
GASKET; NEUTRAL SW
ID=14.2 THA
8-94462-114-0
01
1
1307-
248
RETAINER; CONT BOX
IMA
8-98210-983-0
02
1
1307-
261
ROD; GEAR CONT
IMA
8-97257-909-0
01
1
1307-
262
BOX ASM; SHIFT CONT
IMA
8-98219-761-0
01
1
1307-
268
LEVER; CONT,INTERNAL
IMA
8-97184-895-0
01
1
1307-
271
BUSHING; QUAD BOX
ID=14 L=12 IMA
8-98017-908-0
02
1
1307-
274
COVER; SHAFT,QUAD BOX
IMA
8-97181-324-1
01
1
1307-
288
PLUG; AIR BREATHER
IMA
9-00097-517-0
01
1
1307-
289
SEAL; OIL,CONT SHAFT,QUAD BOX
IMA
8-98017-744-0
01
1
1307-
459
PIN; SPR,ROD TO ARM
OD=5 IMA
8-97184-905-0
01
1
1307-
