◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51485 - TFR SHORT(THAI) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#122978) — 79 parça

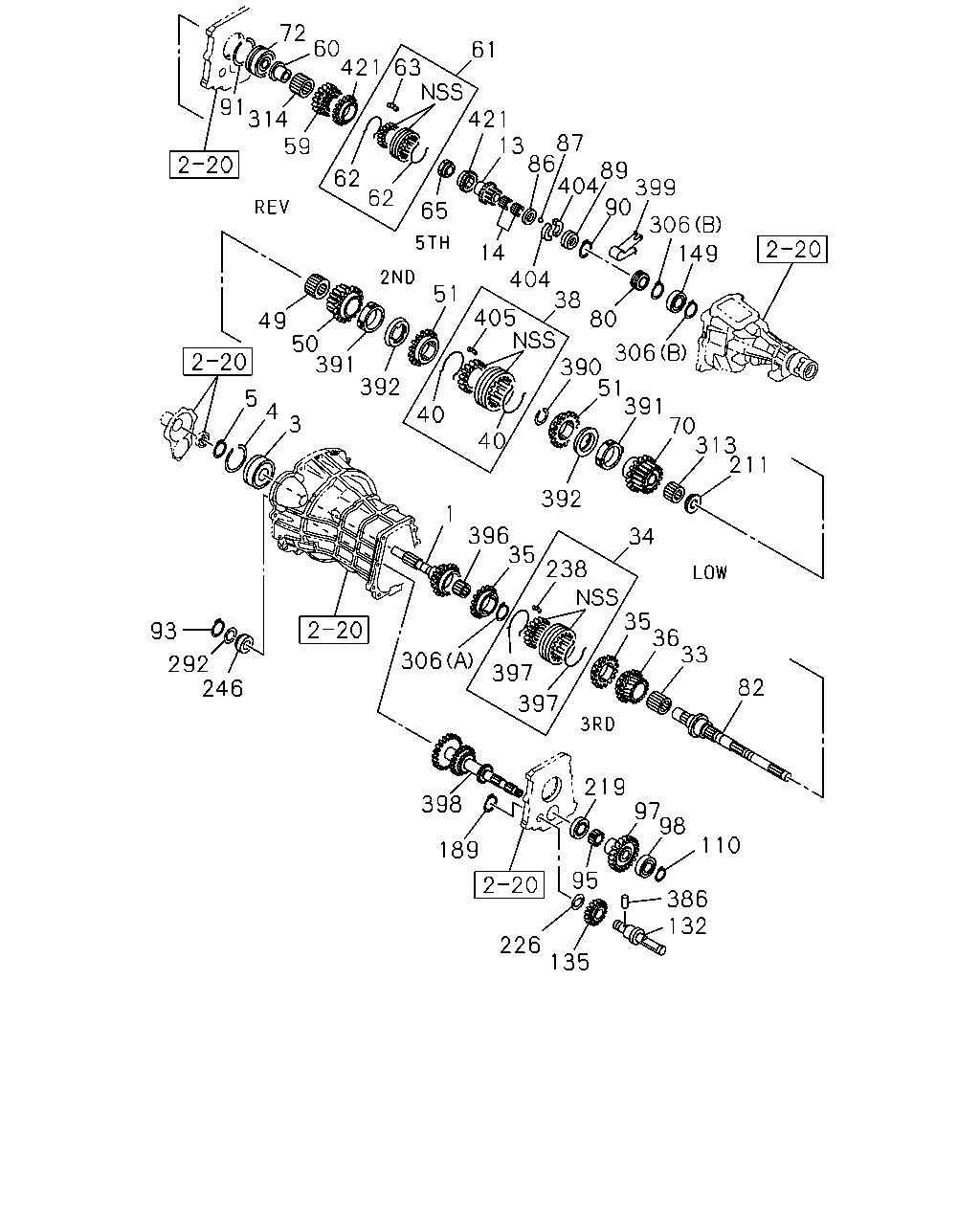

çizim 355053
72 60 421 63 61 421 13 86 87 404 89 90 399 306 149 91 314 59 62 62 65 14 404 38 80 306 211 313 70 391 51 390 405 51 49 50 391 392 40 40 392 34 82 33 36 35 238 35 396 1 3 4 5 397 397 306 246 292 93 219 97 98 110 386 132 135 226 35 189 398
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=26 IMA 		8-98210-225-0 01 1 1307-1307
1 SHAFT; TOP GEAR,TRANS
Z=26 IMA 		8-98210-225-0 01 1 1308-
3 BEARING; TOP GEAR SHAFT
NSK THA 		8-97943-879-0 01 1 1307-
4 RING; SNAP,BRG TO TOP GEAR SHAFT
NSK IMA 		8-94422-083-0 01 1 1307-
5 RING; SNAP,BRG TO TOP GEAR SHAFT
ID=37.4 IMA 		8-97254-316-0 01 1 1307-
13 GEAR; 5TH,MAINSHAFT
Z=22 IMA 		8-98210-227-0 01 1 1307-
14 BEARING; NEEDLE,5TH
NTN IMA 		8-98172-356-0 01 1 1307-
33 BEARING; NEEDLE,3RD GEAR
NSK IMA 		1-09811-028-1 01 1 1307-
34 SYNCHRONIZER; 4TH & 3RD
THA 		8-97104-027-0 01 1 1307-1401
34 SYNCHRONIZER; 4TH & 3RD
IMA 		8-97977-991-0 01 1 1402-
35 RING; BLOCK,4TH & 3RD
Z=45 IMA 		8-94151-510-3 02 1 1307-
36 GEAR; 3RD,MAINSHAFT
Z=27 THA 		8-98233-597-0 01 1 1307-
38 SYNCHRONIZER; LOW & 2ND
THA 		8-94363-059-1 01 1 1307-1401
38 SYNCHRONIZER; LOW & 2ND
IMA 		8-97977-989-0 01 1 1402-
40 SPRING; INSERT,LOW & 2ND
IMA 		8-94448-045-0 02 1 1307-
49 BEARING; NEEDLE,2ND GEAR
JTEKT IMA 		9-00096-625-0 01 1 1307-
50 GEAR; 2ND,MAINSHAFT
Z=34 THA 		8-97301-183-1 01 1 1307-
51 RING; BLOCK,LOW & 2ND
Z=36 IMA 		8-98115-804-0 02 1 1307-
59 GEAR; REV MAINSHAFT
Z=41 IMA 		8-98210-228-0 01 1 1307-
60 COLLAR; REV MAIN
IMA 		8-97031-079-0 01 1 1307-
61 SYNCHRONIZER; REV & 5TH
IMA 		8-97030-106-1 01 1 1307-
62 SPRING; INSERT,REV & 5TH
IMA 		5-33264-012-0 02 1 1307-
63 INSERT; SYN,REV & 5TH
IMA 		5-33263-001-0 03 1 1307-
65 NUT; MAINSHAFT
M34 IMA 		8-94422-071-1 01 1 1307-
70 GEAR; 1ST,MAINSHAFT
Z=45 THA 		8-97301-182-1 01 1 1307-
72 BEARING; BALL,MAINSHAFT
NSK THA 		8-94380-017-1 01 1 1307-
80 GEAR; SPD DRIVE
Z=6 IMA 		8-94472-608-1 01 1 1307-
82 SHAFT; MAIN,TRANS
Z=28-34-26-27 IMA 		8-97300-981-0 01 1 1307-
86 WASHER; THRUST,5TH
T=7.90 WHITE IMA 		8-94422-110-2 01 1 1307-
86 WASHER; THRUST,5TH
T=8.00 YELLOW IMA 		8-94422-111-2 01 1 1307-
86 WASHER; THRUST,5TH
T=8.10 GREEN IMA 		8-94422-112-2 01 1 1307-
86 WASHER; THRUST,5TH
T=8.20 BLUE IMA 		8-94422-113-2 01 1 1307-
87 BALL; THRUST WASHER
IMA 		8-94201-356-0 01 1 1307-
89 RING; RET,THRUST RING
ID=31.8 IMA 		8-94422-395-0 01 1 1307-
90 RING; SNAP,THRUST RING
ID=29.6 IMA 		9-09180-032-0 01 1 1307-
91 RING; SNAP,CENTER BRG,MAINSHAFT
ID=76.2 IMA 		8-94322-411-0 01 1 1307-
93 RING; SNAP,COUNTER FRT BRG
ID=23.2 IMA 		9-09180-025-0 01 1 1307-
95 GEAR; REV,COUNTER
Z=19 IMA 		8-94377-433-0 01 1 1307-
97 GEAR; 5TH,COUNTER
Z=50 IMA 		8-94377-434-0 01 1 1307-
98 BEARING; BALL,COUNTER END
NSK IMA 		8-97018-535-1 01 1 1307-
110 RING; SNAP,COUNTER BRG
T=1.10 WHITE IMA 		8-94422-103-0 01 1 1307-
110 RING; SNAP,COUNTER BRG
T=1.20 YELLOW IMA 		8-94422-104-0 01 1 1307-
110 RING; SNAP,COUNTER BRG
T=1.30 BLUE IMA 		8-94422-105-0 01 1 1307-
110 RING; SNAP,COUNTER BRG
T=1.40 PINK IMA 		8-94422-106-0 01 1 1307-
110 RING; SNAP,COUNTER BRG
T=1.50 GREEN IMA 		8-94422-107-0 01 1 1307-
110 RING; SNAP,COUNTER BRG
T=1.60 BROWN IMA 		8-94422-108-0 01 1 1307-
132 SHAFT; REV
THA 		8-97019-155-1 01 1 1307-1308
132 SHAFT; REV
IMA 		8-98245-493-0 01 1 1309-
135 GEAR; REV IDLER
Z=33 THA 		8-98233-606-0 01 1 1307-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK THA 		8-94173-863-0 01 1 1307-
189 RING; SNAP,REV,GEAR
T=1.20 WHITE IMA 		8-94422-100-0 01 1 1307-
189 RING; SNAP,REV,GEAR
T=1.30 YELLOW IMA 		8-94422-101-0 01 1 1307-
189 RING; SNAP,REV,GEAR
T=1.40 BLUE IMA 		8-94422-102-0 01 1 1307-
211 BEARING; THRUST NEEDLE,1ST GEAR
NSK IMA 		8-94148-935-0 01 1 1307-
219 BEARING; BALL,CLUSTER,RR
NSK IMA 		8-94436-929-0 01 1 1307-
226 WASHER; THRUST,REV GEAR,COUNTER
ID=30.0 IMA 		8-94223-069-1 01 1 1307-
238 INSERT
IMA 		8-94448-202-2 03 1 1307-
246 BEARING; ROLLER,COUNTER SHAFT FRT
NSK IMA 		8-97029-600-4 01 1 1307-
292 RING; SNAP,BRG OUTER
NSK IMA 		8-94422-081-0 01 1 1307-
306 RING; SNAP,MAINSHAFT
(A) T=1.90 BLUE IMA 		8-97129-615-0 01 1 1307-
306 RING; SNAP,MAINSHAFT
(A) T=1.85 YELLOW IMA 		8-97129-616-0 01 1 1307-
306 RING; SNAP,MAINSHAFT
(A) T=1.80 WHITE IMA 		8-97129-617-0 01 1 1307-
306 RING; SNAP,MAINSHAFT
(B) ID=27.9 IMA 		9-09180-030-0 02 1 1307-
313 BEARING; NEEDLE,LOW GEAR
NSK IMA 		1-09811-028-1 01 1 1307-
314 BEARING; NEEDLE,REV GEAR
NSK IMA 		8-94422-064-0 01 1 1307-
314 BEARING; NEEDLE,REV GEAR
JTEKT IMA 		8-94422-065-1 01 1 1307-
386 PIN; REV SHAFT
OD=6 L=40 IMA 		9-08150-640-0 01 1 1307-
390 RING; SNAP,CLU HUB
T=1.80 WHITE IMA 		8-94422-088-2 01 1 1307-
390 RING; SNAP,CLU HUB
T=1.85 YELLOW IMA 		8-94422-089-1 01 1 1307-
390 RING; SNAP,CLU HUB
T=1.90 BLUE IMA 		8-94422-090-2 01 1 1307-
391 RING; INSIDE,SYN
OD=95.8 IMA 		8-94363-056-0 02 1 1307-
392 RING; OUTSIDE,SYN
OD=90.0 IMA 		8-98115-793-0 02 1 1307-
396 BEARING; NEEDLE,MAINSHAFT
NSK IMA 		8-98172-355-0 01 1 1307-
397 SPRING; INSERT,4TH & 3RD
IMA 		8-94422-075-0 02 1 1307-
398 GEAR; COUNTER
Z=44-32-25-19 THA 		8-97301-186-2 01 1 1307-
399 CLIP; SPEEDOMETER DRIVE GEAR
IMA 		8-94310-229-0 01 1 1307-
404 PLATE; THRUST
IMA 		8-94421-892-0 02 1 1307-
405 INSERT; SYN,LOW & 2ND
IMA 		8-94363-062-1 03 1 1307-
421 RING; BLOCK,REV & 5TH
Z=36 IMA 		8-97071-688-0 02 1 1307-
