Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

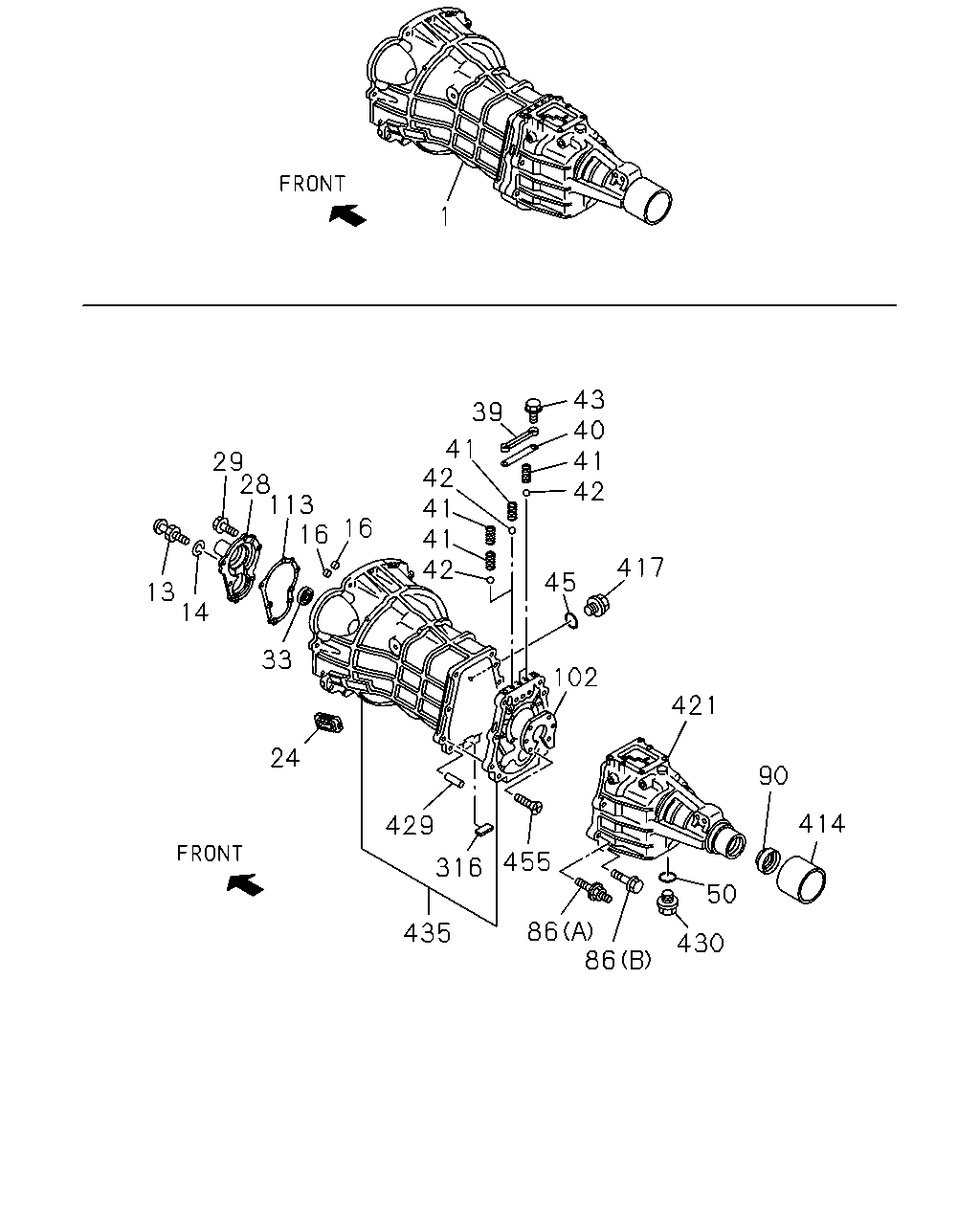

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#122976) — 31 parça
13
14
33
16
113
28
29
16
24
429
316
435
455
102
421
90
414
50
430
86
86
45
417
42
41
40
43
39
41
42
41
41
42
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
THA
8-98150-178-0
01
1
1307-
13
SUPPORT; SHIFT FORK
L=47.5 IMA
8-97072-827-0
01
1
1307-
14
WASHER; LK,SUPPORT
ID=12.2 IMA
0-91510-512-0
01
1
1307-
16
PLUG; SHIFT ROD
OD=14 IMA
8-97358-601-0
02
1
1307-
24
COVER; CHECK HOLE,DUST
IMA
8-94156-700-0
01
1
1307-
28
COVER; FRT,TRANS CASE
THA
8-97381-406-0
01
1
1307-
29
BOLT; FRT COVER
M8X22 FLANGE IMA
8-97365-376-0
06
1
1307-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK THA
8-97947-839-0
01
1
1307-
39
PLATE; DETENT SPR
IMA
8-98035-571-0
01
1
1307-
40
GASKET; DETENT SPR PLATE
ALSO INCLUDED IN GASKET SET(M/T). IMA
8-97083-600-1
01
1
1307-
41
SPRING; DETENT BALL
L=26.8 IMA
8-94320-193-0
02
1
1307-
41
SPRING; DETENT BALL
L=27.6 IMA
8-97214-402-0
01
1
1307-
41
SPRING; DETENT BALL
L=26.6 IMA
8-97214-403-0
01
1
1307-
42
BALL; DETENT,GEAR SHIFT
IMA
8-94435-335-0
03
1
1307-
43
BOLT; PLATE TO PLATE
M8X22 FLANGE IMA
8-97365-376-0
02
1
1307-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA
8-97115-712-0
01
1
1307-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA
8-97115-712-0
01
1
1307-
86
BOLT; RR COVER
(A) M10X18 M10X55 L=86.8 IMA
8-97305-468-0
01
1
1307-
86
BOLT; RR COVER
(B) M10X55 FLANGE THA
8-98035-672-0
07
1
1307-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK THA
8-97947-840-0
01
1
1307-
102
RETAINER; BRG UPR,MAINSHAFT
IMA
8-97138-673-0
01
1
1307-
113
GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). IMA
8-97083-589-0
01
1
1307-
316
MAGNET; TRANS CASE
IMA
8-94249-524-2
01
1
1307-
414
COVER; DUST,RR COVER
IMA
8-98027-802-0
01
1
1307-
417
PLUG; OIL FILLER,TRANS
IMA
8-97365-373-0
01
1
1307-
421
COVER; RR,TRANS
THA
8-98191-921-0
01
1
1307-1405
421
COVER; RR,TRANS
THA
8-97978-059-0
01
1
1406-
429
PIN; STRAIGHT
OD=10 L=40 IMA
5-09740-018-1
02
1
1307-
430
PLUG; OIL DRAIN
IMA
8-97365-374-0
01
1
1307-
435
CASE; TRANS
IMA
8-98047-230-0
01
1
1307-
455
SCREW; BRG RET
M8X22 IMA
8-98035-654-0
04
1
1307-
