Isuzu WW
▶
PICKUP
▶
TFR
▶
51485 - TFR SHORT(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

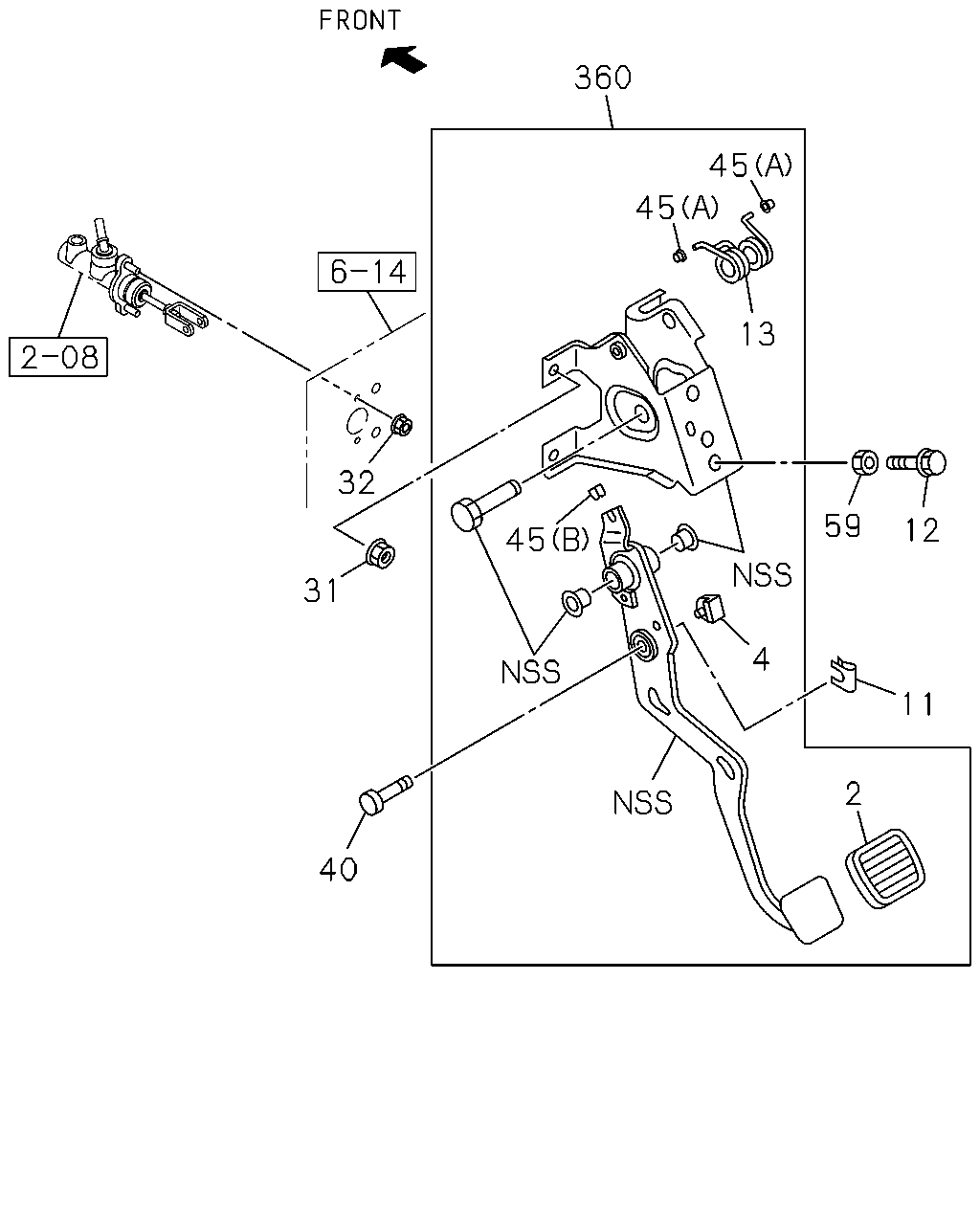

2-03 — CLUTCH PEDAL AND CONTROL
(#122971) — 18 parça
360
45
45
13
12
59
11
2
4
45
40
31
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; CLU PEDAL
THA
8-97318-799-0
01
1
1506-
2
COVER; CLU PEDAL
THA
8-97318-799-0
01
1
1307-1505
4
STOPPER; CLU PEDAL
THA
8-97947-783-0
01
1
1506-
4
STOPPER; CLU PEDAL
THA
8-97947-783-0
01
1
1307-1505
11
PIN; SNAP,PUSH ROD TO PEDAL
IMA
8-98007-161-0
01
1
1307-
12
BOLT; CLU PEDAL ADJ
M10X35 THA
0-20851-035-0
01
1
1307-
13
SPRING; ASSIST,CLU PEDAL
THA
8-97942-312-0
01
1
1506-
13
SPRING; ASSIST,CLU PEDAL
THA
8-97942-312-0
01
1
1307-1505
31
NUT; MTG BRKT TO BODY
M8 FLANGE THA
0-91180-108-0
04
1
1307-
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE THA
0-91180-108-0
02
1
1307-
40
PIN; JOINT,CLU DAMPER
OD=7.9 L=27.5 IMA
8-97312-338-0
01
1
1307-
45
BUSHING; ASSIST SPRING,CLU PEDAL
(A) THA
8-97942-313-0
02
1
1506-
45
BUSHING; ASSIST SPRING,CLU PEDAL
(B) THA
8-97942-314-0
01
1
1506-
45
BUSHING; ASSIST SPRING,CLU PEDAL
(A) THA
8-97942-313-0
02
1
1307-1505
45
BUSHING; ASSIST SPRING,CLU PEDAL
(B) THA
8-97942-314-0
01
1
1307-1505
59
NUT; CLU PEDAL ADJ
M10 THA
0-91110-510-0
01
1
1307-
360
PEDAL ASM; CLUTCH
THA
8-98219-798-0
01
1
1307-1505
360
PEDAL ASM; CLUTCH
THA
8-98317-387-0
01
1
1506-
