Isuzu WW
▶
TRUCKS
▶
CXY
▶
10869 - CXY(51) RHD AUSTRALIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#12297) — 82 parça
◀

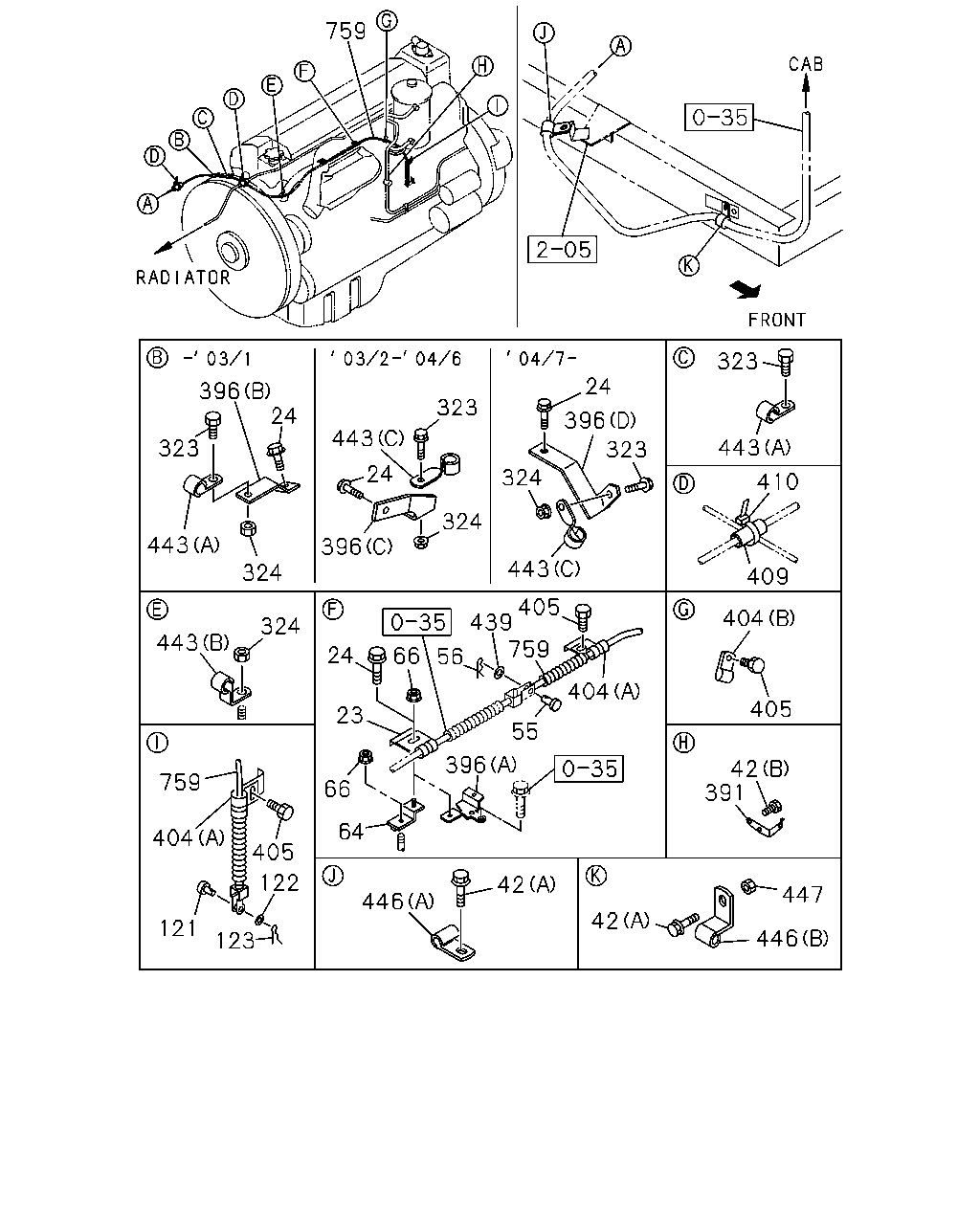

[101A] FIXING;FUEL CUT CONT WIRE (53 parça)

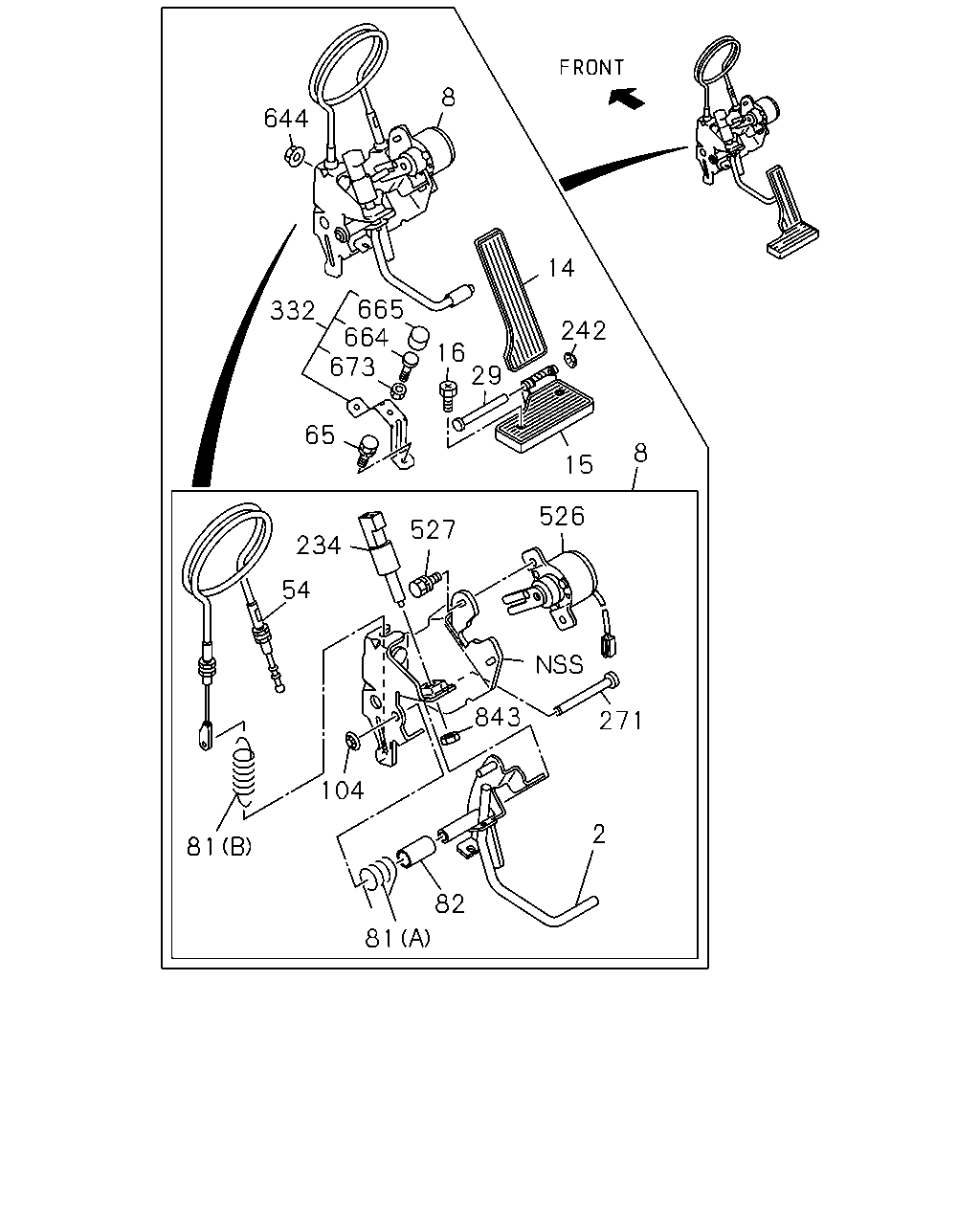

[101A] ACCEL PEDAL AND LINK (29 parça)
▶
759
323
24
396
24
323
396
443
443
323
323
24
324
410
324
443
396
409
443
324
405
439
759
404
324
443
24
66
56
404
405
23
55
396
42
391
759
66
64
404
405
122
42
447
446
123
42
121
446
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
BRACKET; FUEL CUT CABLE
1-14319-099-0
01
1
0105-0105
23
BRACKET; FUEL CUT CABLE
1-14319-113-0
01
1
0106-0112
23
BRACKET; FUEL CUT CABLE
1-14319-140-0
01
1
0201-0401
23
BRACKET; FUEL CUT CABLE
1-14319-113-0
01
1
0402-0402
23
BRACKET; FUEL CUT CABLE
1-14319-099-0
01
1
0403-
24
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
01
1
0105-0105
24
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
01
1
0106-0301
24
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
01
1
0106-0301
24
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0302-0512
24
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-
42
BOLT; BRKT,ENG CONT CABLE
(B) M6X12 FLANGE
0-28080-612-0
02
1
0105-0512
42
BOLT; BRKT,ENG CONT CABLE
(B) M6X12 FLANGE
0-28050-612-0
02
1
0601-
42
BOLT; BRKT,ENG CONT CABLE
(A) M8X20 FLANGE
0-28080-820-0
02
1
0105-0512
42
BOLT; BRKT,ENG CONT CABLE
(A) M8X20 FLANGE
0-28050-820-0
02
1
0601-
55
PIN; JAW JOINT
L=11
1-09744-102-0
01
1
0105-
56
PIN; SNAP,JAW JOINT
L=17.9
1-09747-002-0
01
1
0105-
64
BRACKET; ENG CONT CABLE
1-47477-804-3
01
1
0105-0105
66
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0105-0105
121
PIN; JOINT,CABLE
L=11
1-09744-102-0
01
1
0105-
122
WASHER; PL,CABLE
ID=5.3
9-09160-505-0
01
1
0105-
123
PIN; SNAP,CABLE
L=17.9
1-09747-002-0
01
1
0105-
323
BOLT; CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0402-0512
323
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
323
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
02
1
0105-0512
323
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0601-
324
NUT; CLIP FIX
M8 FLANGE
0-91150-108-0
02
1
0105-0301
391
BRACKET; ENG CONT
1-15419-581-1
01
1
0105-
396
BRACKET; CLIP
(A)
1-14319-130-1
01
1
0105-
396
BRACKET; CLIP
(B)
1-47479-250-0
01
1
0105-0301
396
BRACKET; CLIP
(C)
1-47479-699-0
01
1
0302-0406
396
BRACKET; CLIP
(D)
1-47471-110-0
01
1
0407-
404
CLIP; CABLE
(A)
1-14319-111-0
02
1
0105-
404
CLIP; CABLE
(B) ID=11 L=20
9-09525-035-0
01
1
0105-
405
BOLT; CABLE CLIP
M8X16 FLANGE
0-28080-816-0
03
1
0105-0512
405
BOLT; CABLE CLIP
M8X16 FLANGE
0-28050-816-0
03
1
0601-
409
SLEEVE
ID=6 OD=10 L=70
1-09376-512-0
01
1
0105-0105
409
SLEEVE
ID=6 L=30
5-09360-352-0
01
1
0106-
409
SLEEVE
ID=6 OD=10 L=70
1-09376-512-0
01
1
0108-
410
CLIP; BAND
L=140
5-09707-031-1
01
1
0105-
410
CLIP; BAND
L=300
1-09707-001-1
01
1
0108-0504
410
CLIP; BAND
L=350
1-09707-183-0
01
1
0505-
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
9-09160-505-0
01
1
0105-
443
CLIP; CABLE
(C)
8-94140-424-1
01
1
0302-0302
443
CLIP; CABLE
(C) ID=11 L=35
9-09917-036-1
01
1
0303-
443
CLIP; CABLE
(B) ID=6 H=20 L=20
1-09700-603-0
01
1
0105-0301
443
CLIP; CABLE
(A) ID=7 L=20
9-09524-635-0
02
1
0105-0301
443
CLIP; CABLE
(A) ID=7 L=20
9-09524-635-0
01
1
0302-0401
443
CLIP; CABLE
(A) ID=11 L=20
9-09525-035-0
02
1
0402-
446
CLIP; ENG CONT
(B) ID=11 H=20 L=20
5-09700-351-0
01
1
0105-
446
CLIP; ENG CONT
(A)
9-09917-514-0
01
1
0105-0404
446
CLIP; ENG CONT
(A) ID=11 L=20
9-09525-035-0
01
1
0405-
447
NUT; BRKT,CONT WIRE
M8 FLANGE
0-91150-108-0
01
1
0105-
759
WIRE; CONT,FUEL CUT
L=937
1-23230-201-0
01
1
0105-
8
644
14
665
664
673
332
242
16
29
65
8
15
526
527
234
54
843
271
104
2
81
82
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-71907-550-1
01
1
0105-
8
LINK ASM; ENG CONT
1-71907-551-3
01
1
0105-
14
PAD; PEDAL,ACCEL
1-73907-563-0
01
1
0105-
15
STAND; HEEL,ACCEL PEDAL
1-73907-266-3
01
1
0105-
16
SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0105-
29
SHAFT; ACCEL PEDAL
OD=8.0 L=74
1-71907-212-1
01
1
0105-
54
CABLE; ENG CONT
L=850
1-71907-257-0
01
1
0105-
65
BOLT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0105-
81
SPRING; RETURN,ENG CONT LEVER
(B)
1-71907-268-0
01
1
0105-0206
81
SPRING; RETURN,ENG CONT LEVER
(B)
8-97997-917-0
01
1
0207-
81
SPRING; RETURN,ENG CONT LEVER
(A)
8-97853-205-1
01
1
0105-
82
BUSHING; ENG CONT LVR
L=31.5
1-53459-627-0
01
1
0105-
104
NUT; ENG CONT
ID=7.9 PUSH NUT
8-94368-617-0
01
1
0105-
234
SWITCH; ACCEL
1-82380-131-2
01
1
0105-
242
NUT; ACCEL PEDAL
ID=7.9 PUSH NUT
8-97022-565-0
01
1
0105-
271
SHAFT; ENG CONT
OD=8.0 L=69
1-71907-298-0
01
1
0105-
332
BRACKET; ACCEL PEDAL STOPPER
1-73998-937-1
01
1
0105-0301
332
BRACKET; ACCEL PEDAL STOPPER
1-73908-428-0
01
1
0302-
526
SENSOR; ACCEL
1-81534-003-2
01
1
0105-
527
BOLT; ACCEL SENSOR
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0105-0206
527
BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0207-
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
03
1
0105-0304
644
NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0305-
664
BOLT; STOPPER
M8X45
0-20800-845-0
01
1
0105-
665
COVER; STOPPER
RUBBER
1-23249-009-0
01
1
0105-0301
673
NUT; STOPPER
M8
9-09111-408-0
01
1
0105-0512
673
NUT; STOPPER
M8
0-91111-508-0
01
1
0601-
843
NUT
M12
9-99111-412-0
01
1
0105-0512
843
NUT
M12
0-91111-512-0
01
1
0601-
