1-50 — EXHAUST PIPE AND SILENCER (#122969) — 23 parça

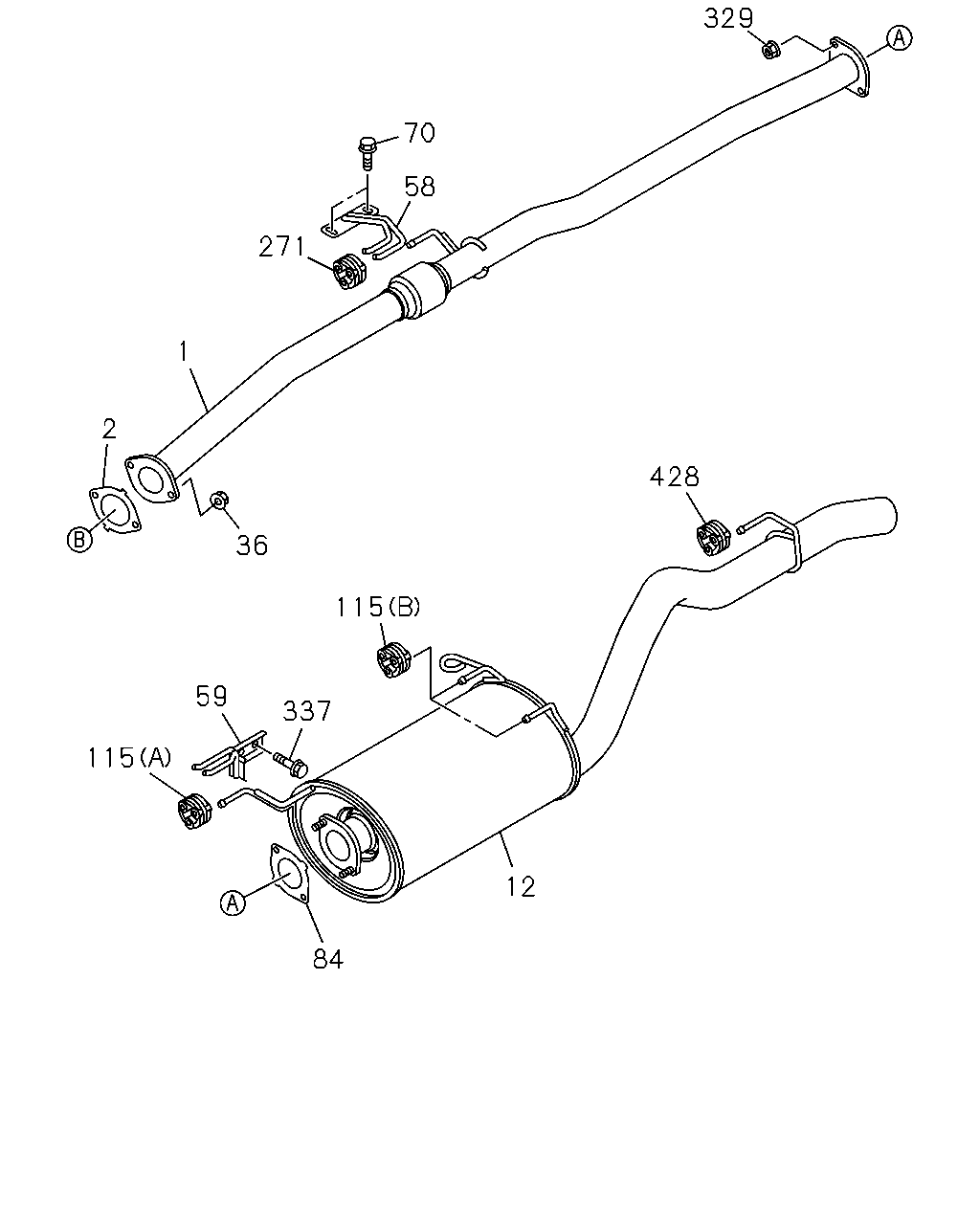

çizim 355650
428 329 70 58 271 1 2 36 115 337 59 115 84 12
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
THA 		8-98188-423-2 01 1 1307-
2 GASKET; PIPE TO MANIF
ID=65 THA 		8-97263-052-0 01 1 1307-
12 SILENCER ASM; EXH
THA 		8-98125-376-3 01 1 1307-
36 NUT; EXH PIPE
M10 FLANGE IMA 		8-97096-192-1 02 1 1307-
58 BRACKET; EXH PIPE,RR
THA 		8-97368-450-0 01 1 1307-
59 BRACKET; EXH SILENCER,FRT
THA 		8-97365-312-0 01 1 1307-
70 BOLT; BRKT
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 02 1 1307-
84 GASKET; EXH PIPE
ID=65 THA 		8-97263-052-0 01 1 1307-
115 RUBBER; MTG,SILENCER
(A) THA 		8-97289-169-0 01 1 1307-
115 RUBBER; MTG,SILENCER
(B) THA 		8-98124-470-0 02 1 1307-
271 RUBBER; HANGER,RR PIPE
THA 		8-97289-169-0 01 1 1307-
329 NUT; EXH PIPE TO PIPE
M10 FLANGE THA 		0-91180-110-0 02 1 1307-
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER THA 		8-97945-706-0 02 1 1307-
428 RUBBER; MTG,CLAMP,EXH PIPE
THA 		8-98124-470-0 01 1 1307-

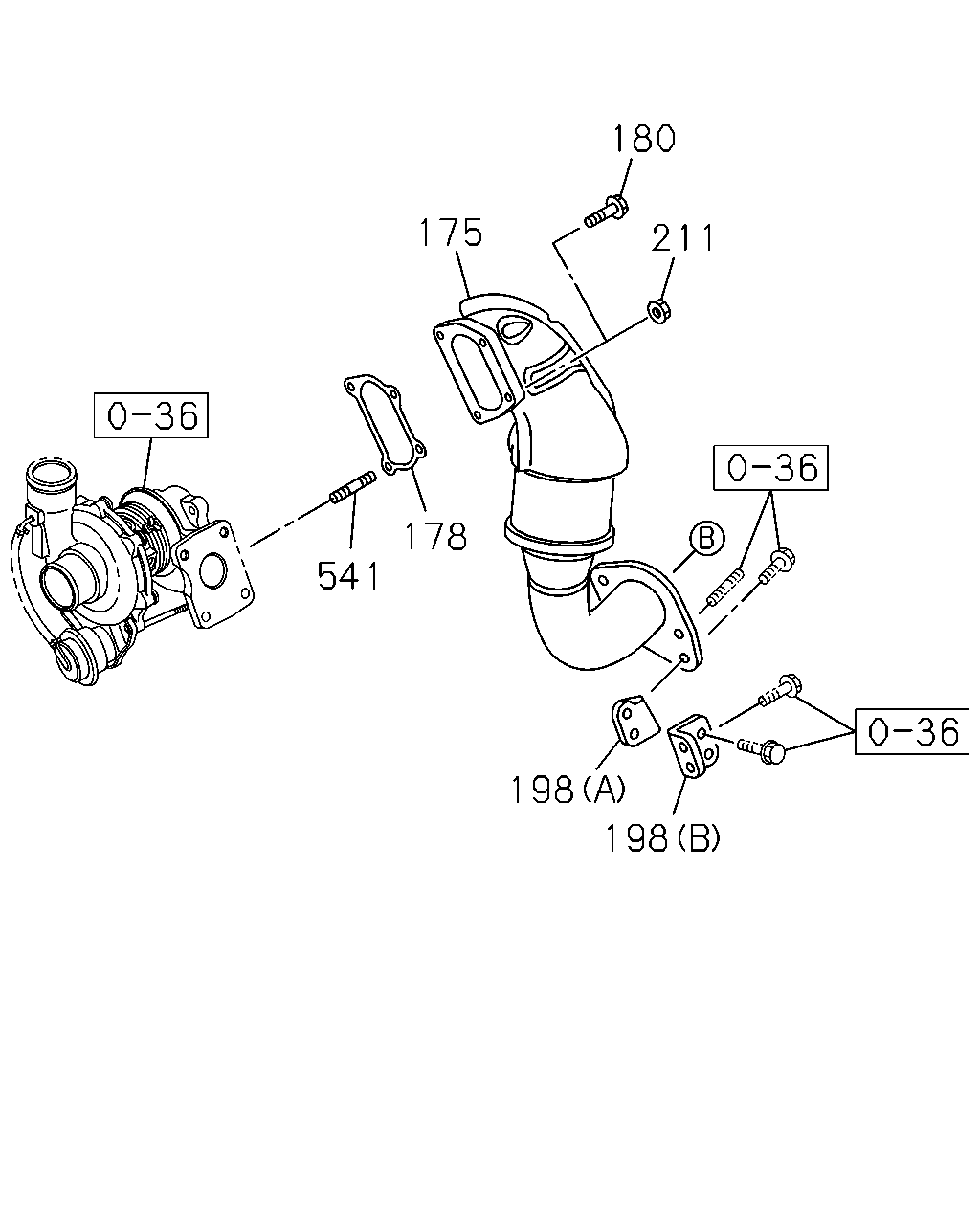

çizim 358264
180 175 541 178 198 198 211
BalonParca AdiParca NoAdetTipApplied Date
175 CONVERTER; CATALYST
THA 		8-98199-767-0 01 1 1307-
178 GASKET; CONV TO MANIF
THA 		8-97312-284-1 01 1 1307-
180 BOLT; CONV TO PIPE
M8X23 FLANGE IMA 		8-97378-077-0 02 1 1309-
198 BRACKET; CONV MTG
(B) THA 		8-98196-696-1 01 1 1307-
198 BRACKET; CONV MTG
(A) THA 		8-98203-739-0 01 1 1307-
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 04 1 1307-1308
211 NUT; CONV
M8 FLANGE THA 		8-97379-384-0 02 1 1309-
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 04 1 1307-1308
541 STUD; CONV TO PIPE
M8X25 L=36 THA 		8-97378-062-0 02 1 1309-
