◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51485 - TFR SHORT(THAI) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#122968) — 67 parça

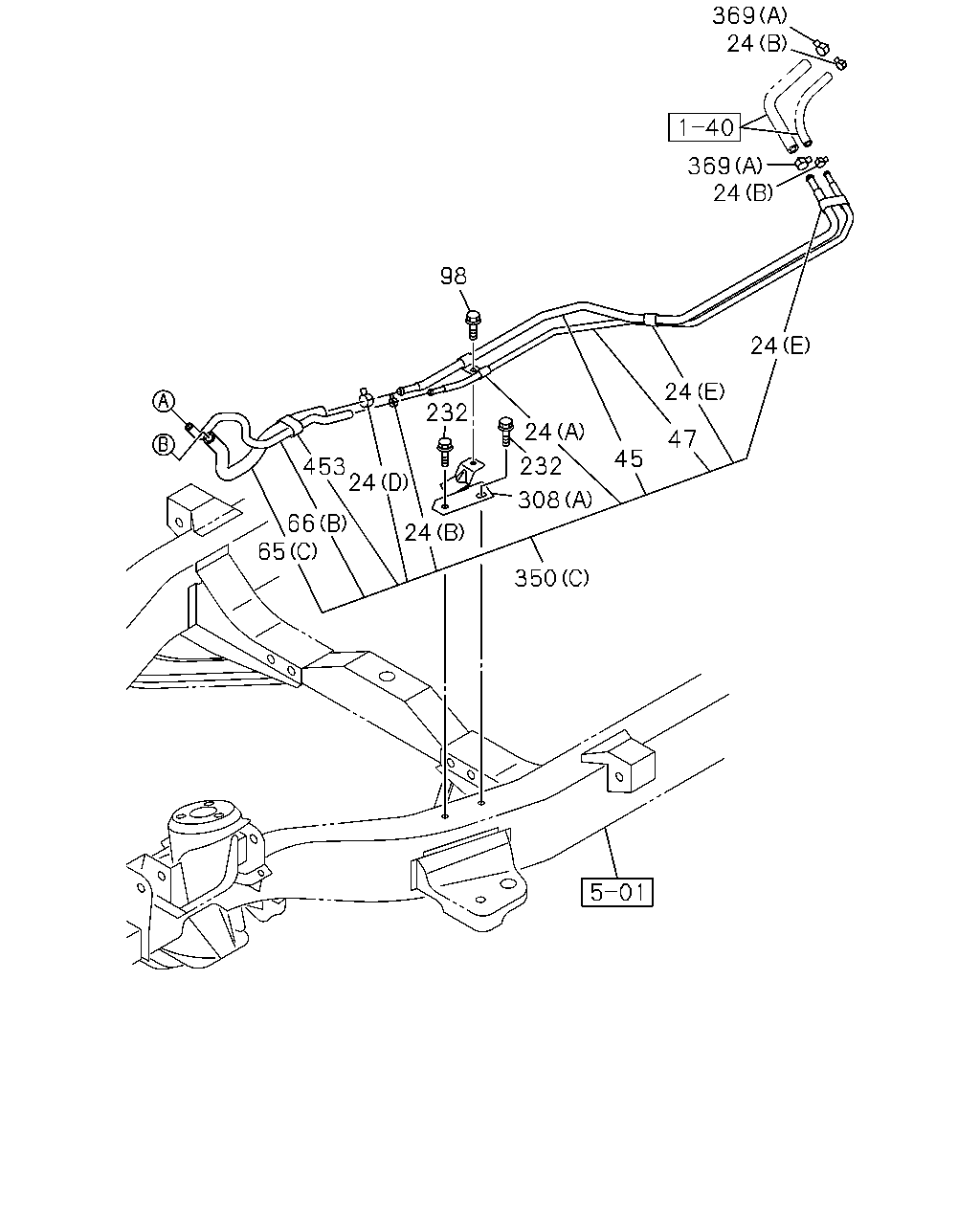

çizim 355558
369 24 369 24 24 24 47 98 24 232 45 308 232 24 24 453 66 65 350
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=11.5 THA 		8-98051-892-0 06 1 1506-
24 CLIP; FUEL HOSE
(C) ID=16 THA 		8-98030-682-0 01 1 1307-
24 CLIP; FUEL HOSE
(B) ID=11.5 THA 		8-98051-892-0 08 1 1307-1505
24 CLIP; FUEL HOSE
(B) ID=11.5 THA 		8-98051-892-0 02 1 1506-
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-98052-395-0 02 1 1307-
24 CLIP; FUEL HOSE
(E) THA 		8-98233-886-0 02 1 1307-
24 CLIP; FUEL HOSE
(A) THA 		8-98233-887-0 01 1 1307-
45 PIPE; FUEL,DELIVERY
THA 		8-98188-366-0 01 1 1307-
47 PIPE; FUEL,RETURN
THA 		8-98188-367-0 01 1 1307-
65 HOSE; FUEL,DELIVERY PIPE
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98248-701-0 01 1 1506-
65 HOSE; FUEL,DELIVERY PIPE
(A) THA 		8-98100-729-4 01 1 1307-
65 HOSE; FUEL,DELIVERY PIPE
(B) THA 		8-98100-731-2 01 1 1307-
65 HOSE; FUEL,DELIVERY PIPE
(C) THA 		8-98113-322-2 01 1 1307-1505
65 HOSE; FUEL,DELIVERY PIPE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98113-322-2 01 1 1506-
66 HOSE; FUEL,RETURN PIPE
PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98248-702-0 01 1 1506-
66 HOSE; FUEL,RETURN PIPE
(A) THA 		8-98100-720-2 01 1 1307-
66 HOSE; FUEL,RETURN PIPE
(B) THA 		8-98113-330-2 01 1 1307-1505
66 HOSE; FUEL,RETURN PIPE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98113-330-2 01 1 1506-
98 BOLT; BRKT,FUEL PIPE
M6X16 FLANGE THA 		0-28650-616-0 01 1 1307-
232 BOLT; CLIP,PIPE
M10X25 FLANGE THA 		0-28061-025-0 02 1 1307-
308 BRACKET; FUEL PIPE
(A) THA 		8-98128-259-0 01 1 1307-
308 BRACKET; FUEL PIPE
(B) THA 		8-98233-889-0 01 1 1307-
308 BRACKET; FUEL PIPE
(C) THA 		8-98233-890-0 01 1 1307-
350 PIPE; FUEL,DEL & RET
PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98248-691-0 01 1 1506-
350 PIPE; FUEL,DEL & RET
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98319-957-0 01 1 1506-
350 PIPE; FUEL,DEL & RET
(B) THA 		8-98100-202-5 01 1 1307-1505
350 PIPE; FUEL,DEL & RET
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98100-202-5 01 1 1506-
350 PIPE; FUEL,DEL & RET
(A) THA 		8-98113-293-6 01 1 1307-
350 PIPE; FUEL,DEL & RET
(C) THA 		8-98188-364-1 01 1 1307-1505
350 PIPE; FUEL,DEL & RET
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98188-364-1 01 1 1506-
369 CLAMP; HOSE,FUEL
(A) ID=17.2 THA 		8-98052-395-0 06 1 1307-
369 CLAMP; HOSE,FUEL
(B) ID=15.2 THA 		8-98186-048-0 01 1 1307-
453 BAND; FLEX HOSE
THA 		8-98233-888-0 01 1 1307-

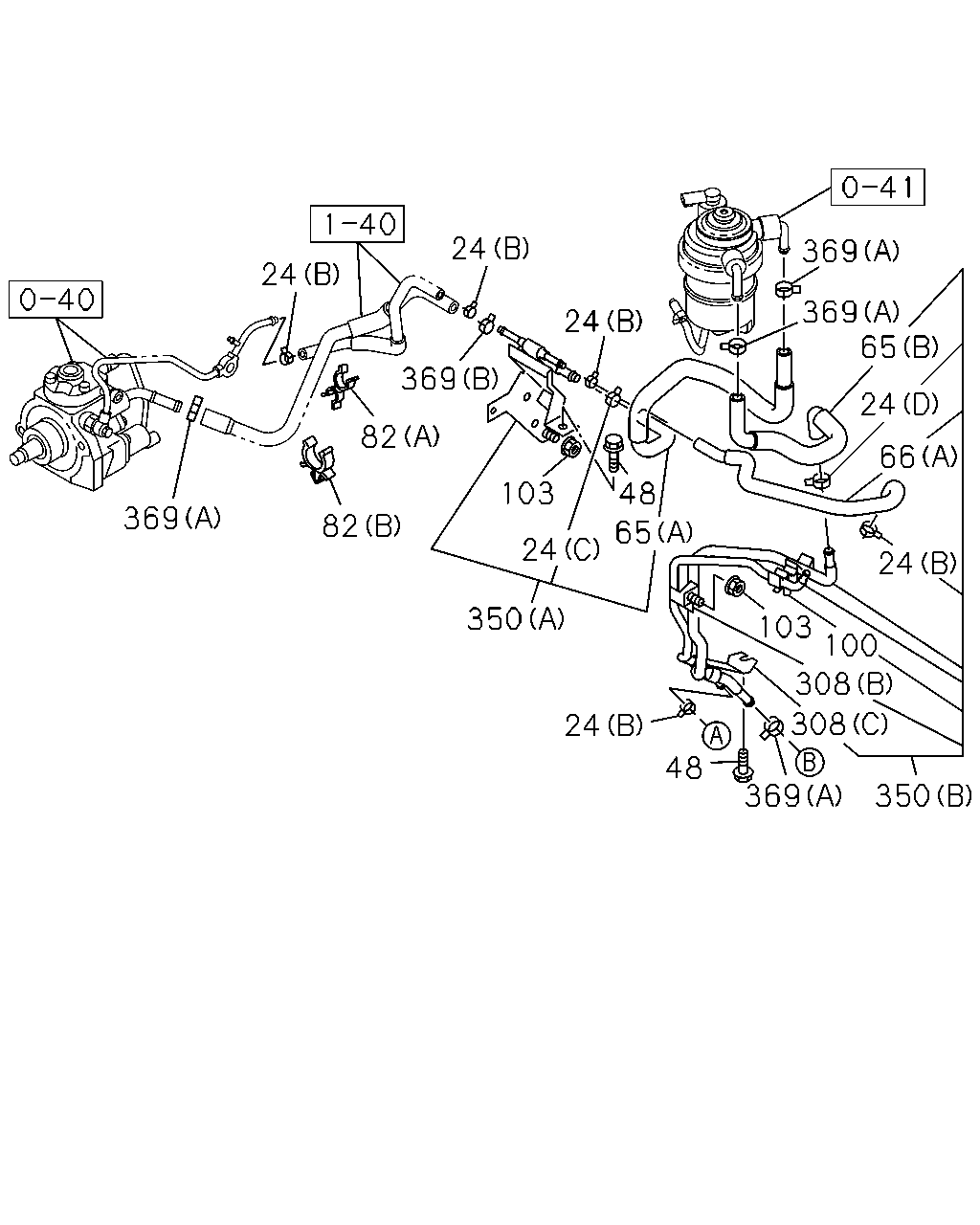

çizim 355851
24 24 24 369 82 82 369 103 24 350 24 48 65 48 369 369 24 65 66 24 103 308 100 308 369 350
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=11.5 THA 		8-98051-892-0 06 1 1506-
24 CLIP; FUEL HOSE
(C) ID=16 THA 		8-98030-682-0 01 1 1307-
24 CLIP; FUEL HOSE
(B) ID=11.5 THA 		8-98051-892-0 08 1 1307-1505
24 CLIP; FUEL HOSE
(B) ID=11.5 THA 		8-98051-892-0 02 1 1506-
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-98052-395-0 02 1 1307-
24 CLIP; FUEL HOSE
(E) THA 		8-98233-886-0 02 1 1307-
24 CLIP; FUEL HOSE
(A) THA 		8-98233-887-0 01 1 1307-
48 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1307-
65 HOSE; FUEL,DELIVERY PIPE
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98248-701-0 01 1 1506-
65 HOSE; FUEL,DELIVERY PIPE
(A) THA 		8-98100-729-4 01 1 1307-
65 HOSE; FUEL,DELIVERY PIPE
(B) THA 		8-98100-731-2 01 1 1307-
65 HOSE; FUEL,DELIVERY PIPE
(C) THA 		8-98113-322-2 01 1 1307-1505
65 HOSE; FUEL,DELIVERY PIPE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98113-322-2 01 1 1506-
66 HOSE; FUEL,RETURN PIPE
PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98248-702-0 01 1 1506-
66 HOSE; FUEL,RETURN PIPE
(A) THA 		8-98100-720-2 01 1 1307-
66 HOSE; FUEL,RETURN PIPE
(B) THA 		8-98113-330-2 01 1 1307-1505
66 HOSE; FUEL,RETURN PIPE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98113-330-2 01 1 1506-
82 CLIP; FUEL HOSE
PROVISIONAL PACKAGE SPEC<BCC> (B) ID=17 THA 		8-94382-792-1 01 1 1506-
82 CLIP; FUEL HOSE
(A) ID=13 & 16.5 THA 		8-98192-457-0 01 1 1307-1505
82 CLIP; FUEL HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) ID=13 & 16.5 THA 		8-98192-457-0 01 1 1506-
100 CLIP; FUEL PIPE
THA 		8-98113-581-0 01 1 1307-
103 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1307-
308 BRACKET; FUEL PIPE
(A) THA 		8-98128-259-0 01 1 1307-
308 BRACKET; FUEL PIPE
(B) THA 		8-98233-889-0 01 1 1307-
308 BRACKET; FUEL PIPE
(C) THA 		8-98233-890-0 01 1 1307-
350 PIPE; FUEL,DEL & RET
PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98248-691-0 01 1 1506-
350 PIPE; FUEL,DEL & RET
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98319-957-0 01 1 1506-
350 PIPE; FUEL,DEL & RET
(B) THA 		8-98100-202-5 01 1 1307-1505
350 PIPE; FUEL,DEL & RET
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98100-202-5 01 1 1506-
350 PIPE; FUEL,DEL & RET
(A) THA 		8-98113-293-6 01 1 1307-
350 PIPE; FUEL,DEL & RET
(C) THA 		8-98188-364-1 01 1 1307-1505
350 PIPE; FUEL,DEL & RET
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98188-364-1 01 1 1506-
369 CLAMP; HOSE,FUEL
(A) ID=17.2 THA 		8-98052-395-0 06 1 1307-
369 CLAMP; HOSE,FUEL
(B) ID=15.2 THA 		8-98186-048-0 01 1 1307-
