51485 - TFR SHORT(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

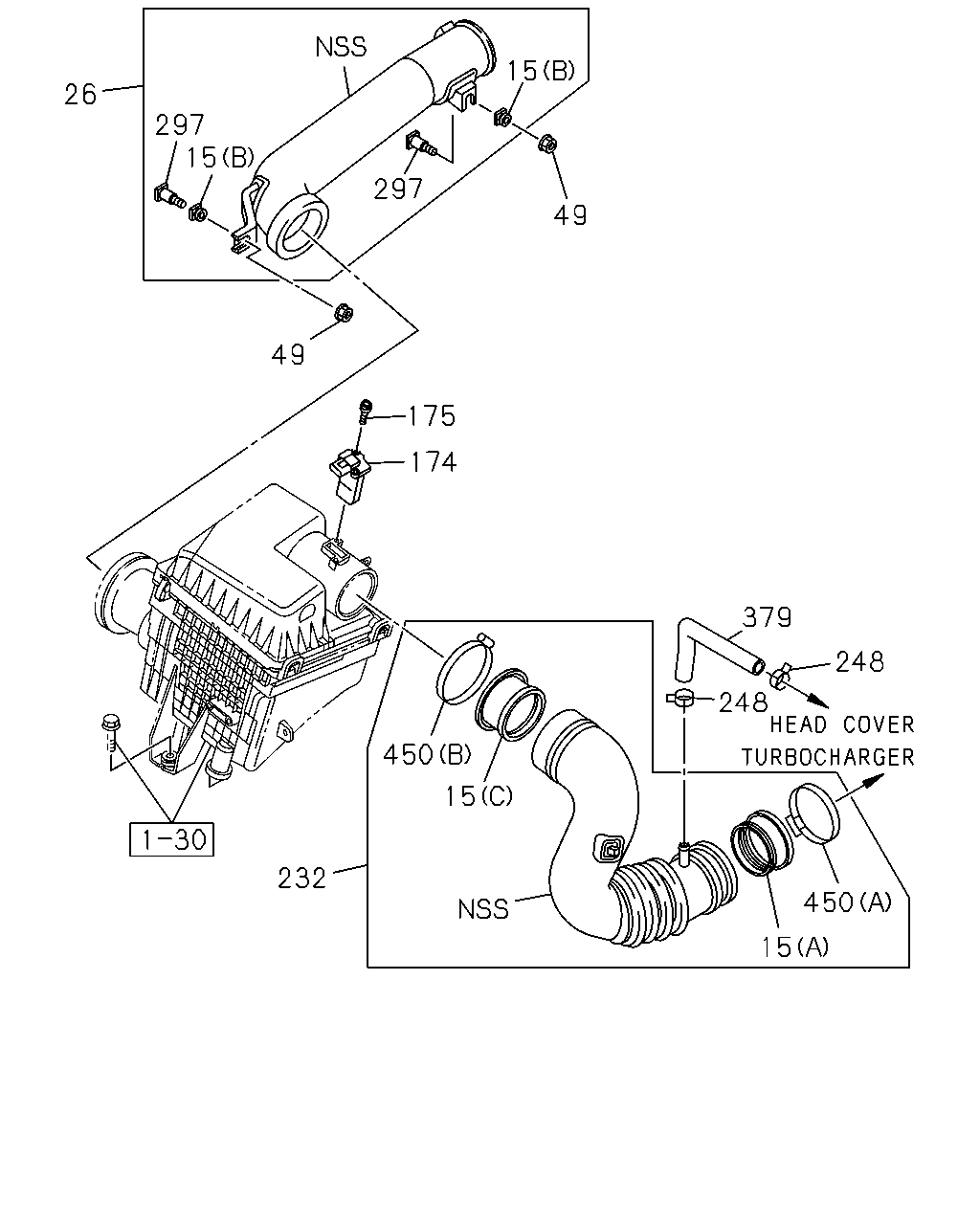

1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#122965) — 13 parça
379
248
248
450
15
15
450
232
174
175
49
15
297
26
297
49
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
INSULATOR
(A) THA
8-98137-141-0
01
1
1307-
15
INSULATOR
(B) THA
8-98203-901-0
02
1
1307-
15
INSULATOR
(C) THA
8-98214-036-0
01
1
1307-
26
DUCT; AIR INT
THA
8-98065-550-1
01
1
1307-
49
NUT; AIR DUCT
M6 FLANGE THA
0-91180-106-0
02
1
1307-
174
SENSOR; AIR FLOW CONT
IMA
8-97601-967-0
01
1
1307-
175
BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA
0-36230-410-0
02
1
1307-
232
HOSE; CONN
THA
8-98212-085-0
01
1
1307-
248
CLIP; RUBBER HOSE
ID=20.4 IMA
8-94121-113-0
02
1
1307-
297
BOLT; DUCT
THA
8-98203-900-0
02
1
1307-
379
HOSE; RUBBER
THA
8-98065-694-1
01
1
1307-
450
CLAMP; HOSE
(B) THA
8-98136-623-0
01
1
1307-
450
CLAMP; HOSE
(A) THA
8-98136-625-0
01
1
1307-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
