0-66 — GENERATOR (#122960) — 41 parça

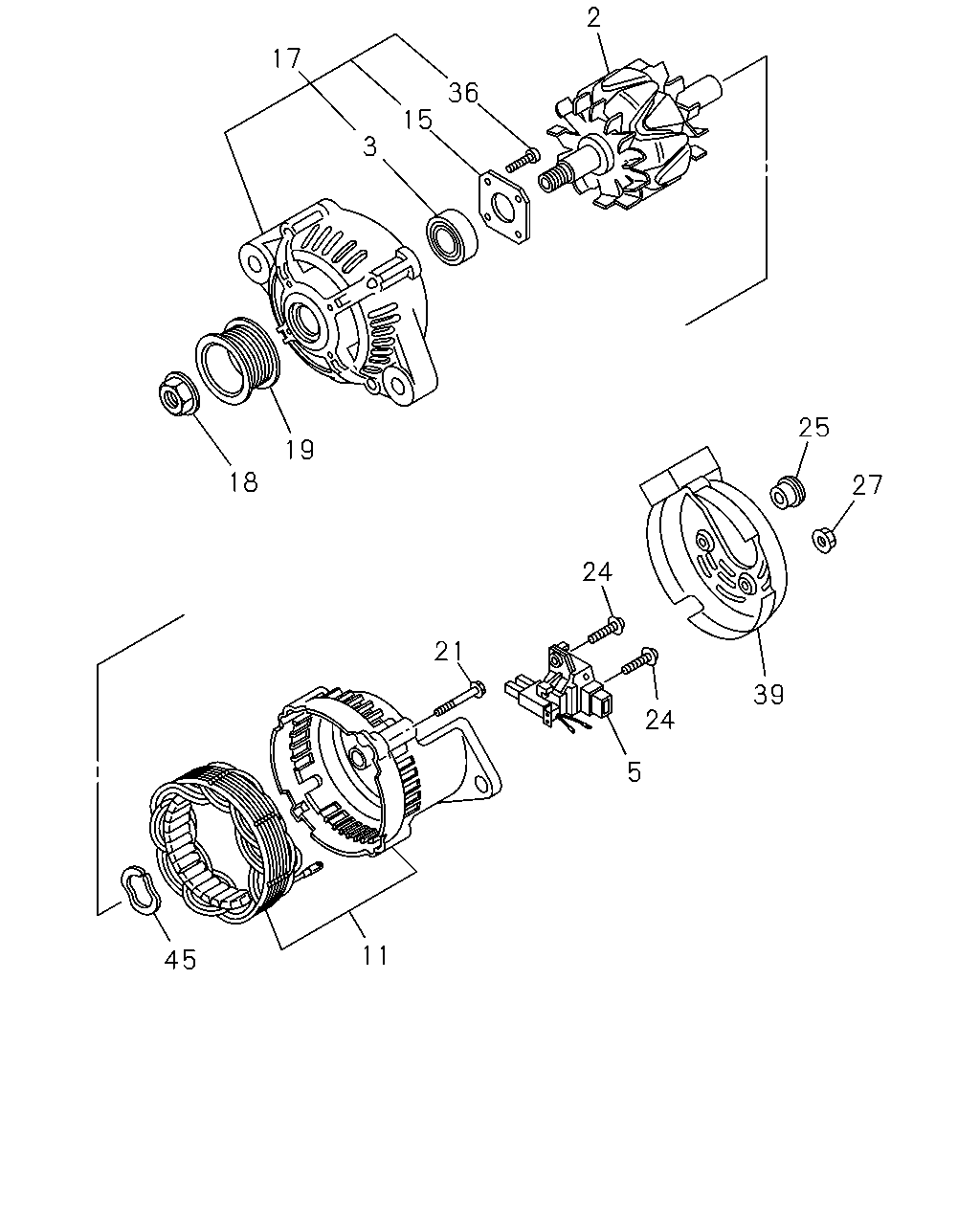

17 3 15 36 2 19 18 21 11 45 5 24 24 25 27 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN THA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97378-924-0	01	1	-
3	BEARING; ROTOR,GEN THA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-98228-965-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97378-926-0	01	1	-
11	COVER; RR,GEN THA ASM PART: B = 8-98229-071-1	8-98159-086-0	01	1	-1403
11	COVER; RR,GEN THA ASM PART: A = 8-98225-813-0	8-98232-110-0	01	1	-
11	COVER; RR,GEN THA ASM PART: B = 8-98229-071-1	8-98242-367-0	01	1	1404-
15	RETAINER; ROTOR,GEN IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-94406-982-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-98229-071-1	8-98229-789-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-98225-813-0	8-98232-102-0	01	1	-
18	NUT; PULLEY,GEN IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-94123-043-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-98229-071-1	8-98000-022-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-98225-813-0	8-98232-101-0	01	1	-
21	BOLT; THROUGH,GEN IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97319-752-0	04	1	-
24	SCREW; RECTIFIER,GEN IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97032-313-0	03	1	-
25	BUSHING; INSULATION TERMINAL THA ASM PART: B = 8-98229-071-1	8-98196-584-0	01	1	-
25	BUSHING; INSULATION TERMINAL THA ASM PART: A = 8-98225-813-0	8-98232-107-0	01	1	-
27	NUT; RECTIFIER,GEN THA ASM PART: B = 8-98229-071-1	8-97319-772-0	03	1	-
36	SCREW; FRT COVER IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97142-562-0	04	1	-
39	COVER; END,RR COVER,GEN THA ASM PART: B = 8-98229-071-1	8-97378-928-0	01	1	-
39	COVER; END,RR COVER,GEN THA ASM PART: A = 8-98225-813-0	8-98232-104-0	01	1	-
45	WASHER; INSULATE,RR COVER,GEN THA ASM PART: B = 8-98229-071-1	8-97142-570-0	01	1	-1403

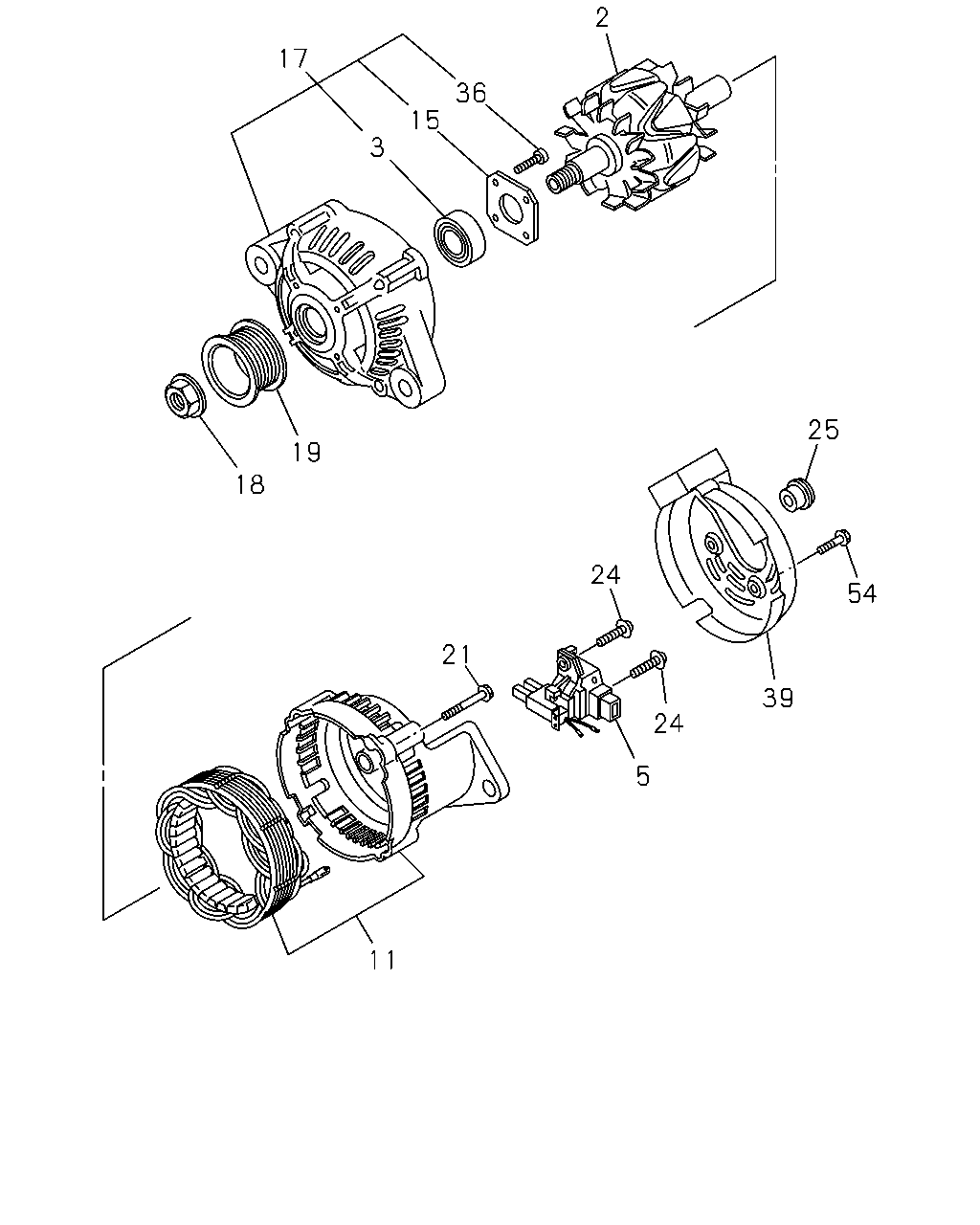

54 39 24 5 24 25 21 11 19 18 2 36 15 3 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN THA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97378-924-0	01	1	-
3	BEARING; ROTOR,GEN THA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-98228-965-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97378-926-0	01	1	-
11	COVER; RR,GEN THA ASM PART: B = 8-98229-071-1	8-98159-086-0	01	1	-1403
11	COVER; RR,GEN THA ASM PART: A = 8-98225-813-0	8-98232-110-0	01	1	-
11	COVER; RR,GEN THA ASM PART: B = 8-98229-071-1	8-98242-367-0	01	1	1404-
15	RETAINER; ROTOR,GEN IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-94406-982-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-98229-071-1	8-98229-789-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-98225-813-0	8-98232-102-0	01	1	-
18	NUT; PULLEY,GEN IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-94123-043-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-98229-071-1	8-98000-022-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-98225-813-0	8-98232-101-0	01	1	-
21	BOLT; THROUGH,GEN IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97319-752-0	04	1	-
24	SCREW; RECTIFIER,GEN IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97032-313-0	03	1	-
25	BUSHING; INSULATION TERMINAL THA ASM PART: B = 8-98229-071-1	8-98196-584-0	01	1	-
25	BUSHING; INSULATION TERMINAL THA ASM PART: A = 8-98225-813-0	8-98232-107-0	01	1	-
36	SCREW; FRT COVER IMA ASM PART: A = 8-98225-813-0, B = 8-98229-071-1	8-97142-562-0	04	1	-
39	COVER; END,RR COVER,GEN THA ASM PART: B = 8-98229-071-1	8-97378-928-0	01	1	-
39	COVER; END,RR COVER,GEN THA ASM PART: A = 8-98225-813-0	8-98232-104-0	01	1	-
54	BOLT; RECTIFIER,GEN THA ASM PART: A = 8-98225-813-0	8-98232-109-0	03	1	-
