0-50 — OIL COOLER AND OIL FILTER (#122953) — 92 parça

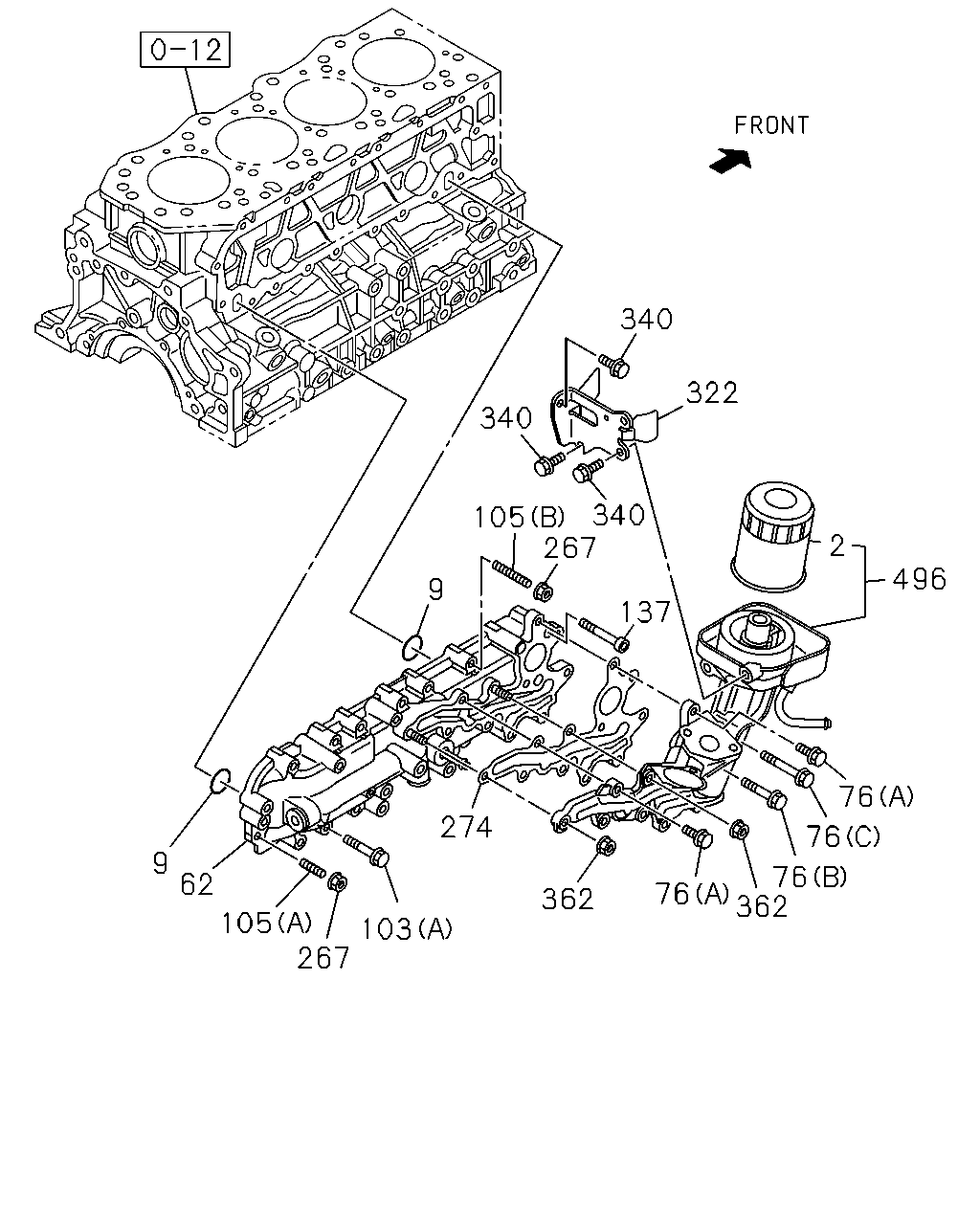

340 322 340 340 267 105 9 137 2 496 76 76 76 362 76 362 274 103 267 105 62 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER THA	8-98165-071-0	01	1	1307-
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	1307-
62	COOLER ASM; OIL PROVISIONAL PACKAGE SPEC<BCC> THA	8-98251-175-0	01	1	1506-
62	COOLER ASM; OIL THA	8-98185-691-0	01	1	1307-1505
62	COOLER ASM; OIL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98185-691-0	01	1	1506-
76	BOLT; OIL FILTER PROVISIONAL PACKAGE SPEC<BCC> (D) M8X100 FLANGE THA	0-28050-800-0	01	1	1506-
76	BOLT; OIL FILTER PROVISIONAL PACKAGE SPEC<BCC> (A) M8X25 FLANGE THA	0-28050-825-0	02	1	1506-
76	BOLT; OIL FILTER PROVISIONAL PACKAGE SPEC<BCC> (E) M8X80 FLANGE THA	0-28050-880-0	02	1	1506-
76	BOLT; OIL FILTER (A) M8X25 FLANGE THA	0-28050-825-0	07	1	1307-1505
76	BOLT; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X25 FLANGE THA	0-28050-825-0	07	1	1506-
76	BOLT; OIL FILTER (B) M8X45 FLANGE THA	0-28050-845-0	01	1	1307-1505
76	BOLT; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) M8X45 FLANGE THA	0-28050-845-0	01	1	1506-
76	BOLT; OIL FILTER (C) M8X60 FLANGE THA	0-28050-860-0	01	1	1307-1505
76	BOLT; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) M8X60 FLANGE THA	0-28050-860-0	01	1	1506-
103	BOLT; OIL COOLER PROVISIONAL PACKAGE SPEC<BCC> (B) M8X20 FLANGE THA	0-28050-820-0	01	1	1506-
103	BOLT; OIL COOLER PROVISIONAL PACKAGE SPEC<BCC> (A) M8X45 FLANGE THA	0-28050-845-0	13	1	1506-
103	BOLT; OIL COOLER (A) M8X45 FLANGE THA	0-28050-845-0	15	1	1307-1505
103	BOLT; OIL COOLER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X45 FLANGE THA	0-28050-845-0	15	1	1506-
105	STUD; OIL COOLER PROVISIONAL PACKAGE SPEC<BCC> (A) M8X20 L=32 THA	0-41010-820-0	02	1	1506-
105	STUD; OIL COOLER (A) M8X20 L=32 THA	0-41010-820-0	01	1	1307-1505
105	STUD; OIL COOLER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X20 L=32 THA	0-41010-820-0	01	1	1506-
105	STUD; OIL COOLER (B) M8X45 L=57 THA	0-41010-845-0	01	1	1307-1505
105	STUD; OIL COOLER EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) M8X45 L=57 THA	0-41010-845-0	01	1	1506-
137	BOLT M8X60 HEX SOCKET THA	0-58330-860-0	03	1	1307-1505
137	BOLT EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X60 HEX SOCKET THA	0-58330-860-0	03	1	1506-
267	NUT; OIL COOLER M8 FLANGE THA	0-91180-208-0	02	1	1307-
274	GASKET; OIL FILTER PROVISIONAL PACKAGE SPEC<BCC> THA	8-98226-841-0	01	1	1506-
274	GASKET; OIL FILTER THA	8-98124-080-1	01	1	1307-1505
274	GASKET; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98124-080-1	01	1	1506-
322	BRACKET; OIL FILTER THA	8-98132-020-1	01	1	1307-1505
322	BRACKET; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98132-020-1	01	1	1506-
340	BOLT; BRKT PROVISIONAL PACKAGE SPEC<BCC> M8X40 FLANGE THA	0-28650-840-0	01	1	1506-
340	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	03	1	1307-1505
340	BOLT; BRKT EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X16 FLANGE THA	0-28050-816-0	03	1	1506-
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	1307-
496	FILTER ASM; OIL PROVISIONAL PACKAGE SPEC<BCC> THA	8-98226-423-1	01	1	1506-
496	FILTER ASM; OIL THA	8-98186-452-1	01	1	1307-1505
496	FILTER ASM; OIL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98186-452-1	01	1	1506-

496 343 343 342 343 343 278 201 278 342 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	PIPE; VINYL,OIL DRAIN THA	8-98199-904-0	01	1	1307-1505
201	PIPE; VINYL,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98199-904-0	01	1	1506-
278	CLAMP; RUBBER HOSE ID=14 IMA	8-97173-221-0	02	1	1307-1505
278	CLAMP; RUBBER HOSE EXC. PROVISIONAL PACKAGE SPEC<BCC> ID=14 IMA	8-97173-221-0	02	1	1506-
342	HOSE; OIL DRAIN (A) THA	8-98199-910-0	01	1	1307-1505
342	HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA	8-98199-910-0	01	1	1506-
342	HOSE; OIL DRAIN (B) THA	8-98200-230-1	01	1	1307-1505
342	HOSE; OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98200-230-1	01	1	1506-
343	CLIP; HOSE,OIL DRAIN (A) ID=16 IMA	8-97040-812-0	01	1	1307-1505
343	CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) ID=16 IMA	8-97040-812-0	01	1	1506-
343	CLIP; HOSE,OIL DRAIN (B) THA	8-98074-648-0	02	1	1307-1505
343	CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98074-648-0	02	1	1506-
343	CLIP; HOSE,OIL DRAIN (C) THA	8-98074-650-0	01	1	1307-1505
343	CLIP; HOSE,OIL DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98074-650-0	01	1	1506-
462	CLIP; HOSE,DRAIN IMA	8-97025-737-1	01	1	1307-1505
462	CLIP; HOSE,DRAIN EXC. PROVISIONAL PACKAGE SPEC<BCC> IMA	8-97025-737-1	01	1	1506-
496	FILTER ASM; OIL PROVISIONAL PACKAGE SPEC<BCC> THA	8-98226-423-1	01	1	1506-
496	FILTER ASM; OIL THA	8-98186-452-1	01	1	1307-1505
496	FILTER ASM; OIL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98186-452-1	01	1	1506-

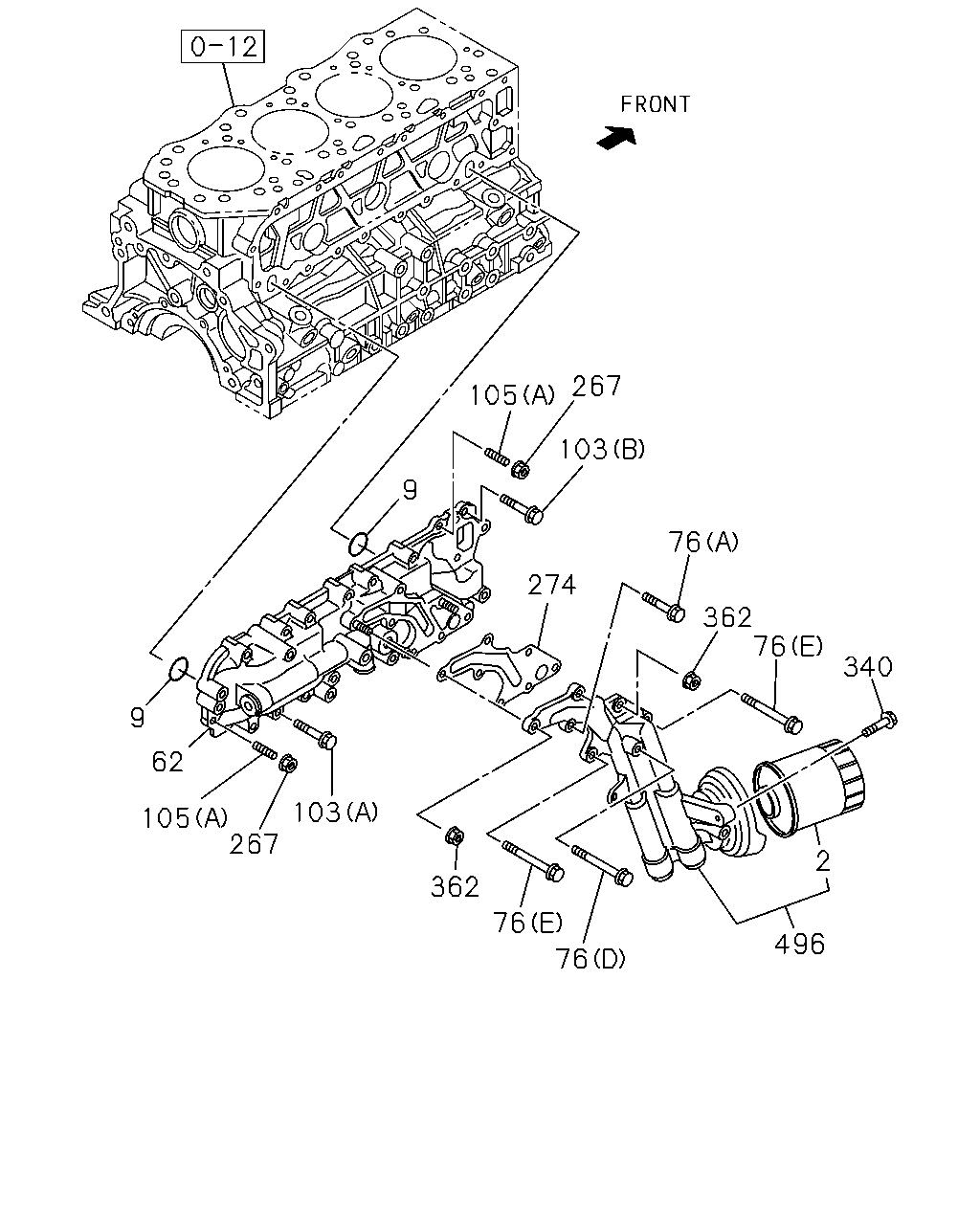

105 267 103 9 274 76 362 76 340 2 496 76 76 362 103 267 105 62 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER THA	8-98165-071-0	01	1	1307-
9	GASKET; CENTER BOLT ID=26.2 THA	9-09566-226-0	02	1	1307-
62	COOLER ASM; OIL PROVISIONAL PACKAGE SPEC<BCC> THA	8-98251-175-0	01	1	1506-
62	COOLER ASM; OIL THA	8-98185-691-0	01	1	1307-1505
62	COOLER ASM; OIL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98185-691-0	01	1	1506-
76	BOLT; OIL FILTER PROVISIONAL PACKAGE SPEC<BCC> (D) M8X100 FLANGE THA	0-28050-800-0	01	1	1506-
76	BOLT; OIL FILTER PROVISIONAL PACKAGE SPEC<BCC> (A) M8X25 FLANGE THA	0-28050-825-0	02	1	1506-
76	BOLT; OIL FILTER PROVISIONAL PACKAGE SPEC<BCC> (E) M8X80 FLANGE THA	0-28050-880-0	02	1	1506-
76	BOLT; OIL FILTER (A) M8X25 FLANGE THA	0-28050-825-0	07	1	1307-1505
76	BOLT; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X25 FLANGE THA	0-28050-825-0	07	1	1506-
76	BOLT; OIL FILTER (B) M8X45 FLANGE THA	0-28050-845-0	01	1	1307-1505
76	BOLT; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) M8X45 FLANGE THA	0-28050-845-0	01	1	1506-
76	BOLT; OIL FILTER (C) M8X60 FLANGE THA	0-28050-860-0	01	1	1307-1505
76	BOLT; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) M8X60 FLANGE THA	0-28050-860-0	01	1	1506-
103	BOLT; OIL COOLER PROVISIONAL PACKAGE SPEC<BCC> (B) M8X20 FLANGE THA	0-28050-820-0	01	1	1506-
103	BOLT; OIL COOLER PROVISIONAL PACKAGE SPEC<BCC> (A) M8X45 FLANGE THA	0-28050-845-0	13	1	1506-
103	BOLT; OIL COOLER (A) M8X45 FLANGE THA	0-28050-845-0	15	1	1307-1505
103	BOLT; OIL COOLER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X45 FLANGE THA	0-28050-845-0	15	1	1506-
105	STUD; OIL COOLER PROVISIONAL PACKAGE SPEC<BCC> (A) M8X20 L=32 THA	0-41010-820-0	02	1	1506-
105	STUD; OIL COOLER (A) M8X20 L=32 THA	0-41010-820-0	01	1	1307-1505
105	STUD; OIL COOLER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X20 L=32 THA	0-41010-820-0	01	1	1506-
105	STUD; OIL COOLER (B) M8X45 L=57 THA	0-41010-845-0	01	1	1307-1505
105	STUD; OIL COOLER EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) M8X45 L=57 THA	0-41010-845-0	01	1	1506-
267	NUT; OIL COOLER M8 FLANGE THA	0-91180-208-0	02	1	1307-
274	GASKET; OIL FILTER PROVISIONAL PACKAGE SPEC<BCC> THA	8-98226-841-0	01	1	1506-
274	GASKET; OIL FILTER THA	8-98124-080-1	01	1	1307-1505
274	GASKET; OIL FILTER EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98124-080-1	01	1	1506-
340	BOLT; BRKT PROVISIONAL PACKAGE SPEC<BCC> M8X40 FLANGE THA	0-28650-840-0	01	1	1506-
340	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	03	1	1307-1505
340	BOLT; BRKT EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X16 FLANGE THA	0-28050-816-0	03	1	1506-
362	NUT; OIL FILTER M8 FLANGE THA	0-91180-208-0	02	1	1307-
496	FILTER ASM; OIL PROVISIONAL PACKAGE SPEC<BCC> THA	8-98226-423-1	01	1	1506-
496	FILTER ASM; OIL THA	8-98186-452-1	01	1	1307-1505
496	FILTER ASM; OIL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98186-452-1	01	1	1506-

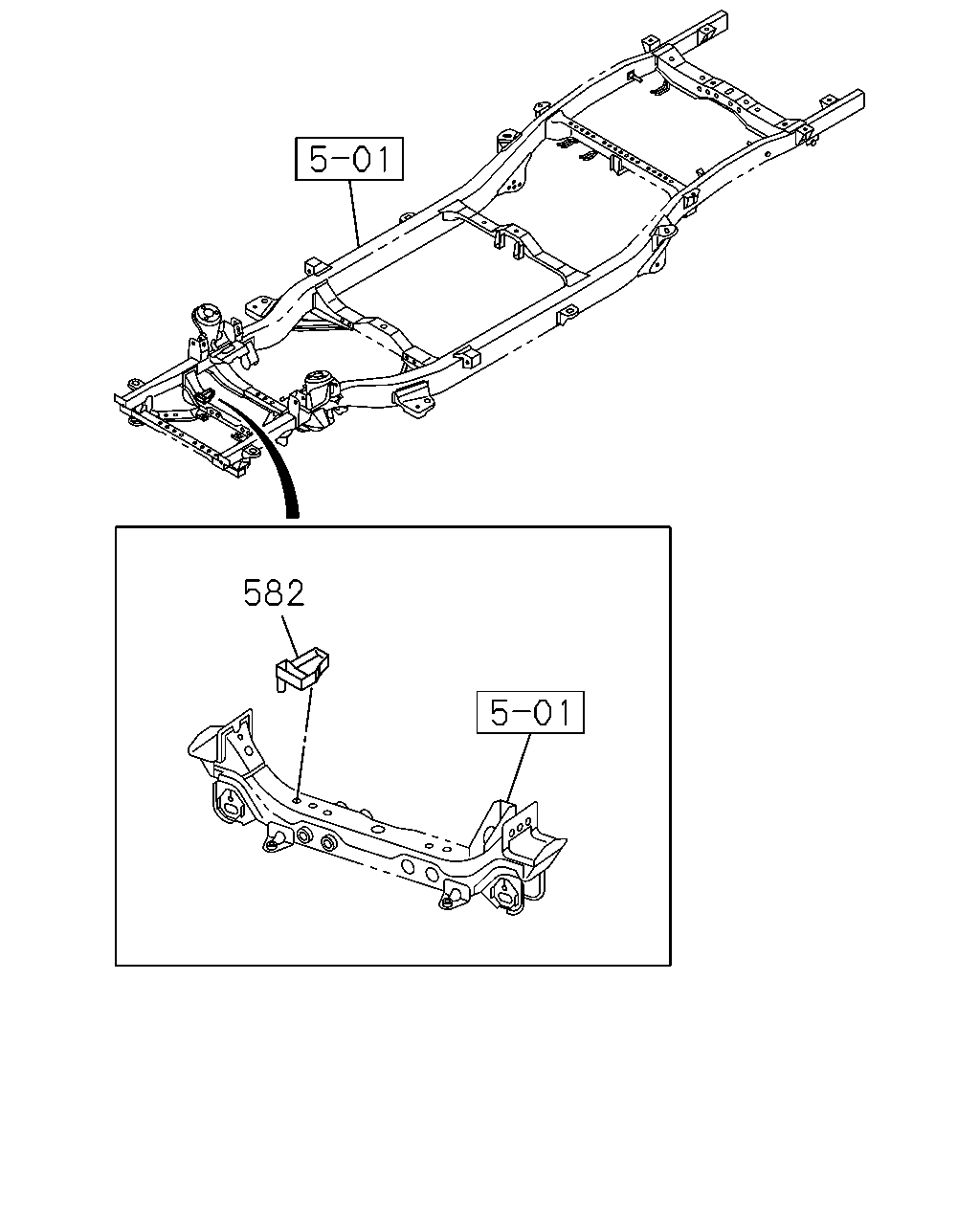

582

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	582	TRAY; OIL PROVISIONAL PACKAGE SPEC<BCC> THA	8-98236-507-2	01	1	1506-
