0-40 — FUEL INJECTION SYSTEM (#122951) — 146 parça

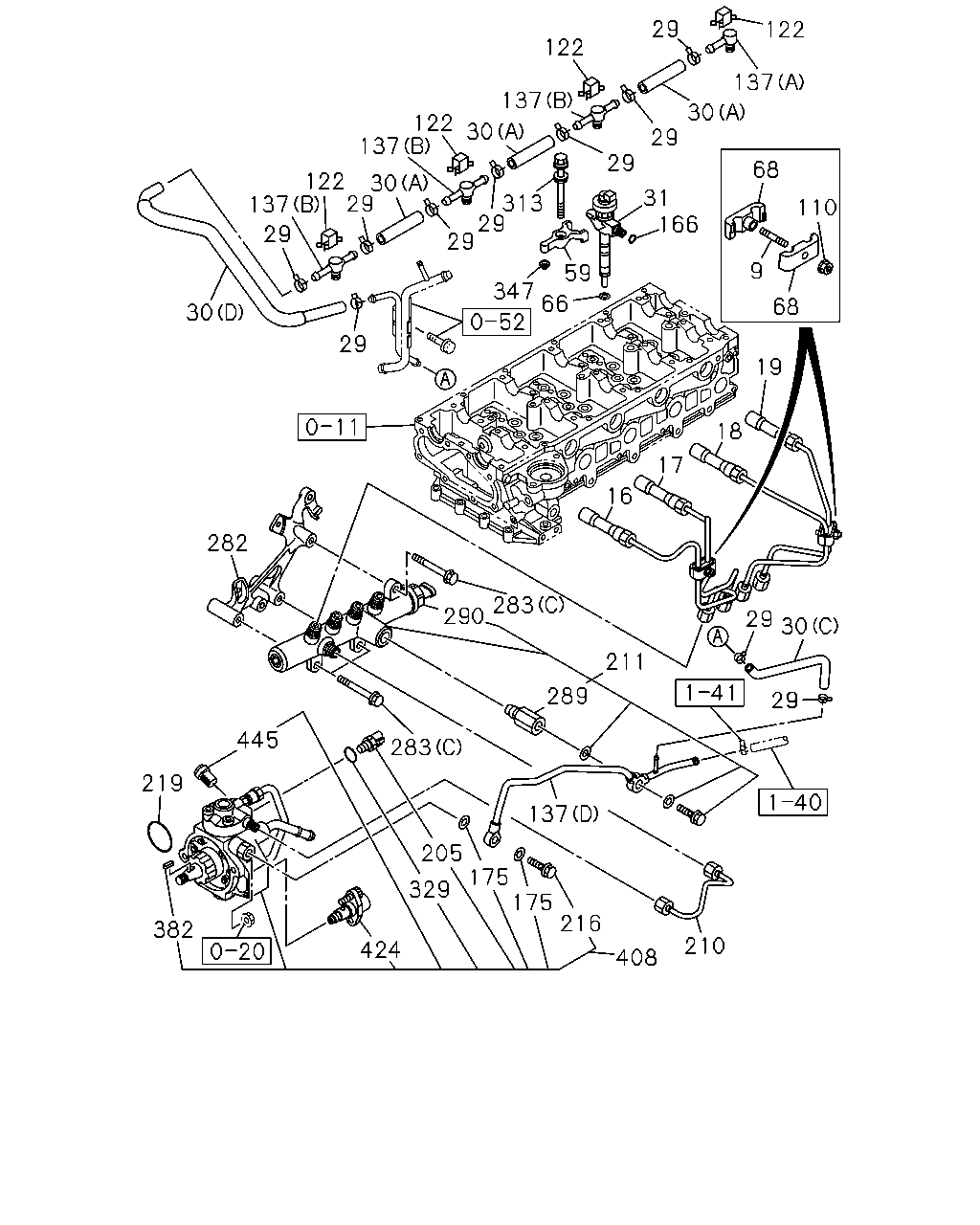

30 137 122 137 122 30 137 122 29 122 137 30 29 29 31 166 9 110 68 68 59 313 29 30 29 29 29 29 66 347 19 18 17 16 211 283 290 288 289 29 30 29 137 210 216 408 175 175 329 205 283 445 282 424 219 382

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	STUD; CLIP PROVISIONAL PACKAGE SPEC<BCC> M6X30 L=38 THA	0-41010-630-0	02	1	1506-
9	STUD; CLIP M6X25 L=36 THA	8-97214-234-1	02	1	1307-1505
9	STUD; CLIP EXC. PROVISIONAL PACKAGE SPEC<BCC> M6X25 L=36 THA	8-97214-234-1	02	1	1506-
16	PIPE; INJ NO.1 PROVISIONAL PACKAGE SPEC<BCC> THA	8-98223-194-0	01	1	1506-
16	PIPE; INJ NO.1 THA	8-98011-606-0	01	1	1307-1505
16	PIPE; INJ NO.1 EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98011-606-0	01	1	1506-
17	PIPE; INJ NO.2 PROVISIONAL PACKAGE SPEC<BCC> THA	8-98223-195-1	01	1	1506-
17	PIPE; INJ NO.2 THA	8-98043-684-0	01	1	1307-1505
17	PIPE; INJ NO.2 EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98043-684-0	01	1	1506-
18	PIPE; INJ NO.3 PROVISIONAL PACKAGE SPEC<BCC> THA	8-98223-196-0	01	1	1506-
18	PIPE; INJ NO.3 THA	8-98011-608-0	01	1	1307-1505
18	PIPE; INJ NO.3 EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98011-608-0	01	1	1506-
19	PIPE; INJ NO.4 PROVISIONAL PACKAGE SPEC<BCC> THA	8-98223-197-0	01	1	1506-
19	PIPE; INJ NO.4 THA	8-98011-609-0	01	1	1307-1505
19	PIPE; INJ NO.4 EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98011-609-0	01	1	1506-
29	CLIP; HOSE ID=10.5 THA	8-97944-126-0	10	1	1307-
30	HOSE; RUBBER,FUEL LEAK PROVISIONAL PACKAGE SPEC<BCC> (A) L=96 THA	8-98053-693-0	03	1	1506-
30	HOSE; RUBBER,FUEL LEAK PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98179-014-0	01	1	1506-
30	HOSE; RUBBER,FUEL LEAK PROVISIONAL PACKAGE SPEC<BCC> (D) THA	8-98189-998-0	01	1	1506-
30	HOSE; RUBBER,FUEL LEAK (A) L=96 THA	8-98053-693-0	04	1	1307-1505
30	HOSE; RUBBER,FUEL LEAK EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) L=96 THA	8-98053-693-0	04	1	1506-
30	HOSE; RUBBER,FUEL LEAK (B) THA	8-98168-394-0	01	1	1307-1505
30	HOSE; RUBBER,FUEL LEAK EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98168-394-0	01	1	1506-
31	NOZZLE ASM; INJ PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-474-0	04	1	1506-
31	NOZZLE ASM; INJ THA	8-98106-694-1	04	1	1307-1401
31	NOZZLE ASM; INJ THA	8-98119-228-3	04	1	1402-1505
31	NOZZLE ASM; INJ EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98119-228-3	04	1	1506-
59	CLAMP; NOZZLE HOLDER THA	8-98092-539-0	04	1	1307-
66	GASKET; INJ NOZZLE IMA	8-98181-540-0	04	1	1307-
68	CLIP; INJ PIPE PROVISIONAL PACKAGE SPEC<BCC> ID=11 & 11 L=19 IMA	8-98148-996-2	04	1	1506-
68	CLIP; INJ PIPE THA	8-97213-481-0	04	1	1307-1505
68	CLIP; INJ PIPE EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97213-481-0	04	1	1506-
110	NUT; CLIP M6 FLANGE THA	0-91180-106-0	02	1	1307-
122	CLIP; LEAK OFF PIPE IMA	8-97315-286-0	04	1	1307-
137	PIPE ASM; LEAK OFF PROVISIONAL PACKAGE SPEC<BCC> (D) THA	8-98158-737-1	01	1	1506-
137	PIPE ASM; LEAK OFF (C) THA	8-98132-085-0	01	1	1307-1505
137	PIPE ASM; LEAK OFF EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98132-085-0	01	1	1506-
137	PIPE ASM; LEAK OFF (B) THA	8-98211-775-0	03	1	1307-
137	PIPE ASM; LEAK OFF (A) THA	8-98211-776-0	01	1	1307-
166	GASKET; FUEL INJECTOR ID=11 OD=14.8 THA	9-09566-111-0	04	1	1307-
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=10.2 OD=15.2 IMA	1-09630-083-0	02	1	1307-1505
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP IMA	1-15619-508-0	02	1	1506-
205	SENSOR; FUEL TEMP IMA	8-98023-581-0	01	1	1307-
210	PIPE; INJ,C/R PROVISIONAL PACKAGE SPEC<BCC> THA	8-98233-237-0	01	1	1506-
210	PIPE; INJ,C/R THA	8-97388-902-0	01	1	1307-1505
210	PIPE; INJ,C/R EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97388-902-0	01	1	1506-
211	RAIL ASM; COMMON PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-475-0	01	1	1506-
211	RAIL ASM; COMMON THA	8-98132-055-1	01	1	1307-1505
211	RAIL ASM; COMMON EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98132-055-1	01	1	1506-
216	BOLT; EYE THA	9-88130-088-0	01	1	1307-1409
216	BOLT; EYE THA	8-98209-777-0	01	1	1410-
219	GASKET ID=49.7 THA	1-09623-541-0	01	1	1307-
282	BRACKET; COMMON RAIL PROVISIONAL PACKAGE SPEC<BCC> THA	8-98205-942-0	01	1	1506-
282	BRACKET; COMMON RAIL THA	8-98132-056-0	01	1	1307-1505
282	BRACKET; COMMON RAIL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98132-056-0	01	1	1506-
283	BOLT; COMMON RAIL PROVISIONAL PACKAGE SPEC<BCC> (C) M8X66 FLANGE THA	8-98228-566-0	03	1	1506-
283	BOLT; COMMON RAIL (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1307-1505
283	BOLT; COMMON RAIL EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1506-
283	BOLT; COMMON RAIL (B) M8X81 FLANGE THA	8-97354-584-0	02	1	1307-1505
283	BOLT; COMMON RAIL EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) M8X81 FLANGE THA	8-97354-584-0	02	1	1506-
288	GASKET ID=11 OD=16.3 IMA	1-15641-046-0	01	1	1307-1505
288	GASKET EXC. PROVISIONAL PACKAGE SPEC<BCC> ID=11 OD=16.3 IMA	1-15641-046-0	01	1	1506-
289	LIMITER; FUEL PRESS THA	8-98032-549-0	01	1	1307-
290	SENSOR; PRESS THA	8-98181-616-0	01	1	1307-
313	BOLT; BRKT,INJ NOZZLE PROVISIONAL PACKAGE SPEC<BCC> M8X85 W/WASHER THA	8-98228-637-0	04	1	1506-
313	BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER THA	8-98095-575-0	04	1	1307-1505
313	BOLT; BRKT,INJ NOZZLE EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X50 W/WASHER THA	8-98095-575-0	04	1	1506-
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7 THA	9-09566-110-0	01	1	1307-1409
347	PIN THA	8-98165-035-0	04	1	1307-
382	KEY; DRIVE SHAFT THA	8-97375-384-0	01	1	1307-1409
382	KEY; DRIVE SHAFT IMA	8-98161-995-0	01	1	1410-
408	PUMP ASM; FUEL,SUPPLY THA	8-98155-988-3	01	1	1307-
424	OVERHAUL KIT; SUPPLY PUMP THA	8-98145-455-1	01	1	1307-
445	SCREW; FILTER,INLET THA	8-98209-778-0	01	1	1307-

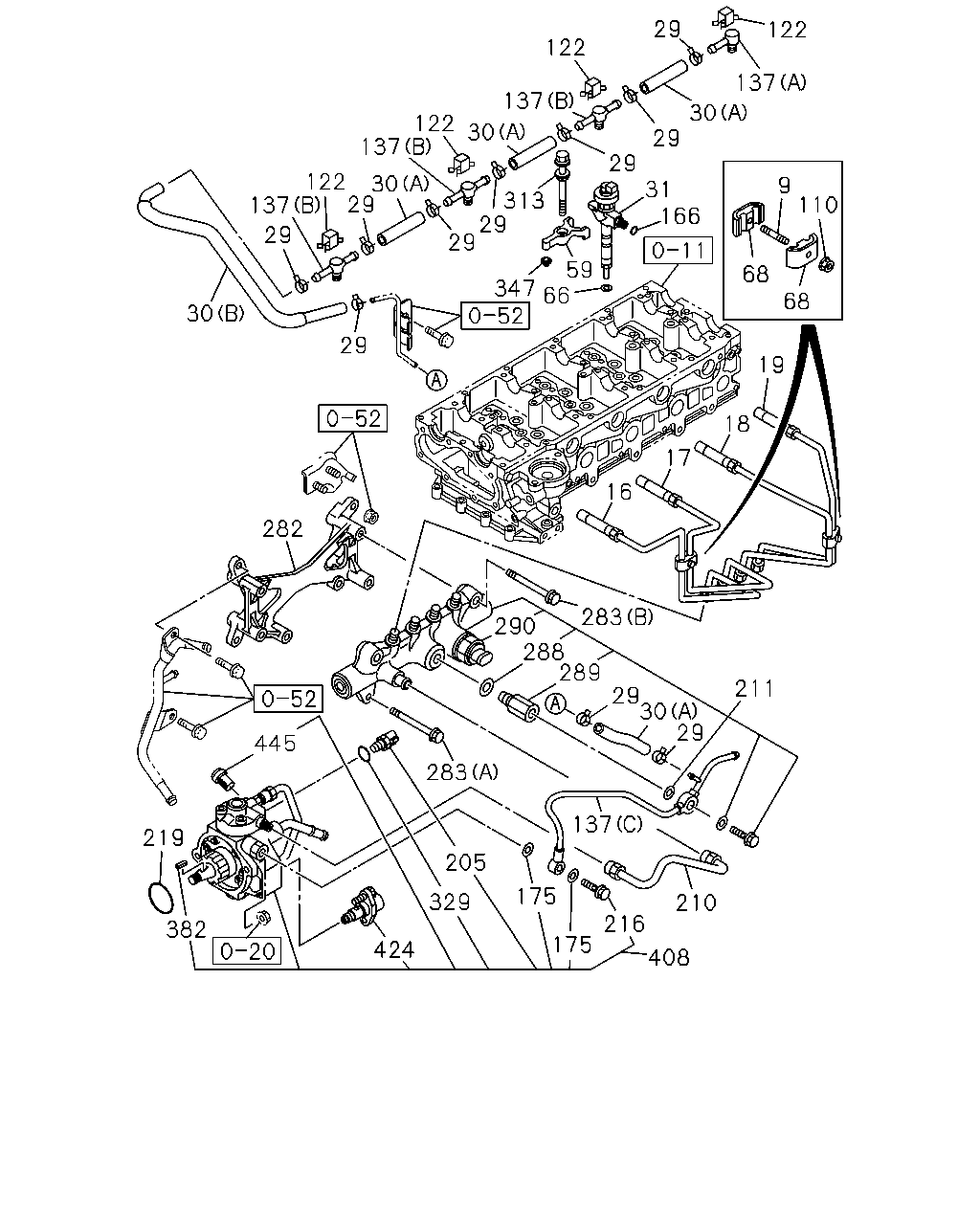

122 29 122 30 137 137 30 122 137 122 137 29 30 29 30 29 282 445 219 382 283 205 329 424 175 175 216 408 210 29 211 289 290 283 347 59 66 29 29 313 29 29 31 166 9 68 68 110 19 18 17 16 29 30 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	STUD; CLIP PROVISIONAL PACKAGE SPEC<BCC> M6X30 L=38 THA	0-41010-630-0	02	1	1506-
9	STUD; CLIP M6X25 L=36 THA	8-97214-234-1	02	1	1307-1505
9	STUD; CLIP EXC. PROVISIONAL PACKAGE SPEC<BCC> M6X25 L=36 THA	8-97214-234-1	02	1	1506-
16	PIPE; INJ NO.1 PROVISIONAL PACKAGE SPEC<BCC> THA	8-98223-194-0	01	1	1506-
16	PIPE; INJ NO.1 THA	8-98011-606-0	01	1	1307-1505
16	PIPE; INJ NO.1 EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98011-606-0	01	1	1506-
17	PIPE; INJ NO.2 PROVISIONAL PACKAGE SPEC<BCC> THA	8-98223-195-1	01	1	1506-
17	PIPE; INJ NO.2 THA	8-98043-684-0	01	1	1307-1505
17	PIPE; INJ NO.2 EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98043-684-0	01	1	1506-
18	PIPE; INJ NO.3 PROVISIONAL PACKAGE SPEC<BCC> THA	8-98223-196-0	01	1	1506-
18	PIPE; INJ NO.3 THA	8-98011-608-0	01	1	1307-1505
18	PIPE; INJ NO.3 EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98011-608-0	01	1	1506-
19	PIPE; INJ NO.4 PROVISIONAL PACKAGE SPEC<BCC> THA	8-98223-197-0	01	1	1506-
19	PIPE; INJ NO.4 THA	8-98011-609-0	01	1	1307-1505
19	PIPE; INJ NO.4 EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98011-609-0	01	1	1506-
29	CLIP; HOSE ID=10.5 THA	8-97944-126-0	10	1	1307-
30	HOSE; RUBBER,FUEL LEAK PROVISIONAL PACKAGE SPEC<BCC> (A) L=96 THA	8-98053-693-0	03	1	1506-
30	HOSE; RUBBER,FUEL LEAK PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98179-014-0	01	1	1506-
30	HOSE; RUBBER,FUEL LEAK PROVISIONAL PACKAGE SPEC<BCC> (D) THA	8-98189-998-0	01	1	1506-
30	HOSE; RUBBER,FUEL LEAK (A) L=96 THA	8-98053-693-0	04	1	1307-1505
30	HOSE; RUBBER,FUEL LEAK EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) L=96 THA	8-98053-693-0	04	1	1506-
30	HOSE; RUBBER,FUEL LEAK (B) THA	8-98168-394-0	01	1	1307-1505
30	HOSE; RUBBER,FUEL LEAK EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA	8-98168-394-0	01	1	1506-
31	NOZZLE ASM; INJ PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-474-0	04	1	1506-
31	NOZZLE ASM; INJ THA	8-98106-694-1	04	1	1307-1401
31	NOZZLE ASM; INJ THA	8-98119-228-3	04	1	1402-1505
31	NOZZLE ASM; INJ EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98119-228-3	04	1	1506-
59	CLAMP; NOZZLE HOLDER THA	8-98092-539-0	04	1	1307-
66	GASKET; INJ NOZZLE IMA	8-98181-540-0	04	1	1307-
68	CLIP; INJ PIPE PROVISIONAL PACKAGE SPEC<BCC> ID=11 & 11 L=19 IMA	8-98148-996-2	04	1	1506-
68	CLIP; INJ PIPE THA	8-97213-481-0	04	1	1307-1505
68	CLIP; INJ PIPE EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97213-481-0	04	1	1506-
110	NUT; CLIP M6 FLANGE THA	0-91180-106-0	02	1	1307-
122	CLIP; LEAK OFF PIPE IMA	8-97315-286-0	04	1	1307-
137	PIPE ASM; LEAK OFF PROVISIONAL PACKAGE SPEC<BCC> (D) THA	8-98158-737-1	01	1	1506-
137	PIPE ASM; LEAK OFF (C) THA	8-98132-085-0	01	1	1307-1505
137	PIPE ASM; LEAK OFF EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA	8-98132-085-0	01	1	1506-
137	PIPE ASM; LEAK OFF (B) THA	8-98211-775-0	03	1	1307-
137	PIPE ASM; LEAK OFF (A) THA	8-98211-776-0	01	1	1307-
166	GASKET; FUEL INJECTOR ID=11 OD=14.8 THA	9-09566-111-0	04	1	1307-
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=10.2 OD=15.2 IMA	1-09630-083-0	02	1	1307-1505
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP IMA	1-15619-508-0	02	1	1506-
205	SENSOR; FUEL TEMP IMA	8-98023-581-0	01	1	1307-
210	PIPE; INJ,C/R PROVISIONAL PACKAGE SPEC<BCC> THA	8-98233-237-0	01	1	1506-
210	PIPE; INJ,C/R THA	8-97388-902-0	01	1	1307-1505
210	PIPE; INJ,C/R EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97388-902-0	01	1	1506-
211	RAIL ASM; COMMON PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-475-0	01	1	1506-
211	RAIL ASM; COMMON THA	8-98132-055-1	01	1	1307-1505
211	RAIL ASM; COMMON EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98132-055-1	01	1	1506-
216	BOLT; EYE THA	9-88130-088-0	01	1	1307-1409
216	BOLT; EYE THA	8-98209-777-0	01	1	1410-
219	GASKET ID=49.7 THA	1-09623-541-0	01	1	1307-
282	BRACKET; COMMON RAIL PROVISIONAL PACKAGE SPEC<BCC> THA	8-98205-942-0	01	1	1506-
282	BRACKET; COMMON RAIL THA	8-98132-056-0	01	1	1307-1505
282	BRACKET; COMMON RAIL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98132-056-0	01	1	1506-
283	BOLT; COMMON RAIL PROVISIONAL PACKAGE SPEC<BCC> (C) M8X66 FLANGE THA	8-98228-566-0	03	1	1506-
283	BOLT; COMMON RAIL (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1307-1505
283	BOLT; COMMON RAIL EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M8X70 FLANGE THA	0-28050-870-0	02	1	1506-
283	BOLT; COMMON RAIL (B) M8X81 FLANGE THA	8-97354-584-0	02	1	1307-1505
283	BOLT; COMMON RAIL EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) M8X81 FLANGE THA	8-97354-584-0	02	1	1506-
289	LIMITER; FUEL PRESS THA	8-98032-549-0	01	1	1307-
290	SENSOR; PRESS THA	8-98181-616-0	01	1	1307-
313	BOLT; BRKT,INJ NOZZLE PROVISIONAL PACKAGE SPEC<BCC> M8X85 W/WASHER THA	8-98228-637-0	04	1	1506-
313	BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER THA	8-98095-575-0	04	1	1307-1505
313	BOLT; BRKT,INJ NOZZLE EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X50 W/WASHER THA	8-98095-575-0	04	1	1506-
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7 THA	9-09566-110-0	01	1	1307-1409
347	PIN THA	8-98165-035-0	04	1	1307-
382	KEY; DRIVE SHAFT THA	8-97375-384-0	01	1	1307-1409
382	KEY; DRIVE SHAFT IMA	8-98161-995-0	01	1	1410-
408	PUMP ASM; FUEL,SUPPLY THA	8-98155-988-3	01	1	1307-
424	OVERHAUL KIT; SUPPLY PUMP THA	8-98145-455-1	01	1	1307-
445	SCREW; FILTER,INLET THA	8-98209-778-0	01	1	1307-
