0-36 — TURBOCHARGER SYSTEM (#122949) — 106 parça

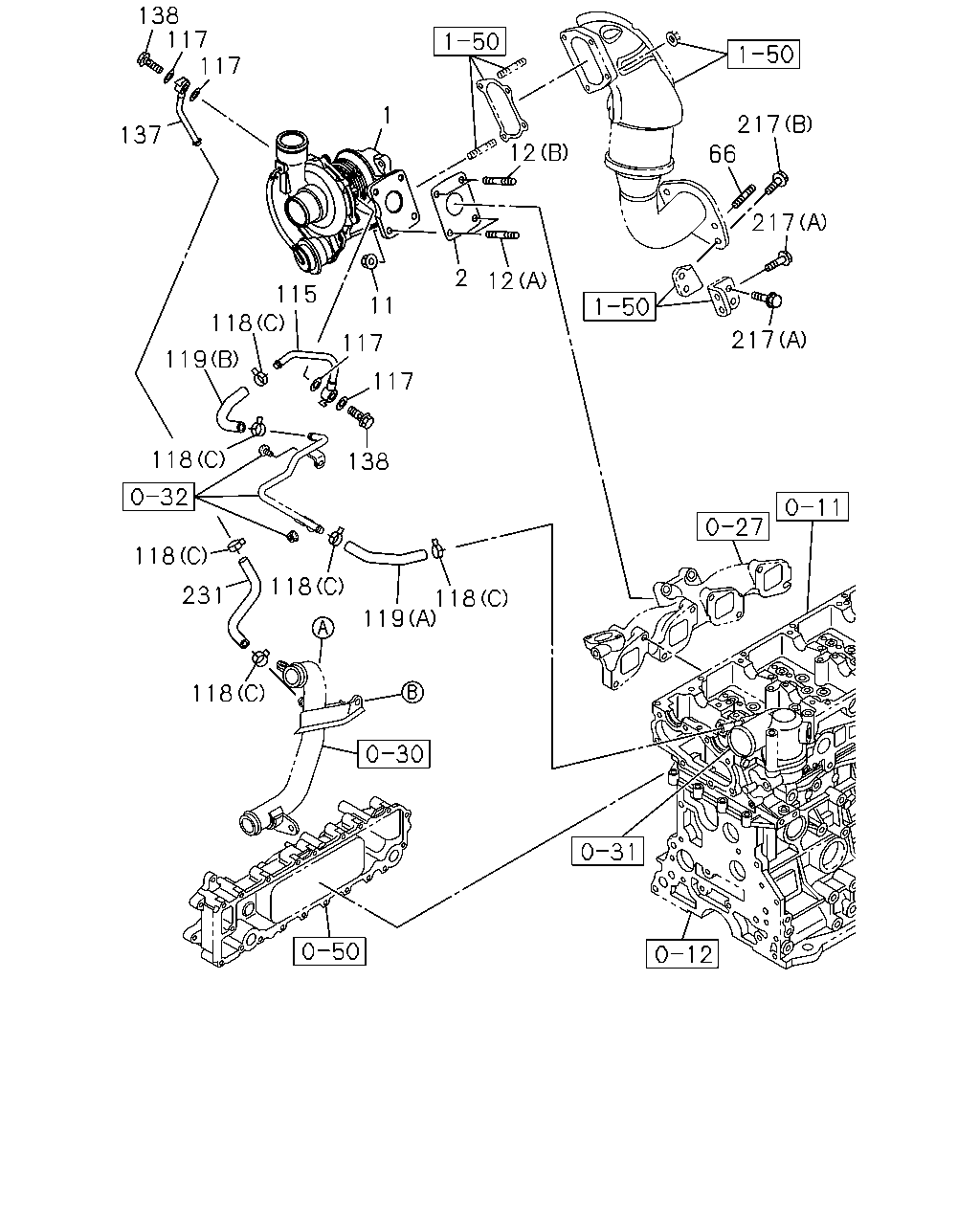

çizim 355298
138 117 117 137 115 118 119 118 118 1 11 117 117 138 2 12 12 217 66 217 217 231 118 118 119 118
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98221-675-1 01 1 1506-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98132-072-0 01 1 1307-1505
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-072-0 01 1 1506-
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1307-
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1307-
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1307-
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1307-
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1307-
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98132-443-0 01 1 1307-
117 GASKET; WATER PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 1307-
118 CLIP; WATER HOSE
PROVISIONAL PACKAGE SPEC<BCC> (B) ID=20.8 THA 		8-97944-127-0 06 1 1506-
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 04 1 1307-1505
118 CLIP; WATER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) ID=20.8 THA 		8-97944-127-0 04 1 1506-
118 CLIP; WATER HOSE
(C) ID=15.1 THA 		8-98179-581-0 06 1 1307-
118 CLIP; WATER HOSE
(A) ID=26.2 THA 		8-98202-540-0 02 1 1307-1505
118 CLIP; WATER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) ID=26.2 THA 		8-98202-540-0 02 1 1506-
119 HOSE; WATER,TURBOCHARGER
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98239-061-0 01 1 1506-
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98179-510-0 01 1 1307-1505
119 HOSE; WATER,TURBOCHARGER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98179-510-0 01 1 1506-
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1307-
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98132-444-1 01 1 1307-
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 1307-
217 BOLT; BRKT
(A) M12X30 FLANGE THA 		0-28661-230-0 03 1 1307-
217 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28661-235-0 02 1 1307-
231 HOSE; RUBBER,TURBOCHARGER OUT
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98228-461-0 01 1 1506-
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98168-392-2 01 1 1307-1505
231 HOSE; RUBBER,TURBOCHARGER OUT
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98168-392-2 01 1 1506-

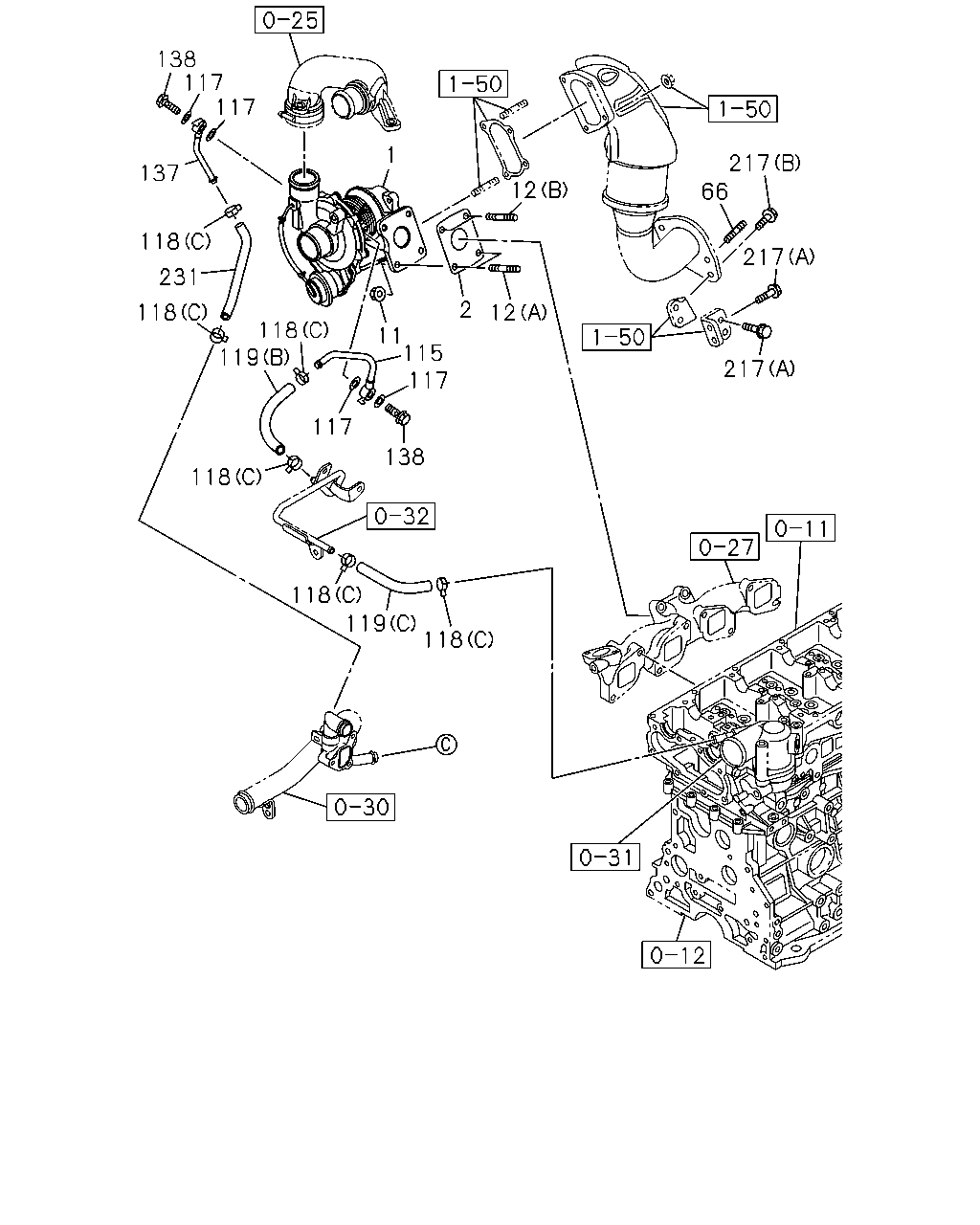

çizim 355319
138 137 118 118 119 118 117 118 118 119 118 138 117 115 11 2 12 12 117 117 217 66 217 217 231 1
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98221-675-1 01 1 1506-
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. THA 		8-98132-072-0 01 1 1307-1505
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-072-0 01 1 1506-
2 GASKET; TURBOCHARGER TO EXH MANIF
THA 		8-98132-073-0 01 1 1307-
11 NUT; TURBOCHARGER
M8 FLANGE THA 		8-97379-384-0 04 1 1307-
12 STUD; TURBOCHARGER
(A) M8X25 L=36 THA 		8-97378-062-0 02 1 1307-
12 STUD; TURBOCHARGER
(B) M8X30 L=41 IMA 		8-97378-064-0 02 1 1307-
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 02 1 1307-
115 PIPE; WATER,TURBOCHARGER OUT
THA 		8-98132-443-0 01 1 1307-
117 GASKET; WATER PIPE
ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 1307-
118 CLIP; WATER HOSE
PROVISIONAL PACKAGE SPEC<BCC> (B) ID=20.8 THA 		8-97944-127-0 06 1 1506-
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 04 1 1307-1505
118 CLIP; WATER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) ID=20.8 THA 		8-97944-127-0 04 1 1506-
118 CLIP; WATER HOSE
(C) ID=15.1 THA 		8-98179-581-0 06 1 1307-
118 CLIP; WATER HOSE
(A) ID=26.2 THA 		8-98202-540-0 02 1 1307-1505
118 CLIP; WATER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) ID=26.2 THA 		8-98202-540-0 02 1 1506-
119 HOSE; WATER,TURBOCHARGER
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98239-061-0 01 1 1506-
119 HOSE; WATER,TURBOCHARGER
(A) THA 		8-98179-510-0 01 1 1307-1505
119 HOSE; WATER,TURBOCHARGER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98179-510-0 01 1 1506-
119 HOSE; WATER,TURBOCHARGER
(B) THA 		8-98179-580-0 01 1 1307-
137 PIPE; WATER,TURBOCHARGER IN
THA 		8-98132-444-1 01 1 1307-
138 BOLT; EYE,WATER PIPE
M14X31 EYE-BOLT THA 		8-98037-067-0 02 1 1307-
217 BOLT; BRKT
(A) M12X30 FLANGE THA 		0-28661-230-0 03 1 1307-
217 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28661-235-0 02 1 1307-
231 HOSE; RUBBER,TURBOCHARGER OUT
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98228-461-0 01 1 1506-
231 HOSE; RUBBER,TURBOCHARGER OUT
THA 		8-98168-392-2 01 1 1307-1505
231 HOSE; RUBBER,TURBOCHARGER OUT
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98168-392-2 01 1 1506-

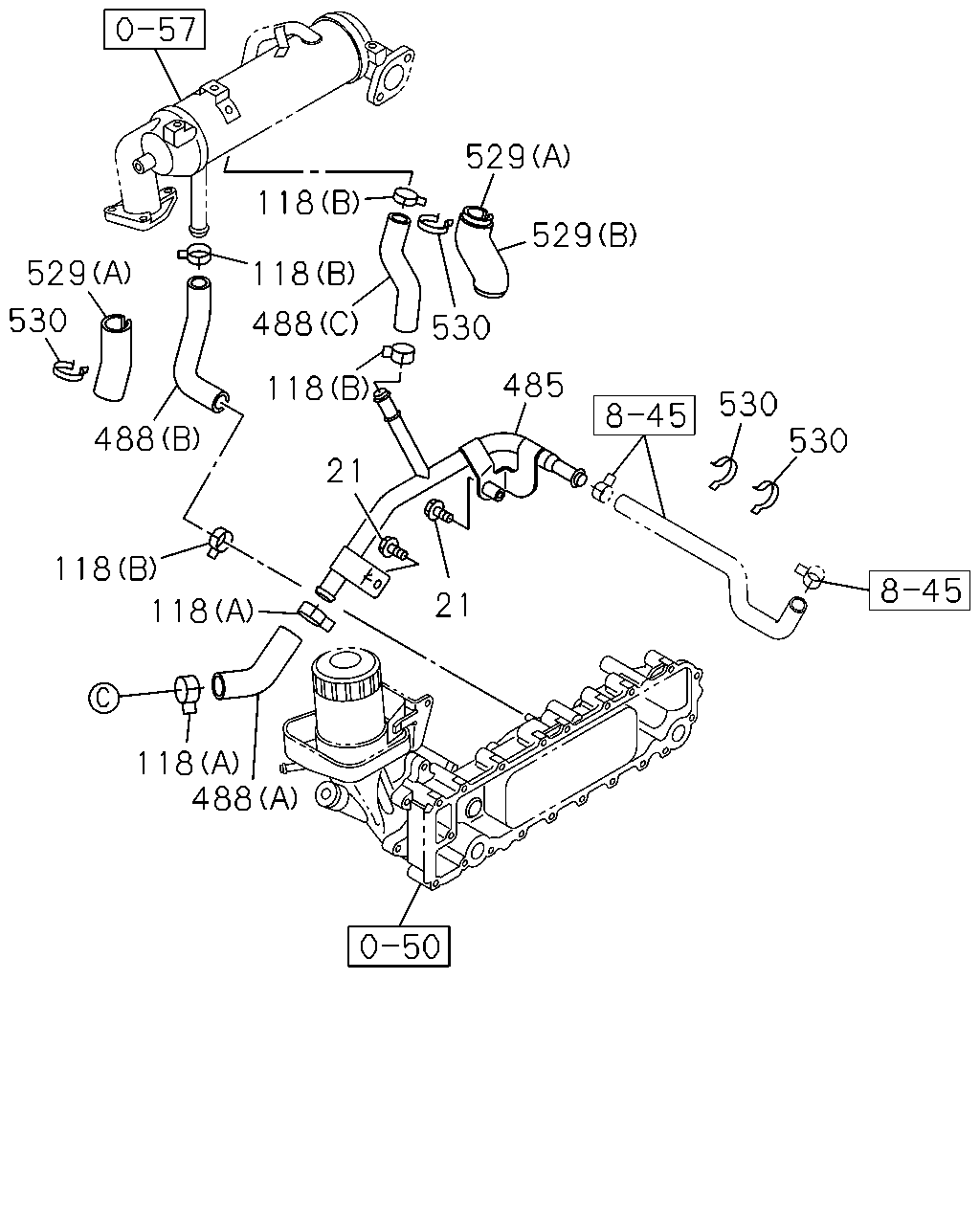

çizim 484107
529 530 488 118 118 118 488 21 21 118 488 118 118 529 529 530 485 530 530
BalonParca AdiParca NoAdetTipApplied Date
21 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1307-
118 CLIP; WATER HOSE
PROVISIONAL PACKAGE SPEC<BCC> (B) ID=20.8 THA 		8-97944-127-0 06 1 1506-
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 04 1 1307-1505
118 CLIP; WATER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) ID=20.8 THA 		8-97944-127-0 04 1 1506-
118 CLIP; WATER HOSE
(C) ID=15.1 THA 		8-98179-581-0 06 1 1307-
118 CLIP; WATER HOSE
(A) ID=26.2 THA 		8-98202-540-0 02 1 1307-1505
118 CLIP; WATER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) ID=26.2 THA 		8-98202-540-0 02 1 1506-
485 PIPE; WATER EGR
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98228-429-0 01 1 1506-
485 PIPE; WATER EGR
THA 		8-98132-418-2 01 1 1307-1505
485 PIPE; WATER EGR
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-418-2 01 1 1506-
488 HOSE; RUBBER
PROVISIONAL PACKAGE SPEC<BCC> (D) THA 		8-98132-368-0 01 1 1506-
488 HOSE; RUBBER
PROVISIONAL PACKAGE SPEC<BCC> (E) THA 		8-98239-031-0 01 1 1506-
488 HOSE; RUBBER
(A) THA 		8-98132-446-0 01 1 1307-1505
488 HOSE; RUBBER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98132-446-0 01 1 1506-
488 HOSE; RUBBER
(C) THA 		8-98202-356-1 01 1 1307-1505
488 HOSE; RUBBER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98202-356-1 01 1 1506-
488 HOSE; RUBBER
(B) THA 		8-98215-481-0 01 1 1307-
529 INSULATOR; HOSE
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98031-883-0 01 1 1506-
529 INSULATOR; HOSE
PROVISIONAL PACKAGE SPEC<BCC> (D) THA 		8-98228-426-0 01 1 1506-
529 INSULATOR; HOSE
(A) THA 		8-98031-883-0 02 1 1307-1505
529 INSULATOR; HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98031-883-0 02 1 1506-
529 INSULATOR; HOSE
(B) THA 		8-98181-397-0 01 1 1307-1505
529 INSULATOR; HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98181-397-0 01 1 1506-
530 CLIP; INSULATOR
PROVISIONAL PACKAGE SPEC<BCC> IMA 		8-97101-337-0 02 1 1506-
530 CLIP; INSULATOR
IMA 		8-97101-337-0 04 1 1307-1505
530 CLIP; INSULATOR
EXC. PROVISIONAL PACKAGE SPEC<BCC> IMA 		8-97101-337-0 04 1 1506-

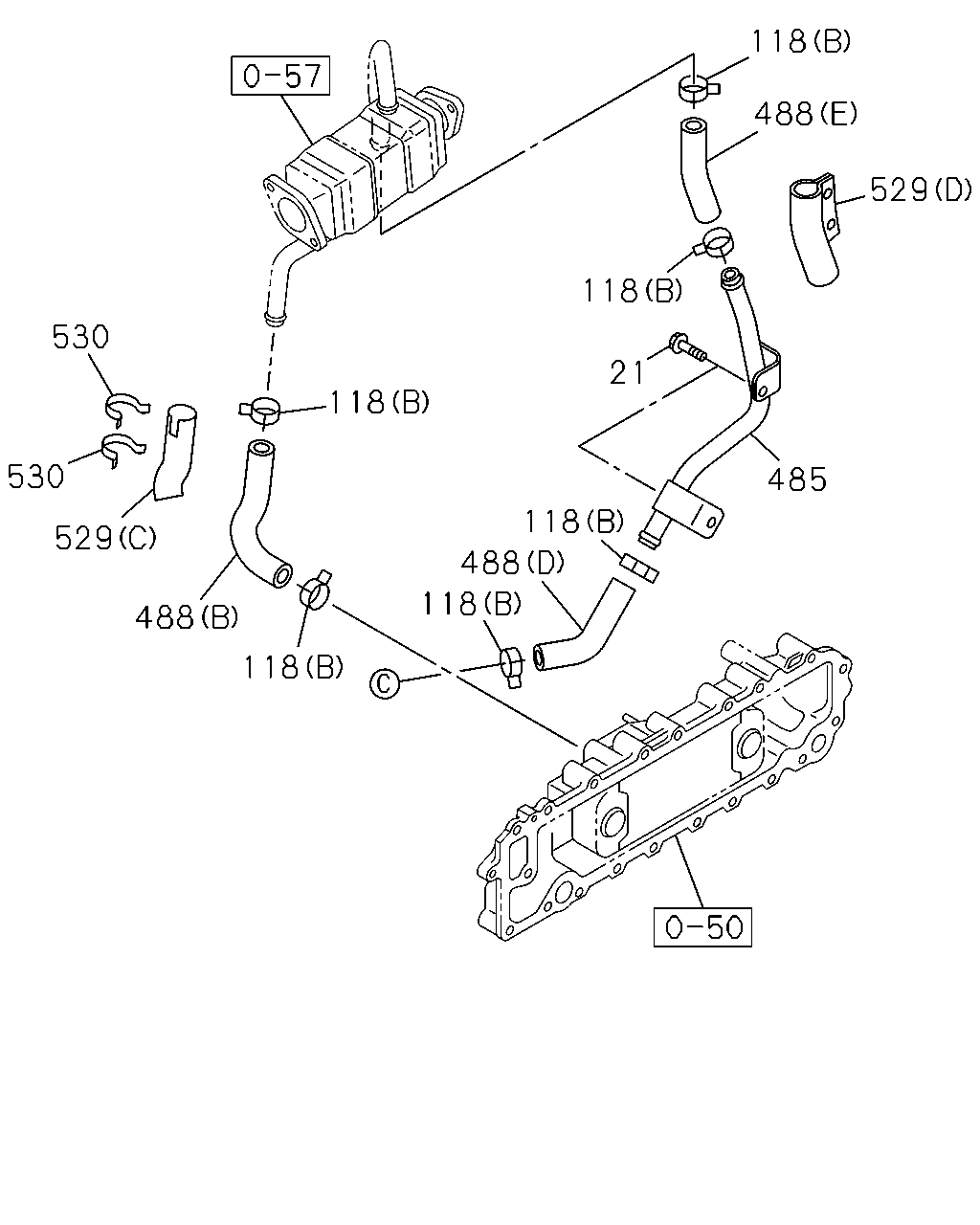

çizim 484110
530 530 529 488 118 118 488 118 118 485 21 118 529 488 118
BalonParca AdiParca NoAdetTipApplied Date
21 BOLT; PIPE
M8X16 FLANGE THA 		0-28050-816-0 02 1 1307-
118 CLIP; WATER HOSE
PROVISIONAL PACKAGE SPEC<BCC> (B) ID=20.8 THA 		8-97944-127-0 06 1 1506-
118 CLIP; WATER HOSE
(B) ID=20.8 THA 		8-97944-127-0 04 1 1307-1505
118 CLIP; WATER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) ID=20.8 THA 		8-97944-127-0 04 1 1506-
118 CLIP; WATER HOSE
(C) ID=15.1 THA 		8-98179-581-0 06 1 1307-
118 CLIP; WATER HOSE
(A) ID=26.2 THA 		8-98202-540-0 02 1 1307-1505
118 CLIP; WATER HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) ID=26.2 THA 		8-98202-540-0 02 1 1506-
485 PIPE; WATER EGR
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98228-429-0 01 1 1506-
485 PIPE; WATER EGR
THA 		8-98132-418-2 01 1 1307-1505
485 PIPE; WATER EGR
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-418-2 01 1 1506-
488 HOSE; RUBBER
PROVISIONAL PACKAGE SPEC<BCC> (D) THA 		8-98132-368-0 01 1 1506-
488 HOSE; RUBBER
PROVISIONAL PACKAGE SPEC<BCC> (E) THA 		8-98239-031-0 01 1 1506-
488 HOSE; RUBBER
(A) THA 		8-98132-446-0 01 1 1307-1505
488 HOSE; RUBBER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98132-446-0 01 1 1506-
488 HOSE; RUBBER
(C) THA 		8-98202-356-1 01 1 1307-1505
488 HOSE; RUBBER
EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98202-356-1 01 1 1506-
488 HOSE; RUBBER
(B) THA 		8-98215-481-0 01 1 1307-
529 INSULATOR; HOSE
PROVISIONAL PACKAGE SPEC<BCC> (C) THA 		8-98031-883-0 01 1 1506-
529 INSULATOR; HOSE
PROVISIONAL PACKAGE SPEC<BCC> (D) THA 		8-98228-426-0 01 1 1506-
529 INSULATOR; HOSE
(A) THA 		8-98031-883-0 02 1 1307-1505
529 INSULATOR; HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-98031-883-0 02 1 1506-
529 INSULATOR; HOSE
(B) THA 		8-98181-397-0 01 1 1307-1505
529 INSULATOR; HOSE
EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98181-397-0 01 1 1506-
530 CLIP; INSULATOR
PROVISIONAL PACKAGE SPEC<BCC> IMA 		8-97101-337-0 02 1 1506-
530 CLIP; INSULATOR
IMA 		8-97101-337-0 04 1 1307-1505
530 CLIP; INSULATOR
EXC. PROVISIONAL PACKAGE SPEC<BCC> IMA 		8-97101-337-0 04 1 1506-
