0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#122940) — 59 parça

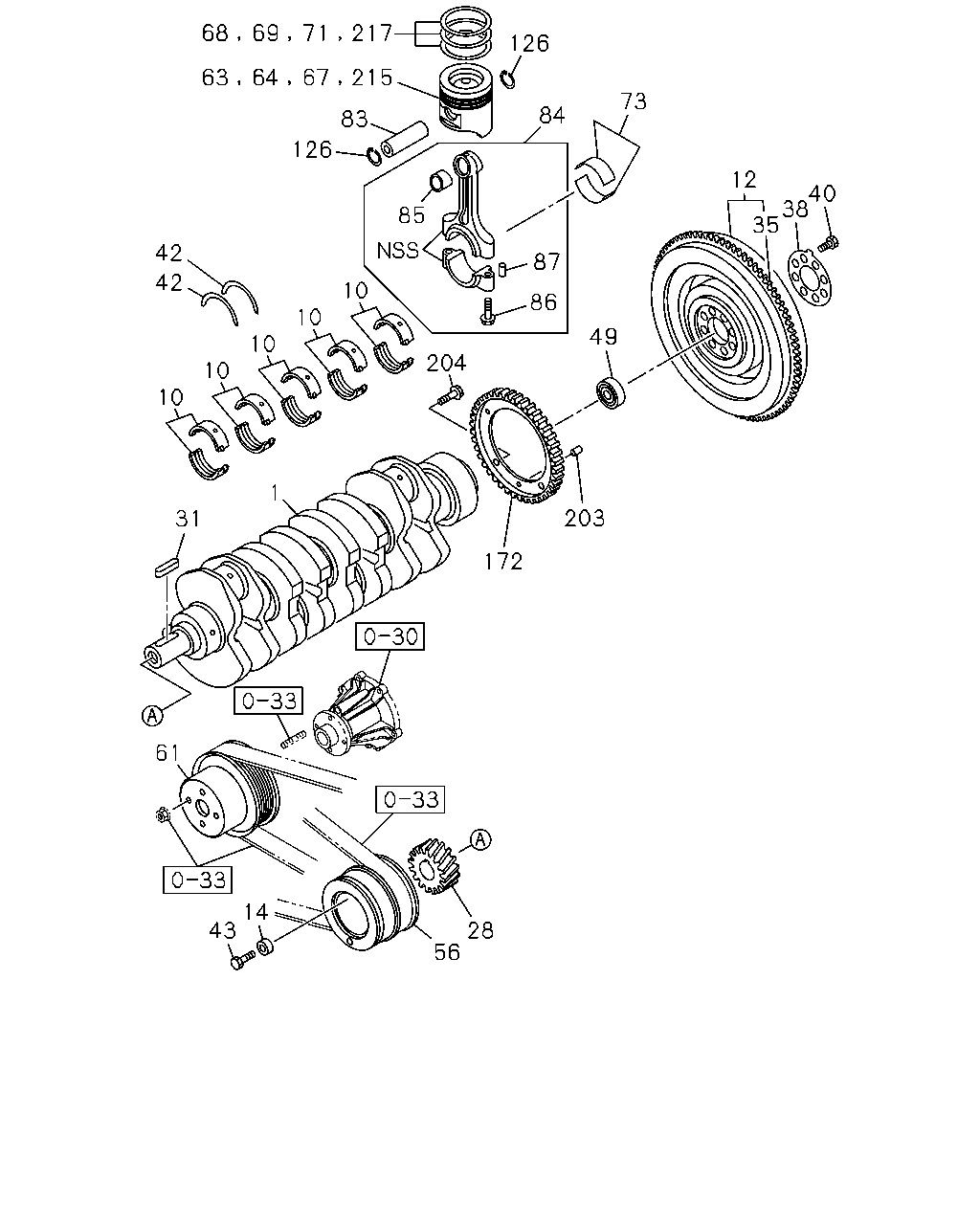

çizim 358940
56 28 14 43 61 172 203 1 31 10 10 10 10 10 42 42 204 49 40 38 35 12 73 84 87 86 85 83 126 215 67 64 63 68 69 217 71 126
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT
THA 		8-98131-999-1 01 1 1307-
10 METAL SET; CRANKSHAFT,STANDARD
GREEN THA 		8-97388-502-0 05 1 1307-
10 METAL SET; CRANKSHAFT,STANDARD
BLACK THA 		8-97388-503-0 05 1 1307-
10 METAL SET; CRANKSHAFT,STANDARD
BLUE THA 		8-97388-504-0 05 1 1307-
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW THA 		8-97388-505-0 05 1 1307-
10 METAL SET; CRANKSHAFT,STANDARD
RED THA 		8-97388-506-0 05 1 1307-
12 FLYWHEEL
THA 		8-98077-180-0 01 1 1307-
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 IMA 		5-09503-127-1 01 1 1307-
28 GEAR; CR/SHF
Z=44 THA 		8-97312-199-1 01 1 1307-
31 KEY; FEATHER,CR/SHF
IMA 		9-08030-743-0 01 1 1307-
35 GEAR; RING
Z=108 THA 		8-97912-516-1 01 1 1307-
38 WASHER; FLYWHEEL
THA 		8-94133-970-1 01 1 1307-
40 BOLT; FLYWHEEL
M13X36 THA 		8-97941-069-0 08 1 1307-
42 WASHER; THRUST,CR/SHF
THA 		8-97354-055-1 02 1 1307-
43 BOLT; CR/SHF PULLEY
M16X43 THA 		8-97373-852-1 01 1 1307-
49 BEARING; PILOT
NSK THA 		8-97920-344-2 01 1 1307-
49 BEARING; PILOT
NACHI THA 		8-97922-552-1 01 1 1307-
56 PULLEY; CR/SHF DAMPER
2-GROOVE THA 		8-98183-902-0 01 1 1307-
61 PULLEY; FAN DRIVE
1-GROOVE THA 		8-98131-628-0 01 1 1307-
63 PISTON
PROVISIONAL PACKAGE SPEC<BCC> GRADE=A THA 		8-98228-070-0 04 1 1506-
63 PISTON
PROVISIONAL PACKAGE SPEC<BCC> GRADE=B THA 		8-98228-071-0 04 1 1506-
63 PISTON
PROVISIONAL PACKAGE SPEC<BCC> GRADE=C THA 		8-98228-072-0 04 1 1506-
63 PISTON
GRADE=A THA 		8-98132-548-1 04 1 1307-1505
63 PISTON
EXC. PROVISIONAL PACKAGE SPEC<BCC> GRADE=A THA 		8-98132-548-1 04 1 1506-
63 PISTON
GRADE=B THA 		8-98132-549-1 04 1 1307-1505
63 PISTON
EXC. PROVISIONAL PACKAGE SPEC<BCC> GRADE=B THA 		8-98132-549-1 04 1 1506-
63 PISTON
GRADE=C THA 		8-98132-550-1 04 1 1307-1505
63 PISTON
EXC. PROVISIONAL PACKAGE SPEC<BCC> GRADE=C THA 		8-98132-550-1 04 1 1506-
64 PISTON; O/S=0.50
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98230-240-0 04 1 1506-
64 PISTON; O/S=0.50
THA 		8-98132-708-1 04 1 1307-1505
64 PISTON; O/S=0.50
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-708-1 04 1 1506-
67 PISTON; O/S=0.25
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98230-239-0 04 1 1506-
67 PISTON; O/S=0.25
THA 		8-98132-707-1 04 1 1307-1505
67 PISTON; O/S=0.25
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-707-1 04 1 1506-
68 RING SET; PISTON,STANDARD
THA 		8-98171-040-0 04 1 1307-
69 RING SET; PISTON,O/S=0.50
THA 		8-98171-042-0 04 1 1307-
71 RING SET; PISTON,O/S=0.25
THA 		8-98171-041-0 04 1 1307-
73 METAL SET; CONN ROD,STANDARD
THA 		8-97388-735-0 04 1 1307-
83 PIN; PISTON
THA 		8-98150-333-0 04 1 1307-
84 ROD ASM; CONN
THA 		8-97357-716-3 04 1 1307-
85 BUSHING; CONNROD
PROVISIONAL PACKAGE SPEC<BCC> AFTER PRESS FITTING,SHAPE THE BUSHING. IMA 		8-97383-066-0 04 1 1506-
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. IMA 		8-97383-066-0 04 1 1307-1505
85 BUSHING; CONNROD
EXC. PROVISIONAL PACKAGE SPEC<BCC> AFTER PRESS FITTING,SHAPE THE BUSHING. IMA 		8-97383-066-0 04 1 1506-
86 BOLT; CONNROD
PROVISIONAL PACKAGE SPEC<BCC> M11X44.5 IMA 		8-98048-538-0 08 1 1506-
86 BOLT; CONNROD
M11X44.5 IMA 		8-98048-538-0 08 1 1307-1505
86 BOLT; CONNROD
EXC. PROVISIONAL PACKAGE SPEC<BCC> M11X44.5 IMA 		8-98048-538-0 08 1 1506-
87 PIN; CONNROD BIG END
PROVISIONAL PACKAGE SPEC<BCC> OD=5 L=8 THA 		9-08160-508-0 08 1 1506-
87 PIN; CONNROD BIG END
OD=5 L=8 THA 		9-08160-508-0 08 1 1307-1505
87 PIN; CONNROD BIG END
EXC. PROVISIONAL PACKAGE SPEC<BCC> OD=5 L=8 THA 		9-08160-508-0 08 1 1506-
126 RING; SNAP,PISTON PIN
OD=37.5 IMA 		8-94460-687-0 08 1 1307-
172 ROTOR; CRANK SENSOR
PROVISIONAL PACKAGE SPEC<BCC> IMA 		8-98163-693-0 01 1 1506-
172 ROTOR; CRANK SENSOR
THA 		8-97312-337-0 01 1 1307-1505
172 ROTOR; CRANK SENSOR
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-97312-337-0 01 1 1506-
203 PIN; ROTOR
OD=5 L=8 THA 		9-08160-508-0 01 1 1307-
204 BOLT; ROTOR
THA 		8-97944-142-1 03 1 1307-
215 PISTON; O/S=0.75
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98230-241-0 04 1 1506-
215 PISTON; O/S=0.75
THA 		8-98132-709-1 04 1 1307-1505
215 PISTON; O/S=0.75
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-709-1 04 1 1506-
217 RING SET; PISTON,O/S=0.75
THA 		8-98171-043-0 04 1 1307-
