0-13 — OIL PAN AND LEVEL GAUGE (#122938) — 40 parça

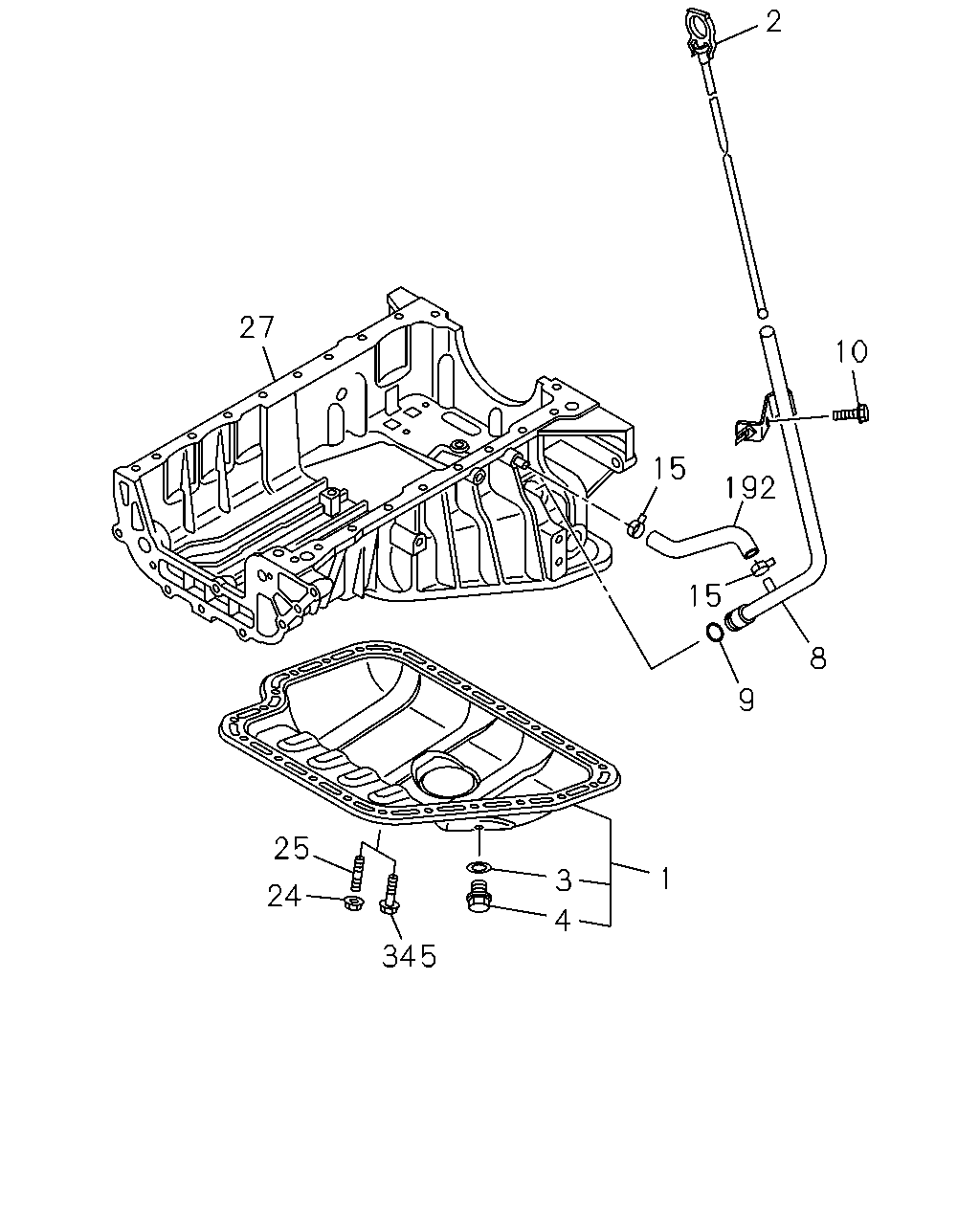

çizim 355123
345 192 9 8 15 15 1 3 4 24 25 27 10 2
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
THA 		8-98156-371-0 01 1 1307-
2 GAUGE; OIL LEVEL
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98228-327-2 01 1 1506-
2 GAUGE; OIL LEVEL
THA 		8-98132-527-2 01 1 1307-1505
2 GAUGE; OIL LEVEL
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-527-2 01 1 1506-
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 1307-
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 1307-
8 TUBE; GUIDE,OIL LEVEL GAUGE
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98228-277-2 01 1 1506-
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98132-019-2 01 1 1307-1505
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-019-2 01 1 1506-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 1307-
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1307-
15 CLIP; GUIDE TUBE
ID=8 IMA 		8-94107-762-0 02 1 1307-1505
15 CLIP; GUIDE TUBE
EXC. PROVISIONAL PACKAGE SPEC<BCC> ID=8 IMA 		8-94107-762-0 02 1 1506-
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 1307-
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 1307-
27 CRANKCASE
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98225-707-3 01 1 1506-
27 CRANKCASE
THA 		8-98203-086-0 01 1 1307-1505
27 CRANKCASE
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98203-086-0 01 1 1506-
192 HOSE; GUIDE TUBE
THA 		8-98211-985-0 01 1 1307-1505
192 HOSE; GUIDE TUBE
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98211-985-0 01 1 1506-
345 BOLT; SENSOR,OIL LEVEL
M8X12 FLANGE THA 		0-28050-812-0 21 1 1307-

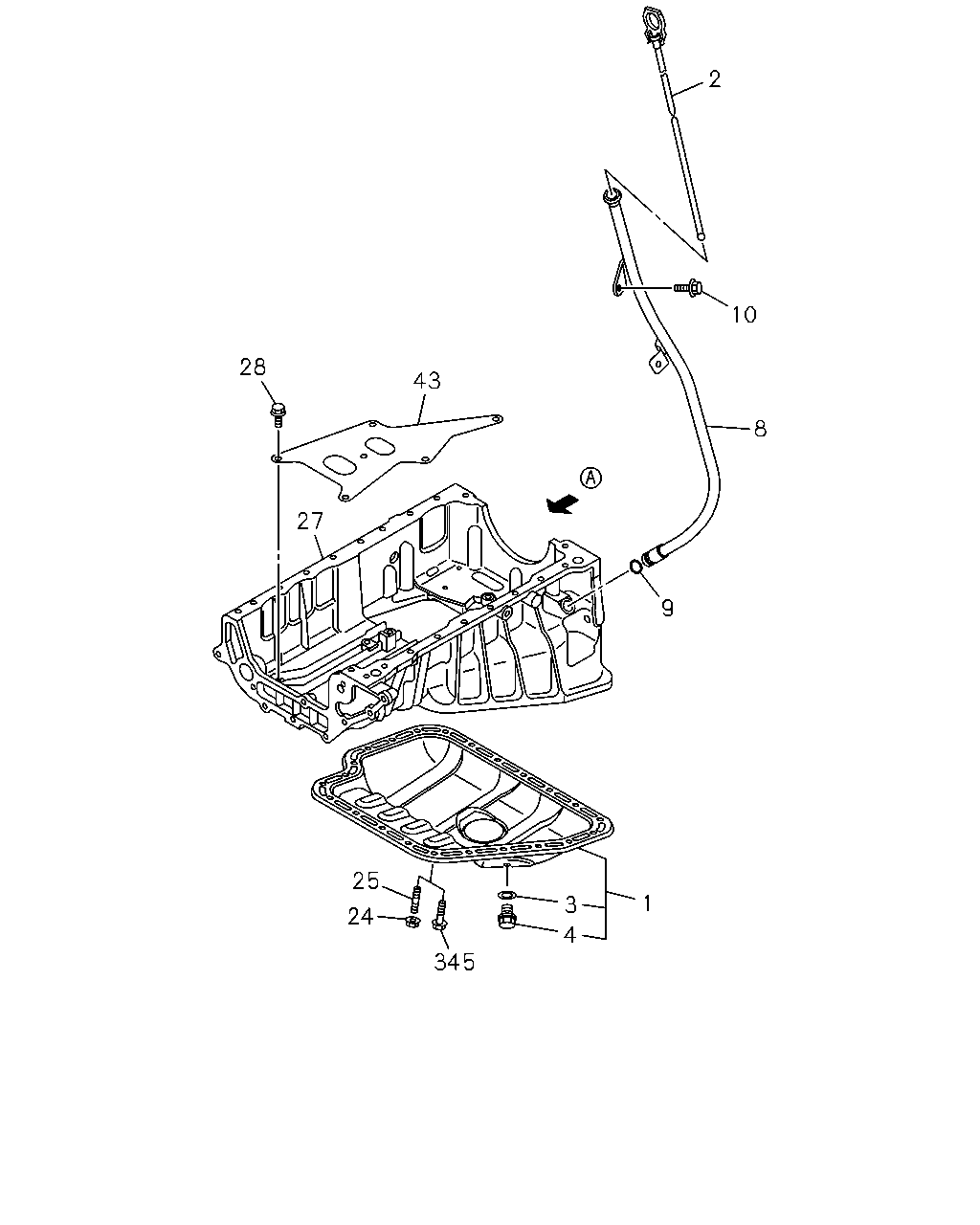

çizim 484032
43 28 8 10 2 9 1 3 25 24 4 345 27
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
THA 		8-98156-371-0 01 1 1307-
2 GAUGE; OIL LEVEL
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98228-327-2 01 1 1506-
2 GAUGE; OIL LEVEL
THA 		8-98132-527-2 01 1 1307-1505
2 GAUGE; OIL LEVEL
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-527-2 01 1 1506-
3 GASKET; DRAIN PLUG
ID=14.2 OD=24 IMA 		8-94158-328-0 01 1 1307-
4 PLUG; DRAIN,OIL
M14X14 IMA 		8-97329-621-0 01 1 1307-
8 TUBE; GUIDE,OIL LEVEL GAUGE
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98228-277-2 01 1 1506-
8 TUBE; GUIDE,OIL LEVEL GAUGE
THA 		8-98132-019-2 01 1 1307-1505
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98132-019-2 01 1 1506-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11 OD=15.8 THA 		8-98034-629-0 01 1 1307-
10 BOLT; GUIDE TUBE
M8X16 FLANGE THA 		0-28050-816-0 01 1 1307-
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-208-0 02 1 1307-
25 STUD; OIL PAN
M8X16 L=28 THA 		0-41010-816-0 02 1 1307-
27 CRANKCASE
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98225-707-3 01 1 1506-
27 CRANKCASE
THA 		8-98203-086-0 01 1 1307-1505
27 CRANKCASE
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98203-086-0 01 1 1506-
28 BOLT; CRANKCASE TO C/BL
PROVISIONAL PACKAGE SPEC<BCC> M8X16 FLANGE THA 		0-28050-816-0 06 1 1506-
43 PLATE; CRANKCASE
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98225-711-0 01 1 1506-
345 BOLT; SENSOR,OIL LEVEL
M8X12 FLANGE THA 		0-28050-812-0 21 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
