0-12 — CYLINDER BLOCK (#122937) — 54 parça

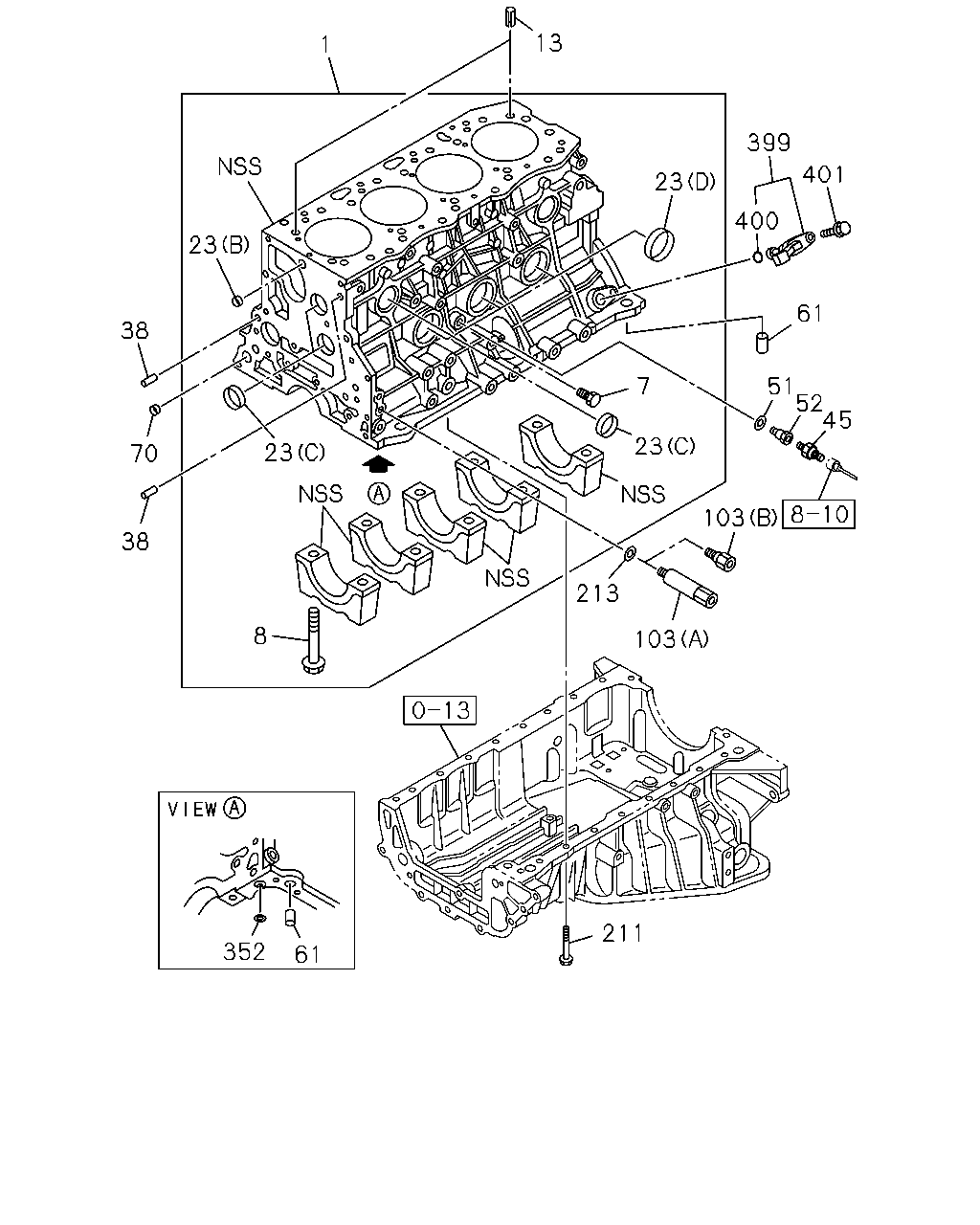

çizim 355102
1 13 23 38 70 38 23 8 213 103 103 52 51 61 45 400 401 399 23 7 23 211 352 61
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
THA 		8-97386-618-5 01 1 1307-1405
1 BLOCK ASM; CYL
THA 		8-98239-517-1 01 1 1406-1505
1 BLOCK ASM; CYL
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98239-517-2 01 1 1506-
1 BLOCK ASM; CYL
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98244-867-1 01 1 1506-
7 PLUG; WATER DRAIN
PT1/4 IMA 		9-09664-001-0 01 1 1307-
8 BOLT; BRG CAP
M14X89 FLANGE IMA 		8-94432-642-0 10 1 1307-
13 DOWEL; C/BL TO HD
OD=14 IMA 		8-94453-344-0 02 1 1307-
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IMA 		8-97036-550-1 03 1 1307-
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 IMA 		5-11219-018-0 02 1 1307-
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IMA 		5-11219-008-0 02 1 1307-
23 CUP; SEALING,C/BL FRT & RR
(C) OD=32 IMA 		5-11219-015-0 04 1 1307-
38 PIN; TIMING GEAR CASE
OD=10 L=20 THA 		9-08151-020-0 02 1 1307-
45 SWITCH; OIL PRESSURE
IMA 		8-97176-230-0 01 1 1307-
51 GASKET; OIL PRESS WARNING SW,C/BL
THA 		8-97912-498-0 01 1 1307-
52 NIPPLE; OIL PRESS WARNING SW,C/BL
IMA 		8-98089-872-0 01 1 1307-1502
52 NIPPLE; OIL PRESS WARNING SW,C/BL
IMA 		8-94167-750-2 01 1 1503-
61 PIN; STRAIGHT
L=31 THA 		8-97920-964-1 02 1 1307-
70 CUP; SEALING,FRT & RR
OD=16 IMA 		5-11129-006-0 06 1 1307-
103 NIPPLE; OIL FEED
PROVISIONAL PACKAGE SPEC<BCC> (B) THA 		8-98240-170-1 01 1 1506-
103 NIPPLE; OIL FEED
(A) THA 		8-97316-983-4 01 1 1307-1505
103 NIPPLE; OIL FEED
EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) THA 		8-97316-983-4 01 1 1506-
211 BOLT; CRANKCASE
PROVISIONAL PACKAGE SPEC<BCC> M8X80 FLANGE THA 		0-28050-880-0 06 1 1506-
211 BOLT; CRANKCASE
M8X30 FLANGE THA 		0-28050-830-0 05 1 1307-1505
211 BOLT; CRANKCASE
EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X30 FLANGE THA 		0-28050-830-0 05 1 1506-
211 BOLT; CRANKCASE
M8X25 FLANGE THA 		0-28650-825-0 14 1 1307-
211 BOLT; CRANKCASE
M8X40 FLANGE THA 		0-28650-840-0 01 1 1307-1505
211 BOLT; CRANKCASE
EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X40 FLANGE THA 		0-28650-840-0 01 1 1506-
213 GASKET; NIPPLE,OIL FEED
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1307-
352 GASKET; C/BL TO CRANKCASE
PROVISIONAL PACKAGE SPEC<BCC> IMA 		9-09566-109-0 01 1 1506-
352 GASKET; C/BL TO CRANKCASE
THA 		9-09566-116-0 01 1 1307-1505
352 GASKET; C/BL TO CRANKCASE
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		9-09566-116-0 01 1 1506-
399 SENSOR; CRANKSHAFT POSITION
IMA 		8-97312-108-1 01 1 1307-
400 GASKET; CRANKSHAFT POSITION SENSOR
ID=14.2 OD=18.8 IMA 		8-97369-404-0 01 1 1307-
401 BOLT; SENSOR
M6X16 FLANGE THA 		0-28050-616-0 01 1 1307-

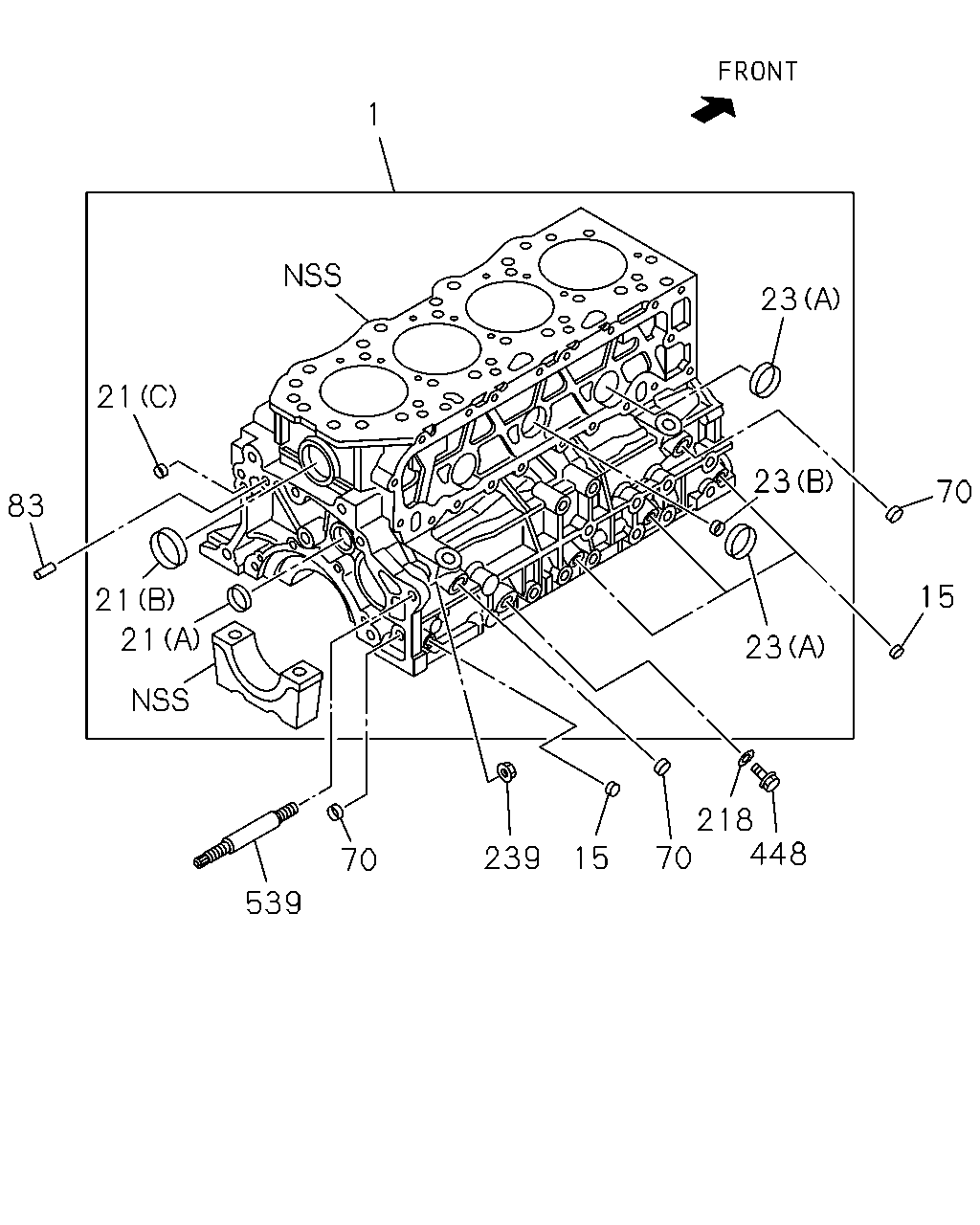

çizim 355115
1 23 23 23 15 70 218 448 70 15 239 70 539 21 21 21 83
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
THA 		8-97386-618-5 01 1 1307-1405
1 BLOCK ASM; CYL
THA 		8-98239-517-1 01 1 1406-1505
1 BLOCK ASM; CYL
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98239-517-2 01 1 1506-
1 BLOCK ASM; CYL
PROVISIONAL PACKAGE SPEC<BCC> THA 		8-98244-867-1 01 1 1506-
15 PLUG; OIL GALLERY
PT1/8 IMA 		1-09605-050-0 04 1 1307-
21 CUP; SEALING,RR
(C) OD=12.3 IMA 		5-09600-013-0 01 1 1307-
21 CUP; SEALING,RR
(A) OD=38 IMA 		5-11219-017-0 01 1 1307-
21 CUP; SEALING,RR
(B) OD=36 IMA 		5-11219-018-0 01 1 1307-
23 CUP; SEALING,C/BL FRT & RR
(D) OD=45 IMA 		8-97036-550-1 03 1 1307-
23 CUP; SEALING,C/BL FRT & RR
(A) OD=36 IMA 		5-11219-018-0 02 1 1307-
23 CUP; SEALING,C/BL FRT & RR
(B) OD=18 IMA 		5-11219-008-0 02 1 1307-
23 CUP; SEALING,C/BL FRT & RR
(C) OD=32 IMA 		5-11219-015-0 04 1 1307-
70 CUP; SEALING,FRT & RR
OD=16 IMA 		5-11129-006-0 06 1 1307-
83 PIN; FLYWHEEL HSG
OD=10 L=32 THA 		9-08161-032-0 01 1 1307-
218 GASKET; PLUG,C/BL SIDE
ID=14.2 OD=20.0 THA 		9-09571-414-0 01 1 1307-1505
218 GASKET; PLUG,C/BL SIDE
EXC. PROVISIONAL PACKAGE SPEC<BCC> ID=14.2 OD=20.0 THA 		9-09571-414-0 01 1 1506-
239 NUT; STUD,C/BL
M10 FLANGE THA 		0-91180-110-0 01 1 1307-
448 PLUG; C/BL
THA 		8-97379-656-1 01 1 1307-1505
448 PLUG; C/BL
EXC. PROVISIONAL PACKAGE SPEC<BCC> THA 		8-97379-656-1 01 1 1506-
539 STUD; REAMER
M10X40 L=75.5 THA 		8-97371-842-1 01 1 1307-
