0-11 — CYLINDER HEAD (#122936) — 128 parça

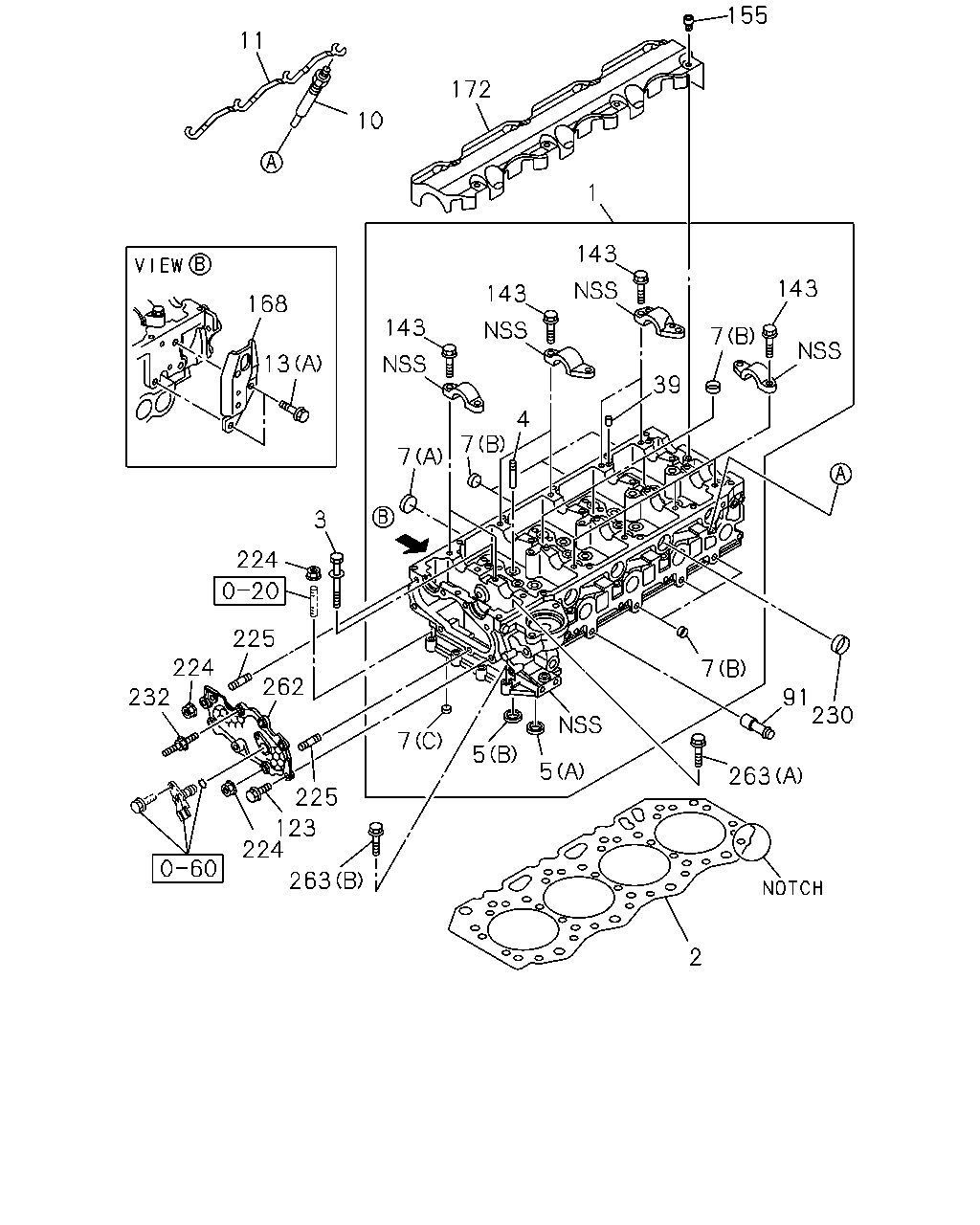

11 10 168 13 172 155 1 143 143 143 4 7 7 3 224 225 224 232 262 225 123 224 263 7 5 5 7 91 230 263 2 39 7 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEAD ASM; CYL PROVISIONAL PACKAGE SPEC<BCC> IMA	8-98270-378-1	01	1	1506-
1	HEAD ASM; CYL THA	8-98217-455-0	01	1	1307-1505
1	HEAD ASM; CYL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98217-455-0	01	1	1506-
2	GASKET; CYL HD PROVISIONAL PACKAGE SPEC<BCC> STD GRADE A T=1.14 1-HOLE THA	8-98261-318-0	01	1	1506-
2	GASKET; CYL HD PROVISIONAL PACKAGE SPEC<BCC> STD GRADE B T=1.19 2-HOLE THA	8-98261-319-0	01	1	1506-
2	GASKET; CYL HD PROVISIONAL PACKAGE SPEC<BCC> STD GRADE C T=1.24 3-HOLE THA	8-98261-320-0	01	1	1506-
2	GASKET; CYL HD STD GRADE A T=1.05 1-NOTCH THA	8-97328-866-2	01	1	1307-1307
2	GASKET; CYL HD STD GRADE A T=1.05 1-NOTCH THA	8-98241-037-0	01	1	1308-1505
2	GASKET; CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> STD GRADE A T=1.05 1-NOTCH THA	8-98241-037-0	01	1	1506-
2	GASKET; CYL HD STD GRADE B T=1.10 2-NOTCH THA	8-97328-867-2	01	1	1307-1307
2	GASKET; CYL HD STD GRADE B T=1.10 2-NOTCH THA	8-98241-038-0	01	1	1308-1505
2	GASKET; CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> STD GRADE B T=1.10 2-NOTCH THA	8-98241-038-0	01	1	1506-
2	GASKET; CYL HD STD GRADE C T=1.15 3-NOTCH THA	8-97328-868-2	01	1	1307-1307
2	GASKET; CYL HD STD GRADE C T=1.15 3-NOTCH THA	8-98241-039-0	01	1	1308-1505
2	GASKET; CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> STD GRADE C T=1.15 3-NOTCH THA	8-98241-039-0	01	1	1506-
2	GASKET; CYL HD OVER SIZE IMA	8-97388-314-0	01	1	1307-
3	BOLT; CYL HD TO BLOCK M11X114 W/WASHER IMA	8-98201-019-0	18	1	1307-
4	GUIDE; VLV PROVISIONAL PACKAGE SPEC<BCC> L=42 IMA	8-94239-423-0	16	1	1506-
4	GUIDE; VLV L=42 IMA	8-94239-423-0	16	1	1307-1505
4	GUIDE; VLV EXC. PROVISIONAL PACKAGE SPEC<BCC> L=42 IMA	8-94239-423-0	16	1	1506-
5	SEAT; VLV INSERT (A) INLET ID=29 OD=35 IMA	8-97311-378-0	08	1	1307-
5	SEAT; VLV INSERT (B) EXHAUST ID=26 OD=32 IMA	8-97311-379-0	08	1	1307-
7	CUP; SEALING,CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> (B) OD=18 IMA	5-11219-008-0	06	1	1506-
7	CUP; SEALING,CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> (C) OD=14 IMA	5-11219-011-0	02	1	1506-
7	CUP; SEALING,CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> (D) OD=8 IMA	8-97233-429-0	01	1	1506-
7	CUP; SEALING,CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> (E) OD=24 IMA	8-97333-120-0	05	1	1506-
7	CUP; SEALING,CYL HEAD (A) OD=32 IMA	1-09600-012-2	02	1	1307-1505
7	CUP; SEALING,CYL HEAD EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) OD=32 IMA	1-09600-012-2	02	1	1506-
7	CUP; SEALING,CYL HEAD (B) OD=18 IMA	5-11219-008-0	13	1	1307-1505
7	CUP; SEALING,CYL HEAD EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) OD=18 IMA	5-11219-008-0	13	1	1506-
7	CUP; SEALING,CYL HEAD (C) OD=14 IMA	5-11219-011-0	07	1	1307-1505
7	CUP; SEALING,CYL HEAD EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) OD=14 IMA	5-11219-011-0	07	1	1506-
10	PLUG; GLOW NGK THA	8-98117-567-1	04	1	1307-
11	CONNECTOR; GLOW PLUG THA	8-98209-370-0	01	1	1307-
13	BOLT; HANGER PROVISIONAL PACKAGE SPEC<BCC> (A) M8X20 HEX SOCKET IMA	0-58330-820-0	01	1	1506-
13	BOLT; HANGER PROVISIONAL PACKAGE SPEC<BCC> (B) M8X30 HEX SOCKET IMA	0-58330-830-0	01	1	1506-
13	BOLT; HANGER (C) M10X20 FLANGE THA	0-28151-020-0	02	1	1307-1505
13	BOLT; HANGER EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) M10X20 FLANGE THA	0-28151-020-0	02	1	1506-
39	DOWEL; CAP,CM/SHF PROVISIONAL PACKAGE SPEC<BCC> IMA	8-97329-129-1	26	1	1506-
39	DOWEL; CAP,CM/SHF IMA	8-97329-129-1	20	1	1307-1505
39	DOWEL; CAP,CM/SHF EXC. PROVISIONAL PACKAGE SPEC<BCC> IMA	8-97329-129-1	20	1	1506-
91	PIPE; HTR PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-414-0	01	1	1506-
91	PIPE; HTR THA	8-94343-211-1	01	1	1307-1505
91	PIPE; HTR EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-94343-211-1	01	1	1506-
123	BOLT; COVER PROVISIONAL PACKAGE SPEC<BCC> M8X20 FLANGE THA	0-28050-820-0	03	1	1506-
123	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	05	1	1307-1505
123	BOLT; COVER EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X20 FLANGE THA	0-28050-820-0	05	1	1506-
143	BOLT; FIX M8X40 FLANGE THA	0-28650-840-0	20	1	1307-1505
143	BOLT; FIX EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X40 FLANGE THA	0-28650-840-0	20	1	1506-
155	BOLT; BAFFLE PLATE M6X10 HEX SOCKET THA	0-58330-610-0	08	1	1307-
168	HANGER; ENG,FRT THA	8-98131-997-1	01	1	1307-1505
168	HANGER; ENG,FRT EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98131-997-1	01	1	1506-
172	PLATE; BAFFLE,CYL HD PROVISIONAL PACKAGE SPEC<BCC> THA	8-98250-484-0	01	1	1506-
172	PLATE; BAFFLE,CYL HD THA	8-98105-920-0	01	1	1307-1505
172	PLATE; BAFFLE,CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98105-920-0	01	1	1506-
224	NUT; COVER M8 FLANGE THA	0-91180-208-0	04	1	1307-
225	STUD; COVER M8X20 L=31 THA	8-97945-022-0	02	1	1307-
230	GASKET; SLEEVE,INJECTOR THA	8-97943-955-0	04	1	1307-
232	STUD; CAM,CARRIER M6X12 M8X17 L=37 THA	8-97375-460-0	01	1	1307-1505
232	STUD; CAM,CARRIER EXC. PROVISIONAL PACKAGE SPEC<BCC> M6X12 M8X17 L=37 THA	8-97375-460-0	01	1	1506-
262	COVER; CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> THA	8-98243-226-0	01	1	1506-
262	COVER; CYL HEAD THA	8-98131-992-1	01	1	1307-1505
262	COVER; CYL HEAD EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98131-992-1	01	1	1506-
263	BOLT; CYL HD (A) M8X60 FLANGE THA	0-28050-860-0	01	1	1307-
263	BOLT; CYL HD (B) M8X35 FLANGE THA	0-28650-835-0	03	1	1307-

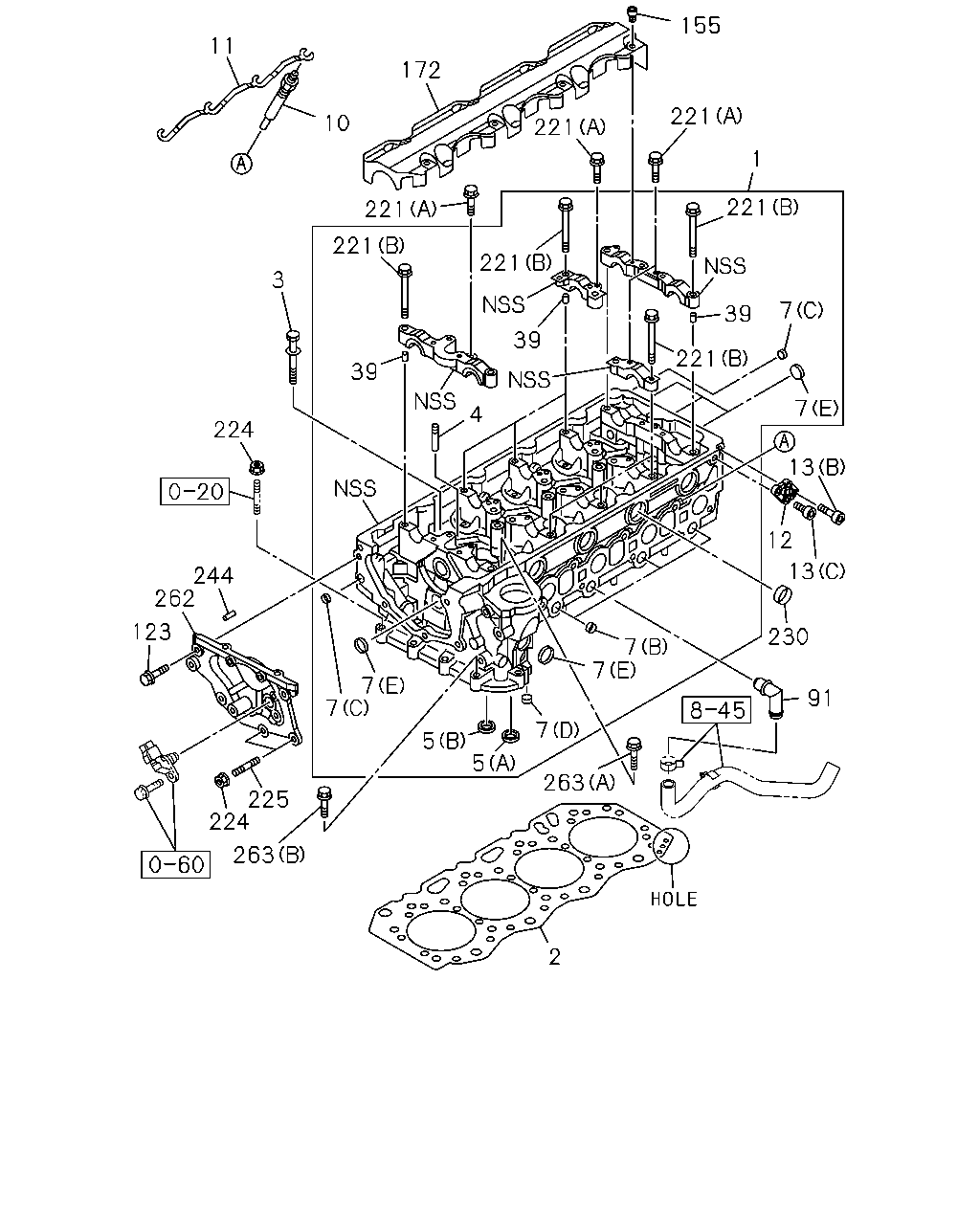

11 10 172 221 221 221 39 3 224 244 262 123 225 224 263 7 7 4 39 221 155 221 1 221 39 221 7 7 13 12 13 230 91 7 7 7 5 5 263 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEAD ASM; CYL PROVISIONAL PACKAGE SPEC<BCC> IMA	8-98270-378-1	01	1	1506-
1	HEAD ASM; CYL THA	8-98217-455-0	01	1	1307-1505
1	HEAD ASM; CYL EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98217-455-0	01	1	1506-
2	GASKET; CYL HD PROVISIONAL PACKAGE SPEC<BCC> STD GRADE A T=1.14 1-HOLE THA	8-98261-318-0	01	1	1506-
2	GASKET; CYL HD PROVISIONAL PACKAGE SPEC<BCC> STD GRADE B T=1.19 2-HOLE THA	8-98261-319-0	01	1	1506-
2	GASKET; CYL HD PROVISIONAL PACKAGE SPEC<BCC> STD GRADE C T=1.24 3-HOLE THA	8-98261-320-0	01	1	1506-
2	GASKET; CYL HD STD GRADE A T=1.05 1-NOTCH THA	8-97328-866-2	01	1	1307-1307
2	GASKET; CYL HD STD GRADE A T=1.05 1-NOTCH THA	8-98241-037-0	01	1	1308-1505
2	GASKET; CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> STD GRADE A T=1.05 1-NOTCH THA	8-98241-037-0	01	1	1506-
2	GASKET; CYL HD STD GRADE B T=1.10 2-NOTCH THA	8-97328-867-2	01	1	1307-1307
2	GASKET; CYL HD STD GRADE B T=1.10 2-NOTCH THA	8-98241-038-0	01	1	1308-1505
2	GASKET; CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> STD GRADE B T=1.10 2-NOTCH THA	8-98241-038-0	01	1	1506-
2	GASKET; CYL HD STD GRADE C T=1.15 3-NOTCH THA	8-97328-868-2	01	1	1307-1307
2	GASKET; CYL HD STD GRADE C T=1.15 3-NOTCH THA	8-98241-039-0	01	1	1308-1505
2	GASKET; CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> STD GRADE C T=1.15 3-NOTCH THA	8-98241-039-0	01	1	1506-
2	GASKET; CYL HD OVER SIZE IMA	8-97388-314-0	01	1	1307-
3	BOLT; CYL HD TO BLOCK M11X114 W/WASHER IMA	8-98201-019-0	18	1	1307-
4	GUIDE; VLV PROVISIONAL PACKAGE SPEC<BCC> L=42 IMA	8-94239-423-0	16	1	1506-
4	GUIDE; VLV L=42 IMA	8-94239-423-0	16	1	1307-1505
4	GUIDE; VLV EXC. PROVISIONAL PACKAGE SPEC<BCC> L=42 IMA	8-94239-423-0	16	1	1506-
5	SEAT; VLV INSERT (A) INLET ID=29 OD=35 IMA	8-97311-378-0	08	1	1307-
5	SEAT; VLV INSERT (B) EXHAUST ID=26 OD=32 IMA	8-97311-379-0	08	1	1307-
7	CUP; SEALING,CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> (B) OD=18 IMA	5-11219-008-0	06	1	1506-
7	CUP; SEALING,CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> (C) OD=14 IMA	5-11219-011-0	02	1	1506-
7	CUP; SEALING,CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> (D) OD=8 IMA	8-97233-429-0	01	1	1506-
7	CUP; SEALING,CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> (E) OD=24 IMA	8-97333-120-0	05	1	1506-
7	CUP; SEALING,CYL HEAD (A) OD=32 IMA	1-09600-012-2	02	1	1307-1505
7	CUP; SEALING,CYL HEAD EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) OD=32 IMA	1-09600-012-2	02	1	1506-
7	CUP; SEALING,CYL HEAD (B) OD=18 IMA	5-11219-008-0	13	1	1307-1505
7	CUP; SEALING,CYL HEAD EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) OD=18 IMA	5-11219-008-0	13	1	1506-
7	CUP; SEALING,CYL HEAD (C) OD=14 IMA	5-11219-011-0	07	1	1307-1505
7	CUP; SEALING,CYL HEAD EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) OD=14 IMA	5-11219-011-0	07	1	1506-
10	PLUG; GLOW NGK THA	8-98117-567-1	04	1	1307-
11	CONNECTOR; GLOW PLUG THA	8-98209-370-0	01	1	1307-
12	HANGER; ENG,RR PROVISIONAL PACKAGE SPEC<BCC> THA	8-98239-364-0	01	1	1506-
13	BOLT; HANGER PROVISIONAL PACKAGE SPEC<BCC> (A) M8X20 HEX SOCKET IMA	0-58330-820-0	01	1	1506-
13	BOLT; HANGER PROVISIONAL PACKAGE SPEC<BCC> (B) M8X30 HEX SOCKET IMA	0-58330-830-0	01	1	1506-
13	BOLT; HANGER (C) M10X20 FLANGE THA	0-28151-020-0	02	1	1307-1505
13	BOLT; HANGER EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) M10X20 FLANGE THA	0-28151-020-0	02	1	1506-
39	DOWEL; CAP,CM/SHF PROVISIONAL PACKAGE SPEC<BCC> IMA	8-97329-129-1	26	1	1506-
39	DOWEL; CAP,CM/SHF IMA	8-97329-129-1	20	1	1307-1505
39	DOWEL; CAP,CM/SHF EXC. PROVISIONAL PACKAGE SPEC<BCC> IMA	8-97329-129-1	20	1	1506-
91	PIPE; HTR PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-414-0	01	1	1506-
91	PIPE; HTR THA	8-94343-211-1	01	1	1307-1505
91	PIPE; HTR EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-94343-211-1	01	1	1506-
123	BOLT; COVER PROVISIONAL PACKAGE SPEC<BCC> M8X20 FLANGE THA	0-28050-820-0	03	1	1506-
123	BOLT; COVER M8X20 FLANGE THA	0-28050-820-0	05	1	1307-1505
123	BOLT; COVER EXC. PROVISIONAL PACKAGE SPEC<BCC> M8X20 FLANGE THA	0-28050-820-0	05	1	1506-
155	BOLT; BAFFLE PLATE M6X10 HEX SOCKET THA	0-58330-610-0	08	1	1307-
172	PLATE; BAFFLE,CYL HD PROVISIONAL PACKAGE SPEC<BCC> THA	8-98250-484-0	01	1	1506-
172	PLATE; BAFFLE,CYL HD THA	8-98105-920-0	01	1	1307-1505
172	PLATE; BAFFLE,CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98105-920-0	01	1	1506-
221	BOLT; BRKT PROVISIONAL PACKAGE SPEC<BCC> (A) M6X30 FLANGE IMA	0-28050-630-0	08	1	1506-
221	BOLT; BRKT PROVISIONAL PACKAGE SPEC<BCC> (B) M8X85 THA	1-09044-074-0	21	1	1506-
224	NUT; COVER M8 FLANGE THA	0-91180-208-0	04	1	1307-
225	STUD; COVER M8X20 L=31 THA	8-97945-022-0	02	1	1307-
230	GASKET; SLEEVE,INJECTOR THA	8-97943-955-0	04	1	1307-
244	PIN; HEAD GASKET PROVISIONAL PACKAGE SPEC<BCC> OD=5 L=10 IMA	9-08150-510-0	01	1	1506-
262	COVER; CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> THA	8-98243-226-0	01	1	1506-
262	COVER; CYL HEAD THA	8-98131-992-1	01	1	1307-1505
262	COVER; CYL HEAD EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98131-992-1	01	1	1506-
263	BOLT; CYL HD (A) M8X60 FLANGE THA	0-28050-860-0	01	1	1307-
263	BOLT; CYL HD (B) M8X35 FLANGE THA	0-28650-835-0	03	1	1307-
