0-10 — CYLINDER HEAD COVER (#122935) — 65 parça

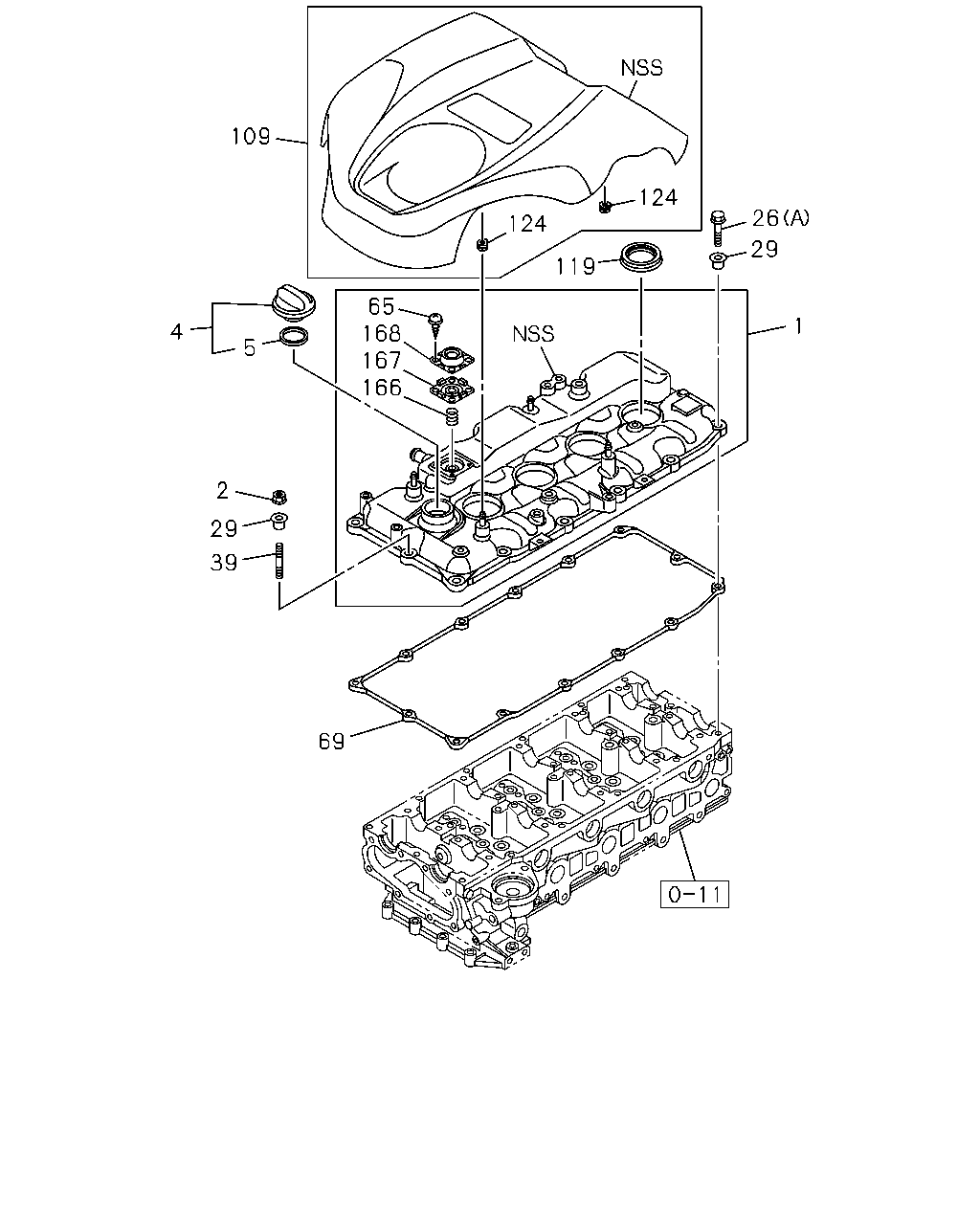

1 29 26 124 124 119 166 167 168 65 5 4 2 29 39 69 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER; CYL HD THA	8-98136-060-5	01	1	1307-1505
1	COVER; CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98136-060-5	01	1	1506-
1	COVER; CYL HD PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-367-4	01	1	1506-
2	NUT; COVER,HD M6 FLANGE THA	0-91180-206-0	01	1	1307-1505
2	NUT; COVER,HD EXC. PROVISIONAL PACKAGE SPEC<BCC> M6 FLANGE THA	0-91180-206-0	01	1	1506-
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	1307-
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	1307-
26	BOLT; CYL HD COVER PROVISIONAL PACKAGE SPEC<BCC> (B) M8X20 FLANGE THA	0-28050-820-0	01	1	1506-
26	BOLT; CYL HD COVER PROVISIONAL PACKAGE SPEC<BCC> (C) M6X25.7 FLANGE THA	8-98228-370-0	15	1	1506-
26	BOLT; CYL HD COVER (A) M6X30 FLANGE THA	0-28650-630-0	13	1	1307-1505
26	BOLT; CYL HD COVER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M6X30 FLANGE THA	0-28650-630-0	13	1	1506-
29	RUBBER; MTG,HD COVER THA	8-97361-811-1	14	1	1307-1505
29	RUBBER; MTG,HD COVER EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97361-811-1	14	1	1506-
39	STUD; COVER,HD M6X30 L=38 THA	0-41010-630-0	01	1	1307-1505
39	STUD; COVER,HD EXC. PROVISIONAL PACKAGE SPEC<BCC> M6X30 L=38 THA	0-41010-630-0	01	1	1506-
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	1307-1505
65	SCREW; ADAPTER EXC. PROVISIONAL PACKAGE SPEC<BCC> M5X10 W/LK WASHER THA	8-97366-592-0	04	1	1506-
65	SCREW; ADAPTER PROVISIONAL PACKAGE SPEC<BCC> M4X10 THA	8-98209-387-0	04	1	1506-
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	1307-1505
69	GASKET; HD TO COVER EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97945-338-0	01	1	1506-
69	GASKET; HD TO COVER PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-369-0	01	1	1506-
109	COVER; ENG THA	8-98147-400-0	01	1	1307-
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	1307-1505
119	COVER; SEAL,NOZZLE EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98037-543-0	04	1	1506-
119	COVER; SEAL,NOZZLE PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-371-0	04	1	1506-
124	RUBBER; MTG,COVER THA	8-98269-869-0	04	1	1307-
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	1307-1505
166	SPRING; VENTILATOR EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97365-998-0	01	1	1506-
166	SPRING; VENTILATOR PROVISIONAL PACKAGE SPEC<BCC> IMA	8-97088-445-0	01	1	1506-
167	DIAPHRAGM; VENTILATOR THA	8-98226-101-0	01	1	1307-1505
167	DIAPHRAGM; VENTILATOR EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98226-101-0	01	1	1506-
167	DIAPHRAGM; VENTILATOR PROVISIONAL PACKAGE SPEC<BCC> THA	8-98003-164-0	01	1	1506-
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	1307-1505
168	COVER; VENTILATOR EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97365-992-0	01	1	1506-
168	COVER; VENTILATOR PROVISIONAL PACKAGE SPEC<BCC> THA	8-98234-092-0	01	1	1506-

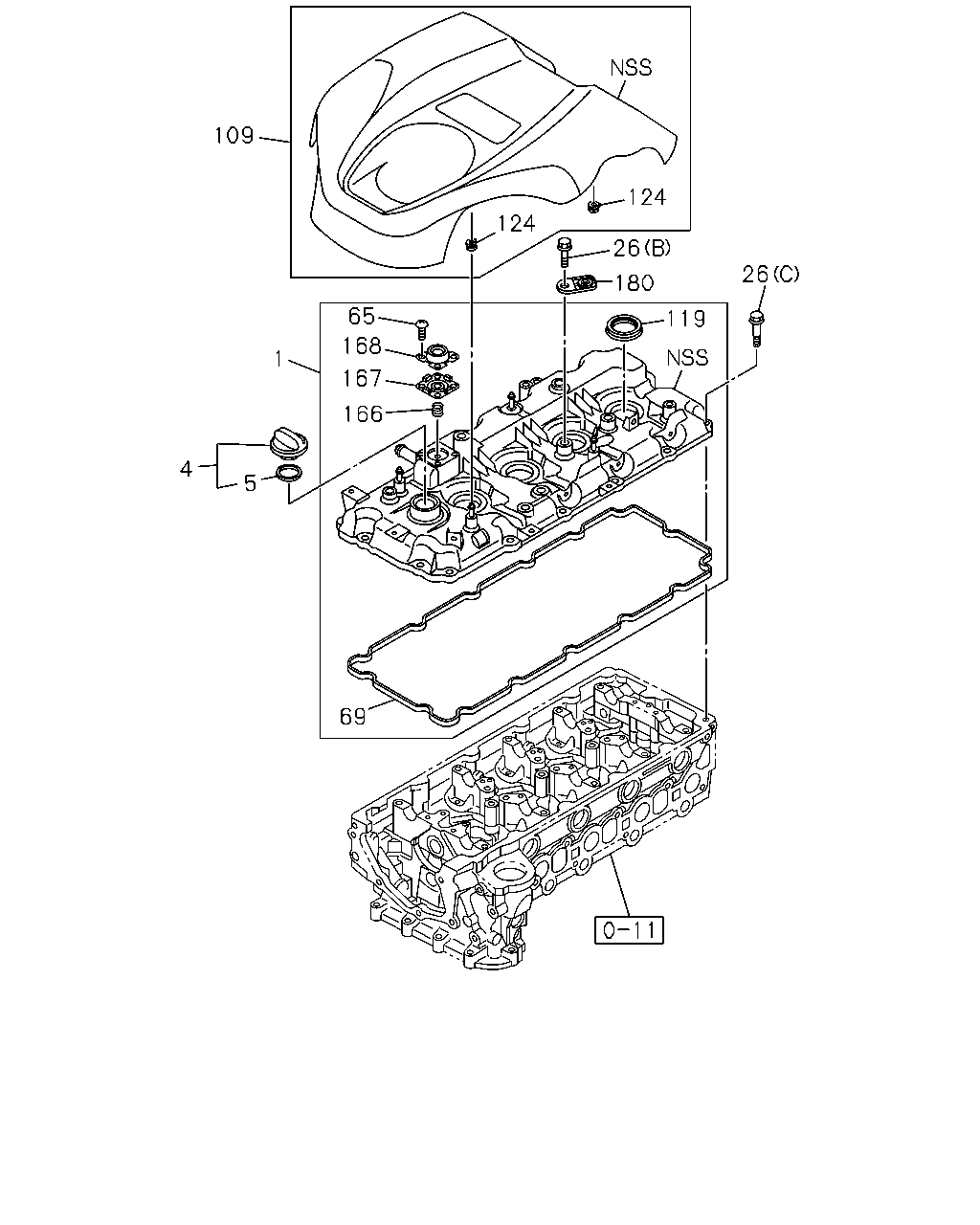

69 5 4 1 166 167 168 65 119 180 26 26 124 124 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER; CYL HD THA	8-98136-060-5	01	1	1307-1505
1	COVER; CYL HD EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98136-060-5	01	1	1506-
1	COVER; CYL HD PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-367-4	01	1	1506-
4	CAP; OIL FILLER THA	8-98026-084-0	01	1	1307-
5	GASKET; OIL FILLER ID=32 OD=40 THA	8-97918-298-0	01	1	1307-
26	BOLT; CYL HD COVER PROVISIONAL PACKAGE SPEC<BCC> (B) M8X20 FLANGE THA	0-28050-820-0	01	1	1506-
26	BOLT; CYL HD COVER PROVISIONAL PACKAGE SPEC<BCC> (C) M6X25.7 FLANGE THA	8-98228-370-0	15	1	1506-
26	BOLT; CYL HD COVER (A) M6X30 FLANGE THA	0-28650-630-0	13	1	1307-1505
26	BOLT; CYL HD COVER EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) M6X30 FLANGE THA	0-28650-630-0	13	1	1506-
65	SCREW; ADAPTER M5X10 W/LK WASHER THA	8-97366-592-0	04	1	1307-1505
65	SCREW; ADAPTER EXC. PROVISIONAL PACKAGE SPEC<BCC> M5X10 W/LK WASHER THA	8-97366-592-0	04	1	1506-
65	SCREW; ADAPTER PROVISIONAL PACKAGE SPEC<BCC> M4X10 THA	8-98209-387-0	04	1	1506-
69	GASKET; HD TO COVER THA	8-97945-338-0	01	1	1307-1505
69	GASKET; HD TO COVER EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97945-338-0	01	1	1506-
69	GASKET; HD TO COVER PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-369-0	01	1	1506-
109	COVER; ENG THA	8-98147-400-0	01	1	1307-
119	COVER; SEAL,NOZZLE THA	8-98037-543-0	04	1	1307-1505
119	COVER; SEAL,NOZZLE EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98037-543-0	04	1	1506-
119	COVER; SEAL,NOZZLE PROVISIONAL PACKAGE SPEC<BCC> THA	8-98228-371-0	04	1	1506-
124	RUBBER; MTG,COVER THA	8-98269-869-0	04	1	1307-
166	SPRING; VENTILATOR THA	8-97365-998-0	01	1	1307-1505
166	SPRING; VENTILATOR EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97365-998-0	01	1	1506-
166	SPRING; VENTILATOR PROVISIONAL PACKAGE SPEC<BCC> IMA	8-97088-445-0	01	1	1506-
167	DIAPHRAGM; VENTILATOR THA	8-98226-101-0	01	1	1307-1505
167	DIAPHRAGM; VENTILATOR EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-98226-101-0	01	1	1506-
167	DIAPHRAGM; VENTILATOR PROVISIONAL PACKAGE SPEC<BCC> THA	8-98003-164-0	01	1	1506-
168	COVER; VENTILATOR THA	8-97365-992-0	01	1	1307-1505
168	COVER; VENTILATOR EXC. PROVISIONAL PACKAGE SPEC<BCC> THA	8-97365-992-0	01	1	1506-
168	COVER; VENTILATOR PROVISIONAL PACKAGE SPEC<BCC> THA	8-98234-092-0	01	1	1506-
180	DAMPENER; CYL HEAD PROVISIONAL PACKAGE SPEC<BCC> THA	8-98244-154-0	01	1	1506-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
