Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
9 - Tools
▶
9-01 - TOOLS
▶
9-01 — TOOLS
(#122934) — 28 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

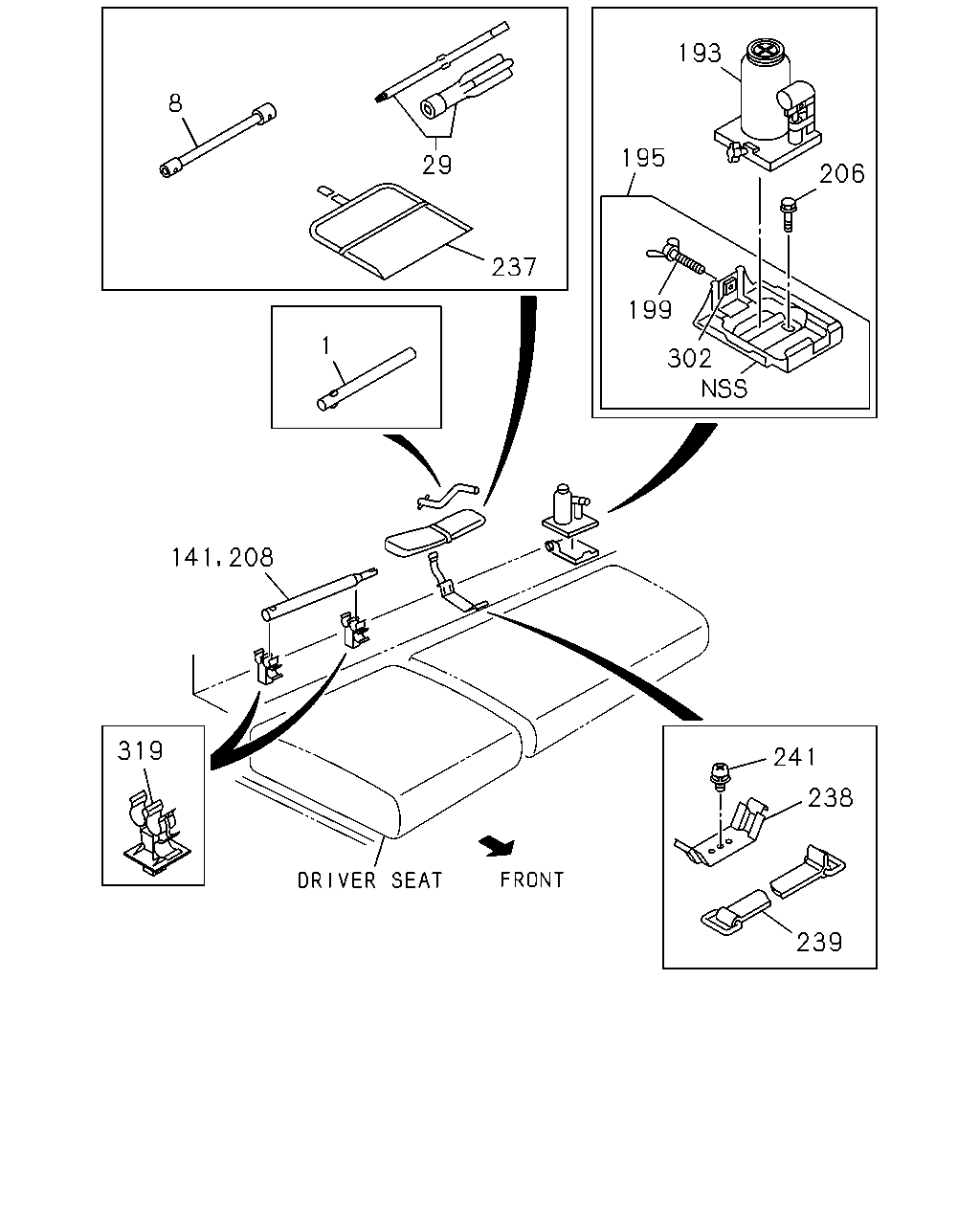

[901A] TOOLS (20 parça)
[901A] TOOL BOX (6 parça)
[901A] SEAL (2 parça)
▶
8
29
237
1
141
208
319
239
238
241
302
199
195
193
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HANDLE; SPARE TIRE CARRIER
L=280
8-98181-251-0
01
1
1306-
●
●
8
WRENCH; WHEEL
B=41X21 L=440 SOU
1-85113-015-1
01
1
1306-1601
●
●
8
WRENCH; WHEEL
B=41X21 L=445 SOU
8-98316-703-0
01
1
1602-
●
●
29
DRIVER; SCREW
<+>,<-> L=160 SOU
8-94242-798-1
01
1
1306-
●
●
141
HANDLE; WRENCH
L=580
8-98181-249-0
01
1
1306-
●
193
JACK ASM
5TON
8-98114-045-0
01
1
1306-
●
●
195
BRACKET; JACK
8-97589-376-2
01
1
1306-
●
195
BRACKET; JACK
8-94273-287-7
01
1
1306-
●
199
BOLT; JACK
M8X30 WING
8-98005-536-0
01
1
1306-
●
199
BOLT; JACK
M8X30 WING
8-94279-018-1
01
1
1306-
●
206
SCREW; OIL JACK BRKT
M8X25 FLANGE SOU
0-28650-825-0
01
1
1306-
●
206
SCREW; OIL JACK BRKT
M6X16
0-38050-616-0
01
1
1306-
●
208
HANDLE; JACK
L=580
8-98181-249-0
01
1
1306-
●
237
BAG; TOOL
SOU
8-97130-903-1
01
1
1306-
●
●
238
SUPPORT; TOOL BAG
SOU
8-97994-977-0
01
1
1306-
●
239
BAND; TOOL BAG
L=100 SOU
5-73997-026-1
01
1
1306-
●
●
241
SCREW; TOOL BAG SUPPORT
M6X16
0-38050-616-0
01
1
1306-
●
302
NUT; JACK BRKT
8-98021-556-0
01
1
1306-
●
302
NUT; JACK BRKT
SOU
8-94279-522-0
01
1
1306-
●
319
CLIP; TOOL BAR
SOU
8-97853-077-2
02
1
1306-
●
●
284
280
284
280
284
281
285
284
285
281
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
280
BOX; TOOL
TOOL & STORAGE BOX<VK2>
8-97384-079-0
01
1
1306-
●
●
281
BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B)
8-98045-642-1
01
1
1306-
●
281
BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A)
8-98130-709-0
01
1
1306-
●
284
BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU
0-28651-030-0
04
1
1306-
●
●
284
BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU
0-28651-030-0
04
1
1306-
●
285
NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10 FLANGE SOU
0-91180-110-0
04
1
1306-
●
●
450
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
450
SEAL; HOLE
(A) OD=36 T=0.05 BLACK SOU
5-76777-035-0
02
1
1306-
●
450
SEAL; HOLE
(B) OD=20 T=0.05 BLACK
5-76777-036-0
03
1
1306-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
