8-75 — CONDENSER (#122931) — 12 parça

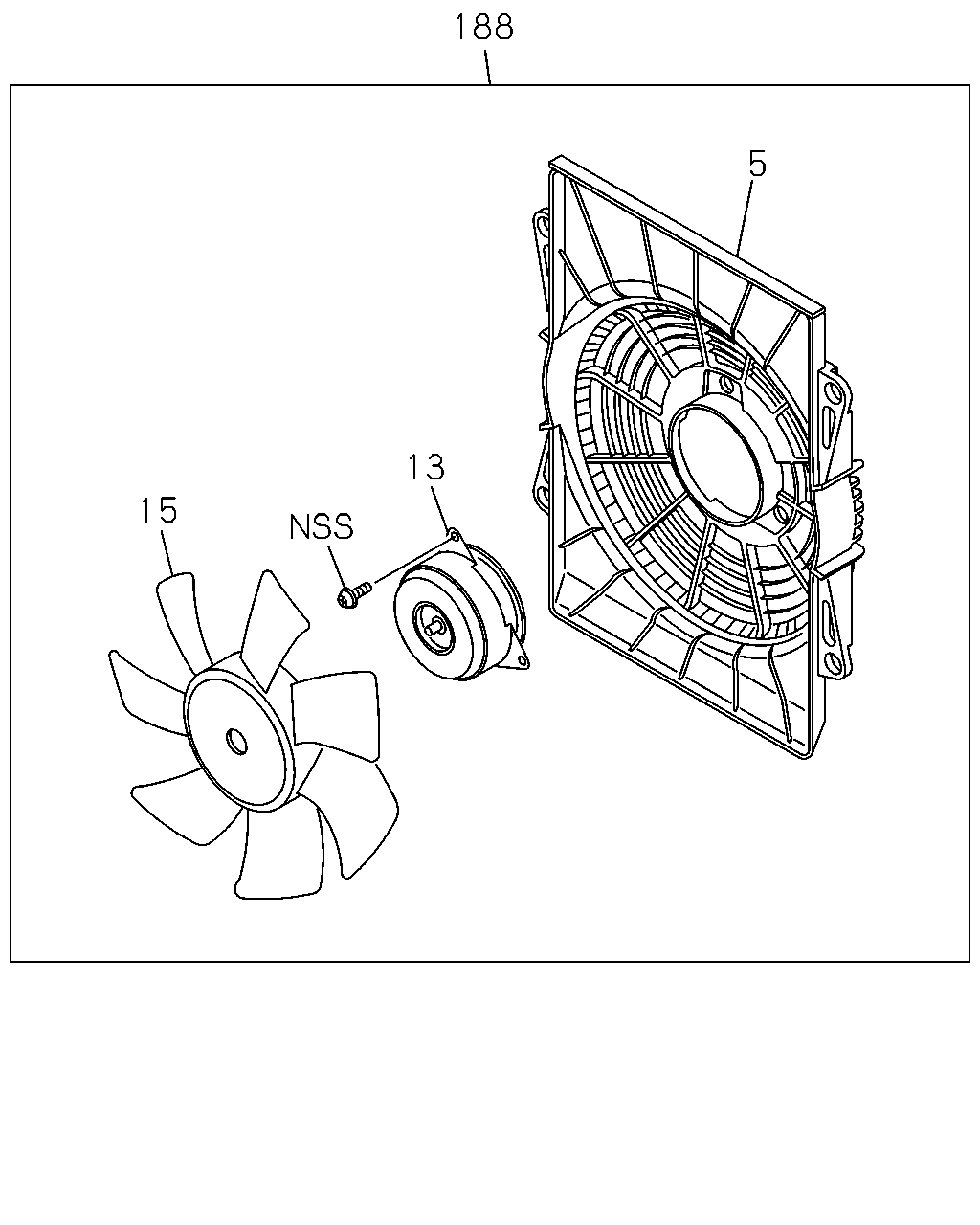

çizim 357180
188 5 13 15
BalonParca AdiParca NoAdetTipApplied Date A B
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-866-0 01 1 1306- ● ●
13 MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-045-0 01 1 1306- ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98152-861-0 01 1 1306- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-461-0 01 1 1306- ● ●

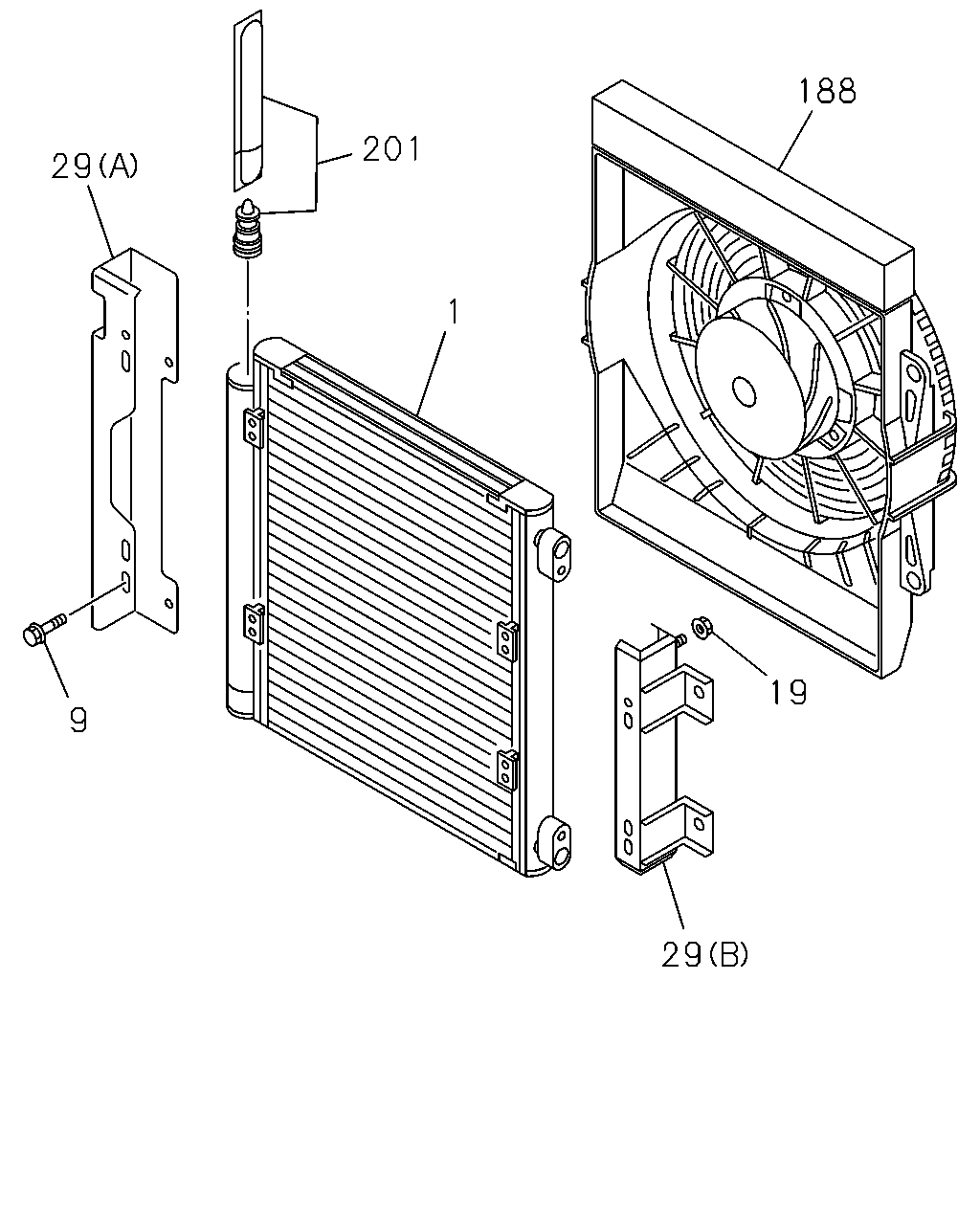

çizim 357592
29 9 201 1 188 19 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-456-1 01 1 1306- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6X14 		1-83539-382-0 08 1 1306- ● ●
19 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 04 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98042-466-0 01 1 1306- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98042-467-0 01 1 1306- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60) 		8-98042-461-0 01 1 1306- ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		1-83535-097-0 01 1 1306-1409 ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98282-482-0 01 1 1410- ● ●
