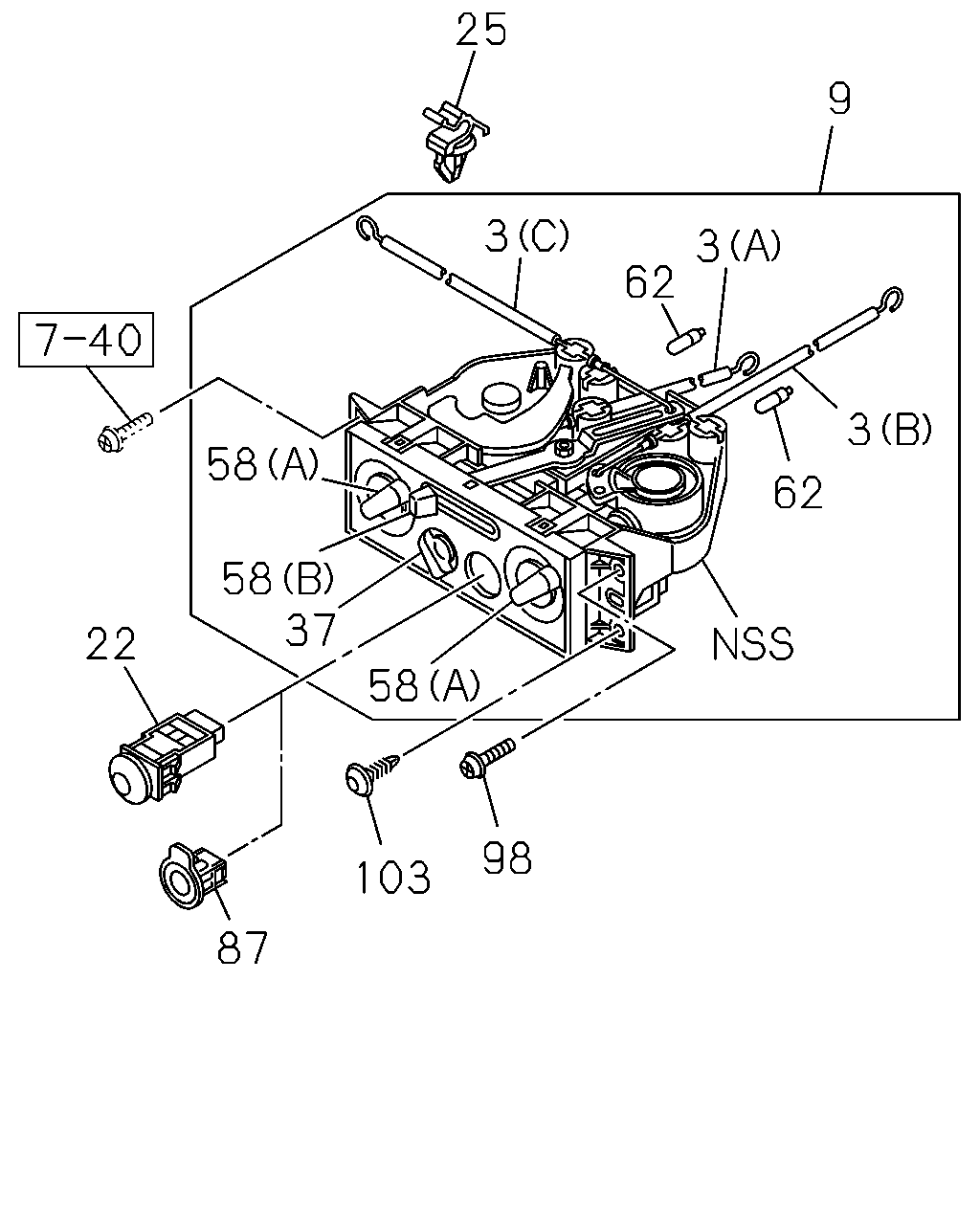

8-65 — CONTROL LEVER; HEATER AND AIR CON (#122928) — 13 parça

25 9 3 3 62 3 62 58 58 22 37 87 58 103 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE	8-98039-250-0	01	1	1306-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX	8-98039-251-0	01	1	1306-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH	8-98039-253-2	01	1	1306-	●	●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98037-363-2	01	1	1306-	●	●
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60)	8-98021-982-0	01	1	1306-	●	●
25	CLIP; CABLE,CONT LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=4.8	8-94128-483-0	01	1	1306-	●	●
37	KNOB; SW,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98037-368-0	01	1	1306-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98037-369-0	02	1	1306-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98037-370-0	01	1	1306-	●	●
62	BULB; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W	8-98037-371-0	02	1	1306-	●	●
87	CAP; A/C SWITCH HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	1306-	●	●
98	SCREW; CONT PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	1306-	●	●
103	CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) DARK GRAY	8-97098-326-0	01	1	1306-	●	●
