8-52 — PIPING; AIR CONDITIONING (#122926) — 31 parça

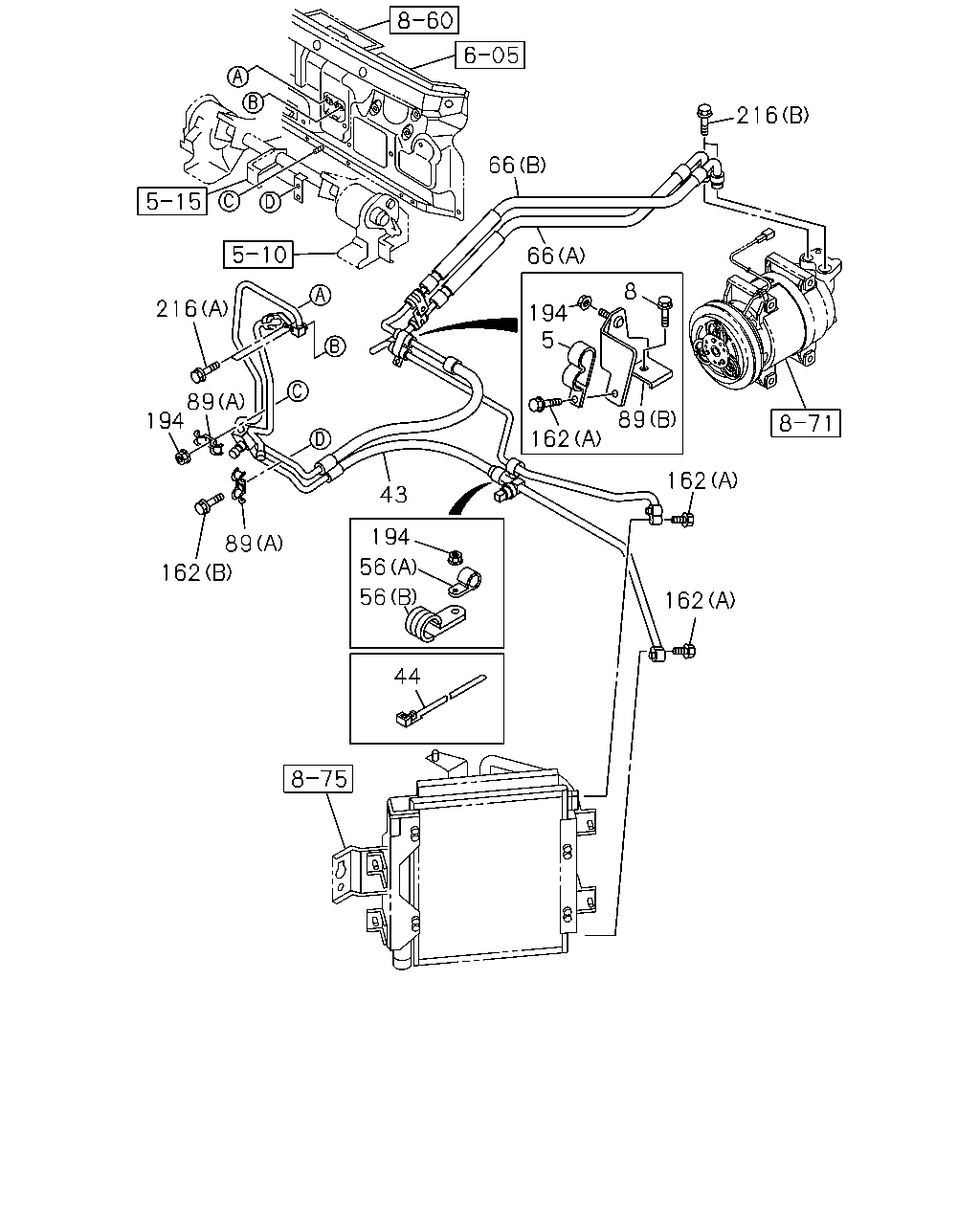

çizim 357138
66 216 89 194 89 162 43 194 56 56 44 162 162 89 162 5 194 66 216 8
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98052-857-0 01 1 1306- ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
43 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98179-006-0 01 1 1306- ● ●
44 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) L=250 SOU 		5-09707-030-1 01 1 1306- ● ●
44 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) L=250 SOU 		5-09707-030-1 01 1 1306- ● ●
44 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) L=170.3 		1-09987-182-0 01 1 1306- ● ●
44 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) L=350 		8-94152-256-1 01 1 1306- ● ●
56 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) ID=13 L=20 		0-95235-232-0 01 1 1306- ● ●
56 CLIP; PIPE,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98032-641-0 01 1 1306- ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE 		8-98098-289-0 01 1 1306- ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE 		8-98159-629-1 01 1 1306- ● ●
89 BRACKET; A/C PIPE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98002-365-2 01 1 1306- ● ●
89 BRACKET; A/C PIPE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98151-264-0 02 1 1306- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 FLANGE SOU 		0-28650-620-0 01 1 1306- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE SOU 		0-28650-625-0 01 1 1306- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE SOU 		0-28650-625-0 02 1 1306- ● ●
194 NUT; HOSE
AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU 		0-91180-106-0 03 1 1306- ● ●
216 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) (A) M6X30 FLANGE 		0-28650-630-0 02 1 1306- ● ●
216 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
çizim 357477
43 148 147 50 202 66 67 67 66 67 67 148 147 50
BalonParca AdiParca NoAdetTipApplied Date A B
43 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98179-006-0 01 1 1306- ● ●
50 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONT(C60) ID=7.5 		1-83539-316-0 02 1 1306- ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE 		8-98098-289-0 01 1 1306- ● ●
66 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE 		8-98159-629-1 01 1 1306- ● ●
67 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7 		8-97095-907-0 02 1 1306- ● ●
67 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5 		8-97095-908-0 01 1 1306- ● ●
67 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6 		8-98036-895-0 01 1 1306- ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L 		1-83539-331-0 01 1 1306- ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H 		8-97095-911-0 01 1 1306- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-909-0 01 1 1306- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98031-629-0 01 1 1306- ● ●
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONT(C60) 		1-83564-392-1 01 1 1306- ● ●
