8-28 — CHASSIS ELECTRICAL (#122922) — 21 parça

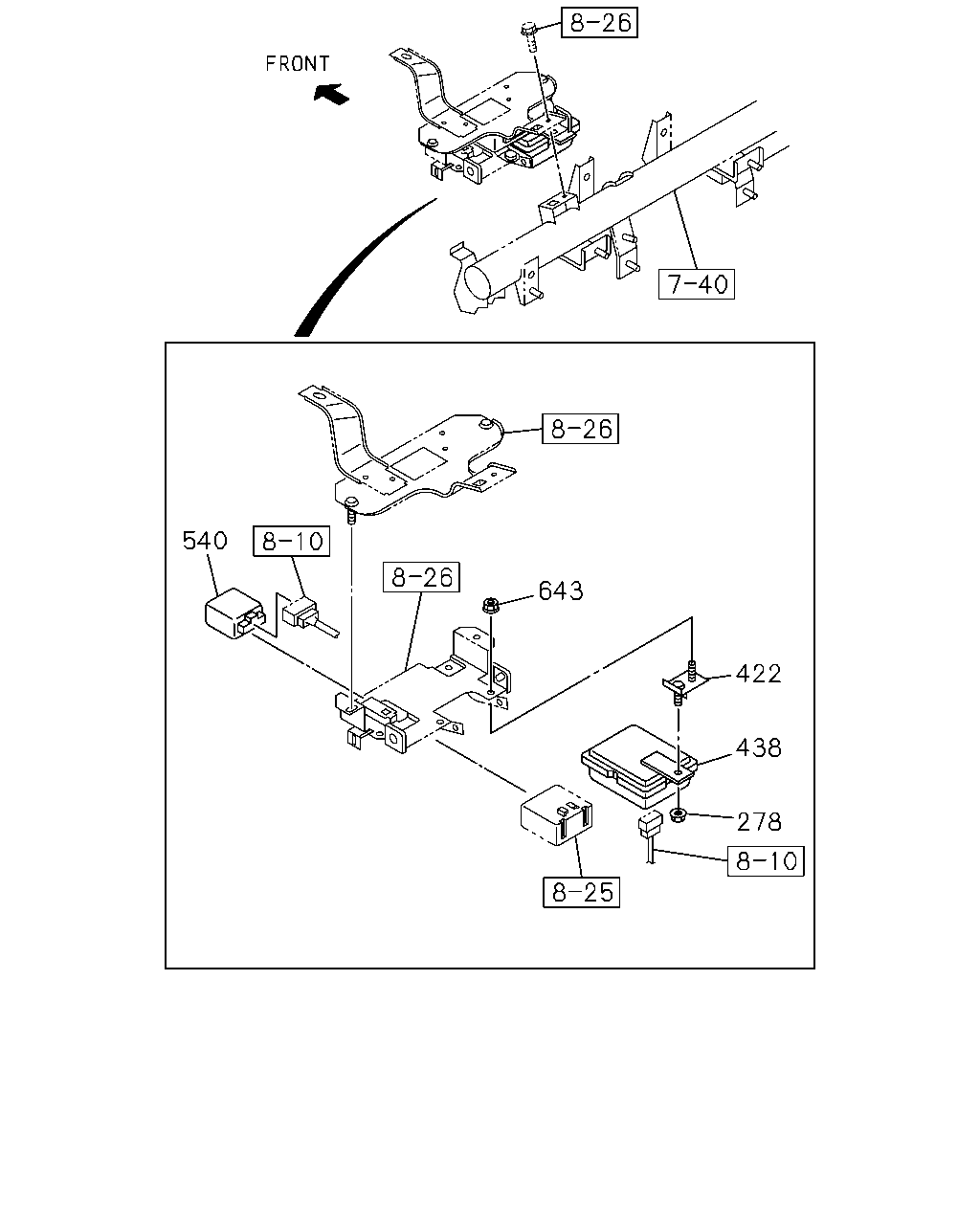

643 422 438 278 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
278	NUT; CONT UNIT M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●
422	BRACKET; CONT UNIT	8-98082-304-0	01	1	1306-	●	●
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1306-	●	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	1306-1308	●	●
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-	●	●
643	NUT; BRKT,CONT UNIT M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●

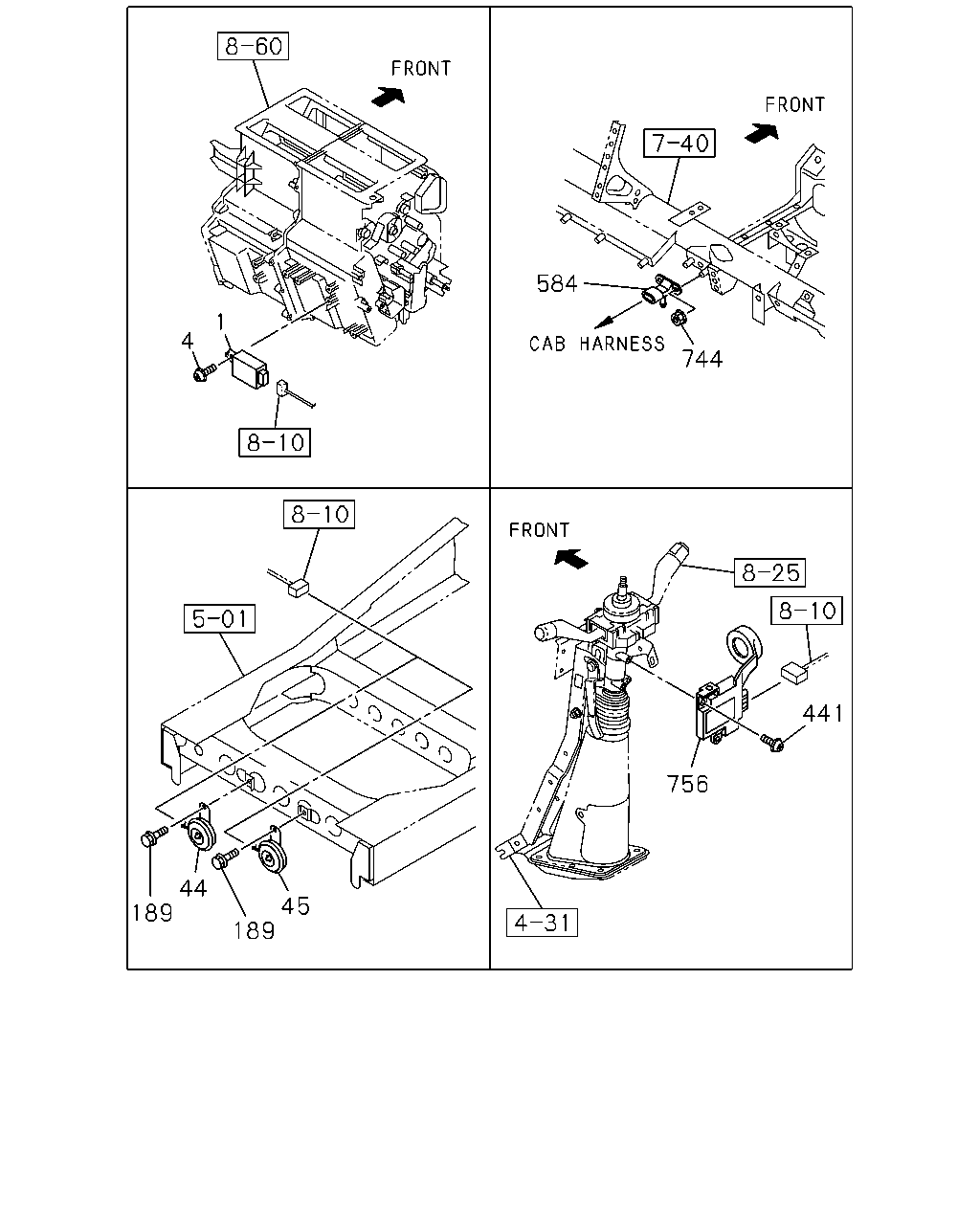

4 1 584 744 441 756 44 189 45 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	1306-	●	●
4	SCREW; FLASHER UNIT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1306-	●	●
44	HORN; HIGH NOTE	8-98070-080-0	01	1	1306-	●	●
45	HORN; LOW NOTE	8-98022-023-0	01	1	1306-	●	●
189	BOLT; HORN M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1306-	●	●
189	BOLT; HORN M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1306-	●	●
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1306-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1306-	●	●
744	NUT; SENSOR M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1306-	●	●

616 616 531 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1306-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
616	RELAY; TRANSFER 24V 10A PANASONIC	8-97173-035-1	02	1	1306-	●	●
666	RELAY; STARTER 24V 10A PANASONIC	8-98167-173-0	01	1	1306-	●	●

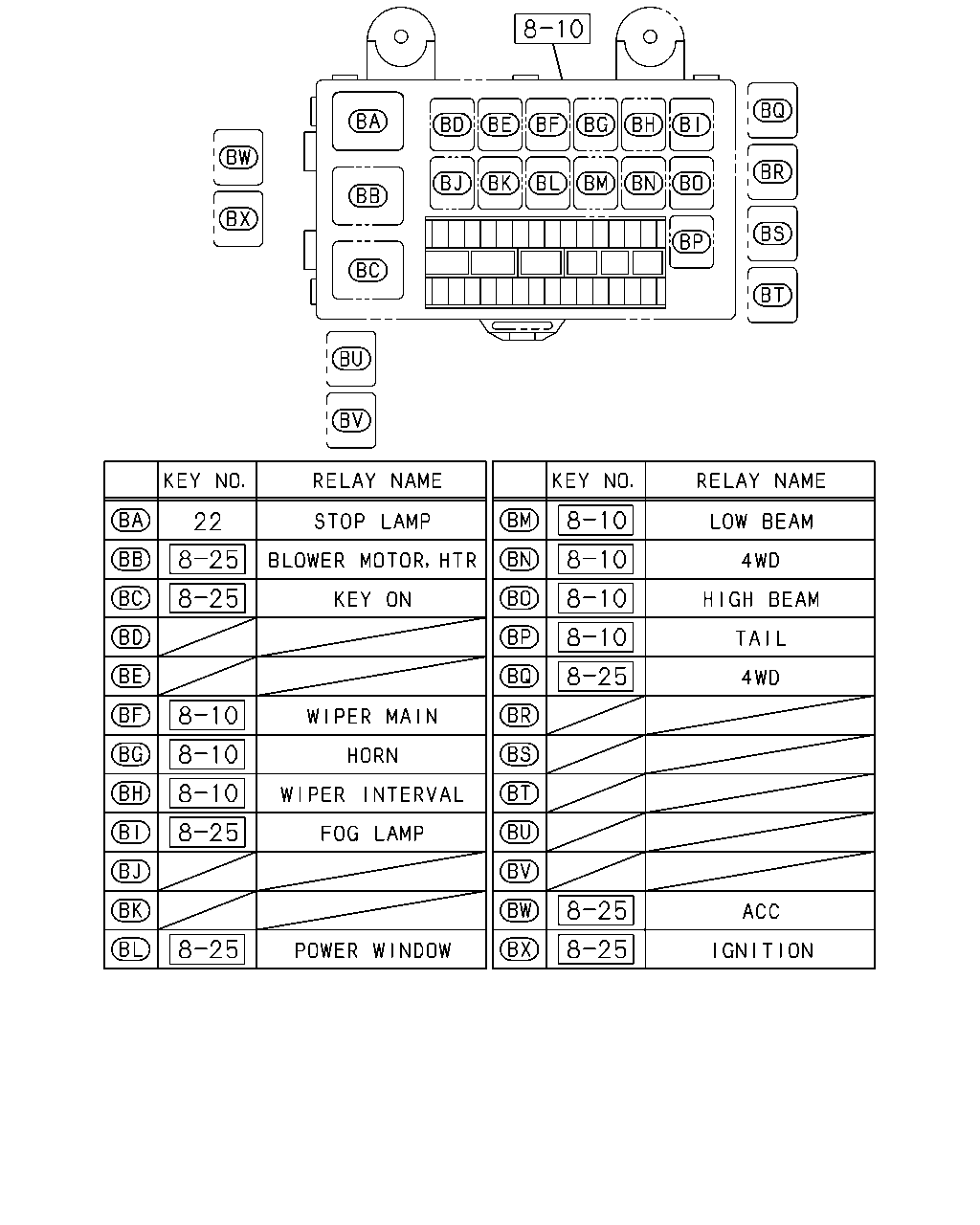

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1306-	●	●
