8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#122920) — 22 parça

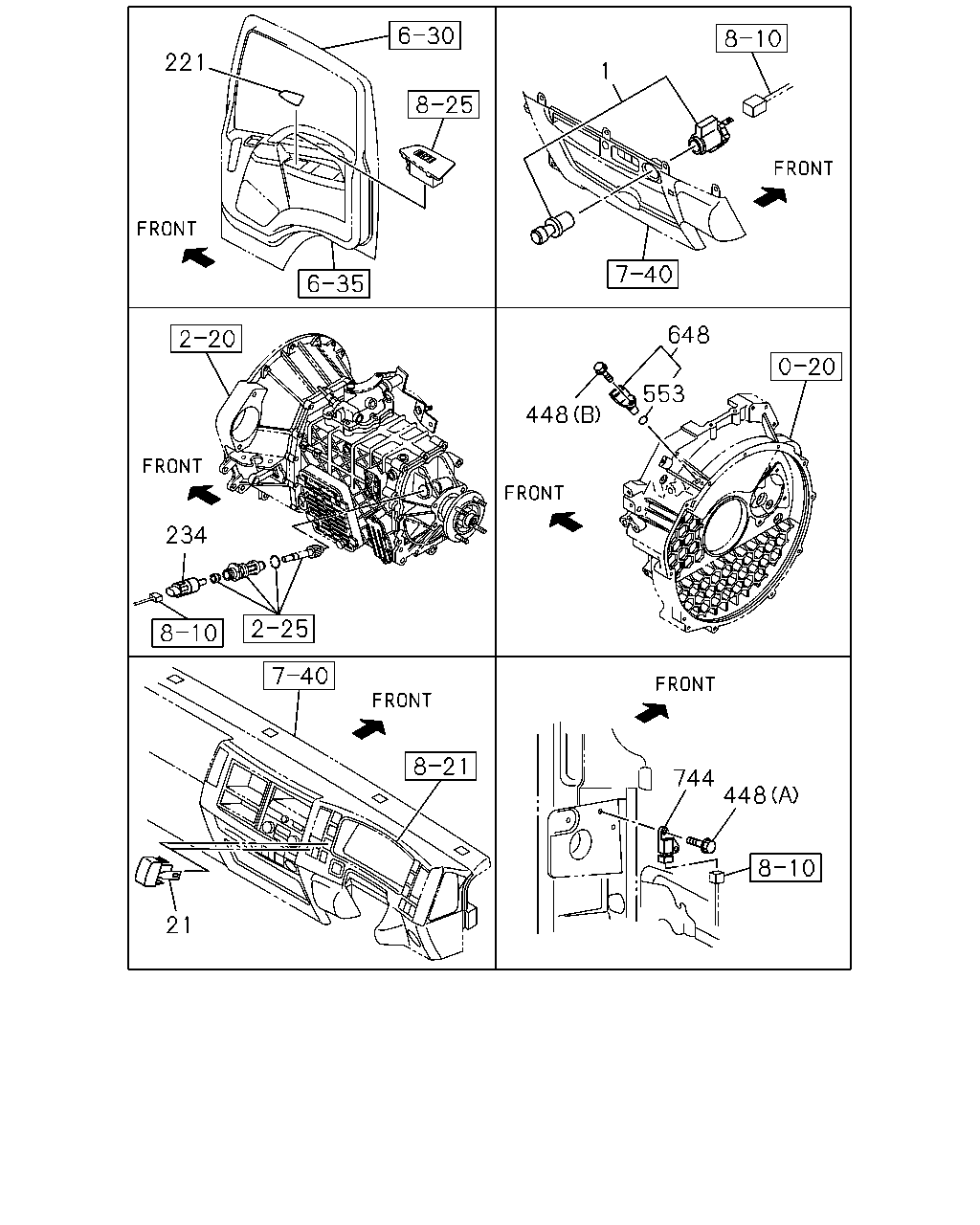

çizim 357469
221 1 234 448 648 553 21 744 448
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1306- ● ●
21 COVER; HOLE 8-98025-954-1 02 1 1306-1511 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1306- ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1306- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1306- ●
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1306- ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1306-1405 ● ●
234 SENSOR; VEHICLE SPD
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1406- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1306- ● ●
448 BOLT; SENSOR
(B) M6X16 FLANGE SOU 		0-28050-616-0 01 1 1306- ● ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1306- ● ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1306- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 1306- ● ●

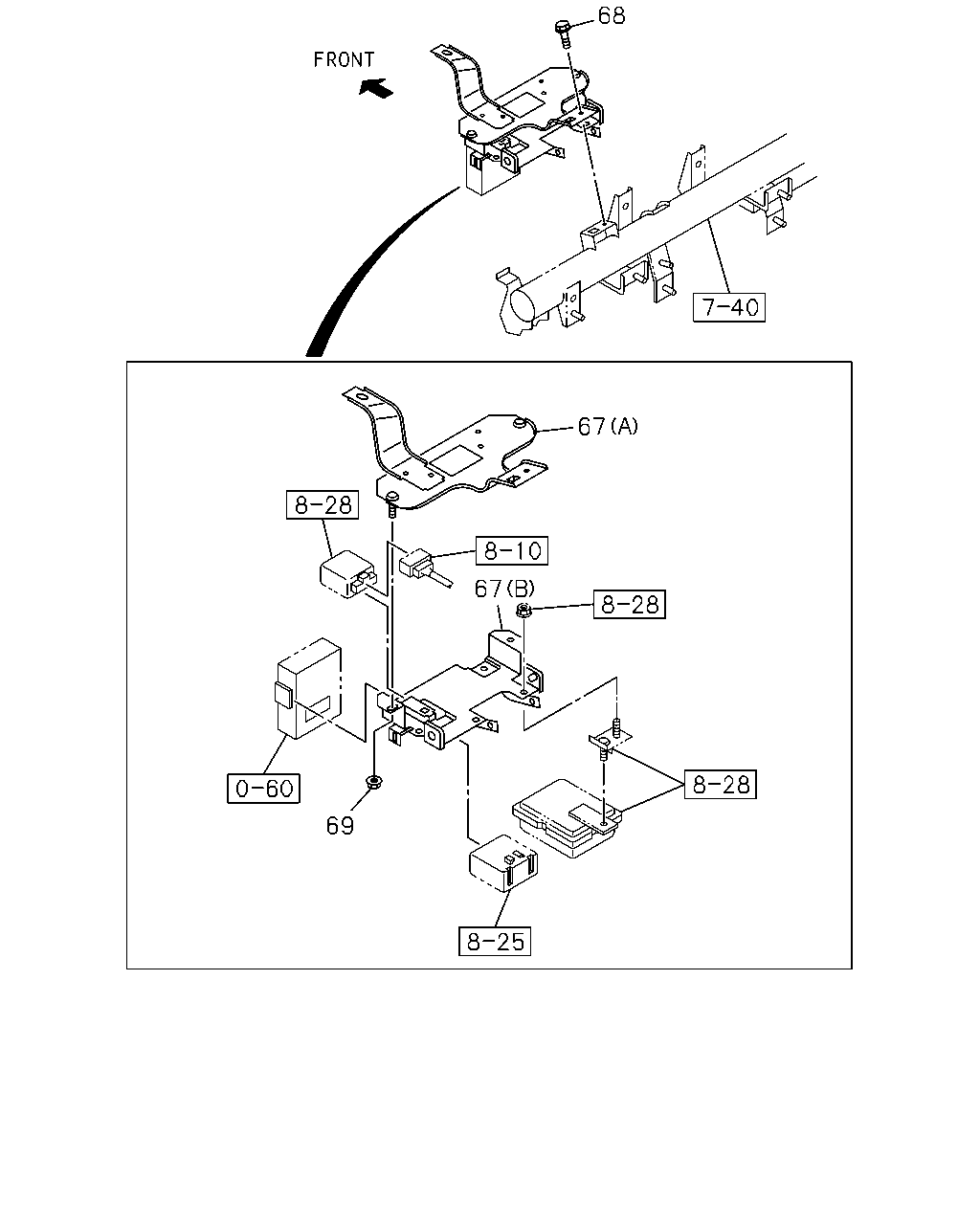

çizim 357798
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1306- ● ●
67 BRACKET; CONT UNIT
(B) 		8-98237-555-0 01 1 1306-1404 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405-1405 ● ●
67 BRACKET; CONT UNIT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98217-377-0 01 1 1406-1406 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1407- ● ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 1306- ● ●
69 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ●
