8-21 — METER ASM (#122918) — 21 parça

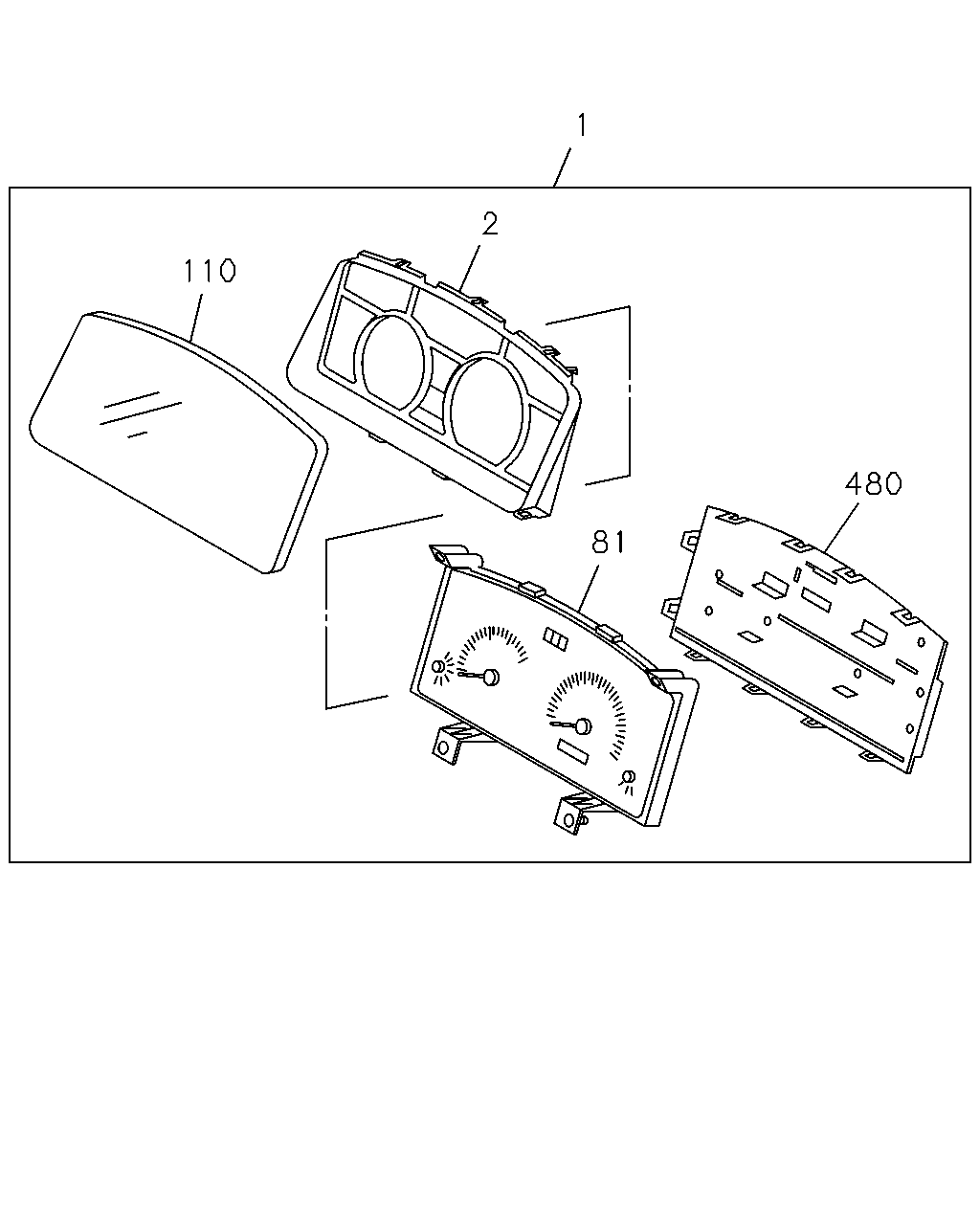

1 2 110 81 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98275-984-0	01	1	1407-1511	●	●
1	METER COMPL; CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98328-725-0	01	1	1512-	●	●
1	METER COMPL; CLUSTER	8-98096-900-4	01	1	1306-1406	●	●
1	METER COMPL; CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98096-900-4	01	1	1407-	●	●
2	PANEL; CLUSTER	8-98054-432-0	01	1	1306-	●	●
81	METER SUB ASM 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98288-214-0	01	1	1407-1511	●	●
81	METER SUB ASM 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98328-728-0	01	1	1512-	●	●
81	METER SUB ASM	8-98096-965-0	01	1	1306-1406	●	●
81	METER SUB ASM EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98096-965-0	01	1	1407-	●	●
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	1306-	●	●
480	COVER; METER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98151-362-0	01	1	1407-	●	●
480	COVER; METER BLACK	8-98054-433-0	01	1	1306-1406	●	●
480	COVER; METER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BLACK	8-98054-433-0	01	1	1407-	●	●

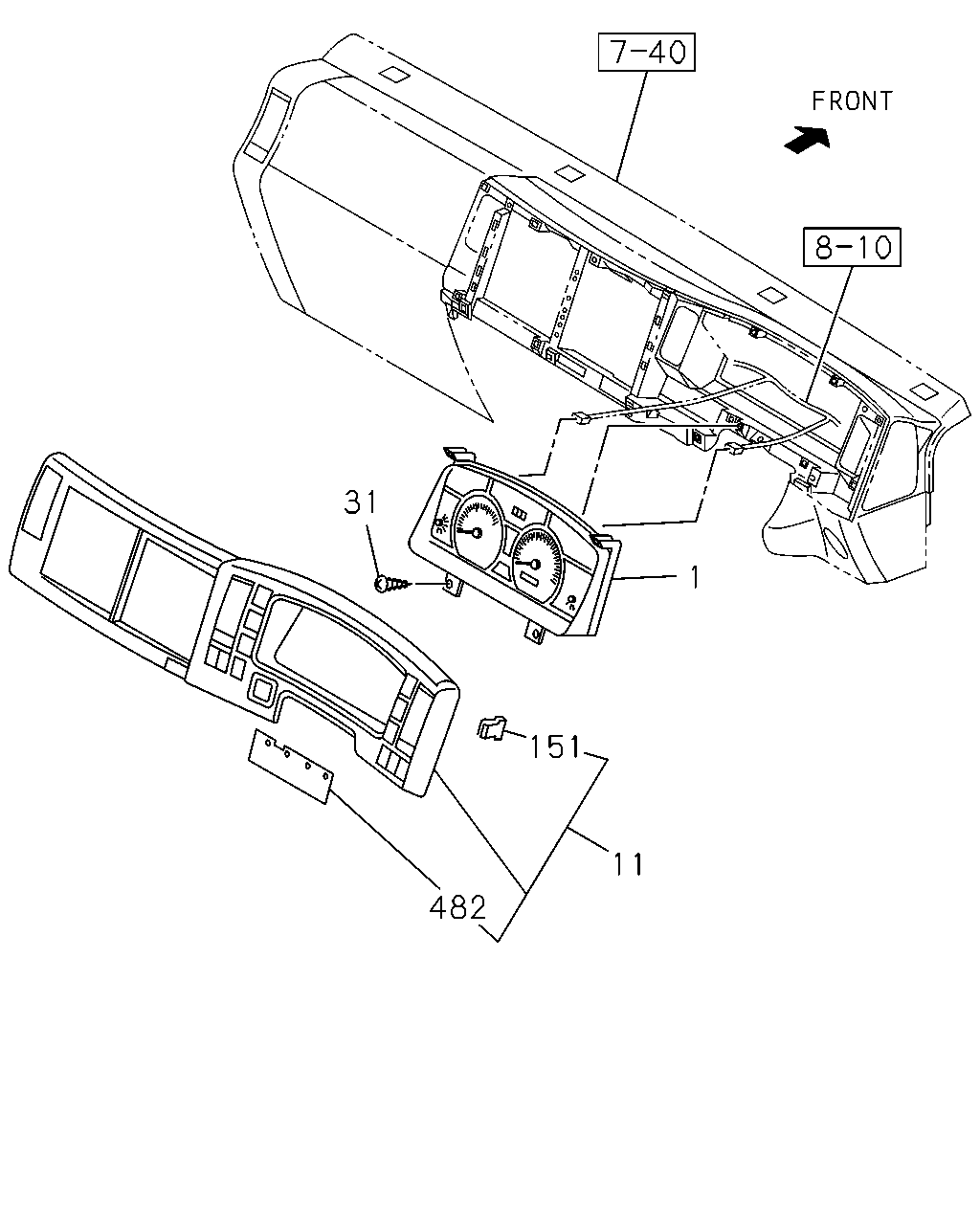

1 11 482 151 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98275-984-0	01	1	1407-1511	●	●
1	METER COMPL; CLUSTER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98328-725-0	01	1	1512-	●	●
1	METER COMPL; CLUSTER	8-98096-900-4	01	1	1306-1406	●	●
1	METER COMPL; CLUSTER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98096-900-4	01	1	1407-	●	●
11	CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	1306-	●	●
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1306-	●	●
151	CLIP; METER CLUSTER	8-98021-271-0	13	1	1306-	●	●
482	SEAL; CLUSTER METER	8-98116-842-0	01	1	1306-	●	●
