8-15 — FIXING PARTS; WIRING HARNESS (#122917) — 105 parça
çizim 357201
150 313 139 150 480 529 480 377 377 386 386 139 24 515 552 294 515 552 24 515 577
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1306-1409 ● ●
24 NUT; HARNESS
(A) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410- ● ●
24 NUT; HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ●
150 BOLT; CLIP
(A) M6X10 FLANGE SOU 		0-28050-610-0 01 1 1306- ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1306- ● ●
294 NUT
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
313 BOLT; BRKT
M6X16 FLANGE SOU 		0-28450-616-0 01 1 1306- ● ●
377 BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1306- ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1306- ● ●
386 BOLT; GRAND HARNESS
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1306- ● ●
386 BOLT; GRAND HARNESS
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1306- ● ●
480 BOLT; BRKT
(B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
480 BOLT; BRKT
(A) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1306- ● ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
515 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1306- ● ●
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 1306- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
577 NUT; FUSE BOX
M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ● ●

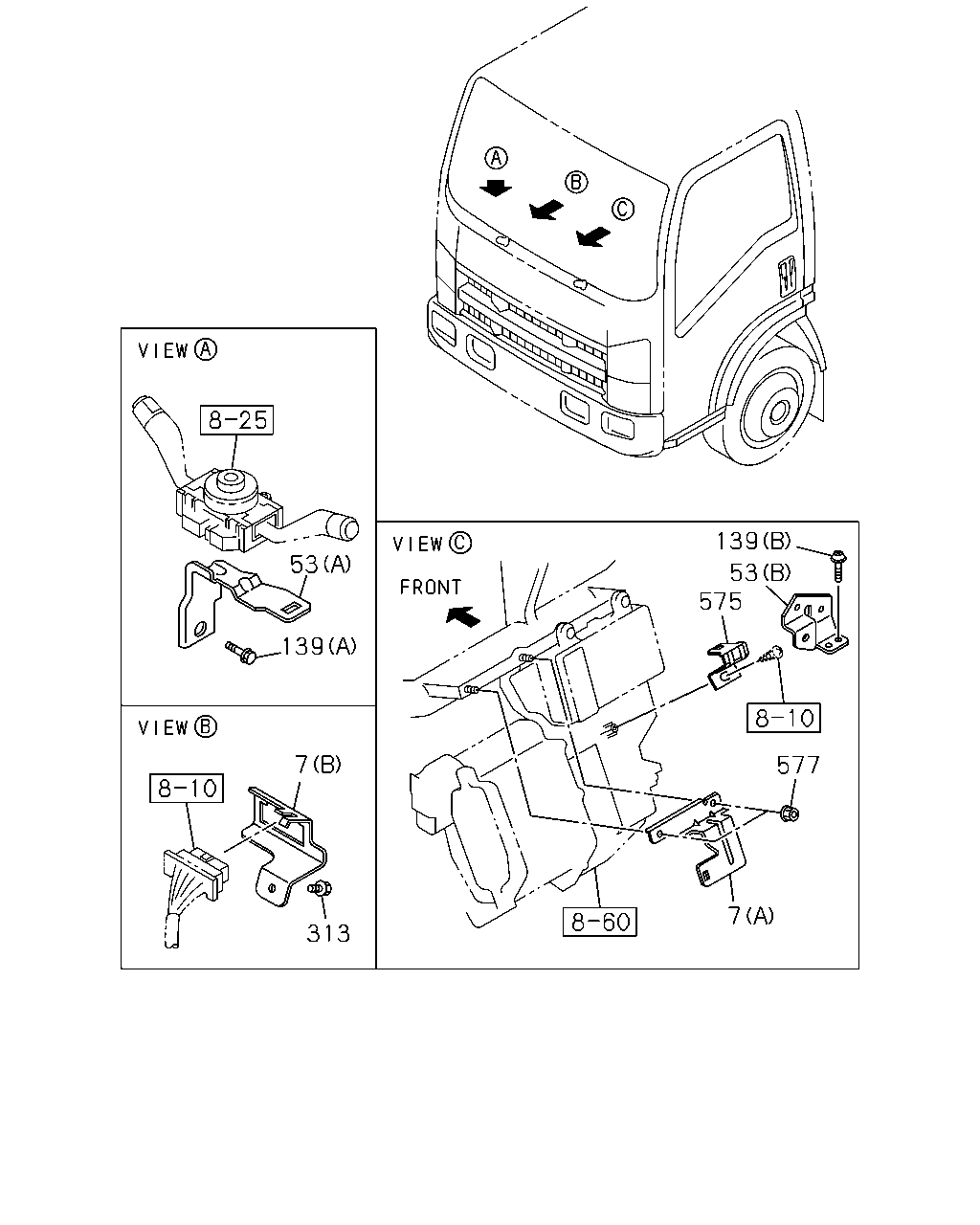

çizim 357273
53 139 313 7 7 577 575 139 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR
(A) 		8-98029-762-4 01 1 1306- ● ●
7 BRACKET; CONNECTOR
(B) 		8-98043-070-1 01 1 1306- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1306- ● ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1306- ● ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(E) 		8-98130-669-1 01 1 1306- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98084-590-0 01 1 1306- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ●
313 BOLT; BRKT
M6X16 FLANGE SOU 		0-28450-616-0 01 1 1306- ● ●
575 BRACKET; FUSE BOX 8-98042-656-2 01 1 1306- ● ●
577 NUT; FUSE BOX
M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ● ●
çizim 357398
22 483 483 48 48 483 16 483 102 14 16 102 48
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=150 		8-97355-273-0 01 1 1306- ● ●
16 CLIP; HARNESS
(F) L=250 SOU 		5-09707-030-1 01 1 1306- ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1306- ● ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 1306- ● ●
16 CLIP; HARNESS
(G) 		8-97101-436-0 01 1 1306- ● ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 1306- ● ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1306- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1306- ● ●
22 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306-1405 ● ●
22 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306-1405 ● ●
22 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1406-1408 ● ●
22 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1406-1408 ● ●
22 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1409- ● ●
22 CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1409- ● ●
48 CLIP; FRAME HARNESS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=14 L=47 SOU 		5-09700-319-0 05 1 1406- ● ●
48 CLIP; FRAME HARNESS
(B) L=450 		1-09707-142-1 01 1 1306- ●
48 CLIP; FRAME HARNESS
(A) ID=10 & 16.5 		8-94424-440-0 01 1 1306- ●
48 CLIP; FRAME HARNESS
(C) ID=14 L=47 SOU 		5-09700-319-0 05 1 1306-1405 ● ●
48 CLIP; FRAME HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=14 L=47 SOU 		5-09700-319-0 04 1 1406- ● ●
102 CLIP; BAND
(A) L=250 SOU 		5-09707-030-1 01 1 1306- ● ●
102 CLIP; BAND
(B) L=140 SOU 		5-09707-031-1 02 1 1306- ● ●
483 CLIP; ENG HARNESS
(D) ID=19 L=60 		0-95235-896-0 01 1 1306- ● ●
483 CLIP; ENG HARNESS
(A) ID=12 L=70 		1-09700-097-1 01 1 1306- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1306- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 04 1 1306- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ●
çizim 357437
16 483 16 16 16 16 530 513
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(F) L=250 SOU 		5-09707-030-1 01 1 1306- ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 SOU 		8-94413-325-0 01 1 1306- ● ●
16 CLIP; HARNESS
(B) ID=6 & 10-13 SOU 		8-97069-515-0 02 1 1306- ● ●
16 CLIP; HARNESS
(G) 		8-97101-436-0 01 1 1306- ● ●
16 CLIP; HARNESS
(A) L=155 SOU 		8-97173-307-0 14 1 1306- ● ●
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1306- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1306- ● ●
483 CLIP; ENG HARNESS
(D) ID=19 L=60 		0-95235-896-0 01 1 1306- ● ●
483 CLIP; ENG HARNESS
(A) ID=12 L=70 		1-09700-097-1 01 1 1306- ● ●
483 CLIP; ENG HARNESS
(B) ID=24 L=24 		1-09701-001-1 01 1 1306- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 04 1 1306- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ●
513 TAPE; SOFT,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 SOU 		8-97304-373-0 01 1 1306- ● ●
513 TAPE; SOFT,HARNESS
100X40 SOU 		1-72498-022-1 01 1 1306- ●
530 SEAL; HARNESS
OD=32 BLACK 		8-98031-126-0 01 1 1306- ● ●

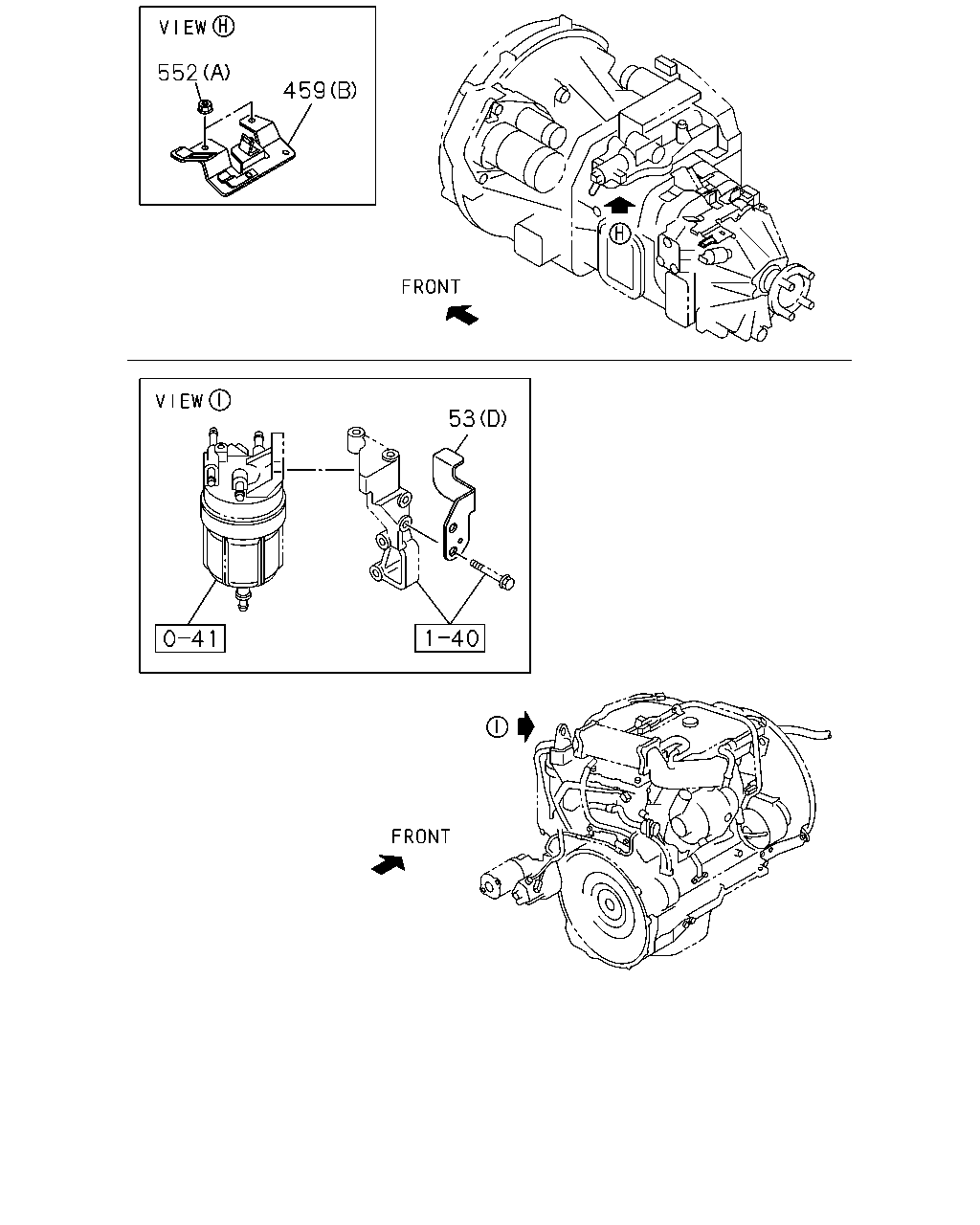

çizim 357614
552 459 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1306- ● ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1306- ● ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(E) 		8-98130-669-1 01 1 1306- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98084-590-0 01 1 1306- ● ●
459 BRACKET; SUPPORT,HARNESS
(A) 		8-97379-633-0 01 1 1306- ● ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98020-227-3 01 1 1306- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
çizim 358554
53 515 515 53 53 53 459 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(D) 		8-98052-804-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 1306- ● ●
53 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1306- ● ●
53 BRACKET; HARNESS
(F) 		8-98077-504-0 01 1 1306- ● ●
53 BRACKET; HARNESS
(E) 		8-98130-669-1 01 1 1306- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98084-590-0 01 1 1306- ● ●
459 BRACKET; SUPPORT,HARNESS
(A) 		8-97379-633-0 01 1 1306- ● ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98020-227-3 01 1 1306- ● ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
515 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
515 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1306- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 1306- ● ●
