8-10 — WIRING HARNESS AND FUSE (#122916) — 133 parça
çizim 357352

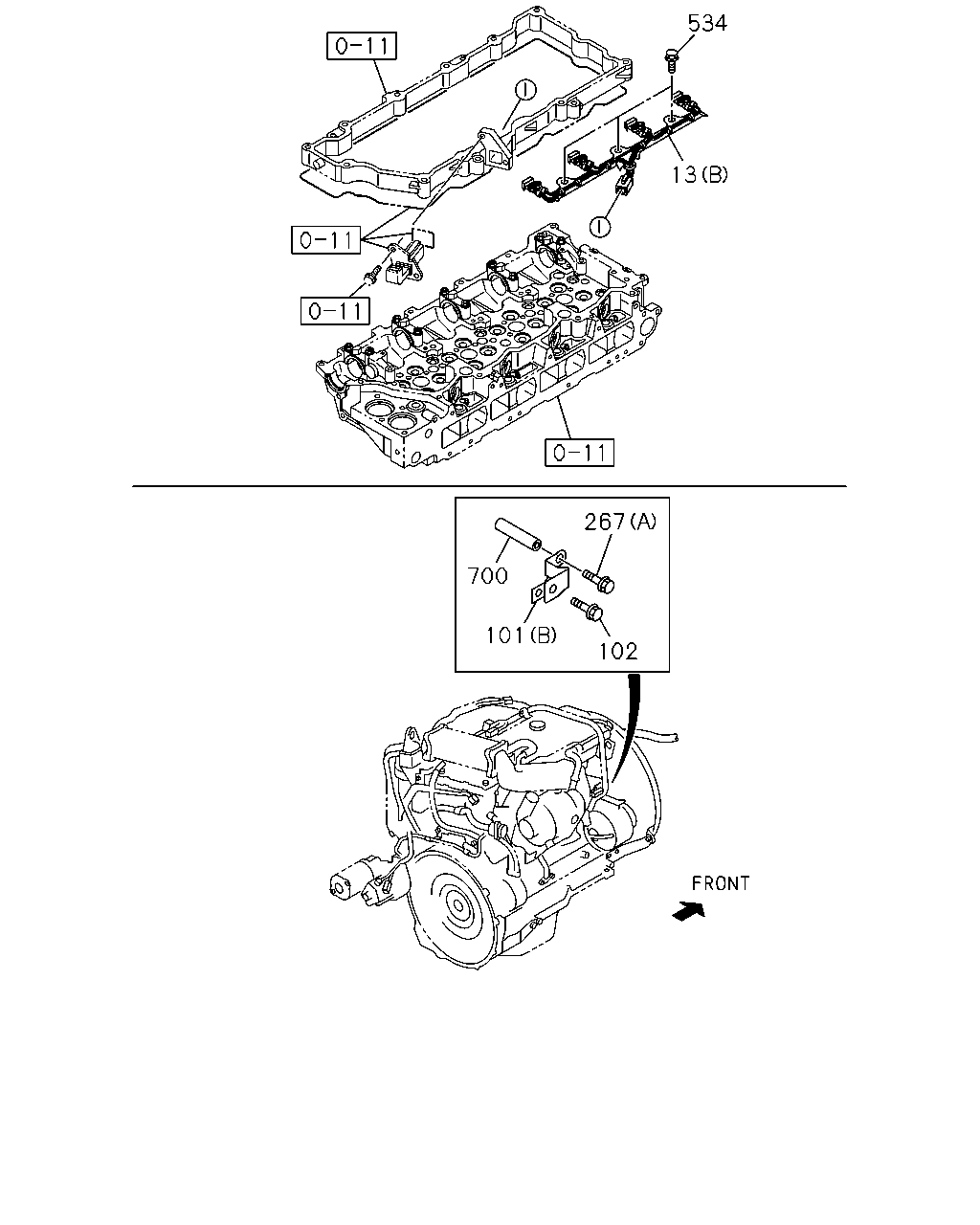

534 13 700 267 102 101
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
GENERATOR 24V50A(6QN) (A) 		8-98209-817-0 01 1 1306-1405 ● ●
13 HARNESS; ENG
GENERATOR 24V50A(6QN) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98209-817-0 01 1 1406-1408 ● ●
13 HARNESS; ENG
GENERATOR 24V50A(6QN) (A) 		8-98209-817-0 01 1 1409- ● ●
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1306- ● ●
13 HARNESS; ENG
GENERATOR 24V80A(7YN) (A) 		8-98209-818-0 01 1 1306-1405 ● ●
13 HARNESS; ENG
GENERATOR 24V80A(7YN) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98209-818-0 01 1 1406-1408 ● ●
13 HARNESS; ENG
GENERATOR 24V80A(7YN) (A) 		8-98209-818-0 01 1 1409- ● ●
101 BRACKET; HARNESS CONNECTOR
(B) 		8-98052-805-0 01 1 1306- ● ●
101 BRACKET; HARNESS CONNECTOR
(A) 		8-98094-483-1 01 1 1306- ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 02 1 1306- ● ●
267 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
267 BOLT; BRKT
(B) M6X12 FLANGE SOU 		0-28050-612-0 02 1 1306- ● ●
267 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE 		0-28156-012-0 01 1 1306- ● ●
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 1306- ● ●
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1306- ● ●
çizim 357433

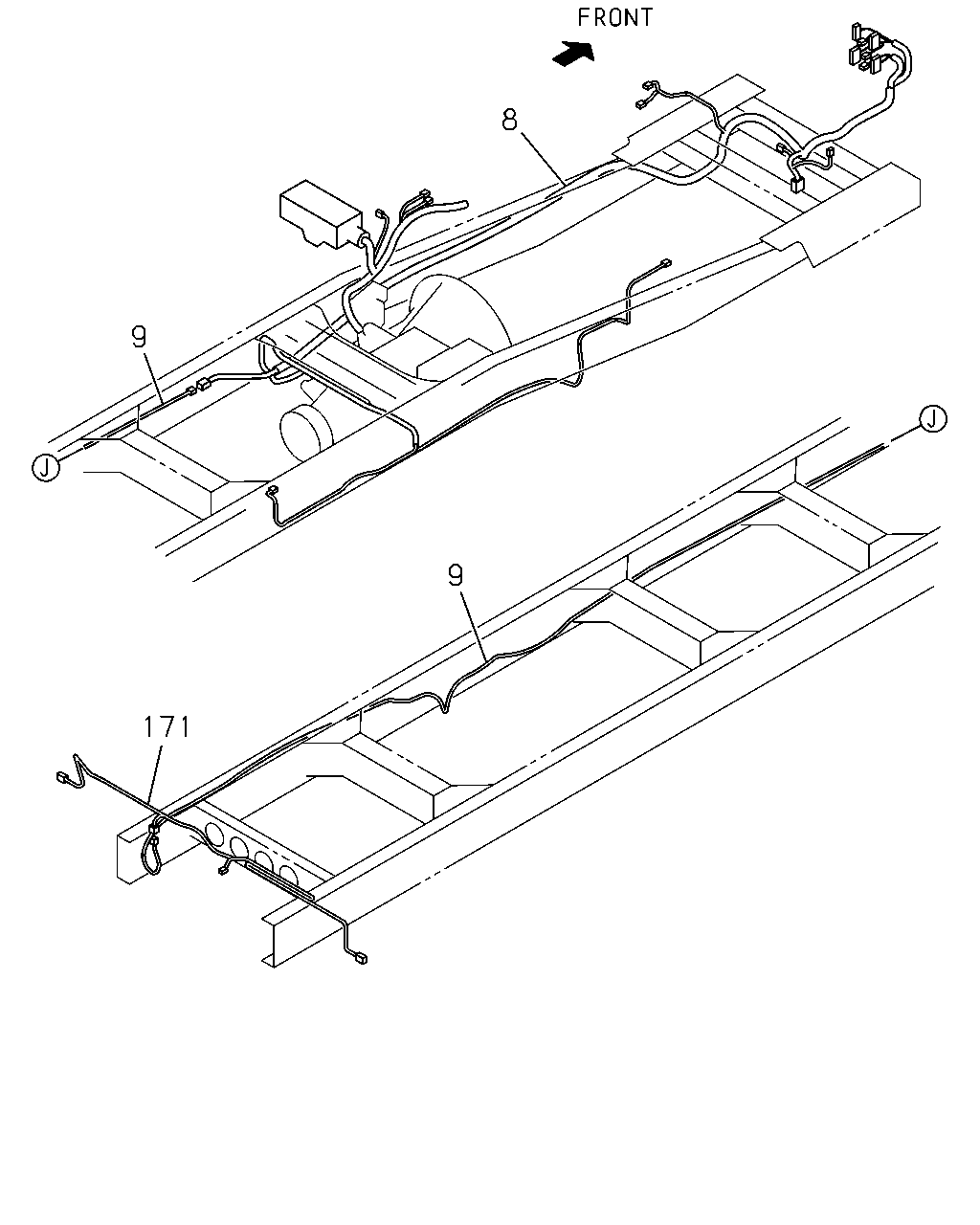

8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98284-390-0 01 1 1406-1409 ●
8 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98294-444-1 01 1 1410- ●
8 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98284-391-0 01 1 1406-1409 ●
8 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98294-445-2 01 1 1410- ●
8 HARNESS; FRAME,FRT 8-98070-261-9 01 1 1306-1405 ●
8 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98070-261-9 01 1 1406-1409 ●
8 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98294-230-0 01 1 1410- ●
8 HARNESS; FRAME,FRT 8-98163-438-1 01 1 1306-1405 ●
8 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-438-1 01 1 1406-1409 ●
8 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98294-290-0 01 1 1410- ●
9 HARNESS; FRAME,RR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98284-455-2 01 1 1406- ● ●
9 HARNESS; FRAME,RR 8-98117-248-0 01 1 1306-1405 ● ●
9 HARNESS; FRAME,RR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-248-0 01 1 1406- ● ●
171 HARNESS; CABLE,TAIL LAMP 8-98156-027-0 01 1 1306- ● ●
çizim 357495

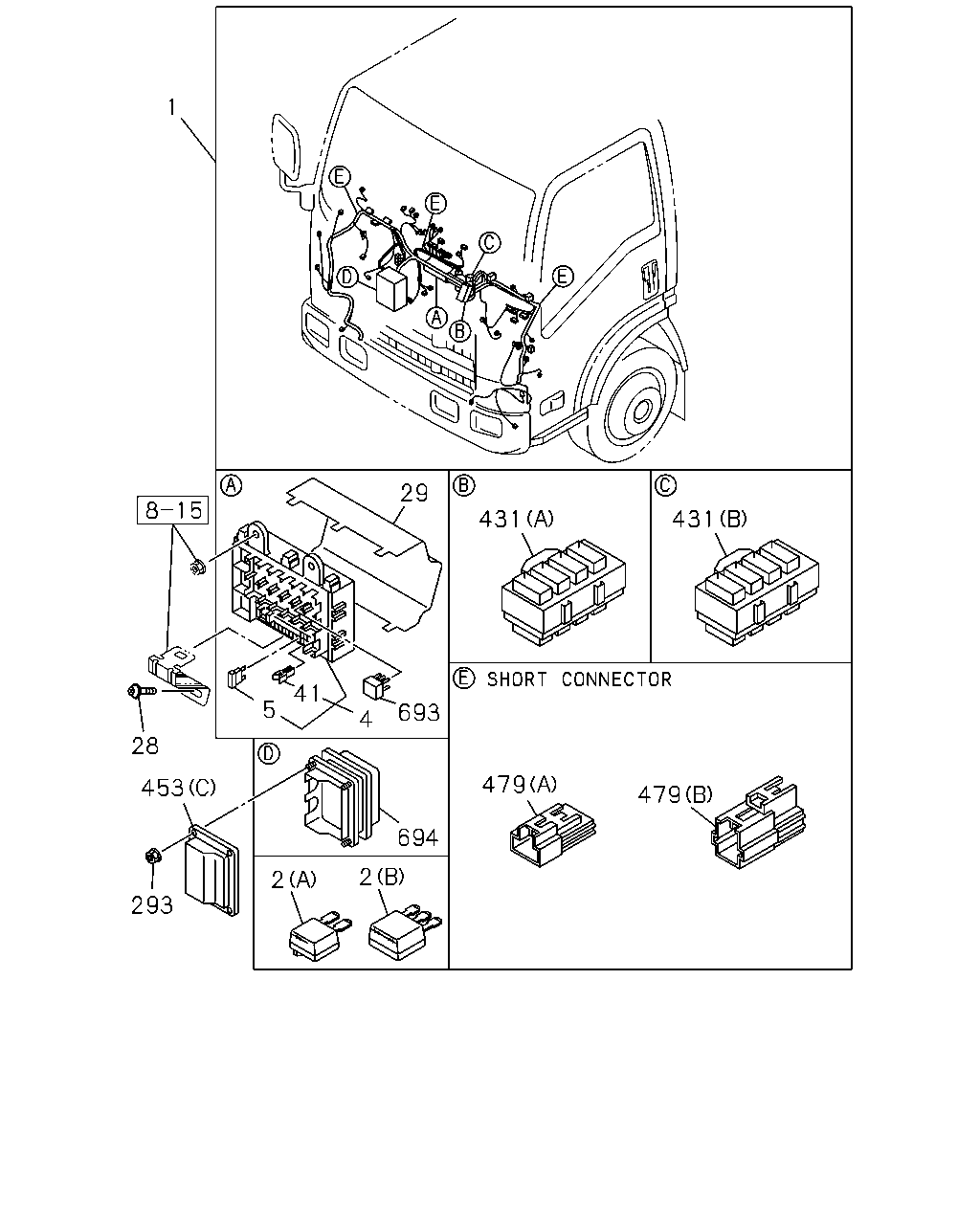

1 29 431 431 479 479 694 2 2 293 453 28 693 4 41 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98285-255-0 01 1 1406- ● ●
1 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98285-254-0 01 1 1406- ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-661-0 01 1 1306-1405 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-98207-661-0 01 1 1406- ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-660-0 01 1 1306-1405 ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-98207-660-0 01 1 1406- ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-561-0 01 1 1306-1405 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-98204-561-0 01 1 1406- ●
2 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A SOU 		8-94422-639-1 AR 1 1306- ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A SOU 		8-94422-640-1 AR 1 1306- ● ●
4 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1306- ● ●
5 FUSE; FACIA HARNESS
10A RED SOU 		8-98054-257-0 AR 1 1306- ● ●
5 FUSE; FACIA HARNESS
15A BLUE SOU 		8-98054-258-0 AR 1 1306- ● ●
5 FUSE; FACIA HARNESS
20A YELLOW SOU 		8-98054-259-0 AR 1 1306- ● ●
28 SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ●
29 COVER; FUSE BOX 8-98056-968-0 01 1 1306- ● ●
41 PULLER; FUSE
SOU 		8-98054-260-0 01 1 1306- ● ●
293 NUT
M6 FLANGE SOU 		0-91180-106-0 04 1 1306- ● ●
431 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 1306- ● ●
431 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1306- ● ●
453 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1306- ● ●
453 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1306- ● ●
453 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1306- ● ●
479 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1306- ● ●
479 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1306- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1306- ● ●
694 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1306- ● ●
çizim 357532

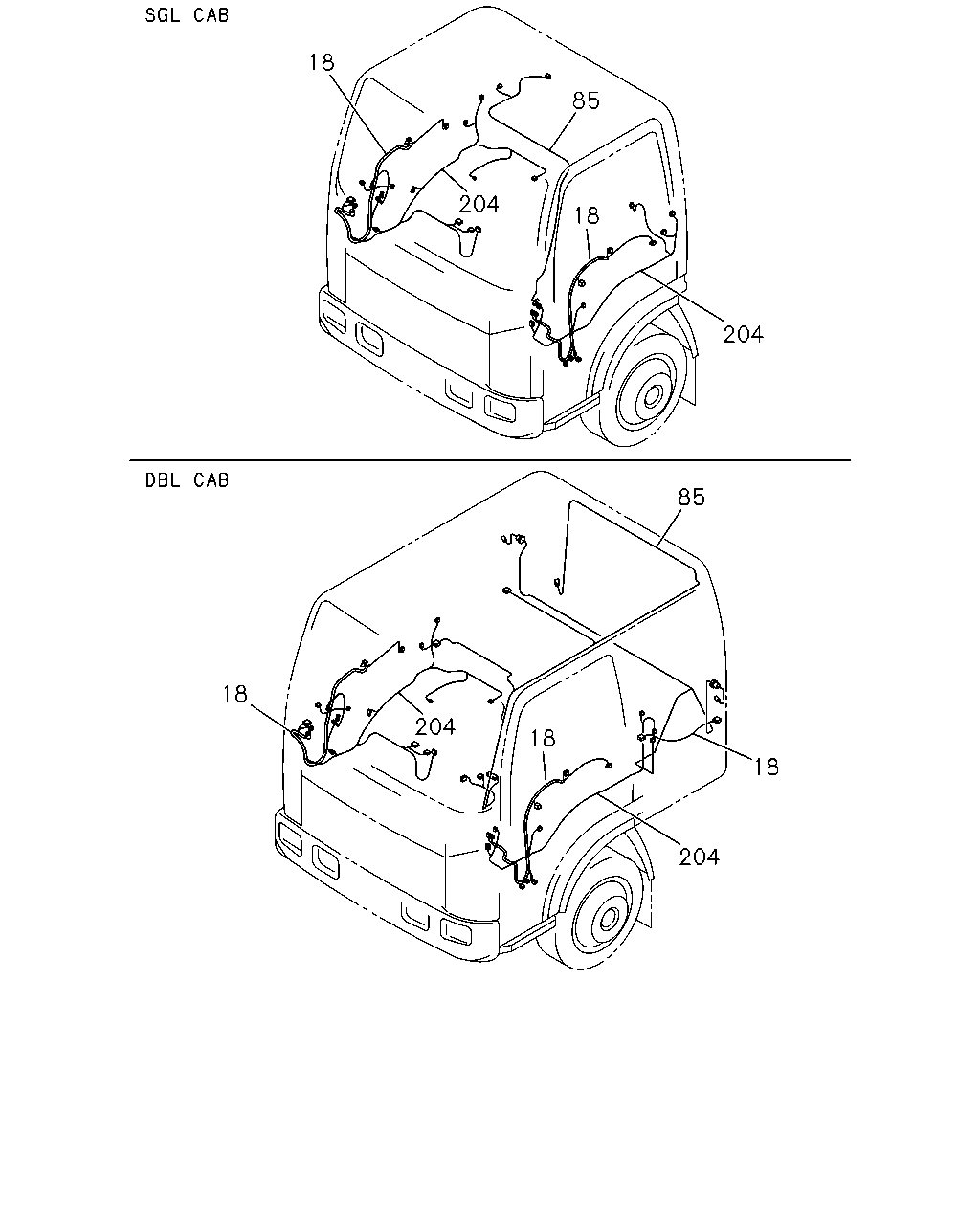

85 204 18 18 204 85 18 204 18 204 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-076-2 01 1 1306- ●
18 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-084-3 01 1 1306- ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98071-075-2 01 1 1306- ●
18 HARNESS; DOOR 8-98071-075-2 01 1 1306- ●
18 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98071-083-2 01 1 1306- ●
18 HARNESS; DOOR 8-98071-083-2 01 1 1306- ●
85 HARNESS; ROOM LAMP 8-98047-149-3 01 1 1306- ●
85 HARNESS; ROOM LAMP 8-98029-741-4 01 1 1306- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98047-157-6 01 1 1306- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98075-612-3 01 1 1306- ●
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-787-4 01 1 1306- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-793-3 01 1 1306- ●
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98074-593-3 01 1 1306- ●
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-791-3 01 1 1306- ●
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-809-3 01 1 1306- ●
çizim 357608

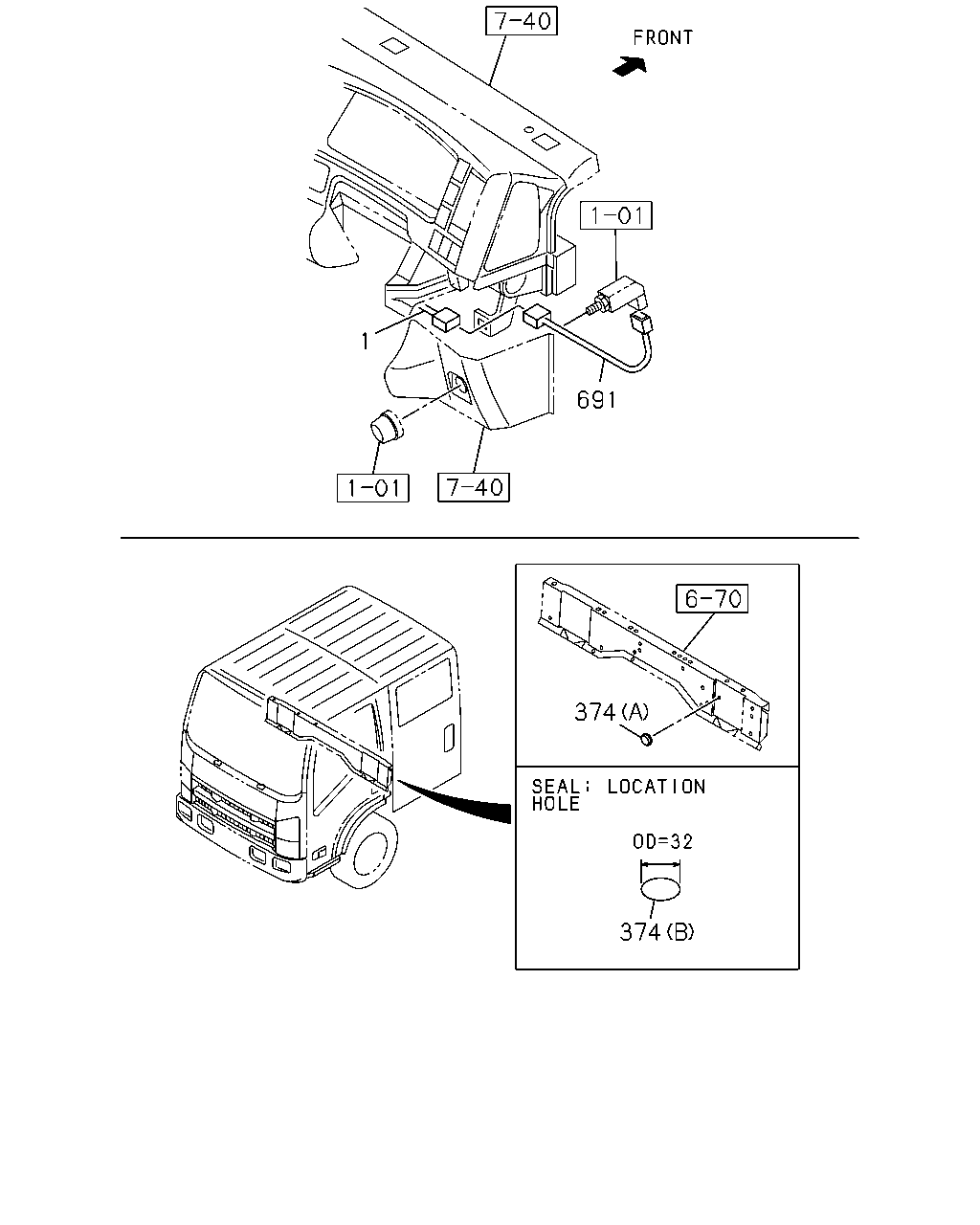

691 1 374 374
BalonParca AdiParca NoAdetTipApplied Date A B
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98285-255-0 01 1 1406- ● ●
1 HARNESS; CAB
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98285-254-0 01 1 1406- ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-661-0 01 1 1306-1405 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-98207-661-0 01 1 1406- ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-660-0 01 1 1306-1405 ● ●
1 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-98207-660-0 01 1 1406- ● ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-561-0 01 1 1306-1405 ●
1 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-98204-561-0 01 1 1406- ●
374 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) OD=32 BLACK 		8-98031-126-0 01 1 1306- ●
374 PLUG; HARNESS CONNECTOR
(B) OD=24.5 T=7.5 		8-97224-683-0 01 1 1306- ●
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1306- ● ●
çizim 357647

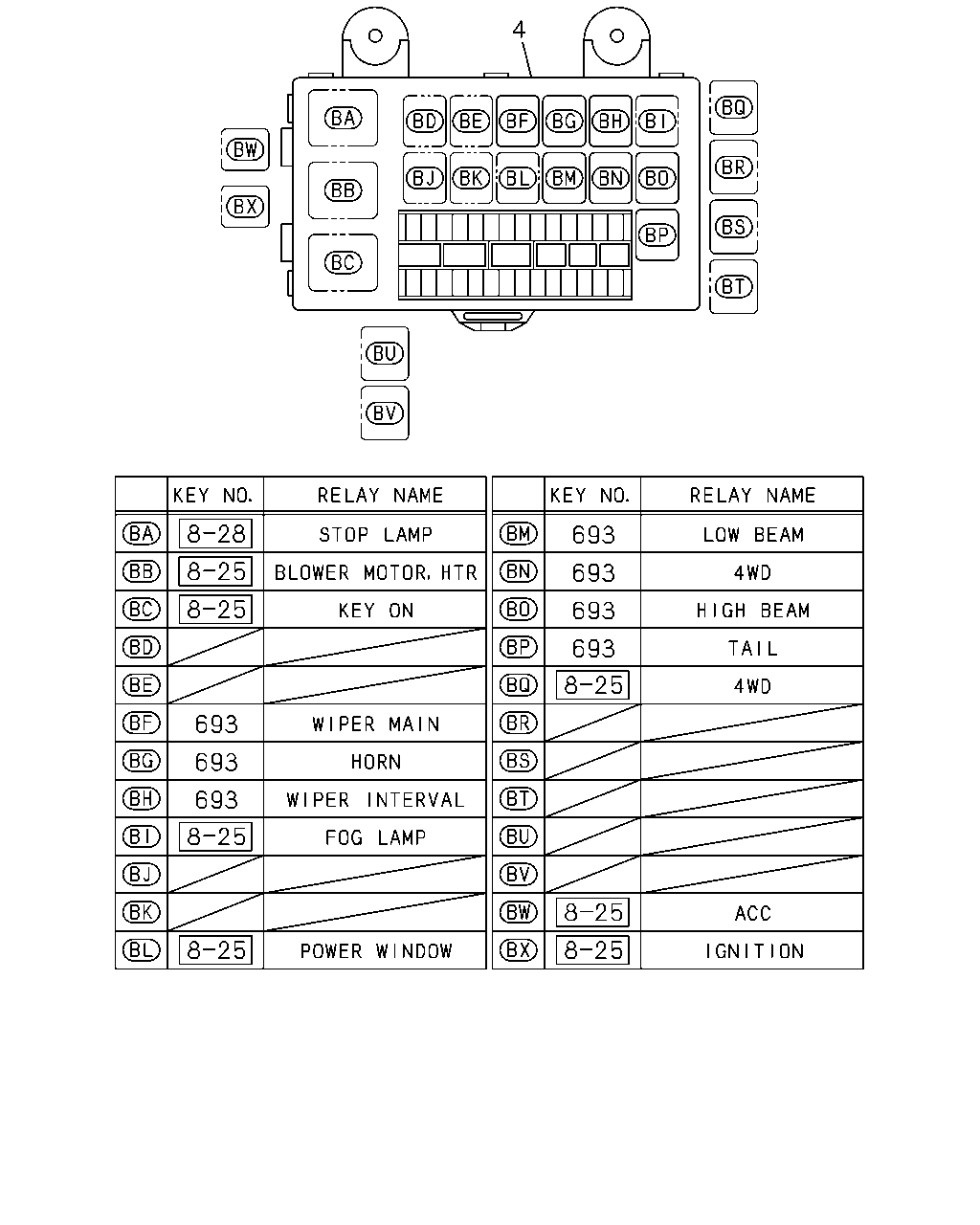

4 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1306- ● ●
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1306- ● ●
çizim 357651

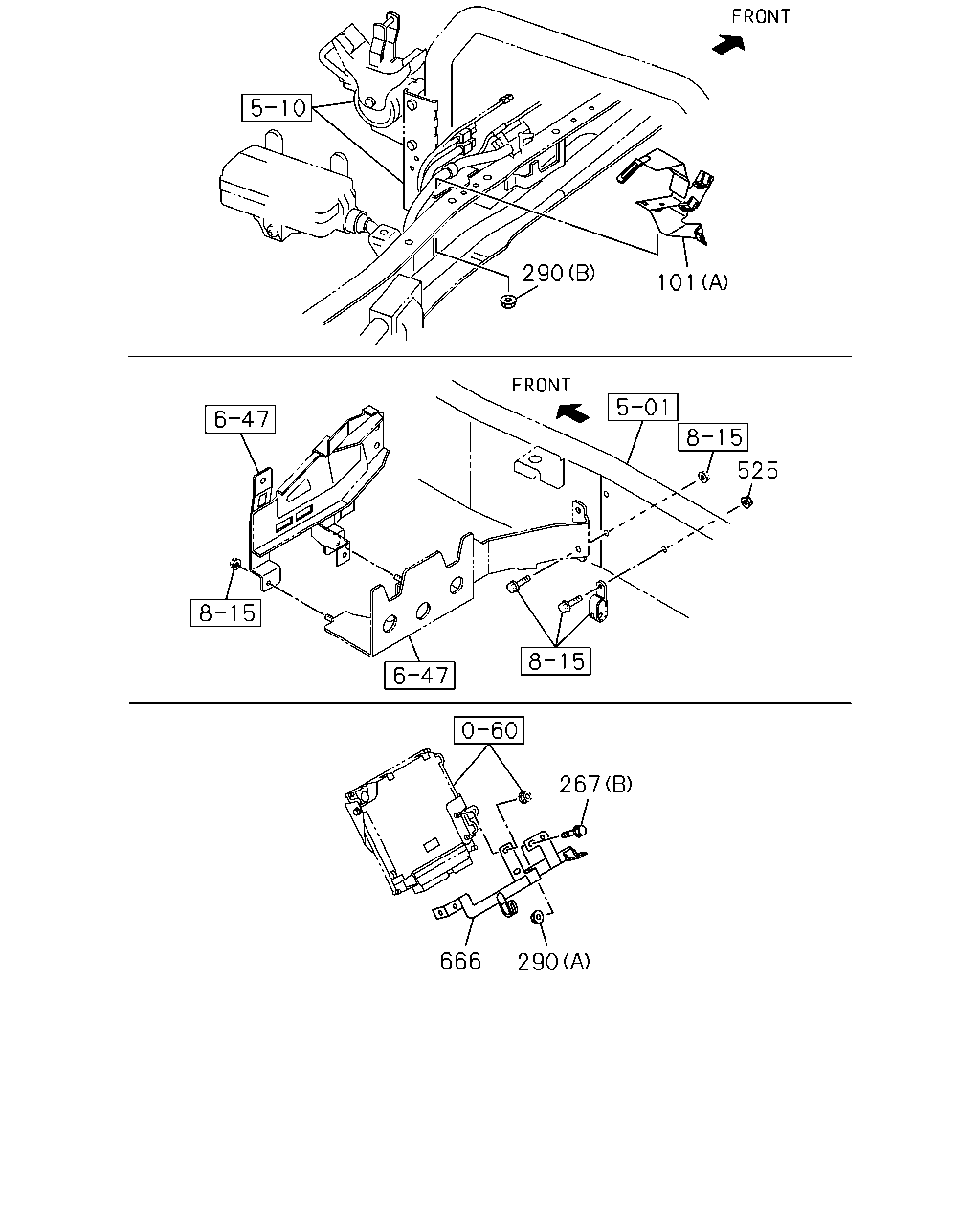

290 101 267 666 290 525
BalonParca AdiParca NoAdetTipApplied Date A B
101 BRACKET; HARNESS CONNECTOR
(B) 		8-98052-805-0 01 1 1306- ● ●
101 BRACKET; HARNESS CONNECTOR
(A) 		8-98094-483-1 01 1 1306- ● ●
267 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
267 BOLT; BRKT
(B) M6X12 FLANGE SOU 		0-28050-612-0 02 1 1306- ● ●
267 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE 		0-28156-012-0 01 1 1306- ● ●
290 NUT; BRKT
(A) M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ●
290 NUT; BRKT
(B) M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
525 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
666 BRACKET; CLIP 8-98110-213-0 01 1 1306- ● ●
çizim 357752

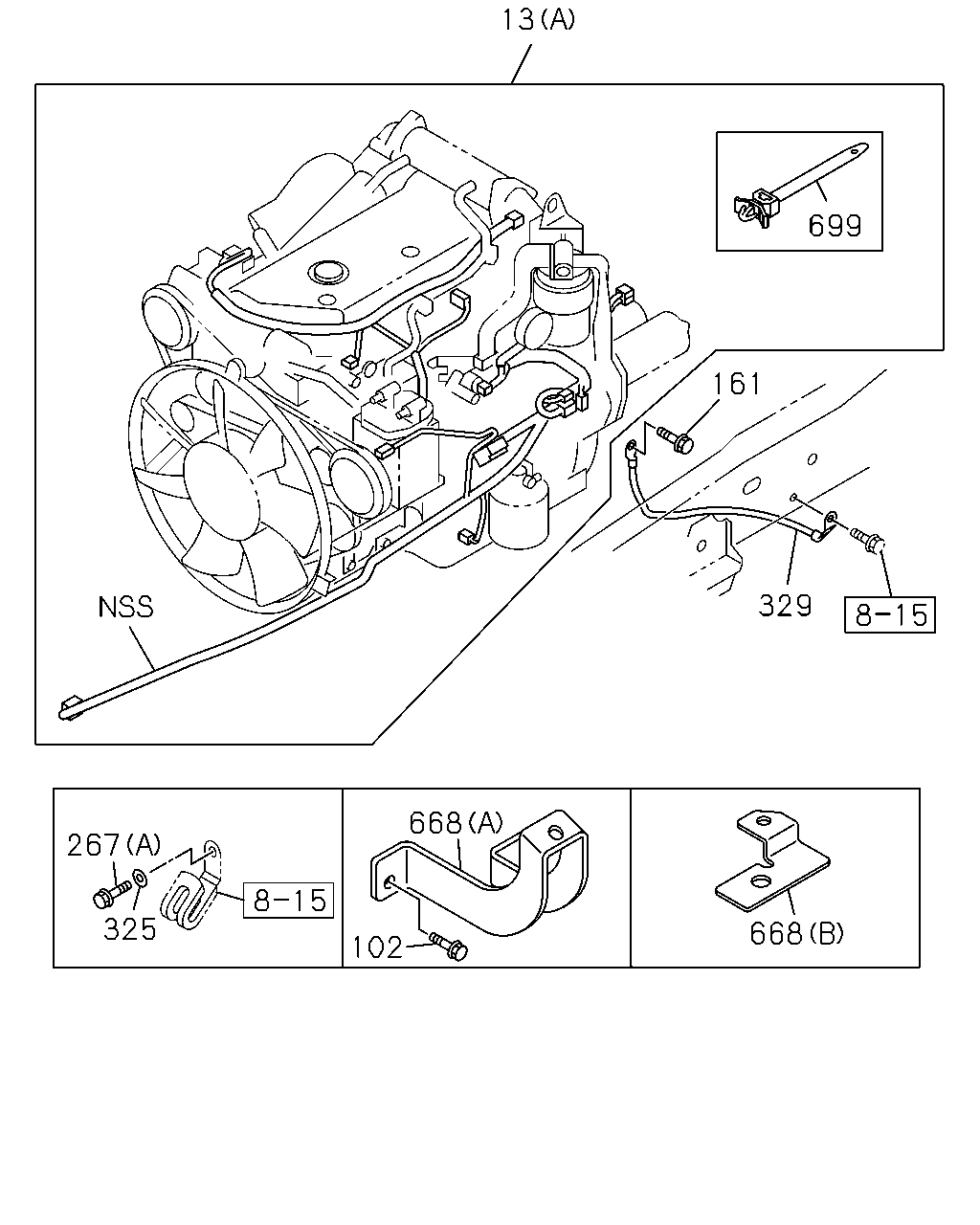

668 668 102 325 267 329 161 13 699
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
GENERATOR 24V50A(6QN) (A) 		8-98209-817-0 01 1 1306-1405 ● ●
13 HARNESS; ENG
GENERATOR 24V50A(6QN) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98209-817-0 01 1 1406-1408 ● ●
13 HARNESS; ENG
GENERATOR 24V50A(6QN) (A) 		8-98209-817-0 01 1 1409- ● ●
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1306- ● ●
13 HARNESS; ENG
GENERATOR 24V80A(7YN) (A) 		8-98209-818-0 01 1 1306-1405 ● ●
13 HARNESS; ENG
GENERATOR 24V80A(7YN) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98209-818-0 01 1 1406-1408 ● ●
13 HARNESS; ENG
GENERATOR 24V80A(7YN) (A) 		8-98209-818-0 01 1 1409- ● ●
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 02 1 1306- ● ●
161 BOLT; GROUND,HARNESS
M8X16 FLANGE SOU 		0-28050-816-0 01 1 1306- ● ●
267 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE 		0-28050-812-0 01 1 1306- ● ●
267 BOLT; BRKT
(B) M6X12 FLANGE SOU 		0-28050-612-0 02 1 1306- ● ●
267 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE 		0-28156-012-0 01 1 1306- ● ●
325 WASHER; PL,BRKT
AIR CONDITIONER MANUAL CONT(C60) ID=8.4 OD=18 		0-91610-608-0 01 1 1306- ● ●
329 CABLE; ENG TO FRAME 8-98102-465-0 01 1 1306- ● ●
668 BRACKET; HARNESS
(A) 		8-98011-484-0 01 1 1306- ● ●
668 BRACKET; HARNESS
(B) 		8-98205-089-0 01 1 1306- ● ●
699 CLIP; ENG HARNESS
L=213.5 		8-98000-506-1 01 1 1306- ● ●
699 CLIP; ENG HARNESS
L=146.2 		8-98052-677-0 01 1 1306- ● ●
çizim 358145

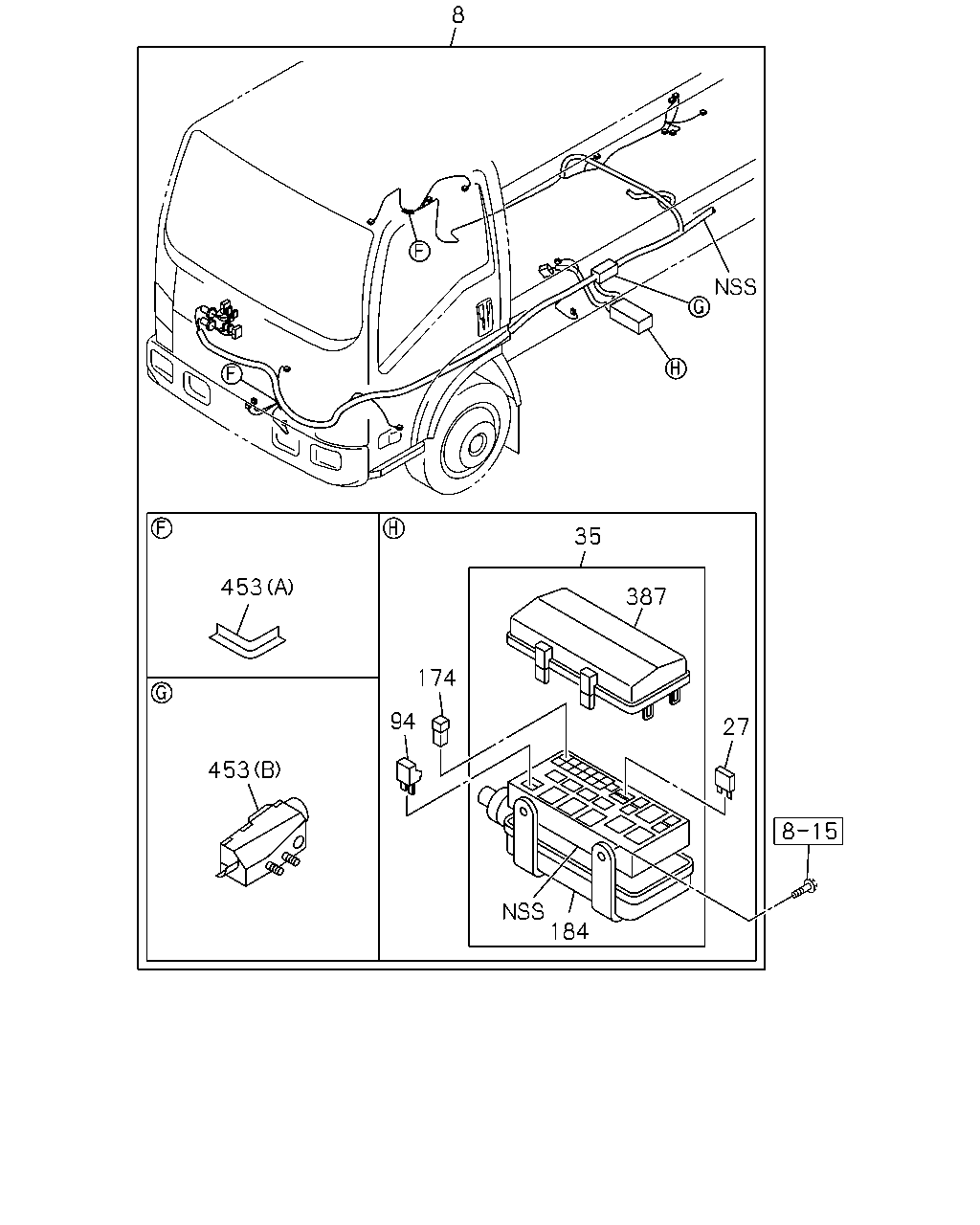

453 453 174 94 35 387 27 184 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98284-390-0 01 1 1406-1409 ●
8 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98294-444-1 01 1 1410- ●
8 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98284-391-0 01 1 1406-1409 ●
8 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) 		8-98294-445-2 01 1 1410- ●
8 HARNESS; FRAME,FRT 8-98070-261-9 01 1 1306-1405 ●
8 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98070-261-9 01 1 1406-1409 ●
8 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98294-230-0 01 1 1410- ●
8 HARNESS; FRAME,FRT 8-98163-438-1 01 1 1306-1405 ●
8 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-438-1 01 1 1406-1409 ●
8 HARNESS; FRAME,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98294-290-0 01 1 1410- ●
27 FUSE UNIT
10A RED SOU 		8-98054-257-0 AR 1 1306- ● ●
35 BOX; RELAY & FUSE 8-98030-763-0 01 1 1306- ● ●
94 DIODE; FRAME HARNESS
BLACK 2P-1.5A SOU 		8-94422-639-1 AR 1 1306- ● ●
174 FUSE; SLOW BLOW
30A PINK SOU 		8-98079-191-0 AR 1 1306-1405 ● ●
174 FUSE; SLOW BLOW
40A GREEN SOU 		8-98079-192-0 AR 1 1306- ● ●
174 FUSE; SLOW BLOW
50A RED SOU 		8-98079-193-0 AR 1 1306- ● ●
174 FUSE; SLOW BLOW
SOU 		8-97219-407-0 AR 1 1306- ● ●
184 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1306- ● ●
387 COVER; RELAY BOX 8-98081-367-0 01 1 1306- ● ●
453 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1306- ● ●
453 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1306- ● ●
453 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1306- ● ●
