7-55 — REAR SEAT (#122911) — 13 parça

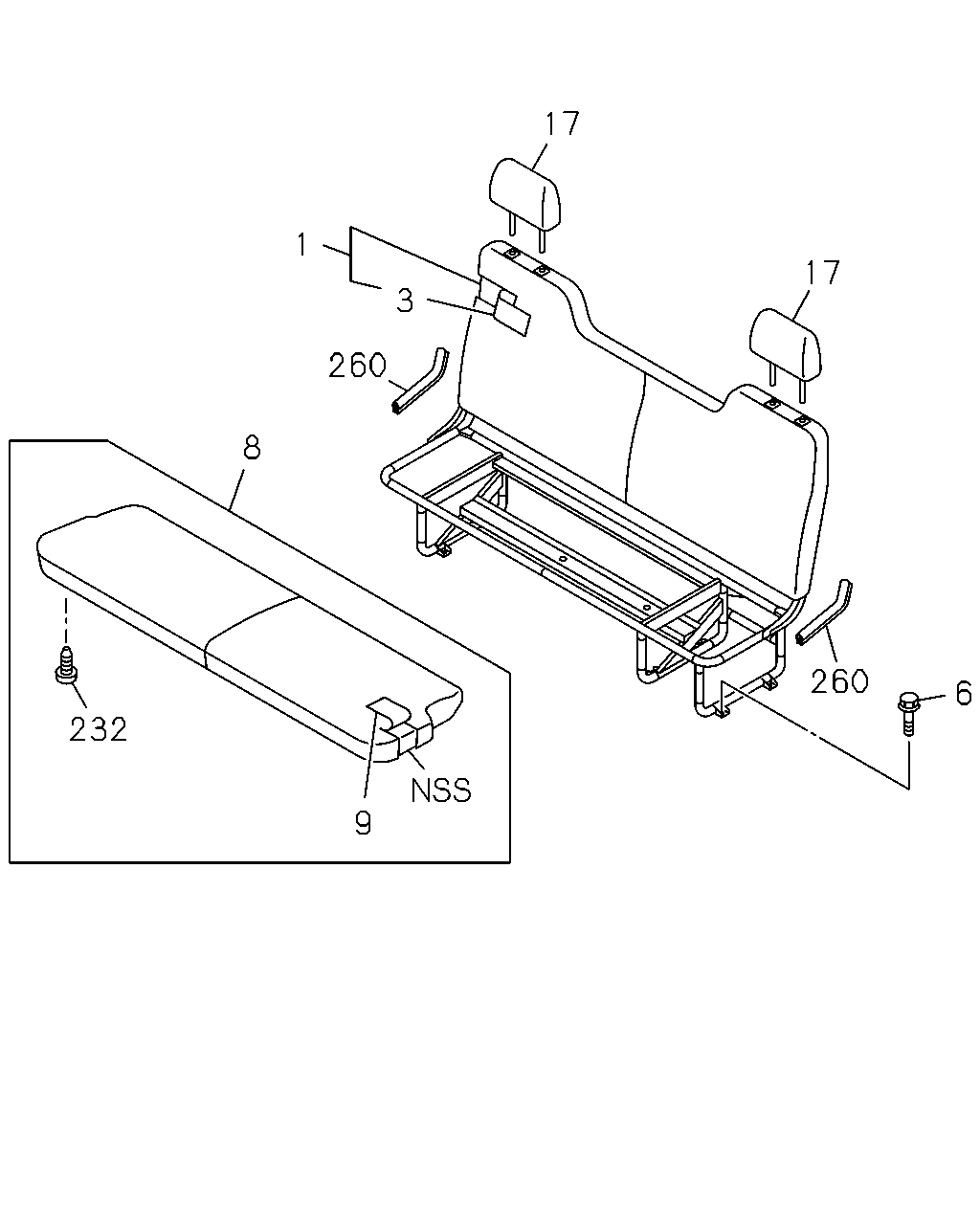

çizim 357384
17 17 1 3 260 6 260 8 9 232
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; RR SEAT
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97409-433-1 01 1 1306-
1 BACK ASM; RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-358-0 01 1 1306-
3 COVER; TRIM,RR SEAT BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97411-867-1 01 1 1306-
3 COVER; TRIM,RR SEAT BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-369-0 01 1 1306-
6 BOLT; RR SEAT
M8X25 W/WASHER 		0-51640-825-0 06 1 1306-
8 CUSHION ASM; RR SEAT
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97409-440-2 01 1 1306-
8 CUSHION ASM; RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-364-0 01 1 1306-
9 COVER ASM; TRIM,RR,CUSHION
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97411-868-0 01 1 1306-
9 COVER ASM; TRIM,RR,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-372-0 01 1 1306-
17 REST; HD,RR SEAT
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97409-447-0 02 1 1306-
17 REST; HD,RR SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-366-0 02 1 1306-
232 SCREW; RR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M6X16 CK-HEAD 		9-03090-616-0 12 1 1306-
260 FINISHER; RR SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> L=250 SERVICED BY L=314 		8-94262-845-0 02 1 1306-
