7-50 — FRONT SEAT (#122910) — 113 parça

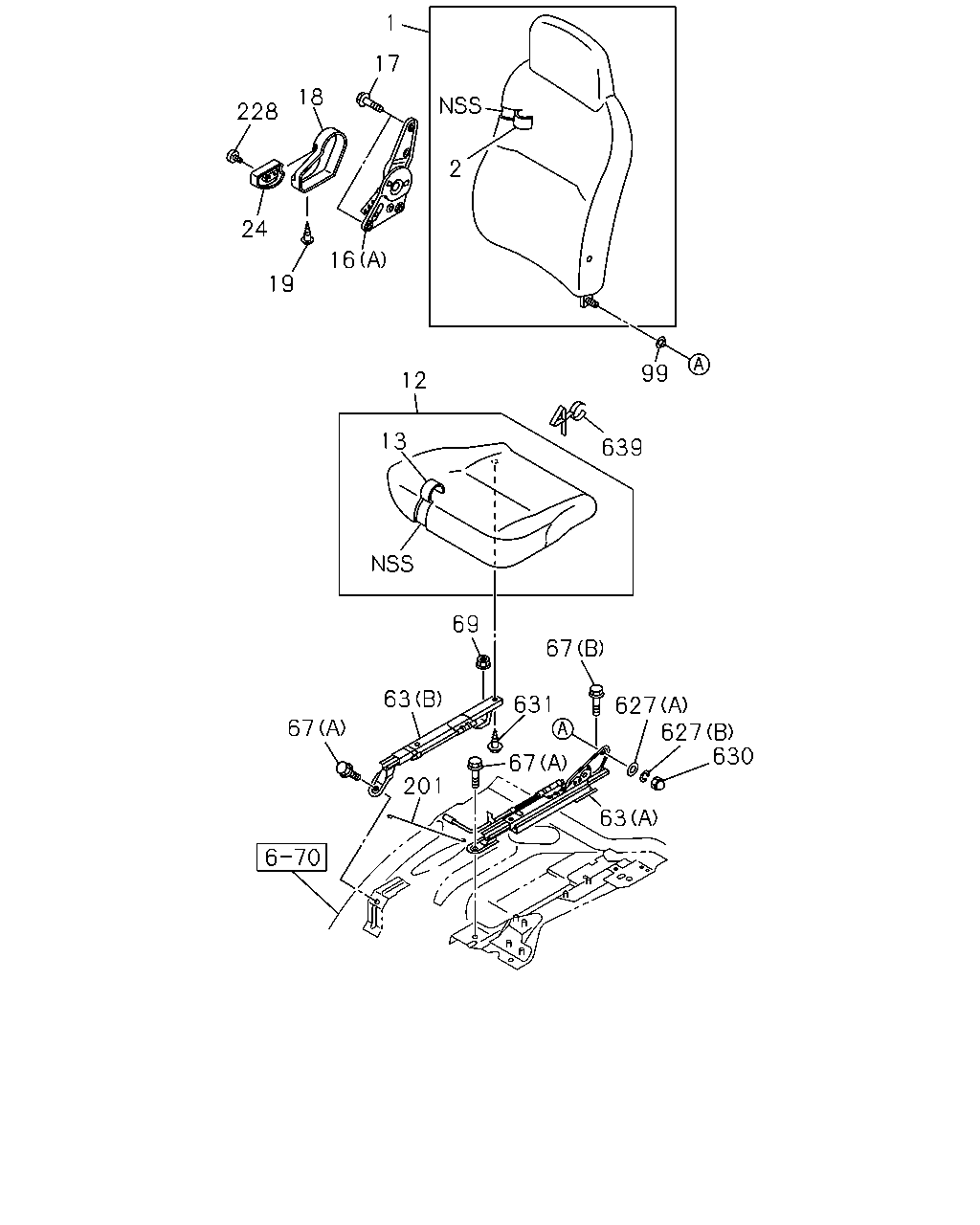

1 17 18 228 24 19 16 2 99 639 12 13 69 63 67 201 67 631 67 627 627 630 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-142-7	01	1	1306-	●
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-142-7	01	1	1306-		●
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-312-7	01	1	1306-	●
1	BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-312-7	01	1	1306-		●
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-235-1	01	1	1306-	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-235-1	01	1	1306-		●
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-234-1	01	1	1306-	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-234-1	01	1	1306-		●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-910-2	01	1	1306-	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97411-910-2	01	1	1306-		●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-318-2	01	1	1306-	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-318-2	01	1	1306-		●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-254-0	01	1	1306-	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-254-0	01	1	1306-		●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-253-0	01	1	1306-	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-253-0	01	1	1306-		●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-143-4	01	1	1306-	●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-322-4	01	1	1306-	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-2	01	1	1306-	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-240-2	01	1	1306-	●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-149-0	01	1	1306-		●
12	CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1306-		●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-248-2	01	1	1306-		●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-2	01	1	1306-		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-144-2	01	1	1306-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-328-2	01	1	1306-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-2	01	1	1306-	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-259-2	01	1	1306-	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-860-0	01	1	1306-		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1306-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-268-2	01	1	1306-		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-2	01	1	1306-		●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB SOU	8-97859-273-3	01	1	1306-	●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB SOU	8-97859-273-3	01	1	1306-		●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB SOU	8-97859-274-3	01	1	1306-	●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB SOU	8-97859-274-3	01	1	1306-		●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1306-	●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98003-087-1	01	1	1306-		●
17	BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	1306-	●
17	BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M10X20	8-98062-661-0	04	1	1306-		●
18	COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	1306-	●
18	COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1306-		●
19	SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1306-	●
19	SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1306-		●
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	1306-	●
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1306-		●
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97382-800-2	01	1	1306-	●
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-97382-800-2	01	1	1306-		●
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-97382-801-1	01	1	1306-	●
63	ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B)	8-97382-801-1	01	1	1306-		●
67	BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1306-	●	●
67	BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1306-	●	●
69	NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1306-	●	●
99	BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	1306-	●
99	BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98112-751-0	01	1	1306-		●
201	CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-1	01	1	1306-	●
201	CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98003-086-1	01	1	1306-		●
228	SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	1306-	●
228	SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1306-		●
627	WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	1306-	●
627	WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98063-223-0	01	1	1306-		●
627	WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	1306-	●
627	WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B)	8-98063-224-0	01	1	1306-		●
630	NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	1306-	●
630	NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8	8-98063-225-0	01	1	1306-		●
631	BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	1306-	●
631	BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X25 W/LK WASHER	8-98062-658-0	02	1	1306-		●
631	BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	1306-	●
631	BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X32 W/LK WASHER	8-98062-659-0	02	1	1306-		●
639	CLIP; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98097-693-0	01	1	1306-		●

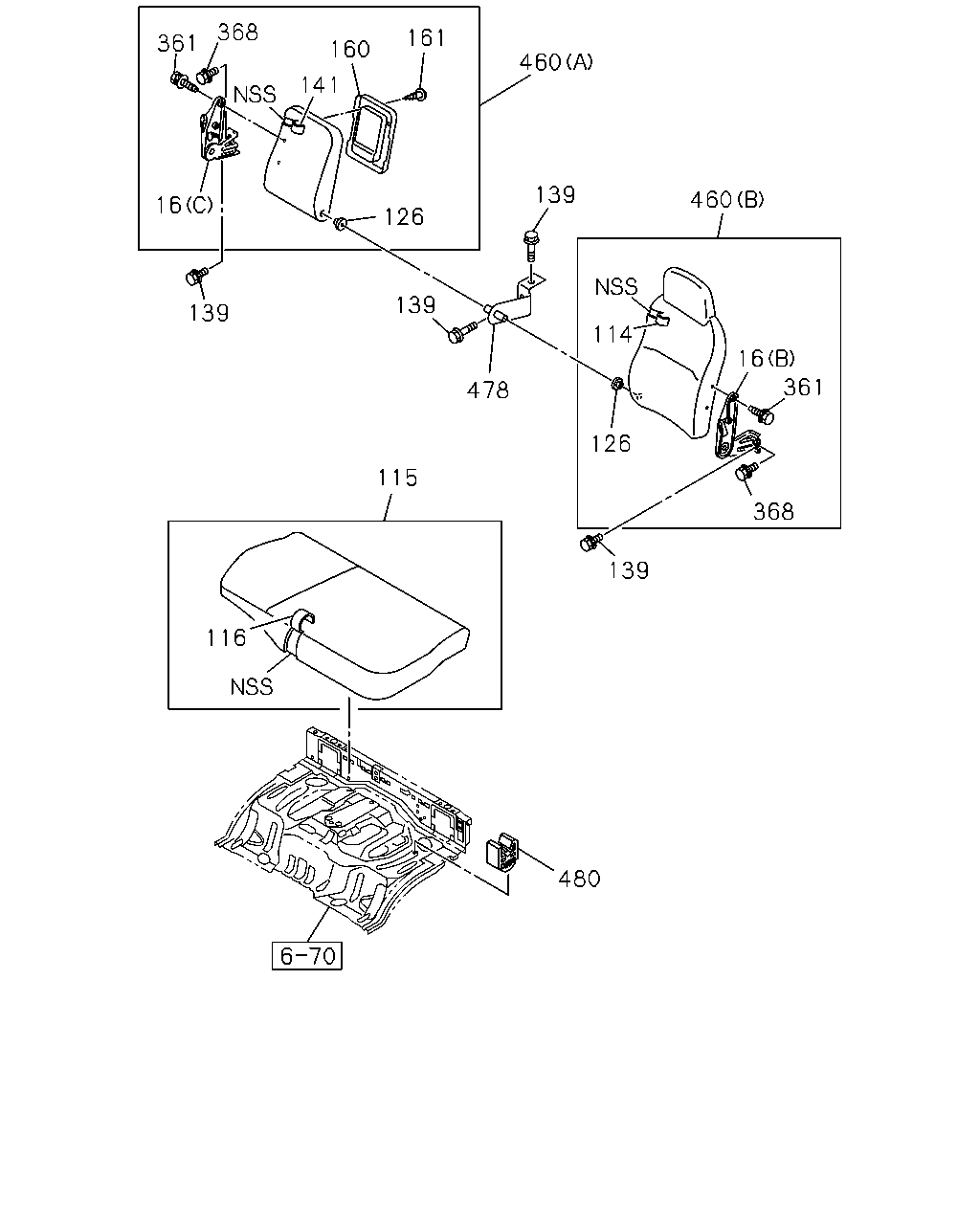

368 361 16 139 141 160 161 126 139 478 139 460 114 126 368 361 16 139 115 116 480 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB SOU	8-97859-273-3	01	1	1306-	●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB SOU	8-97859-273-3	01	1	1306-		●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB SOU	8-97859-274-3	01	1	1306-	●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB SOU	8-97859-274-3	01	1	1306-		●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1306-	●
16	ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98003-087-1	01	1	1306-		●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-720-0	01	1	1306-	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-292-0	01	1	1306-	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-276-1	01	1	1306-		●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-291-0	01	1	1306-		●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-705-2	01	1	1306-	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-320-3	01	1	1306-	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97405-346-5	01	1	1306-		●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-321-3	01	1	1306-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-734-1	01	1	1306-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-340-2	01	1	1306-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-290-3	01	1	1306-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-341-2	01	1	1306-		●
126	BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA>	8-98069-558-0	02	1	1306-	●
126	BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98069-558-0	02	1	1306-		●
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1306-	●	●
141	COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-726-0	01	1	1306-	●
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-306-0	01	1	1306-	●
141	COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-336-2	01	1	1306-		●
141	COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-305-1	01	1	1306-		●
160	CONSOLE; UPR,BACK CENTER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97405-361-1	01	1	1306-	●
160	CONSOLE; UPR,BACK CENTER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97405-361-1	01	1	1306-		●
161	SCREW; CONSOLE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M4X12 SOU	8-94279-351-0	04	1	1306-	●
161	SCREW; CONSOLE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4X12 SOU	8-94279-351-0	04	1	1306-		●
361	BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X18 SOU	8-94279-109-1	04	1	1306-	●
361	BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18 SOU	8-94279-109-1	04	1	1306-		●
368	BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X24.5 W/LK&PL WASHER SOU	8-94279-217-0	02	1	1306-	●
368	BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER SOU	8-94279-217-0	02	1	1306-		●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-691-0	01	1	1306-	●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-697-2	01	1	1306-	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-279-0	01	1	1306-	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-300-1	01	1	1306-	●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> (B) DARK GRAY	8-97405-334-4	01	1	1306-		●
460	BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> (A) DARK GRAY	8-97405-337-4	01	1	1306-		●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-278-0	01	1	1306-		●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97421-299-1	01	1	1306-		●
478	BRACKET ASM; HINGE,PASSENGER SEAT	8-98002-092-0	01	1	1306-	●	●
480	CLIP; CUSHION SOU	8-94279-977-0	05	1	1306-	●	●
